Operator Exam

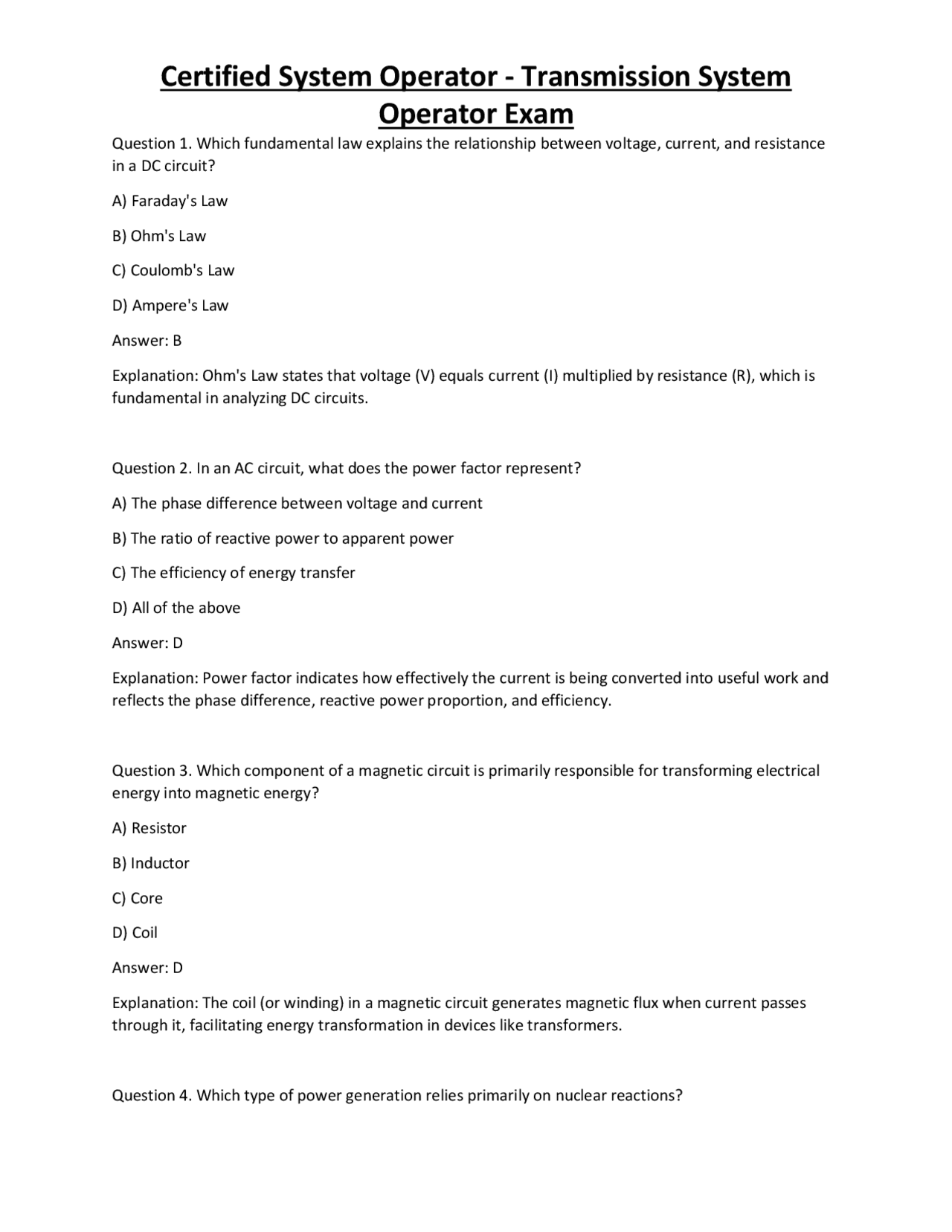

Question 1. Which fundamental law explains the relationship between voltage, current, and resistance in a DC circuit? A) Faraday's Law B) Ohm's Law C) Coulomb's Law D) Ampere's Law Answer: B Explanation: Ohm's Law states that voltage (V) equals current (I) multiplied by resistance (R), which is fundamental in analyzing DC circuits. Question 2. In an AC circuit, what does the power factor represent? A) The phase difference between voltage and current B) The ratio of reactive power to apparent power C) The efficiency of energy transfer D) All of the above Answer: D Explanation: Power factor indicates how effectively the current is being converted into useful work and reflects the phase difference, reactive power proportion, and efficiency. Question 3. Which component of a magnetic circuit is primarily responsible for transforming electrical energy into magnetic energy? A) Resistor B) Inductor C) Core D) Coil Answer: D Explanation: The coil (or winding) in a magnetic circuit generates magnetic flux when current passes through it, facilitating energy transformation in devices like transformers. Question 4. Which type of power generation relies primarily on nuclear reactions?
Operator Exam
A) Hydro B) Solar C) Nuclear D) Wind Answer: C Explanation: Nuclear power generation uses nuclear fission reactions to produce heat, which is then converted into electrical energy. Question 5. What is the primary energy conversion process in a hydroelectric power plant? A) Mechanical to electrical B) Chemical to electrical C) Potential energy to kinetic energy to electrical energy D) Nuclear to thermal to electrical Answer: C Explanation: Hydropower converts potential energy stored in water into kinetic energy as water flows, which then drives turbines to generate electrical energy. Question 6. Which transmission component is primarily used to step voltage levels up or down? A) Circuit breaker B) Transformer C) Recloser D) Capacitor bank Answer: B Explanation: Transformers are used to change voltage levels efficiently, either stepping up for transmission or stepping down for distribution. Question 7. What is the main purpose of a circuit breaker in a power system? A) To regulate voltage B) To switch loads
Operator Exam
Explanation: Underground cables require higher insulation levels due to their burial and limited cooling, unlike overhead lines. Question 11. Which model is used to analyze the performance of a long transmission line? A) Short line model B) Medium line model C) Long line model D) Equivalent circuit model Answer: C Explanation: Long transmission line models account for distributed capacitance and inductance, providing accurate performance characteristics. Question 12. What is a primary challenge of EHV (Extra High Voltage) transmission systems? A) High line losses B) Electromagnetic interference and corona discharge C) Low power transfer capacity D) Difficulty in insulation design Answer: B Explanation: EHV lines face challenges like corona discharge and electromagnetic interference, requiring special design considerations. Question 13. Which system component is crucial for real-time voltage and power flow control? A) SCADA system B) Protective relay C) Circuit breaker D) Energy meter Answer: A Explanation: SCADA provides real-time data and control capabilities for monitoring and adjusting system voltage and power flows.
Operator Exam
Question 14. Reactive power management primarily aims to: A) Maximize real power flow B) Maintain voltage stability C) Reduce transmission losses D) Increase system frequency Answer: B Explanation: Proper reactive power management helps maintain voltage levels within acceptable limits, ensuring system stability. Question 15. Which operational limit defines the maximum power flow permissible without risking system stability? A) System Operating Limit (SOL) B) Interconnection Reliability Operating Limit (IROL) C) Voltage Stability Limit D) Thermal Limit Answer: A Explanation: SOLs specify the maximum power flow that can be maintained reliably without causing instability or equipment damage. Question 16. What does SCADA stand for? A) Supervisory Control and Data Acquisition B) System Control and Data Analysis C) Supervisory Communication and Data Automation D) Systematic Control and Data Arrangement Answer: A Explanation: SCADA is a system that provides supervisory control and real-time data acquisition for power system operation. Question 17. Which switching procedure is safest when isolating a section of transmission line? A) Opening the line at the source end only
Operator Exam
D) A cyber security standard Answer: B Explanation: RAS are automated schemes designed to perform corrective actions, like load shedding, during system disturbances to prevent cascading failures. Question 21. When a severe weather event causes a system disturbance, what is the first priority for a transmission operator? A) Increase generation B) Isolate affected sections and ensure system stability C) Initiate blackstart procedures D) Restart the control center Answer: B Explanation: The immediate response involves isolating affected parts and stabilizing the system to prevent further cascading outages. Question 22. Which emergency procedure involves systematically restoring power after a blackout? A) Load shedding B) System restoration plan C) Fault isolation D) System energization Answer: B Explanation: System restoration involves a coordinated, step-by-step process to bring the system back online safely after a blackout. Question 23. What does a Loss of Control Center Functionality typically require? A) Manual operation of all relays B) Pre-established emergency protocols and backup communication systems C) Redundant power supplies only D) Immediate shutdown of the entire system Answer: B
Operator Exam
Explanation: Backup procedures and communication systems are essential to maintain operations if the control center fails. Question 24. Which analysis helps identify vulnerabilities by simulating potential system failures? A) Load flow analysis B) Contingency analysis C) Short circuit analysis D) Stability analysis Answer: B Explanation: Contingency analysis evaluates system responses to potential failures, helping operators assess vulnerabilities. Question 25. How should operators respond to an anticipated capacity deficiency? A) Increase load without notification B) Implement demand response and generation adjustments C) Reduce system voltage D) Defer maintenance activities Answer: B Explanation: Operators can mitigate capacity shortages by managing demand and adjusting generation resources proactively. Question 26. Which NERC standard relates specifically to the reliable operation of the transmission system? A) TOP standards B) PRC standards C) CIP standards D) EOP standards Answer: A Explanation: TOP (Transmission Operations) standards focus on ensuring the reliable operation and control of transmission systems.
Operator Exam
A) To reduce operational costs B) To ensure coordinated and reliable system operation C) To increase system redundancy D) To simplify maintenance procedures Answer: B Explanation: Accurate data exchange enables coordinated control actions, preventing conflicts and ensuring system stability. Question 31. Which type of transmission line model considers distributed parameters like capacitance and inductance? A) Short line model B) Medium line model C) Long line model D) Equivalent circuit model Answer: C Explanation: Long line models account for distributed parameters, providing more accurate analysis for long transmission lines. Question 32. What is a key operational challenge unique to EHV (Extra High Voltage) lines? A) Increased line losses B) Corona discharge leading to radio interference C) Limited power transmission capacity D) Reduced insulation requirements Answer: B Explanation: EHV lines are prone to corona discharge, which can cause radio interference and insulation issues. Question 33. Which equipment is used to measure the phase difference between voltage and current? A) Wattmeter B) Power factor meter
Operator Exam
C) Volt-Amp meter D) Frequency meter Answer: B Explanation: Power factor meters measure the phase difference, indicating the power factor of the system. Question 34. What is the purpose of a tap changer in a transformer? A) To protect the transformer B) To regulate the output voltage C) To switch between different circuits D) To measure current flow Answer: B Explanation: Tap changers adjust transformer taps to regulate the output voltage according to system needs. Question 35. Which type of relay is most appropriate for detecting phase-to-ground faults? A) Distance relay B) Overcurrent relay C) Differential relay D) Ground fault relay Answer: D Explanation: Ground fault relays are designed specifically to detect faults involving ground, such as phase-to-ground faults. Question 36. Which protective scheme automatically trips multiple circuits to prevent cascading failures? A) Overcurrent protection B) Remedial Action Scheme (RAS) C) Differential protection D) Underfrequency relay
Operator Exam
Question 40. Which external factor can cause geomagnetic disturbances affecting power systems? A) Severe storms B) Solar storms C) Earthquakes D) Floods Answer: B Explanation: Solar storms cause geomagnetic disturbances that can induce currents in transmission lines, affecting system stability. Question 41. What is the primary purpose of load forecasting? A) To predict future system failures B) To estimate future power demand for planning C) To determine customer billing D) To schedule maintenance Answer: B Explanation: Load forecasting predicts future demand, enabling operators to plan generation and system operations effectively. Question 42. Which communication protocol is commonly used for real-time data exchange between control centers? A) HTTP B) DNP C) FTP D) SMTP Answer: B Explanation: DNP3 (Distributed Network Protocol) is widely used in power systems for reliable, secure real-time data exchange. Question 43. Which of the following is a key feature of protective relaying systems?
Operator Exam
A) Manual operation only B) Automatic detection and isolation of faults C) Power factor correction D) Voltage regulation Answer: B Explanation: Protective relays automatically detect faults and initiate circuit breaker operation to isolate affected areas. Question 44. Which NERC standard deals specifically with the reliability of the bulk power system during emergencies? A) TOP B) EOP C) CIP D) PRC Answer: B Explanation: EOP (Emergency Operations) standards define protocols for maintaining reliability during system emergencies. Question 45. Which is a typical responsibility of a Transmission System Operator during an outage? A) Design system architecture B) Coordinate switching and ensure system stability C) Develop new generation sources D) Conduct customer billing Answer: B Explanation: The TSO coordinates switching operations and maintains system stability during outages. Question 46. What is the primary function of a capacitor bank in transmission systems? A) Increase system frequency B) Provide reactive power support
Operator Exam
Answer: B Explanation: Short line models assume negligible capacitance and are used for lines typically less than 80 km. Question 50. In power system protection, what does a differential scheme primarily detect? A) Overvoltage conditions B) Internal faults within protected zones C) External faults only D) Frequency deviations Answer: B Explanation: Differential schemes detect faults within a specific zone by comparing current differences at different points. Question 51. Which device is used to disconnect a transformer during abnormal conditions? A) Recloser B) Circuit breaker C) Disconnect switch D) Surge arrester Answer: B Explanation: Circuit breakers are used to isolate transformers during faults or maintenance. Question 52. Which instrument is used to measure the energy consumption over time? A) Voltmeters B) Ammeters C) Wattmeters D) Energy meters Answer: D Explanation: Energy meters record the total energy consumed over a period, useful for billing and load analysis.
Operator Exam
Question 53. What is the main advantage of underground cables over overhead lines? A) Lower initial installation cost B) Better resistance to weather and environmental factors C) Easier to repair D) Higher transmission capacity Answer: B Explanation: Underground cables are less susceptible to weather, storms, and environmental damage, offering better reliability. Question 54. Which model is most suitable for analyzing the performance of a medium-length transmission line? A) Short line model B) Medium line model C) Long line model D) Equivalent circuit model Answer: B Explanation: The medium line model considers both distributed parameters and simplified lumped parameters for lines typically 80-250 km. Question 55. What is a significant operational challenge associated with EHV (Extra High Voltage) systems? A) Increased corona discharge leading to radio interference B) Reduced insulation requirements C) Lower power transfer capacity D) Decreased line losses Answer: A Explanation: Corona discharge at EHV levels can cause radio interference and insulation stress, requiring special design measures.
Operator Exam
B) To perform automatic corrective actions during system disturbances C) To schedule maintenance D) To monitor cyber security Answer: B Explanation: RAS automates corrective actions, such as load shedding or switching, to maintain system stability during disturbances. Question 60. Which external event can cause geomagnetic disturbances impacting power system operations? A) Solar storms B) Hurricanes C) Earthquakes D) Floods Answer: A Explanation: Solar storms cause geomagnetic disturbances that induce currents in transmission lines, affecting system reliability. Question 61. During a contingency analysis, what does a system's inability to maintain stability indicate? A) System is resilient B) System is vulnerable to failure C) System is operating normally D) No action needed Answer: B Explanation: Failure to maintain stability indicates vulnerabilities that could lead to outages or cascading failures. Question 62. Which standard addresses cybersecurity measures for the electric power grid? A) TOP B) CIP C) PRC
Operator Exam
D) EOP
Answer: B Explanation: CIP (Critical Infrastructure Protection) standards include cybersecurity requirements for protecting critical assets. Question 63. Which type of relay operates based on the comparison of currents at two different points to detect internal faults? A) Distance relay B) Differential relay C) Overcurrent relay D) Underfrequency relay Answer: B Explanation: Differential relays compare currents at different points; differences indicate internal faults. Question 64. Which instrument transforms high current or voltage to a measurable level for metering? A) Instrument transformer B) Voltage regulator C) Power factor correction device D) Circuit breaker Answer: A Explanation: Instrument transformers (current and potential transformers) step down high currents or voltages to measurable levels. Question 65. In SCADA systems, what does the term "data acquisition" primarily refer to? A) Data storage B) Collecting real-time operational data C) Data encryption D) Data analysis Answer: B
