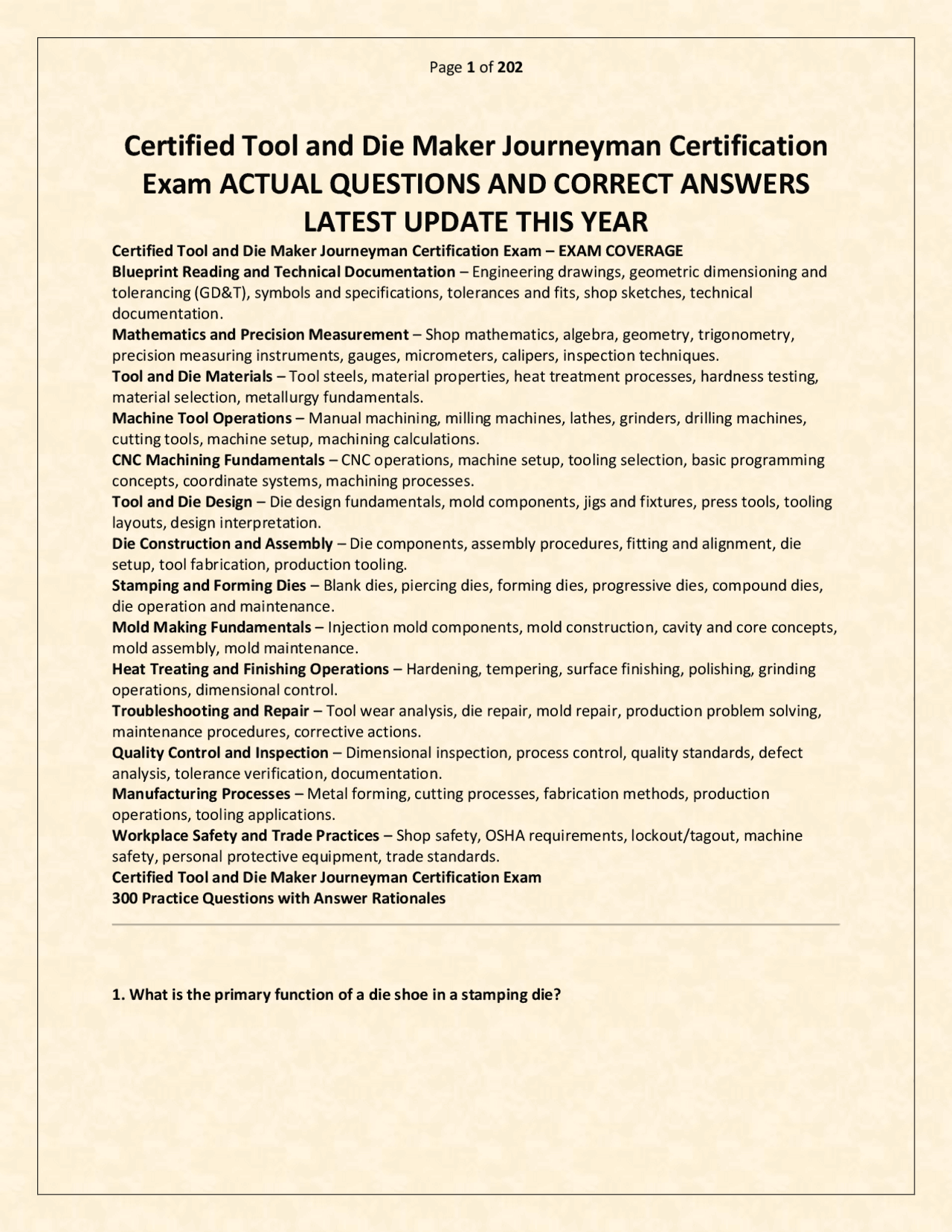

Certified Tool and Die Maker Journeyman Certification
Exam ACTUAL QUESTIONS AND CORRECT ANSWERS
LATEST UPDATE THIS YEAR
Certified Tool and Die Maker Journeyman Certification Exam – EXAM COVERAGE Blueprint Reading and Technical Documentation – Engineering drawings, geometric dimensioning and tolerancing (GD&T), symbols and specifications, tolerances and fits, shop sketches, technical documentation. Mathematics and Precision Measurement – Shop mathematics, algebra, geometry, trigonometry, precision measuring instruments, gauges, micrometers, calipers, inspection techniques. Tool and Die Materials – Tool steels, material properties, heat treatment processes, hardness testing, material selection, metallurgy fundamentals. Machine Tool Operations – Manual machining, milling machines, lathes, grinders, drilling machines, cutting tools, machine setup, machining calculations. CNC Machining Fundamentals – CNC operations, machine setup, tooling selection, basic programming concepts, coordinate systems, machining processes. Tool and Die Design – Die design fundamentals, mold components, jigs and fixtures, press tools, tooling layouts, design interpretation. Die Construction and Assembly – Die components, assembly procedures, fitting and alignment, die setup, tool fabrication, production tooling. Stamping and Forming Dies – Blank dies, piercing dies, forming dies, progressive dies, compound dies, die operation and maintenance. Mold Making Fundamentals – Injection mold components, mold construction, cavity and core concepts, mold assembly, mold maintenance. Heat Treating and Finishing Operations – Hardening, tempering, surface finishing, polishing, grinding operations, dimensional control. Troubleshooting and Repair – Tool wear analysis, die repair, mold repair, production problem solving, maintenance procedures, corrective actions. Quality Control and Inspection – Dimensional inspection, process control, quality standards, defect analysis, tolerance verification, documentation. Manufacturing Processes – Metal forming, cutting processes, fabrication methods, production operations, tooling applications. Workplace Safety and Trade Practices – Shop safety, OSHA requirements, lockout/tagout, machine safety, personal protective equipment, trade standards. Certified Tool and Die Maker Journeyman Certification Exam 300 Practice Questions with Answer Rationales
1. What is the primary function of a die shoe in a stamping die?
A. To cut the part B. To provide a base plate for mounting die components C. To form the part D. To strip the part from the punch Correct Answer: B Rationale: A die shoe is the bottom plate that supports the die assembly and mounts to the press. It serves as the foundation for the entire die set, providing a stable base for mounting die components and ensuring proper alignment with the press ram.
2. What is the typical recommended punch-to-die clearance per side for mild steel in sheet metal stamping? A. 1–2% of material thickness B. 5–10% of material thickness C. 20–25% of material thickness D. 50% of material thickness
4. What is the primary purpose of pilot pins in a progressive die? A. To cut the material B. To guide and align the strip accurately C. To form the part D. To eject the part Correct Answer: B Rationale: Pilot pins enter previously pierced holes in the strip to accurately locate and align the material at each station of a progressive die. This precise alignment ensures that subsequent operations are performed in the correct position relative to previous operations. 5. Hardening of tool steel is performed primarily to achieve which property change? A. Increase ductility B. Increase wear resistance and hardness
C. Improve corrosion resistance D. Improve weldability Correct Answer: B Rationale: Hardening is performed to increase the strength, hardness, and wear resistance of tool steel through the transformation of the steel's microstructure. This process is essential for tools and dies that must withstand high friction and repeated impact without deformation.
6. Why is tempering performed after hardening tool steel? A. To increase hardness further B. To reduce brittleness and relieve internal stress C. To improve machinability D. To add corrosion resistance Correct Answer: B Rationale: Tempering (also called drawing) is performed after hardening to reduce brittleness and relieve internal stresses created during the quenching process. While tempering slightly reduces
A. To harden the steel B. To soften steel for machining C. To case-harden the surface D. To remove carbon from the steel Correct Answer: B Rationale: Annealing is a heat treatment process used to soften steel, making it more machinable and reducing internal stresses. The process involves heating the steel to a specific temperature, holding it, and then cooling it slowly to produce a softer, more ductile microstructure.
9. What is the purpose of a surface grinder in toolmaking? A. Rough stock removal B. Achieving high-precision flat surfaces and squareness C. Turning operations D. Milling keyways Correct Answer: B
Rationale: A surface grinder is used to achieve high-precision flat surfaces and squareness to tight tolerances (often 0.0001 inches). It is essential for finishing die components, punch plates, and other tooling surfaces that require accurate flatness and parallelism.
10. Which grinding wheel type is most commonly used for grinding tool steel? A. Silicon carbide B. Diamond C. Aluminum oxide D. Cubic boron nitride Correct Answer: C Rationale: Aluminum oxide is the most commonly used grinding wheel abrasive for grinding high-speed and tool steels due to its toughness and ability to maintain a cutting edge without excessive wheel wear. It provides good performance and cost-effectiveness for general tool and die grinding applications. 11. What is the purpose of a magnetic chuck on a surface grinder?
Rationale: A tool and cutter grinder is used to sharpen multi-point cutting tools including drill bits, end mills, reamers, and other rotary cutting tools. It provides the precision and flexibility needed to maintain complex tool geometries.
13. What is the primary function of a tap? A. To cut external threads B. To cut internal threads C. To finish holes D. To mill flat surfaces Correct Answer: B Rationale: A tap is a cutting tool specifically designed to cut internal threads in a pre-drilled hole. Taps have flutes that allow chips to escape and cutting edges that progressively form the thread profile as the tap is turned into the hole. 14. Which tool is primarily used for cutting external threads?
A. Reamer B. Tap C. Die D. End mill Correct Answer: C Rationale: A die is specifically designed to cut external threads on cylindrical workpieces. Dies have multiple cutting edges that form the thread profile as the die is rotated over the workpiece, producing precise external threads.
15. What is the purpose of reaming a hole? A. To enlarge a hole with a multi-fluted tool to achieve precise diameter and finish B. To cut threads C. To counterbore D. To spot face Correct Answer: A
A. To create a conical recess for flat head screws B. To create a stepped hole with a flat bottom for socket head cap screws C. To enlarge an existing hole D. To create a chamfer at the hole opening Correct Answer: B Rationale: Counterboring creates a stepped hole with a flat bottom, designed to accommodate the head of socket head cap screws. This allows the screw head to sit flush with or below the surface of the workpiece.
18. What angle is commonly used for countersinking holes for flat head screws? A. 60° B. 82°, 90°, or 100° C. 120° D. 45° Correct Answer: B
Rationale: Countersinking creates a conical recess for flat head screws, with common included angles of 82°, 90°, or 100°. The angle must match the screw head angle to ensure proper seating and a flush surface finish.
19. What is jig boring used for in toolmaking? A. Rough cutting of large stock B. Locating and boring holes with high accuracy (position tolerance ±0.0001 inches) C. Cutting external threads D. Surface finishing Correct Answer: B Rationale: Jig boring is a precision machining operation used to locate and bore holes with extremely high positional accuracy, often achieving tolerances of ±0.0001 inches. This is essential for tool and die work where hole locations must be precise. 20. What is the purpose of a surface plate (granite) in inspection?
Rationale: TIR (Total Indicator Reading) is the maximum variation of a surface as it is rotated or moved, used to measure runout, concentricity, and other geometric variations. It is typically measured using a dial indicator or test indicator.
22. What is the least count of a standard 0–1 inch mechanical micrometer? A. 0.00005 inches B. 0.001 inches C. 0.0001 inches D. 0.01 inches Correct Answer: B Rationale: A standard mechanical micrometer with 0–1 inch range has a least count (resolution) of 0.001 inches. Digital micrometers and vernier micrometers may have finer resolution of 0.00005 inches or 0.0001 inches. 23. What is a vernier height gage used to measure?
A. Vertical dimensions from a surface plate B. Roundness C. Hardness D. Angle Correct Answer: A Rationale: A vernier height gage is used to measure vertical dimensions from a surface plate. It can be equipped with a scribe or indicator to measure heights, layout work, or inspect workpiece dimensions relative to a reference surface.
24. What is the primary function of a go/no-go gauge? A. To measure surface roughness B. To check tolerances for pass/fail determination C. To drill holes accurately D. To cut threads Correct Answer: B
A. Increased cutting force and tool wear B. Less force required C. Cleaner cut D. Longer tool life Correct Answer: A Rationale: Insufficient clearance increases cutting force and tool wear because the punch and die are too close together, causing excessive friction and shearing force. This leads to premature tool failure, increased burr formation, and poor part quality.
27. What causes a burr on a stamped part? A. Excessive clearance or dull tooling B. Too little clearance C. High press speed D. Soft material Correct Answer: A
Rationale: Burrs on stamped parts are caused by excessive clearance between the punch and die or dull (worn) tooling. When the clearance is too large, the material tears rather than shearing cleanly, producing a burr that requires secondary operations to remove.
28. How is "slug pulling" (slug stuck to punch) prevented? A. Using slug ejector pins or springs in the die button B. Increasing punch length C. Decreasing clearance D. Increasing press speed Correct Answer: A Rationale: Slug pulling occurs when the slug becomes stuck to the punch and lifts out of the die. It is prevented by using slug ejector pins or springs in the die button, which push the slug out of the die. Air blow or magnets are also used for slug removal. 29. What is "snap through" in a punch press?
