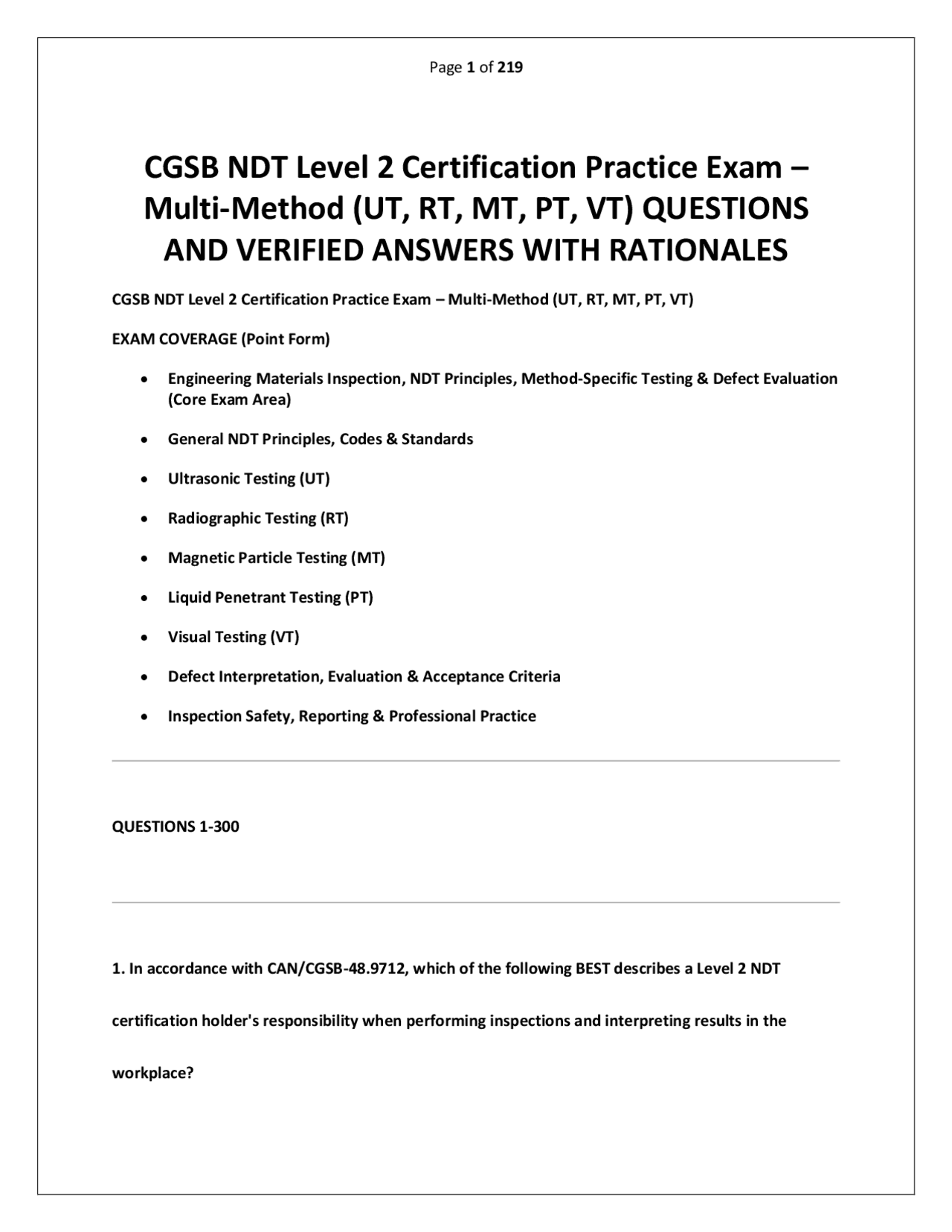

CGSB NDT Level 2 Certification Practice Exam –
Multi-Method (UT, RT, MT, PT, VT) QUESTIONS
AND VERIFIED ANSWERS WITH RATIONALES
CGSB NDT Level 2 Certification Practice Exam – Multi-Method (UT, RT, MT, PT, VT) EXAM COVERAGE (Point Form)
- Engineering Materials Inspection, NDT Principles, Method-Specific Testing & Defect Evaluation (Core Exam Area)
- General NDT Principles, Codes & Standards
- Ultrasonic Testing (UT)
- Radiographic Testing (RT)
- Magnetic Particle Testing (MT)
- Liquid Penetrant Testing (PT)
- Visual Testing (VT)
- Defect Interpretation, Evaluation & Acceptance Criteria
- **Inspection Safety, Reporting & Professional Practice QUESTIONS 1- 300
- In accordance with CAN/CGSB-48.9712, which of the following BEST describes a Level 2 NDT certification holder's responsibility when performing inspections and interpreting results in the workplace?**
A. Level 2 personnel are only permitted to perform inspections under the direct supervision of a Level 3 certified individual for all methods. B. Level 2 personnel are authorized to set up and calibrate equipment, perform inspections, interpret results, evaluate indications, and prepare inspection reports according to approved procedures. C. Level 2 personnel are limited to performing routine inspections and must refer all interpretation of indications to a Level 3 for evaluation. D. Level 2 personnel are not permitted to conduct inspections without a written procedure approved by the employer. Correct Answer: B Rationale: CAN/CGSB-48.9712 specifies that Level 2 personnel are authorized to set up and calibrate equipment, perform inspections, interpret and evaluate results, and prepare inspection reports according to approved procedures. This is the core competency of Level 2 certification.
2. What is the fundamental difference between a discontinuity and a defect in the context of NDT, and why is this distinction critical for inspection decisions? A. Discontinuities are always acceptable; defects are always rejectable. B. A discontinuity is any interruption in the normal physical structure of a material; a defect is a
D. To electrically isolate the transducer from the test piece; the most important property is dielectric strength. Correct Answer: B Rationale: Couplant eliminates the air gap between the transducer and the test piece, allowing ultrasound to enter the material efficiently. Good acoustic impedance matching between the couplant and the test material ensures maximum transmission of sound energy.
4. In radiographic testing, what is the function of an Image Quality Indicator (IQI), and how is it used to verify the sensitivity of the radiographic technique? A. The IQI measures the radiation dose received by the film and ensures the exposure time is correct. B. The IQI provides a visible indication of radiographic density and is used to calibrate the film processor. C. The IQI is a device containing known artificial discontinuities that is placed on the source side of the specimen; its visibility on the radiograph demonstrates that the technique has sufficient sensitivity to detect similar discontinuities in the part. D. The IQI is used to measure the geometric unsharpness of the radiographic image. Correct Answer: C
Rationale: The IQI contains artificial discontinuities (such as holes and wires) that are placed on the source side of the specimen; its visibility on the radiograph demonstrates that the technique has sufficient sensitivity. This confirms that the radiographic procedure is capable of detecting discontinuities of a specific size.
5. Which of the following magnetic particle testing methods is MOST sensitive for detecting fine surface cracks, and what is the primary advantage of this method over other techniques? A. Dry magnetic particle method, which is faster and does not require special lighting. B. Wet fluorescent magnetic particle method, which offers high sensitivity for fine surface cracks and provides excellent contrast for visual detection. C. Dry non-fluorescent method, which is the most common and cost-effective approach. D. Magnetic rubber method, which is the most sensitive for subsurface discontinuities. Correct Answer: B Rationale: Wet fluorescent magnetic particle testing offers high sensitivity for fine surface cracks and provides excellent contrast for visual detection. Fluorescent particles are easier to see under UV light, making this method particularly sensitive for small or tight discontinuities.
A. A lack of fusion at the weld root, which is always rejectable regardless of size. B. A crater crack, which is a surface-breaking discontinuity that requires repair. C. A porosity cluster exceeding the specified limits in the applicable code. D. Incomplete penetration at the weld root when the specified depth exceeds the allowable limit. Correct Answer: C Rationale: A porosity cluster exceeding code limits is rejectable. Each code establishes specific limits for porosity based on the weld type and application.
8. A Level 2 NDT technician is preparing a report after completing an ultrasonic inspection. Which of the following elements MUST be included in the inspection report according to CGSB requirements and standard practice? A. The inspector's hourly rate and total cost of the inspection. B. The equipment serial numbers, calibration date, inspection results, and the inspector's signature. C. A complete list of all discontinuities found, including their length and depth. D. The client's contact information and the project budget. Correct Answer: B
Rationale: Inspection reports must include equipment serial numbers, calibration date, inspection results, and the inspector's signature. This ensures traceability and accountability.
9. In ultrasonic testing, what is the primary cause of attenuation of sound waves in a material, and how does this affect the inspection of thick sections? A. Attenuation is caused by the material's density; thicker sections require higher frequency transducers to compensate for energy loss. B. Attenuation is caused by scattering, absorption, and beam divergence; thicker sections require lower frequency transducers to reduce attenuation and maintain sufficient signal strength. C. Attenuation is caused by the couplant layer; thicker sections require more couplant to maintain signal strength. D. Attenuation is caused by the transducer's natural frequency; thicker sections require transducers with higher damping. Correct Answer: B Rationale: Attenuation is caused by scattering, absorption, and beam divergence. Thicker sections require lower frequency transducers to reduce attenuation and maintain sufficient signal strength.
sufficient but PT cannot detect because the penetrant cannot reach them. C. Porosity, which is detected by both methods. D. Laminations, which are detected by both methods. Correct Answer: B Rationale: Subsurface inclusions located just below the surface can be detected by MT if the magnetic field is sufficient. PT cannot detect subsurface discontinuities because the penetrant cannot reach them.
12. In visual testing (VT), what is the minimum recommended lighting level for the inspection area when performing detailed visual examinations of welds and machined surfaces? A. 50 lux, which is sufficient for general observation. B. 150 lux, which is recommended for routine inspections. C. 500 lux, which is recommended for detailed visual examinations. D. 1,000 lux, which is required for all visual inspections. Correct Answer: C Rationale: A minimum of 500 lux is recommended for detailed visual examinations. This lighting level is necessary to detect fine discontinuities and evaluate surface conditions accurately.
13. What is the primary purpose of the standardization block (such as an IIW block) in ultrasonic testing, and what parameters does it help verify during equipment setup? A. To provide a permanent reference for the inspection; it verifies the material's density and hardness. B. To calibrate the ultrasonic instrument's time base, sensitivity, and beam angle; it verifies the equipment is functioning correctly. C. To measure the surface roughness of the test piece; it verifies the couplant is effective. D. To determine the material's grain size; it verifies the transducer is suitable for the application. Correct Answer: B Rationale: Standardization blocks calibrate time base, sensitivity, and beam angle. They ensure the ultrasonic instrument is functioning correctly before inspection. 14. In radiographic testing, what does "geometric unsharpness" refer to, and what factors affect its magnitude? A. The loss of image sharpness due to film grain size; it is affected by film type and processing conditions. B. The loss of image sharpness due to the size of the radiation source relative to the specimen and the
discontinuities. D. To strengthen the magnetic field for the next inspection; this is important for consistent results. Correct Answer: B Rationale: Demagnetization removes residual magnetism from the component. Residual magnetism can interfere with future machining, welding, or the operation of sensitive instruments.
16. A Level 2 NDT technician is inspecting a weld using liquid penetrant testing and observes a discontinuous linear indication that is slightly rounded at one end. Which of the following is the MOST likely interpretation of this indication? A. A surface porosity cluster, which would appear as multiple small round indications. B. A crack, which typically appears as a sharp, jagged, or continuous linear indication. C. A lack of fusion, which would appear as a smooth, straight linear indication. D. An inclusion, which would appear as a rounded or irregular indication. Correct Answer: B Rationale: A crack typically appears as a sharp, jagged, or continuous linear indication. The shape and appearance of the indication provide clues about the type of discontinuity.
17. In ultrasonic testing, what is the difference between a pulse-echo technique and a through- transmission technique, and when is each technique typically used? A. Pulse-echo uses two transducers on opposite sides; through-transmission uses one transducer. B. Pulse-echo uses a single transducer that sends and receives sound; through-transmission uses two transducers on opposite sides of the test piece. C. Pulse-echo is used only for thickness measurements; through-transmission is used only for flaw detection. D. Pulse-echo is more sensitive than through-transmission for detecting laminations. Correct Answer: B Rationale: Pulse-echo uses a single transducer that sends and receives sound. Through-transmission uses two transducers on opposite sides of the test piece, one to send sound and one to receive it. 18. A radiograph of a weld shows a dark, elongated indication with a "feathery" appearance. What is the MOST likely discontinuity indicated by this appearance? A. Tungsten inclusion, which would appear as a bright, highly opaque spot. B. Porosity, which would appear as round or elongated dark spots.
Rationale: Scattered radiation is caused by X-rays that are deflected from their original path by the material. It reduces image contrast and can mask fine discontinuities.
20. Which of the following BEST describes the primary purpose of the reference standard in magnetic particle testing? A. To provide a known discontinuity for verifying the sensitivity of the inspection technique. B. To serve as a reference for the magnetic field strength measurement. C. To calibrate the yoke or prod current. D. To provide a standard for evaluating the surface finish of the part. Correct Answer: A Rationale: The reference standard provides a known discontinuity for verifying the sensitivity of the inspection technique. This ensures the method is capable of detecting discontinuities of the required size. 21. In liquid penetrant testing, what is the purpose of the "emulsifier" step in the post-emulsifiable method, and why is this step critical for achieving proper sensitivity?
A. To clean the surface after the penetrant application; it removes excess penetrant from the surface. B. To make the excess penetrant water-washable; it allows the excess penetrant to be removed with a water rinse. C. To develop the penetrant indication; it draws the penetrant out of the discontinuity. D. To dry the surface before the developer application; it ensures the developer adheres properly. Correct Answer: B Rationale: The emulsifier makes the excess penetrant water-washable. This step is critical for removing excess penetrant from the surface while leaving penetrant in the discontinuities.
22. In ultrasonic testing, what is the relationship between frequency, wavelength, and resolution, and how does the choice of frequency affect the inspection's ability to detect small discontinuities? A. Higher frequency provides better resolution but less penetration; higher frequency is better for detecting small discontinuities near the surface. B. Lower frequency provides better resolution but less penetration; lower frequency is better for detecting small discontinuities near the surface. C. Frequency does not affect resolution; it only affects penetration depth.
24. In visual testing of a weld, what is the primary purpose of using a weld gauge (such as a bridge cam gauge or a fillet weld gauge) during the inspection? A. To measure the weld bead appearance and ensure it meets cosmetic standards. B. To verify the weld dimensions, including reinforcement height, fillet size, and undercut depth, against the applicable code requirements. C. To check the weld for surface cracks and porosity. D. To measure the weld's electrical conductivity. Correct Answer: B Rationale: Weld gauges verify weld dimensions against code requirements. They measure reinforcement height, fillet size, undercut depth, and other critical dimensions. 25. Which of the following discontinuities is MOST commonly associated with a lack of fusion in a weld, and what is the typical radiographic appearance of this discontinuity? A. A crack, which appears as a jagged, dark line. B. Porosity, which appears as round or elongated dark spots.
C. A smooth, straight, or slightly curved dark line that follows the fusion boundary. D. Incomplete penetration, which appears as a dark line at the center of the weld. Correct Answer: C Rationale: Lack of fusion appears as a smooth, straight, or slightly curved dark line that follows the fusion boundary. It is typically located at the weld toe or at the interface between weld passes.
26. In magnetic particle testing, what is the purpose of the "direction of magnetization" relative to the expected discontinuity orientation, and why is it important to consider during the inspection? A. The direction of magnetization must always be perpendicular to the surface to detect all discontinuities. B. The direction of magnetization must be parallel to the expected discontinuity orientation for maximum sensitivity. C. The direction of magnetization must be perpendicular to the expected discontinuity orientation for maximum sensitivity. D. The direction of magnetization is not important; any orientation will detect all discontinuities. Correct Answer: C
