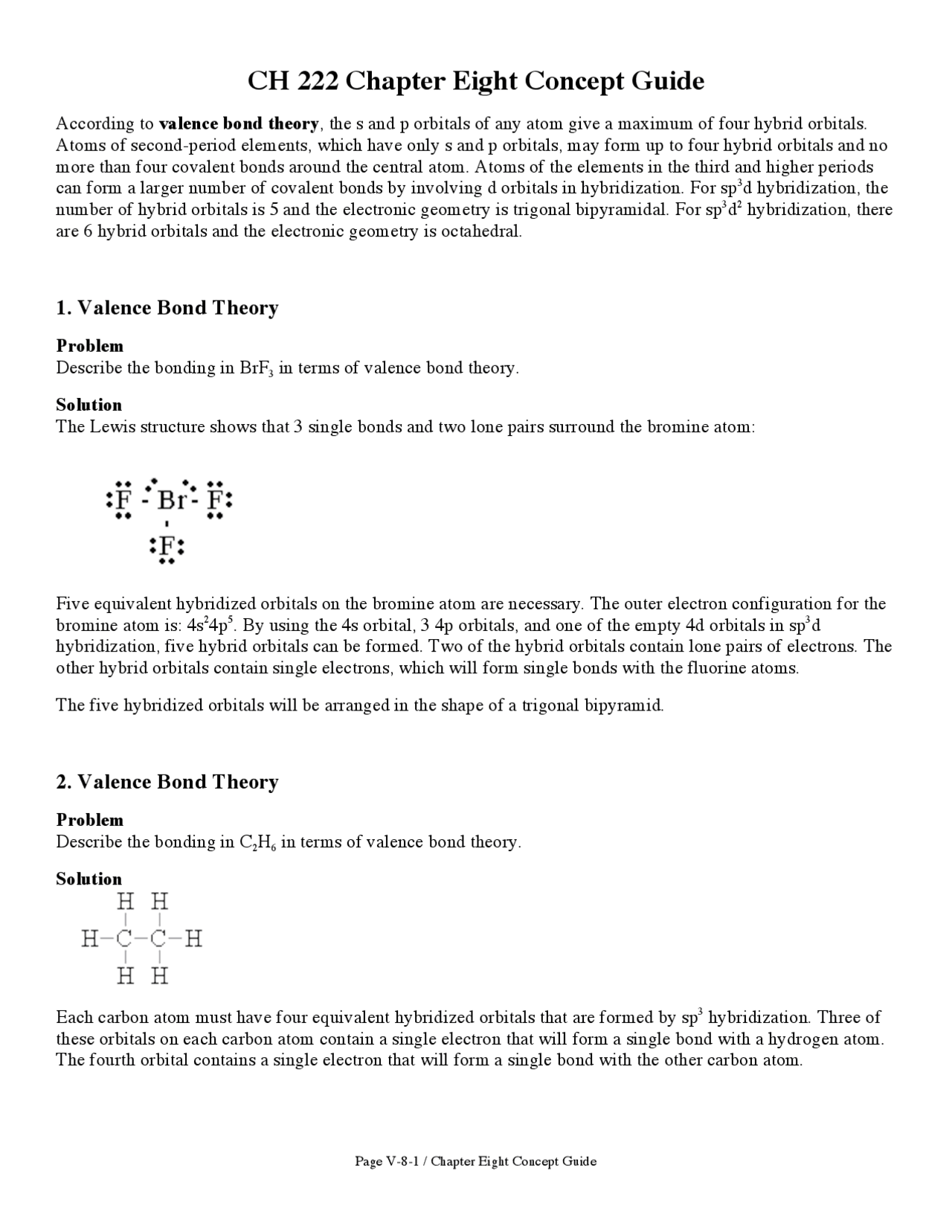

CH 222 Chapter Eight Concept Guide
According to valence bond theory , the s and p orbitals of any atom give a maximum of four hybrid orbitals. Atoms of second-period elements, which have only s and p orbitals, may form up to four hybrid orbitals and no more than four covalent bonds around the central atom. Atoms of the elements in the third and higher periods can form a larger number of covalent bonds by involving d orbitals in hybridization. For sp^3 d hybridization, the number of hybrid orbitals is 5 and the electronic geometry is trigonal bipyramidal. For sp^3 d^2 hybridization, there are 6 hybrid orbitals and the electronic geometry is octahedral.
1. Valence Bond Theory
Problem Describe the bonding in BrF 3 in terms of valence bond theory. Solution The Lewis structure shows that 3 single bonds and two lone pairs surround the bromine atom: Five equivalent hybridized orbitals on the bromine atom are necessary. The outer electron configuration for the bromine atom is: 4s^2 4p^5. By using the 4s orbital, 3 4p orbitals, and one of the empty 4d orbitals in sp^3 d hybridization, five hybrid orbitals can be formed. Two of the hybrid orbitals contain lone pairs of electrons. The other hybrid orbitals contain single electrons, which will form single bonds with the fluorine atoms. The five hybridized orbitals will be arranged in the shape of a trigonal bipyramid.
2. Valence Bond Theory
Problem Describe the bonding in C 2 H 6 in terms of valence bond theory. Solution Each carbon atom must have four equivalent hybridized orbitals that are formed by sp^3 hybridization. Three of these orbitals on each carbon atom contain a single electron that will form a single bond with a hydrogen atom. The fourth orbital contains a single electron that will form a single bond with the other carbon atom.
3. Valence Bond Theory
Problem Describe the bonding in H 2 O 2 in terms of valence bond theory. Solution Each oxygen has four equivalent hybrid orbitals formed by sp^3 hybridization. Two of these orbitals contain lone pairs of electrons, one contains a single electron that forms a single bond with a hydrogen atom, and one contains a single electron that will form a single bond with the other oxygen atom.
4. Multiple Bonds
Problem Describe the bonding in carbon monoxide, CO, using hybrid orbital theory. Solution The Lewis structure depicts C and O being bonded by a triple bond and each having a single lone pair. C O Each atom has a half-filled sp hybrid orbital it uses for sigma bond formation. Each atom also has a sp hybrid orbital that contains a lone electron pair. In addition, two pairs of electrons occur in unhybridized p orbitals and are used to form two π bonds.
5. Multiple Bonds
Problem Describe the bonding in a nitrogen molecule, N 2 , using hybrid orbital theory. Solution The bonding in a nitrogen molecule is identical to that in CO, except that both atoms are nitrogen: there is one sigma bond, two π bonds, and one lone pair on each atom. Each N has linear electron-pair geometry and is, therefore, sp-hybridized. The assignments of the five valence electrons on each N and their roles in bonding are:
The net bond order is: 1 / 2 (2 bonding electrons - 1 antibonding electron) = 1 / 2 Be 2 +^ has a net bond order of 1 / 2 , thus it is expected to exist.
10. Metallic bonding
Problem Magnesium has its highest energy band filled by two 3s electrons contributed by each atom, thus it is expected to be an insulator. Explain why magnesium is not an insulator, but a conductor of electricity. Solution: The empty 3p orbitals form an energy band that overlaps the 3s band, creating a larger, partially filled band. Electrons may, therefore, move up and out of 3s orbitals to occupy vacant 3p orbitals.
11. Metals and Semiconductors
Question As the temperature increases, more electrons in a semiconductor gain energy needed to jump out of the valence band into the conduction band. How does this affect the resistivity of the semiconductor? Solution With an increase in temperature, as a greater number of electrons can jump out of the valence band into the conduction band, the resistivity of the semiconductor decreases. The amount of decrease is different for each semiconductor and depends on the band gap. At low temperatures, the conductivity of semiconductors is similar to that of insulators; at high temperatures, it is like that of metals.
12. P-type and N-type Semiconductors
Question Recall that a p-type semiconductor has been defined in this lesson as a semiconductor that conducts a positive charge. What would you expect from an n-type semiconductor? What is meant by a p-n junction? Solution An n-type semiconductor conducts a negative charge. It is formed by doping Si with a group 5A element. This is so the solid has orbitals with extra electrons that can jump to the conduction band. A p-n junction is the boundary between p-type and n-type semiconductors. Doping adjacent areas in the same crystal with Group 3A and Group 5A elements creates a p-n junction.
