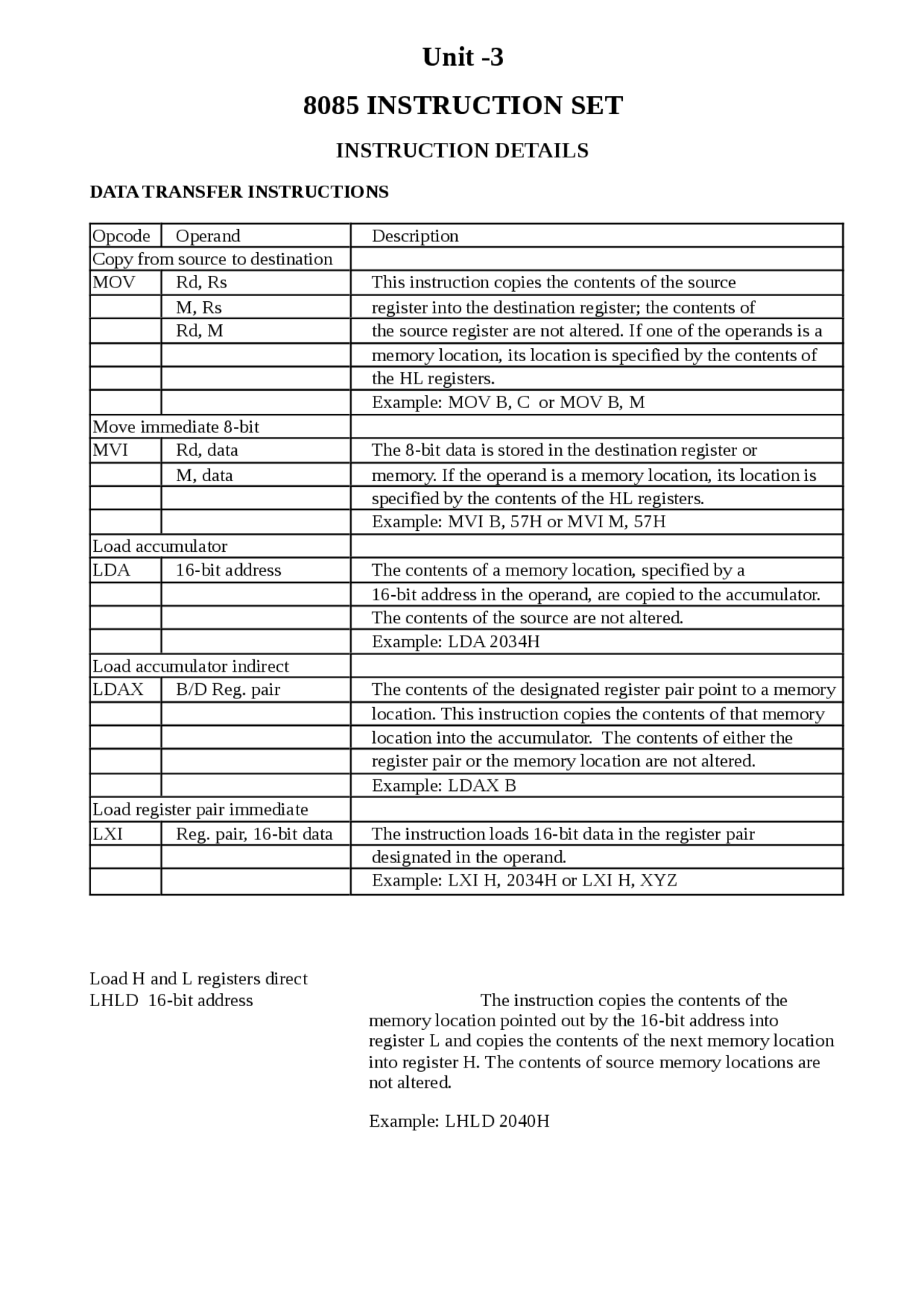

8085 INSTRUCTION SET
INSTRUCTION DETAILS
DATA TRANSFER INSTRUCTIONS
Opcode Operand Description Copy from source to destination MOV Rd, Rs This instruction copies the contents of the source M, Rs register into the destination register; the contents of Rd, M the source register are not altered. If one of the operands is a memory location, its location is specified by the contents of the HL registers. Example: MOV B, C or MOV B, M Move immediate 8-bit MVI Rd, data The 8-bit data is stored in the destination register or M, data memory. If the operand is a memory location, its location is specified by the contents of the HL registers. Example: MVI B, 57H or MVI M, 57H Load accumulator LDA 16-bit address The contents of a memory location, specified by a 16-bit address in the operand, are copied to the accumulator. The contents of the source are not altered. Example: LDA 2034H Load accumulator indirect LDAX B/D Reg. pair The contents of the designated register pair point to a memory location. This instruction copies the contents of that memory location into the accumulator. The contents of either the register pair or the memory location are not altered. Example: LDAX B Load register pair immediate LXI Reg. pair, 16-bit data The instruction loads 16-bit data in the register pair designated in the operand. Example: LXI H, 2034H or LXI H, XYZ
Load H and L registers direct LHLD 16-bit address The instruction copies the contents of the memory location pointed out by the 16-bit address into register L and copies the contents of the next memory location into register H. The contents of source memory locations are not altered.
Example: LHLD 2040H
Exchange H and L with top of stack XTHL none The contents of the L register are exchanged with the stack location pointed out by the contents of the stack pointer register. The contents of the H register are exchanged with the next stack location (SP+1); however, the contents of the stack pointer register are not altered.
Example: XTHL
Push register pair onto stack PUSH Reg. pair The contents of the register pair designated in the operand are copied onto the stack in the following sequence. The stack pointer register is decremented and the contents of the high-order register (B, D, H, A) are copied into that location. The stack pointer register is decremented again and the contents of the low-order register (C, E, L, flags) are copied to that location.
Example: PUSH B or PUSH A
Pop off stack to register pair POP Reg. pair The contents of the memory location pointed out by the stack pointer register are copied to the low-order register (C, E, L, status flags) of the operand. The stack pointer is incremented by 1 and the contents of that memory location are copied to the high-order register (B, D, H, A) of the operand. The stack pointer register is again incremented by 1.
Example: POP H or POP A
Output data from accumulator to a port with 8-bit address
OUT 8-bit port address The contents of the accumulator are copied into the I/O port specified by the operand.
Example: OUT F8H
Input data to accumulator from a port with 8-bit address
IN 8-bit port address The contents of the input port designated in the operand are read and loaded into the accumulator. Example: IN 8CH
ARITHMETIC
INSTRUCTIONS
Opcode Operand Description Add register or memory to accumulator ADD R The contents of the operand (register or memory) are M added to the contents of the accumulator and the result is stored in the accumulator. If the operand is a memory location, its location is specified by the contents of the HL registers. All flags are modified to reflect the result of the addition. Example: ADD B or ADD M Add register to accumulator with carry ADC R The contents of the operand (register or memory) and M the Carry flag are added to the contents of the accumulator and the result is stored in the accumulator. If the operand is a
Example: SUI 45H
Subtract immediate from accumulator with borrow
SBI 8-bit data The 8-bit data (operand) and the Borrow flag are subtracted from the contents of the accumulator and the result is stored in the accumulator. All flags are modified to reflect the result of the subtracion.
Example: SBI 45H
Increment register or memory by 1 INR R The contents of the designated register or memory) are M incremented by 1 and the result is stored in the same place. If the operand is a memory location, its location is specified by the contents of the HL registers. Example: INR B or INR M Increment register pair by 1 INX R The contents of the designated register pair are incremented by 1 and the result is stored in the same place. Example: INX H
Decrement register or memory by 1 DCR R The contents of the designated register or memory are M decremented by 1 and the result is stored in the same place. If the operand is a memory location, its location is specified by the contents of the HL registers. Example: DCR B or DCR M Decrement register pair by 1 DCX R The contents of the designated register pair are decremented by 1 and the result is stored in the same place. Example: DCX H Decimal adjust accumulator DAA none The contents of the accumulator are changed from a binary value to two 4-bit binary coded decimal (BCD) digits. This is the only instruction that uses the auxiliary flag to perform the binary to BCD conversion, and the conversion procedure is described below. S, Z, AC, P, CY flags are altered to reflect the results of the operation. If the value of the low-order 4-bits in the accumulator is greater than 9 or if AC flag is set, the instruction adds 6 to the low-order four bits.
If the value of the high-order 4-bits ii if the accumulator is greater than 9 or if the Carry flag is set, the instruction adds 6 to the high-order four bits.
Example: DAA
BRANCHING INSTRUCTIONS
Opcode Operand Description Jump unconditionally JMP 16-bit address The program sequence is transferred to the memory location specified by the 16-bit address given in the operand. Example: JMP 2034H or JMP XYZ
Jump conditionally
Operand: 16-bit address
The program sequence is transferred to the memory location specified by the 16-bit address given in the operand based on the specified flag of the PSW as described below.
Example: JZ 2034H or JZ XYZ
Opcode Description Flag Status JC Jump on Carry CY = 1 JNC Jump on no Carry CY = 0 JP Jump on positive S = 0 JM Jump on minus S = 1 JZ Jump on zero Z = 1 JNZ Jump on no zero Z = 0 JPE Jump on parity even P = 1 JPO Jump on parity odd P = 0
Opcode Description Flag Status RC Return on Carry CY = 1 RNC Return on no Carry CY = 0 RP Return on positive S = 0 RM Return on minus S = 1 RZ Return on zero Z = 1 RNZ Return on no zero Z = 0 RPE Return on parity even P = 1 RPO Return on parity odd P = 0
Load program counter with HL contents
PCHL none The contents of registers H and L are copied into the program counter. The contents of H are placed as the high-order byte and the contents of L as the low-order byte.
Example: PCHL
Restart
RST 0-7 The RST instruction is equivalent to a 1-byte call instruction to one of eight memory locations depending upon the number. The instructions are generally used in conjunction with interrupts and inserted using external hardware. However these can be used as software instructions in a program to transfer program execution to one of the eight locations. The addresses are:
memory location, its address is specified by the contents of
HL registers. S, Z, P are modified to reflect the result of the
operation. CY is reset. AC is set.
Example: ANA B or ANA M
Logical AND immediate with accumulator
ANI 8-bit data The contents of the accumulator are logically ANDed with the 8-bit data (operand) and the result is placed in the accumulator. S, Z, P are modified to reflect the result of the operation. CY is reset. AC is set.
Example: ANI 86H Exclusive OR register or memory with accumulator
XRA R The contents of the accumulator are Exclusive OR with
M the contents of the operand (register or memory), and the
result is placed in the accumulator. If the operand is a
memory location, its address is specified by the contents of
HL registers. S, Z, P are modified to reflect the result of the
operation. CY and AC are reset.
Example: XRA B or XRA M
Exclusive OR immediate with accumulator
XRI 8-bit data-The contents of the accumulator are Exclusive OR with the 8-bit data (operand) and the result is placed in the accumulator. S, Z, P are modified to reflect the result of the operation. CY and AC are reset.
Example: XRI 86H
Logical OR register or memory with accumulator
ORA R The contents of the accumulator are logically ORed with
M the contents of the operand (register or memory), and the
result is placed in the accumulator. If the operand is a
memory location, its address is specified by the contents of
HL registers. S, Z, P are modified to reflect the result of the
operation. CY and AC are reset.
Example: ORA B or ORA M
Logical OR immediate with accumulator
ORI 8-bit data-The contents of the accumulator are logically ORed with the 8-bit data (operand) and the result is placed in the accumulator. S, Z, P are
modified to reflect the result of the operation. CY and AC are reset.
Example: ORI 86H
Rotate accumulator left RLC none Each binary bit of the accumulator is rotated left by one position. Bit D7 is placed in the position of D0 as well as in the Carry flag. CY is modified according to bit D7. S, Z, P, AC are not affected. Example: RLC Rotate accumulator right RRC none Each binary bit of the accumulator is rotated right by one position. Bit D0 is placed in the position of D7 as well as in the Carry flag. CY is modified according to bit D0. S, Z, P, AC are not affected. Example: RRC
Example: HLT
Disable interrupts DI none The interrupt enable flip-flop is reset and all the interrupts except the TRAP are disabled. No flags are affected. Example: DI Enable interrupts EI none The interrupt enable flip-flop is set and all interrupts are enabled. No flags are affected. After a system reset or the acknowledgement of an interrupt, the interrupt enable flip- flop is reset, thus disabling the interrupts. This instruction is necessary to reenable the interrupts (except TRAP). Example: EI
Read interrupt mask
RIM none This is a multipurpose instruction used to read the status of
interrupts 7.5, 6.5, 5.5 and read serial data input bit. The
instruction loads eight bits in the accumulator with the
following interpretations.
Example: RIM
Set interrupt mask
SIM none This is a multipurpose instruction and used to implement the
8085 interrupts 7.5, 6.5, 5.5, and serial data output. The
instruction interprets the accumulator contents as follows.
Example: SIM
