General Mechanical Exam

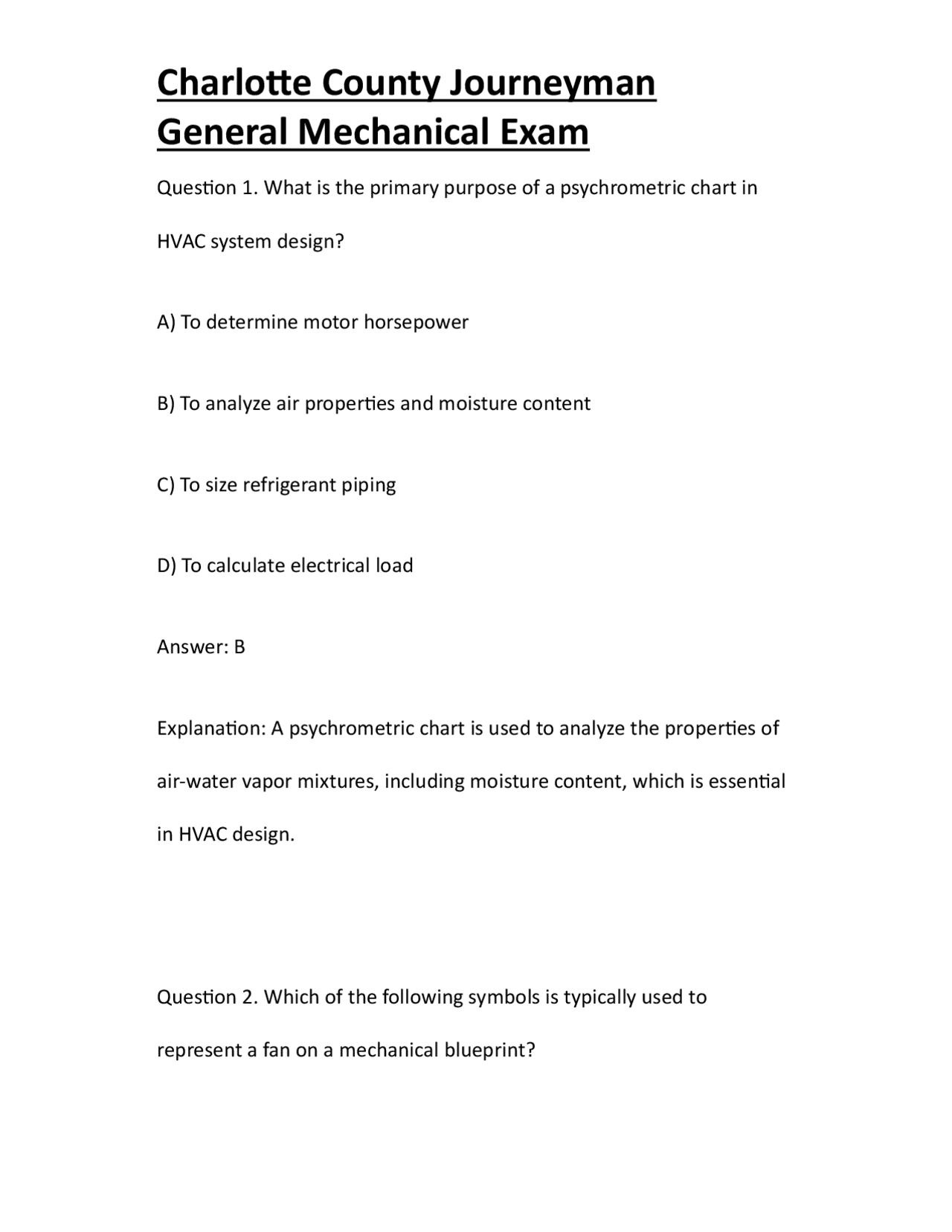

Question 1. What is the primary purpose of a psychrometric chart in HVAC system design? A) To determine motor horsepower B) To analyze air properties and moisture content C) To size refrigerant piping D) To calculate electrical load Answer: B Explanation: A psychrometric chart is used to analyze the properties of air-water vapor mixtures, including moisture content, which is essential in HVAC design. Question 2. Which of the following symbols is typically used to represent a fan on a mechanical blueprint?
General Mechanical Exam
A) Circle with an "F" inside B) Square with a diagonal line C) Triangle with a number D) Hexagon with an "M" Answer: A Explanation: On mechanical blueprints, a circle with an "F" inside is commonly used to represent a fan. Question 3. Which factor is most important when selecting insulation for chilled water pipes? A) The color of insulation B) R-value of the insulation C) Weight of insulation
General Mechanical Exam
Question 5. Which code governs the installation of fuel gas piping in mechanical systems? A) National Electrical Code B) International Plumbing Code C) International Fuel Gas Code D) Uniform Mechanical Code Answer: C Explanation: The International Fuel Gas Code provides standards for safe installation of fuel gas piping systems. Question 6. In HVAC duct design, what is the main purpose of using turning vanes?
General Mechanical Exam
A) To reduce noise B) To minimize air resistance and turbulence C) To increase air temperature D) To prevent duct leakage Answer: B Explanation: Turning vanes help guide air smoothly around bends, reducing turbulence and resistance. Question 7. What is the function of a check valve in a mechanical system? A) To regulate flow rate B) To allow flow in only one direction C) To mix fluids
General Mechanical Exam
Explanation: Brazing is the preferred method for joining copper refrigerant lines due to its strength and leak resistance. Question 9. What is the minimum clearance required between a gas- fired boiler and combustible materials? A) 1 inch B) 6 inches C) 18 inches D) 36 inches Answer: C Explanation: Most codes require at least 18 inches clearance between a gas-fired boiler and combustible materials for fire safety.
General Mechanical Exam
Question 10. What information does a legend on a set of mechanical plans provide? A) Equipment locations B) Explanation of symbols and abbreviations C) Detailed installation procedures D) List of all required permits Answer: B Explanation: The legend explains the symbols and abbreviations used on the plans. Question 11. Which factor most affects the required size of a supply air duct? A) Duct color
General Mechanical Exam
Answer: B Explanation: Expansion tanks absorb excess pressure from temperature- induced volume changes in closed systems. Question 13. In a VAV (Variable Air Volume) system, what component modulates airflow to different zones? A) Main supply fan B) VAV box C) Condenser coil D) Filter grille Answer: B Explanation: The VAV box adjusts the amount of air supplied to each zone for comfort and efficiency.
General Mechanical Exam
Question 14. Which type of ductwork is best for kitchen grease exhaust systems? A) Plastic flex duct B) Galvanized sheet metal C) Aluminum foil duct D) Stainless steel duct Answer: D Explanation: Stainless steel is used for grease ducts due to its resistance to corrosion and ability to withstand high temperatures. Question 15. What is typically used to measure airflow in ductwork? A) Manometer
General Mechanical Exam
Answer: B Explanation: The pressure relief valve protects the boiler from dangerous overpressure situations. Question 17. Which type of pipe joint is most suitable for underground chilled water supply? A) Soldered copper B) Grooved mechanical joint C) Threaded steel D) Solvent-welded PVC Answer: B Explanation: Grooved mechanical joints are durable and allow for pipe movement, making them suitable for underground installations.
General Mechanical Exam
Question 18. What is the purpose of a balancing damper in a duct system? A) To filter air B) To regulate and balance airflow C) To heat air D) To prevent condensation Answer: B Explanation: Balancing dampers are used to adjust airflow to different parts of the duct system for even distribution. Question 19. Which material is NOT recommended for use in supply air ducts?
General Mechanical Exam
D) Heavier unit weight Answer: C Explanation: Variable speed motors improve energy efficiency and maintain more consistent comfort levels. Question 21. When interpreting mechanical plans, what does a dashed line usually indicate? A) Existing equipment B) Hidden or future work C) Emergency exits D) Electrical circuits Answer: B
General Mechanical Exam
Explanation: Dashed lines typically indicate hidden, below-slab, or future installation items. Question 22. Which HVAC system type is most suitable for serving multiple apartments in a building? A) Split system B) Package unit C) Centralized chilled water system D) Window unit Answer: C Explanation: Centralized chilled water systems efficiently serve multiple spaces with shared equipment.
General Mechanical Exam
B) Must open inward C) Must be fire-rated D) Must lock automatically Answer: C Explanation: Mechanical room doors must be fire-rated to contain fire and protect the rest of the building. Question 25. What is the purpose of a vibration isolator on mechanical equipment? A) To increase airflow B) To reduce noise and equipment vibration transmission C) To cool the motor D) To filter dust
General Mechanical Exam
Answer: B Explanation: Vibration isolators prevent equipment vibrations from being transmitted to building structures. Question 26. What is the most common refrigerant used in residential air conditioning systems today? A) R- 22 B) R-410A C) R-134a D) Ammonia Answer: B Explanation: R-410A is the most commonly used refrigerant in modern residential systems due to environmental regulations.
