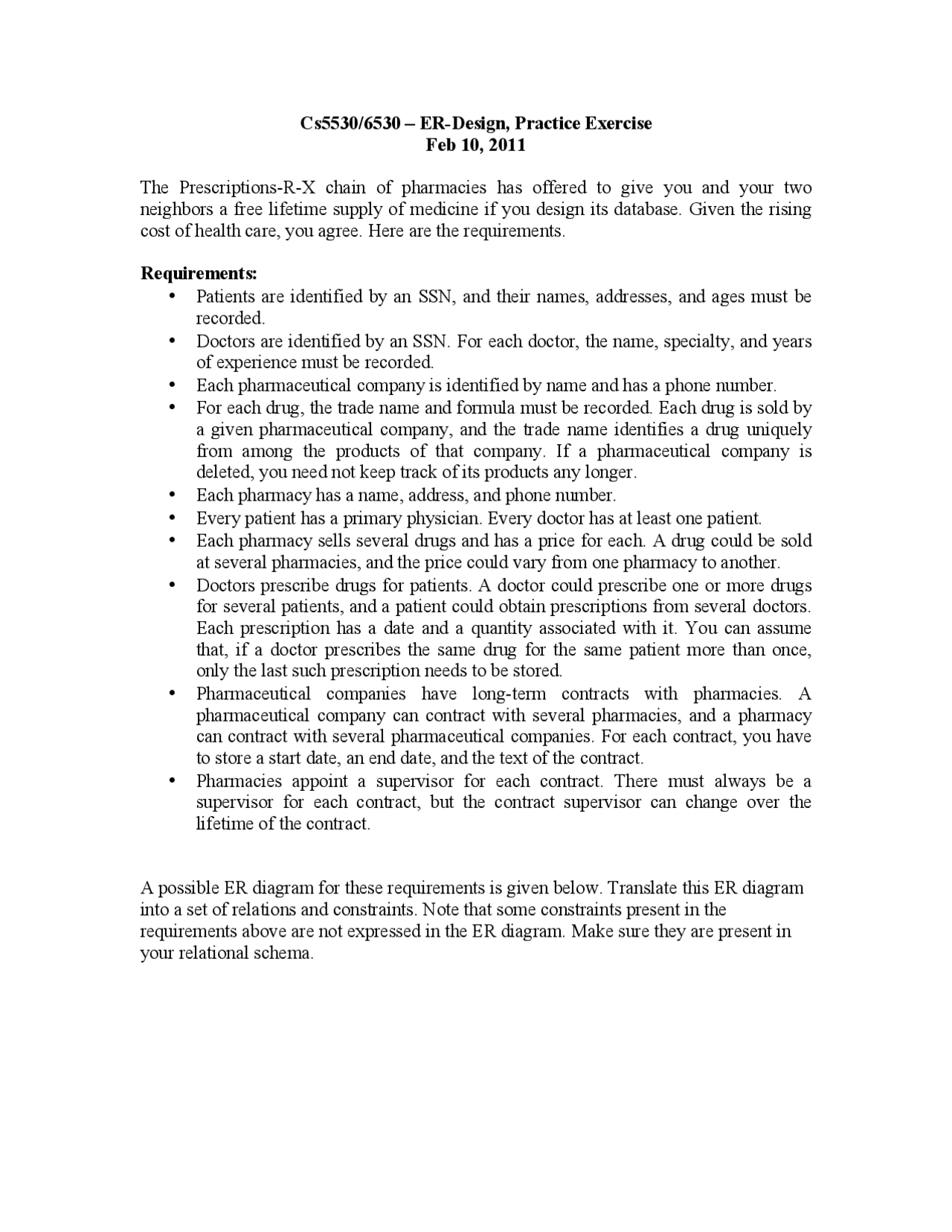

Cs5530/6530 – ER-Design, Practice Exercise
Feb 10, 2011
The Prescriptions-R-X chain of pharmacies has offered to give you and your two
neighbors a free lifetime supply of medicine if you design its database. Given the rising
cost of health care, you agree. Here are the requirements.
Requirements:
• Patients are identified by an SSN, and their names, addresses, and ages must be
recorded.
• Doctors are identified by an SSN. For each doctor, the name, specialty, and years
of experience must be recorded.
• Each pharmaceutical company is identified by name and has a phone number.
• For each drug, the trade name and formula must be recorded. Each drug is sold by
a given pharmaceutical company, and the trade name identifies a drug uniquely
from among the products of that company. If a pharmaceutical company is
deleted, you need not keep track of its products any longer.
• Each pharmacy has a name, address, and phone number.
• Every patient has a primary physician. Every doctor has at least one patient.
• Each pharmacy sells several drugs and has a price for each. A drug could be sold
at several pharmacies, and the price could vary from one pharmacy to another.
• Doctors prescribe drugs for patients. A doctor could prescribe one or more drugs
for several patients, and a patient could obtain prescriptions from several doctors.
Each prescription has a date and a quantity associated with it. You can assume
that, if a doctor prescribes the same drug for the same patient more than once,
only the last such prescription needs to be stored.
• Pharmaceutical companies have long-term contracts with pharmacies. A
pharmaceutical company can contract with several pharmacies, and a pharmacy
can contract with several pharmaceutical companies. For each contract, you have
to store a start date, an end date, and the text of the contract.
• Pharmacies appoint a supervisor for each contract. There must always be a
supervisor for each contract, but the contract supervisor can change over the
lifetime of the contract.
A possible ER diagram for these requirements is given below. Translate this ER diagram
into a set of relations and constraints. Note that some constraints present in the
requirements above are not expressed in the ER diagram. Make sure they are present in
your relational schema.
