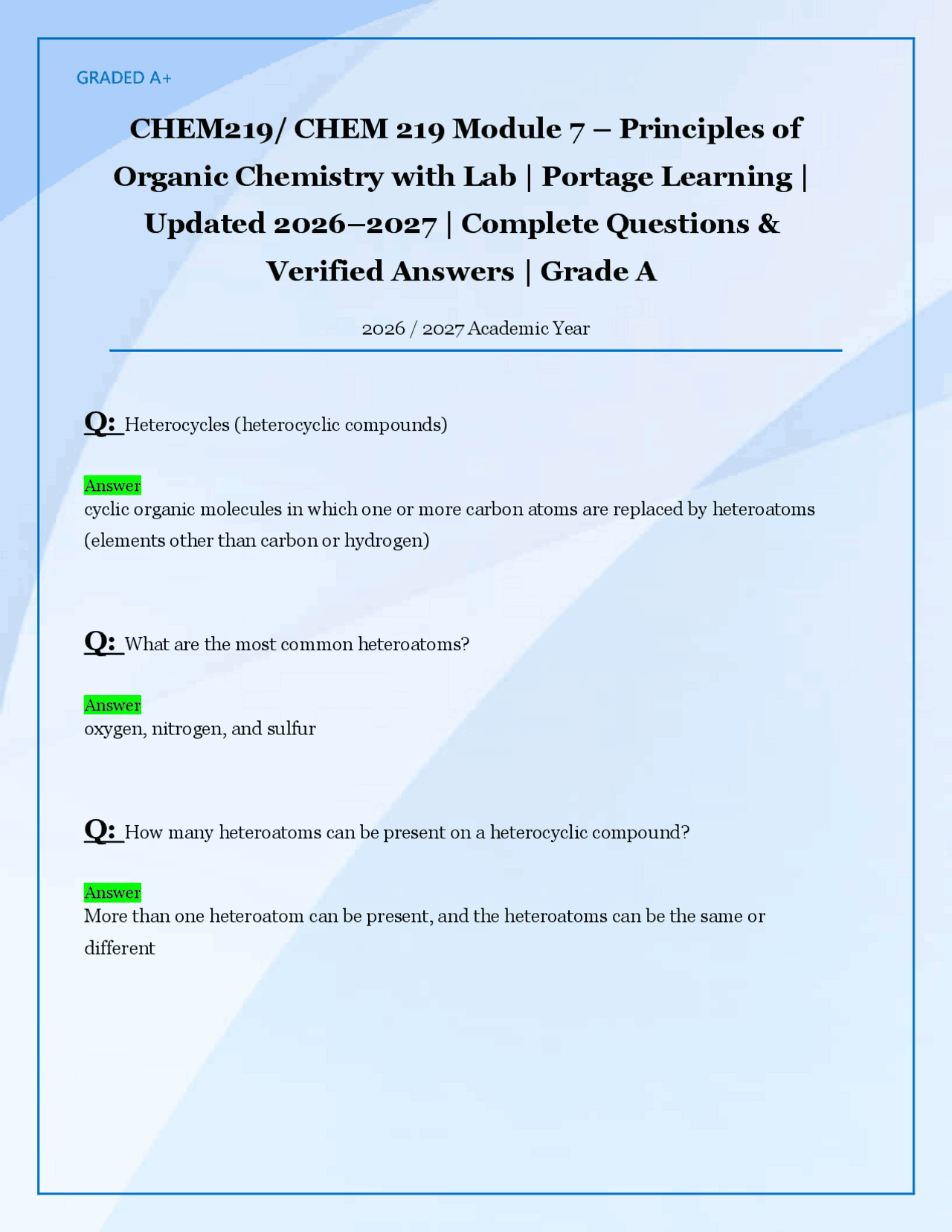

CHEM219/ CHEM 219 Module 7 – Principles of
Organic Chemistry with Lab | Portage Learning |
Updated 2026–2027 | Complete Questions &
Verified Answers | Grade A
2026 / 2027 Academic Year
Q: Heterocycles (heterocyclic compounds)
Answer cyclic organic molecules in which one or more carbon atoms are replaced by heteroatoms (elements other than carbon or hydrogen)
Q: What are the most common heteroatoms?
Answer oxygen, nitrogen, and sulfur
Q: How many heteroatoms can be present on a heterocyclic compound?
Answer More than one heteroatom can be present, and the heteroatoms can be the same or different
Q: True or False: Heterocyclic compounds may contain multiple bonds and the rings may
have chains or branched chains of carbons attached to them. The rings may be of a variety of sizes. Answer True
Q: True or False: Heterocycles form the largest class of organic compounds known.
Answer True
Q: True or False: Many natural products and important drug molecules contain
heterocyclic rings. Answer True
Q: What are the two main subgroups of heterocyclic compounds?
Answer Aromatic and aliphatic (non-aromatic) Example of non-aromatic heterocycles include molecules like cyclic ethers (epoxides) and sugars like glucose (a cyclic hemiacetal) Non-aromatic heterocycles behave very similarly to their acyclic counterparts.
Q: True or False: The nitrogen atom of pyridine contains a lone pair of electrons in an sp
hybrid orbital that is NOT orientated in the same plane of the atoms in the ring (like the hydrogens that project from each carbon atom). Answer False - they are orientated in the same plane of the atoms in the ring.
Q: What are the C-C bond lengths in a pyridine molecule?
Answer 139 pm are intermediate between normal C-to-C sigma and pi bonds.
Q: True or False: Pyridine exists as a hybrid of equivalent resonance structures as
evidenced by the C-C bond length? Answer True
Q: What does the circle inscribed inside of the pyridine ring represent?
Answer The delocalization of the pi electrons within the six-membered ring.
Q: What kind of reaction does pyridine tend to undergo and why?
Answer Substitution reactions because addition reactions would destroy the aromaticity.
Q: True or False: Pyridine is completely miscible in water?
Answer True; unlike benzene This is due to the substitution of the N atom in the ring which changes many of the properties of the molecules. Pyridine is also miscible in most organic solvents.
Q: What are the several factors that explain the ability of pyridine to dissolve in water?
Answer
- The ability of pyridine to accept hydrogen bonding interactions from water molecules due to the lone pair of electrons on the N atom.
- The electronegative N creates a relatively strong dipole moment in the pyridine molecule, making it a polar compound overall. There is a shift of electrons away from the Cs and towards the N, making the ring Cs partially positive and the N partially negative.
Q: What causes the difference in B.P. between pyridine and benzene?
Answer B.P. of pyridine is 35 degrees higher than that of benzene, even though the molecular weight is negligible between the two compounds. Dipole-Dipole attractive forces between the pyridine molecules raises the B.P. as compared to benzene.
Q: When EAS does occur, what is the preferred position for the substitution on the ring?
Answer C3 position This position is preferred as the positive charge that forms on the C during the reaction is the one position that does not put the positive charge on the electronegative N via resonance.
Q: True or False: Pyridine can more easily undergo nucleophilic aromatic substitution
(NAS) than EAS? Answer True In NAS, a nucleophile displaces a hydride (H-) ion or halide ion (on a substituted pyridine) from the aromatic ring. Due to the presence of the N heteroatom, the ring is partially positive and therefore is more attractive to nucleophiles, rather than electrophiles. i.e. Strong nucleophiles like alkoxide ions (RO-) and amide ions (NH2-) help to facilitate the reaction. Azines Answer heterocyclic six-membered rings with two or more N atoms present as part of the ring system
Diazines Answer contain two N atoms and can exist in three different constitutional isomeric forms; pyrimidines are the most important because derivatives of pyrimidines are important bases in the nucleic acids DNA and RNA namely cytosine, thymine, and uracil. True or False: Tri- and tetrazines are also known, but no others with higher degrees of N substitution (5 or 6 N atoms) are known. Answer True What are the most important heterocyclic molecules with five-membered rings? Answer Furan (oxygen-based) Pyrrole (nitrogen-based) Thiophene (sulfur-based) These molecules each contain a carbon ring with a single heteroatom substitution. What are some similarities and differences between five-membered rings and benzene (six- membered ring)? Answer Similarities: aromatic undergo EAS rather than other modes, like addition planar (flat) differences: the heteroatom of a five-membered ring contributes two electrons (one lone pair) to the
True or False: Furan, pyrrole, and thiophene are all more reactive than benzene in EAS reactions. True Each molecule reacts with electrophiles to substitute (for a hydrogen) at the C-2 position. Why is substitution preferred at the C-2 position on five-membered heterocycles? The carbocation intermediate that forms during the reaction is delocalized over more atoms (and hence, more stable) when substitution occurs at this position. Azoles It is possible to introduce more than one heteroatom into a five-membered heterocycle. Of the many available structural possibilities, the most important heterocycles are formed by introducing a N atom in place of C-3 in furan, pyrrole, and thiophene. The resulting molecules are known as azoles. The inclusion of the N at position C-3 results in a "pyridine-like" N, which is involved in a pi bond. Imidazole A very good base, as the positive charge obtained from protonation of the N at position C- 3 can be delocalized via resonance over both N atoms. Imidazole is present in the amino acid histidine and is important in the reactions of many enzymes. Thiazole occurs naturally in thiamin (vitamin B1), a coenzyme required for many biochemical processes essential to human life
Why do heterocycles form the largest class of organic compounds known? Structural diversity in terms of their ring size and the number and identity of heteroatom substitutions. Another reason, is the possibility of fused ring systems. Fused ring system Two (or more) rings are fused together to form a larger molecule; to be fused means that each ring shares two (or more) common atoms as a part of the structure of each ring. Purines Another biologically important class of fused-ring heterocyclic compounds. Purines contain a pyrimidine ring fused to an imidazole ring. Uric acid , caffeine, and theobromine (found in chocolate) are all based on the structure of purine. Biochemically, the structures of adenine and guanine, two of the nitrogenous bases present in DNA and RNA are both purines. Indole a bicyclic, fused-ring compound formed by fusing a benzene ring to the C2-C3 bond of pyrrole Indole is a component in many biologically active compounds including the amino acid tryptophan. Heterocycles cyclic organic molecule where one or more carbon atoms are replaced by heteroatoms Heteroatoms Atoms in an organic compound other than carbon and hydrogen
an apolar compound overall. BP of pyridine vs benzene? why?
- pyridine has a higher BP than benzene even though they have a similar weight
- why? dipole/dipole forces Is pyridine an acid or base? weak base will form pyridinium salt when reacted with strong acids Two main reaction types of pyridine?
- EAS- Electrophilic Aromatic Substitution
- NAS- Nucleophilic Aromatic Substitution What happens in the EAS of pyridine? a hydrogen is replaced by an electrophile What conditions are needed for pyridine to undergo EAS? very slow and very harsh conditions- need very hot heat and a strong acid Why is pyridine less receptive to EAS than other molecules? ring is partially positive d/t electron withdrawal by the nitrogen What position does an EAS reaction prefer on a pyridine molecule? C3 bc the charge wont put a positive charge on the electronegative nitrogen via resonance Nucleophilic Aromatic Substitution
A substitution reaction in which an aromatic ring is attacked by a nucleophile, which replaces a leaving group.
- displaces a hydride ion or a halide ion from the ring Why are NAS easier for pyridine than EAS? the positive partial charge on the Nitrogen atom attracts nucleophiles Azine heterocyclic 6-membered rings with 2 or more nitrogen atoms as part of the ring system Diazines 2 nitrogens replacing carbons in a benzene ring 3 isomeric forms of diazines
- pyridazine N1, N 2.pyrimidine N1, N 3.pyrazine N1, N pyridazine placement: 1, 2 Pyrimidine placement: 1, 3
- most important, found in cyotosine and thymine (DNA/ RNA) pyrazine placement 1, 4
Is pyridine or the 3 5-membered heterocycles more reactive in EAS reactions? Furan, Thiophene, and pyrrole are more reactive in EAS reactions than pyridine what atom number is preferred for EAS substitution on 5-membered heterocycles? substitution at C carbocation intermediate that is formed during EAS is delocalized over more atoms and thus more stable when at C Azole more than one heteroatom in a 5-membered heterocycle oxazole oxygen at 1, nitrogen at 3 Imidazole nitrogen at 1, nitrogen at 3 Thiazole sulfur at 1, nitrogen at 3 What does the additional Nitrogen on azoles allow for? lone pair on new nitrgoen means there is availability for the molecule to bond to an acidic proton Why is Imidazole a good base? positive charge obtained from the protonation of nitrogen on position 3 can be localized via
resonance over both of the nitrogens Imidazole is found in: histidine (amino acid) thiazole is found in: Thiamine (B1 vitamin) fused-ring system a molecule in which two or more rings share two adjacent carbon atoms indole benzene + pyrrole found in amino acid tryptophan purine pyrimidine ring fused to imidazole ring
- found in uric acid, adenine and guanine (A & G in DNA)caffeine, theobromine (in chocolate)
