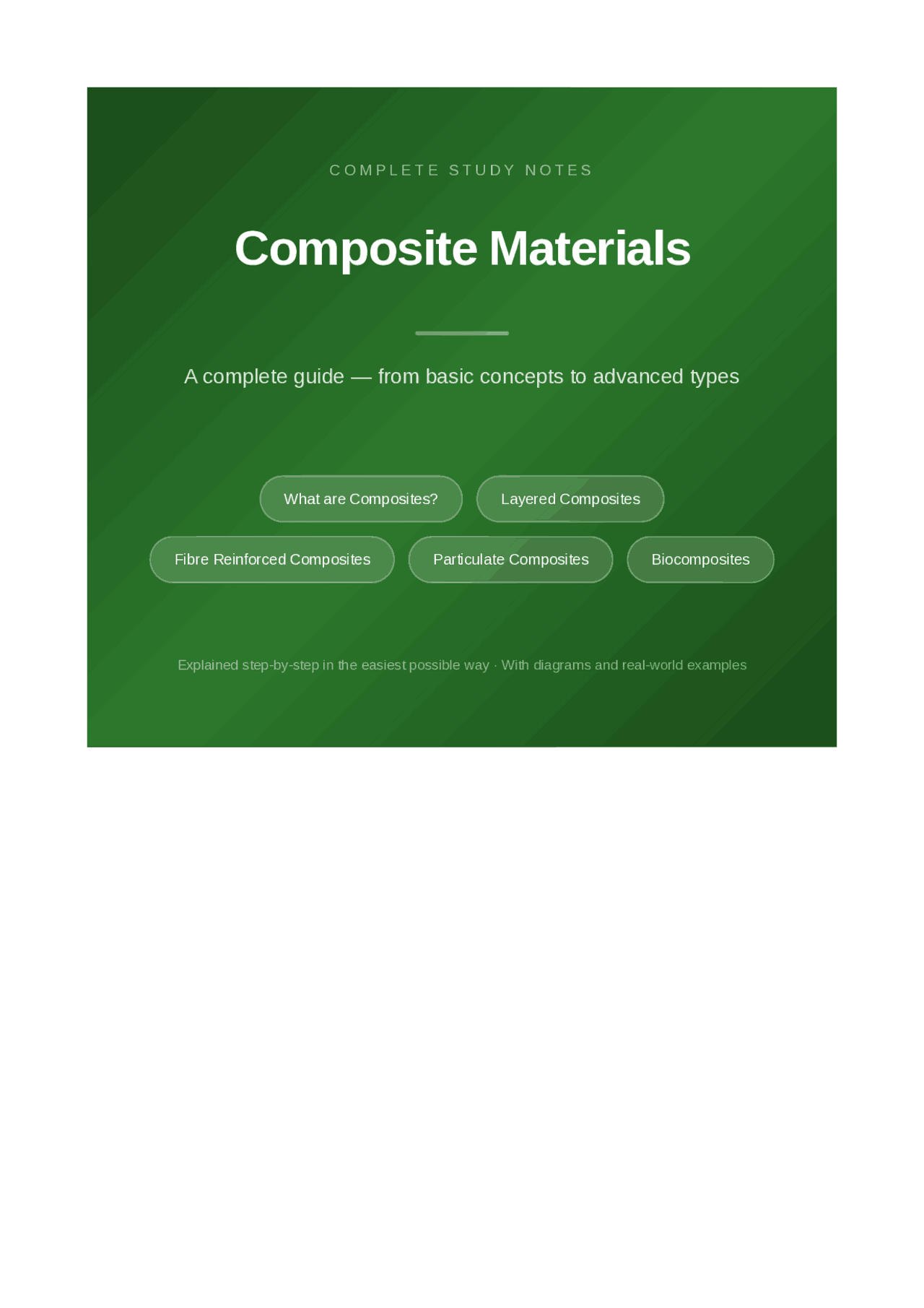

Composite Materials

What are Composites? Layered Composites

Fibre Reinforced Composites Particulate Composites Biocomposites

C O M P L E T E S T U D Y N O T E S

A complete guide — from basic concepts to advanced types

Explained step-by-step in the easiest possible way · With diagrams and real-world examples

Table of Contents

01 What Are Composites?

02 Layered Composites (Laminates)

03 Fibre Reinforced Composites

04 Particulate Composites

05 Biocomposites

06 Quick Comparison of All Types

STRUCTURE OF A COMPOSITE — SIDE VIEW

The Three Main Types of Composites

TYPE 1

Fibre Composites

Long or short fibres embedded in a matrix. Strongest along fibre direction. e.g. Carbon fibre, fibreglass.

TYPE 2

Particle Composites

Particles scattered randomly. Equal strength in all directions. e.g. Concrete, tungsten carbide tools.

TYPE 3

Layered Composites

Sheets stacked and bonded. Strength from architecture. e.g. Plywood, safety glass, aircraft panels.

Why Use Composites? Key Advantages

Advantage Explanation Example

Light and strong High strength-to-weight ratio

Carbon fibre: as strong as steel, 5× lighter

Corrosion resistant

No rust or chemical decay Fibreglass boat hulls last decades in salt water

Customisable Properties tuned to exact needs

Stiffness can be designed direction- by-direction

Durable Long service life Wind turbine blades: 20+ years in harsh weather

Mouldable Complex shapes easily formed

Aircraft fuselage sections, helmets, sports gear

MATRIX (surrounding material)

Reinforcement Matrix Interface

Real-World Example — Concrete (Simplest Composite)

Component What it is Role

Cement paste

Matrix Binds everything, gives shape

Sand & gravel

Particle reinforcement Resists compression, adds bulk cheaply

Steel rebar Fibre-like reinforcement

Resists tension — prevents cracking under bending

The key insight of all composites: it is not the materials themselves that create

performance — it is how they are combined. Each component covers the other's

weakness. Remove either one and the composite stops working.

CORE PRINCIPLE

Anatomy of a Layered Composite

CROSS-SECTION — INSIDE A LAMINATE PANEL

What Each Layer Does

Layer type Job Example material

Skin / face sheet Hard outer surface, takes compression, protects inside

Carbon fibre, steel, aluminium

Reinforcement ply

Carries tensile (pulling) loads Woven glass fibre, Kevlar

Core Provides thickness and rigidity without adding weight

Foam, honeycomb aluminium, balsa wood

Adhesive / matrix

Bonds layers together, transfers loads between them

Epoxy resin, adhesive film

How It Works — 5 Steps (Plywood Example)

1 Individual layers are weak alone

A single thin wood veneer sheet is strong in one direction (along the wood

grain) but weak in the perpendicular direction. Push across the grain and it

snaps. It has a directional weakness that must be addressed.

Top skin layer Hard, wear-resistant outer surface Reinforcement layer Strong fibres carrying the load Core layer Thick, lightweight filler — adds bulk with minimal weight Reinforcement layer Mirrors top reinforcement layer Bottom skin layer Protective base — mirrors top skin

Bond line (resin/adhesive)

Full laminate thickness

2 Layers are rotated before stacking

The second sheet is turned 90° before being placed on the first. The third goes

back to the original angle. This alternating pattern means every direction has at

least one layer protecting it. No direction is left unprotected.

3 Adhesive resin is spread between layers

Glue or resin is spread between every pair of sheets. The whole stack is

pressed together tightly and heat is applied. The resin cures (hardens

chemically), gripping both surfaces it touches. Once cured, layers are locked

permanently — they cannot slide against each other.

4 Force applied to surface spreads through all layers

When a force hits the finished panel, the top layer cannot deform without pulling

the layers below it along — because they are all bonded solid. The force is

transferred across the bond line and distributes throughout the entire thickness.

Since layers have alternating grain directions, at least one layer resists the

force from any direction.

5 Result: dramatically stronger than any single layer

Plywood is roughly 3× stiffer than a single solid board of the same total

thickness. The secret is not the material — it is the architecture. The

arrangement and bonding of layers creates performance no single material

could match alone.

STEP-BY-STEP: GRAIN DIRECTION AND LOAD SHARING

The Most Important Concept — Why Rotating Layers Matters

Wood and many fibres are strong in one direction but weak in the perpendicular one. A single

sheet is like a person who can only push in one direction. When you rotate each layer 90°,

you cover all directions. Engineers call this making the material quasi-isotropic — meaning

Step 1 — 3 separate sheets Step 2 — Rotated & bonded Grain → (left-right) Grain ↓ (rotated 90°) Grain → (same as sheet 1) Each sheet: strong one way, weak other way

bond + press→ Layers locked. Cannot slide.Act as one rigid unit. 3× stiffer than any single sheet! Single sheet under load Laminate under same load

Bends — may snap Stays flat — load shared across all layers

Fibre Reinforced Composites

(FRC)

The Core Idea

A fibre reinforced composite is a material where strong, thin fibres are embedded inside a

softer surrounding material called the matrix. The fibres provide the strength. The matrix holds

them in place and protects them. Together they do what neither could do alone.

🧠 SIMPLE ANALOGY

Think of reinforced concrete. Steel bars (fibres) sit inside cement (matrix). The cement

can't stretch without cracking. The steel bars can't hold a shape on their own. But

together — steel carries pulling forces, cement handles compression — you get

something strong enough to build bridges. Fibre reinforced composites work the same

way at a microscopic scale.

The Three Parts — All Essential

INSIDE A FIBRE REINFORCED COMPOSITE — ZOOMED IN

C H A P T E R 0 3

Strong thin fibres embedded inside a matrix material — the fibres carry the load, the matrix holds them in place

Fibres Carry the load

Matrix Holds fibres in place Interface Where load transfers Fibres = strength · Matrix = shape & protection · Interface = the connection between both

What Each Part Does

Fibres are the stars. They are extremely strong along their length but fragile on their own —

like a single strand of hair. They can't hold a shape. They just exist as thin threads. Their

strength comes from near-perfect atomic alignment along the length with almost no defects.

Matrix holds the fibres in position, protects them from damage, and gives the whole

composite its shape. On its own, the matrix is usually soft and weak. It is the servant, not the

hero.

Interface is where the magic happens. A strong interface means stress flows smoothly from

matrix into fibre. A weak interface means fibres just sit inside, doing nothing — like rebar in a

bucket of water instead of bonded into concrete.

Types of Fibres Used

Fibre type Made from Best quality Used in

Glass fibre Melted glass drawn into threads

Cheap, good strength, electrically insulating

Boat hulls, helmets, wind turbine blades

Carbon fibre

Heated polymer thread (PAN)

Stiffer than steel at ¼ the weight

Aircraft, F1 cars, bicycles, spacecraft

Kevlar (aramid)

Aromatic polymer Incredible toughness — absorbs energy

Bulletproof vests, cut- resistant gloves

Basalt fibre

Volcanic rock, melted and drawn

Good heat resistance, eco-friendly

Building reinforcement, fire protection

Natural fibre

Flax, hemp, jute Biodegradable, renewable

Automotive panels, packaging

How It Works — 5 Steps (Fibreglass Example)

1 Fibres are strong but shapeless

A bundle of glass fibres — each thinner than a human hair. Pull on a single fibre

along its length: it takes enormous force to break. Try to bend it sideways: it

crumbles immediately. It has no structural form. You cannot build anything with

raw fibres alone.

just pull out of the matrix — like pulling a straw out of a milkshake — and contribute almost

nothing.

This is why fibres are given a surface treatment called a sizing or coupling agent before

being embedded. The chemical coating creates a much stronger bond with the resin — the

same idea as applying primer before painting.

⚠ MAIN FAILURE MODES

Failure What it means Analogy

Fibre fracture Fibres snap under excessive tension

Snapping a single hair

Matrix cracking

Matrix cracks before fibres fail Cement cracking before rebar breaks

Fibre pull-out Fibre debonds and slides out Pulling a straw out of a drink

Buckling Fibres under compression fold sideways

A bundle of straws pushed end-on

Real-World Examples of Fibre Reinforced Composites

Product Fibre Matrix Why this combination

Boat hull (fibreglass)

Glass fibre Polyester resin Waterproof, mouldable, corrosion-proof, cheap

Aircraft fuselage

Carbon fibre Epoxy resin Lightest possible, stiff enough for air pressure

Crash helmet Glass or carbon fibre

Epoxy Absorbs impact energy, no sharp broken pieces

Wind turbine blade

Glass fibre Epoxy Long, light, stiff — complex aerodynamic shapes

Bulletproof vest

Kevlar (aramid)

Often none — dry layers

Kevlar stretches before breaking — absorbs energy

Fishing rod Carbon fibre Epoxy Very light and stiff, bends without breaking

Fibres are extraordinarily strong along their length but useless on their own — they

need matrix to hold them in position and give them a shape. The matrix transfers

every force into the fibres through the interface bond, so a strong interface is the

key to a high-performance composite. The engineer controls strength, stiffness,

weight, and cost by choosing the right fibre type, the right matrix, and the right fibre

arrangement — making FRC one of the most designable materials ever created.

THREE SENTENCES SUMMARY

Anatomy — Zoomed In

INSIDE A PARTICULATE COMPOSITE — CROSS SECTION

Two Types of Particulate Composites

How It Works — 5 Steps (Concrete Example)

1 Matrix alone is weak in tension

Cement paste by itself is strong in compression but extremely brittle. Apply

tension — try to stretch or bend it — and it cracks immediately. It also shrinks

as it dries, creating internal stresses. On its own, it cannot build much.

2 Particles are chosen and graded by size

In concrete, particles are sand (0.1–5 mm) and gravel/crushed stone (5–

mm). Using a range of sizes is deliberate — small particles fill gaps between

big ones; big particles provide the main load-carrying skeleton. Minimising

empty voids is critical because voids reduce strength dramatically.

Particles Scattered reinforcement

Matrix Continuous binder Interface Where load transfers No direction preference — same properties whichever way you load it

LARGE-PARTICLE COMPOSITES

Particles are big enough to physically share the load with the matrix. They block cracks, resist compression, and add hardness. Key: particles are large relative to atomic spacing — they interact as physical obstacles. Example: Concrete — gravel particles physically carry stress alongside the cement paste.

DISPERSION-STRENGTHENED

COMPOSITES

Particles are nano-scale (a few nanometres). They work at the atomic level by blocking dislocations — tiny defects inside the crystal structure that cause deformation. Like invisible speed bumps inside the metal. Example: ODS steel — nano-oxide particles in steel used in nuclear reactors.

3 Matrix is mixed to coat every particle

Wet cement paste is mixed thoroughly with dry aggregates. The paste must wet

every particle surface — every grain of sand, every piece of gravel must be

coated. Too little water = paste doesn't reach all surfaces. Too much water =

paste becomes weak when it dries.

4 Matrix hardens and locks particles in place

Cement cures via a chemical reaction called hydration — creating interlocking

crystals that grip every particle surface. Once cured, particles are locked in

position on all sides. When a force is applied, the matrix can't deform freely

because particles are in the way. Load gets transferred from matrix into particle

at their shared interface.

5 Cracks are blocked and deflected by particles

This is the key mechanism. In plain matrix, a crack runs straight through with

almost no resistance. In a particulate composite, the crack hits a particle —

which is harder and the crack cannot continue through it — so it must go

around. Going around costs energy. More energy required to crack = tougher

material. With thousands of particles distributed throughout, there are

thousands of those detours.

THE KEY MECHANISM — CRACK DEFLECTION BY PARTICLES

Three Variables the Engineer Controls

Variable Effect Typical range

Particle size Large = mechanical crack blocking. Nano = dislocation blocking inside metals.

5 nm to 40 mm depending on application

Volume fraction

Higher fraction → harder, stiffer, more wear- resistant, but more brittle.

30–70% for concrete; lower for nano-composites

No particles — crack runs straight through

Easy — very little energy needed

With particle — crack must go around

Particle blocks crack

Goes around — needs much more energy = TOUGHER

Biocomposites

The Core Idea

A biocomposite is a composite material where at least one component comes from a living

thing — a plant, an animal, or a microorganism. It could be the reinforcement (like flax fibres),

the matrix (like a bioplastic made from corn starch), or both.

Everything about composites still applies — fibres, layers, particles, matrix, interface. The

only new thing is where the materials come from. Instead of a factory making glass from

melted sand, you grow the reinforcement in a field. Instead of petroleum-based epoxy, you

ferment the matrix from sugarcane. The source is natural. The science is the same.

🧠 SIMPLE ANALOGY

Nature invented biocomposites long before humans did. Your bones are a

biocomposite: collagen protein (matrix) + hydroxyapatite mineral crystals

(reinforcement). Wood is a biocomposite: lignin (matrix) + cellulose fibres

(reinforcement). Human engineers are just copying what biology perfected over

millions of years.

Why Biocomposites? The Motivation

Every conventional composite uses synthetic materials — glass fibre from melted silica,

carbon fibre from petroleum polymers, epoxy resin from crude oil. They work brilliantly. But

they don't go away. A fibreglass boat hull lasts centuries in a landfill. Carbon fibre cannot be

recycled economically. Petroleum resin releases toxic fumes if burned.

ADVANTAGE 1

Renewable source

Materials grown from sunlight and soil instead

ADVANTAGE 2

Biodegradable

Products can biodegrade or compost at end of life.

ADVANTAGE 3

C H A P T E R 0 5

Composite materials where at least one component comes from a living thing — grown, not mined

of drilled from the ground. Replenishable every growing season.

Nothing persists in landfill for centuries.

Lower carbon

footprint

The plant absorbed CO₂ as it grew. Net carbon emission near zero vs fossil-fuel-derived materials.

The Family Tree of Biocomposites

WHERE BIOCOMPOSITES SIT IN THE COMPOSITES FAMILY

Natural Fibre Reinforcements

Plant fibres consist of cellulose — the structural molecule that makes wood stiff and trees

tall. Cellulose fibres are naturally hollow (like tiny drinking straws), giving remarkable stiffness-

to-weight ratio.

Fibre Source Notable quality

Flax (linen)

Flax plant stem Highest stiffness among plant fibres — closest to glass fibre performance

Hemp Hemp plant stem

Very strong, fast-growing, needs no pesticides

Jute Jute plant stem Cheapest natural fibre, widely available

Coir Flexible and tough — resistant to impact and salt water

All Composites

Conventional Composites Glass, carbon, synthetic resin

Biocomposites At least one bio-based component

Natural fibres Flax, hemp, jute, bamboo

Bio-based matrix PLA, starch, soy resin

Natural particles Wood flour, rice husk

Fully green (both bio) Hybrid (one bio + one synthetic)

Chemistry module 3 engineering materials, Thesis of Engineering

Related documents

Partial preview of the text

Download Chemistry module 3 engineering materials and more Thesis Engineering in PDF only on Docsity!

Composite Materials

What are Composites? Layered Composites

Fibre Reinforced Composites Particulate Composites Biocomposites

C O M P L E T E S T U D Y N O T E S

STRUCTURE OF A COMPOSITE — SIDE VIEW

Fibre Composites

Particle Composites

Layered Composites

The key insight of all composites: it is not the materials themselves that create

performance — it is how they are combined. Each component covers the other's

weakness. Remove either one and the composite stops working.

CROSS-SECTION — INSIDE A LAMINATE PANEL

A single thin wood veneer sheet is strong in one direction (along the wood

grain) but weak in the perpendicular direction. Push across the grain and it

snaps. It has a directional weakness that must be addressed.

The second sheet is turned 90° before being placed on the first. The third goes

back to the original angle. This alternating pattern means every direction has at

least one layer protecting it. No direction is left unprotected.

Glue or resin is spread between every pair of sheets. The whole stack is

pressed together tightly and heat is applied. The resin cures (hardens

chemically), gripping both surfaces it touches. Once cured, layers are locked

permanently — they cannot slide against each other.

When a force hits the finished panel, the top layer cannot deform without pulling

the layers below it along — because they are all bonded solid. The force is

transferred across the bond line and distributes throughout the entire thickness.

Since layers have alternating grain directions, at least one layer resists the

force from any direction.

Plywood is roughly 3× stiffer than a single solid board of the same total

thickness. The secret is not the material — it is the architecture. The

arrangement and bonding of layers creates performance no single material

could match alone.

STEP-BY-STEP: GRAIN DIRECTION AND LOAD SHARING

Wood and many fibres are strong in one direction but weak in the perpendicular one. A single

sheet is like a person who can only push in one direction. When you rotate each layer 90°,

you cover all directions. Engineers call this making the material quasi-isotropic — meaning

A fibre reinforced composite is a material where strong, thin fibres are embedded inside a

softer surrounding material called the matrix. The fibres provide the strength. The matrix holds

them in place and protects them. Together they do what neither could do alone.

Think of reinforced concrete. Steel bars (fibres) sit inside cement (matrix). The cement

can't stretch without cracking. The steel bars can't hold a shape on their own. But

together — steel carries pulling forces, cement handles compression — you get

something strong enough to build bridges. Fibre reinforced composites work the same

way at a microscopic scale.

INSIDE A FIBRE REINFORCED COMPOSITE — ZOOMED IN

C H A P T E R 0 3

Fibres are the stars. They are extremely strong along their length but fragile on their own —

like a single strand of hair. They can't hold a shape. They just exist as thin threads. Their

strength comes from near-perfect atomic alignment along the length with almost no defects.

Matrix holds the fibres in position, protects them from damage, and gives the whole

composite its shape. On its own, the matrix is usually soft and weak. It is the servant, not the

hero.

Interface is where the magic happens. A strong interface means stress flows smoothly from

matrix into fibre. A weak interface means fibres just sit inside, doing nothing — like rebar in a

bucket of water instead of bonded into concrete.

A bundle of glass fibres — each thinner than a human hair. Pull on a single fibre

along its length: it takes enormous force to break. Try to bend it sideways: it

crumbles immediately. It has no structural form. You cannot build anything with

raw fibres alone.

just pull out of the matrix — like pulling a straw out of a milkshake — and contribute almost

nothing.

This is why fibres are given a surface treatment called a sizing or coupling agent before

being embedded. The chemical coating creates a much stronger bond with the resin — the

same idea as applying primer before painting.

Fibres are extraordinarily strong along their length but useless on their own — they

need matrix to hold them in position and give them a shape. The matrix transfers

every force into the fibres through the interface bond, so a strong interface is the

key to a high-performance composite. The engineer controls strength, stiffness,

weight, and cost by choosing the right fibre type, the right matrix, and the right fibre

arrangement — making FRC one of the most designable materials ever created.

INSIDE A PARTICULATE COMPOSITE — CROSS SECTION

Cement paste by itself is strong in compression but extremely brittle. Apply

tension — try to stretch or bend it — and it cracks immediately. It also shrinks

as it dries, creating internal stresses. On its own, it cannot build much.

In concrete, particles are sand (0.1–5 mm) and gravel/crushed stone (5–

mm). Using a range of sizes is deliberate — small particles fill gaps between

big ones; big particles provide the main load-carrying skeleton. Minimising
