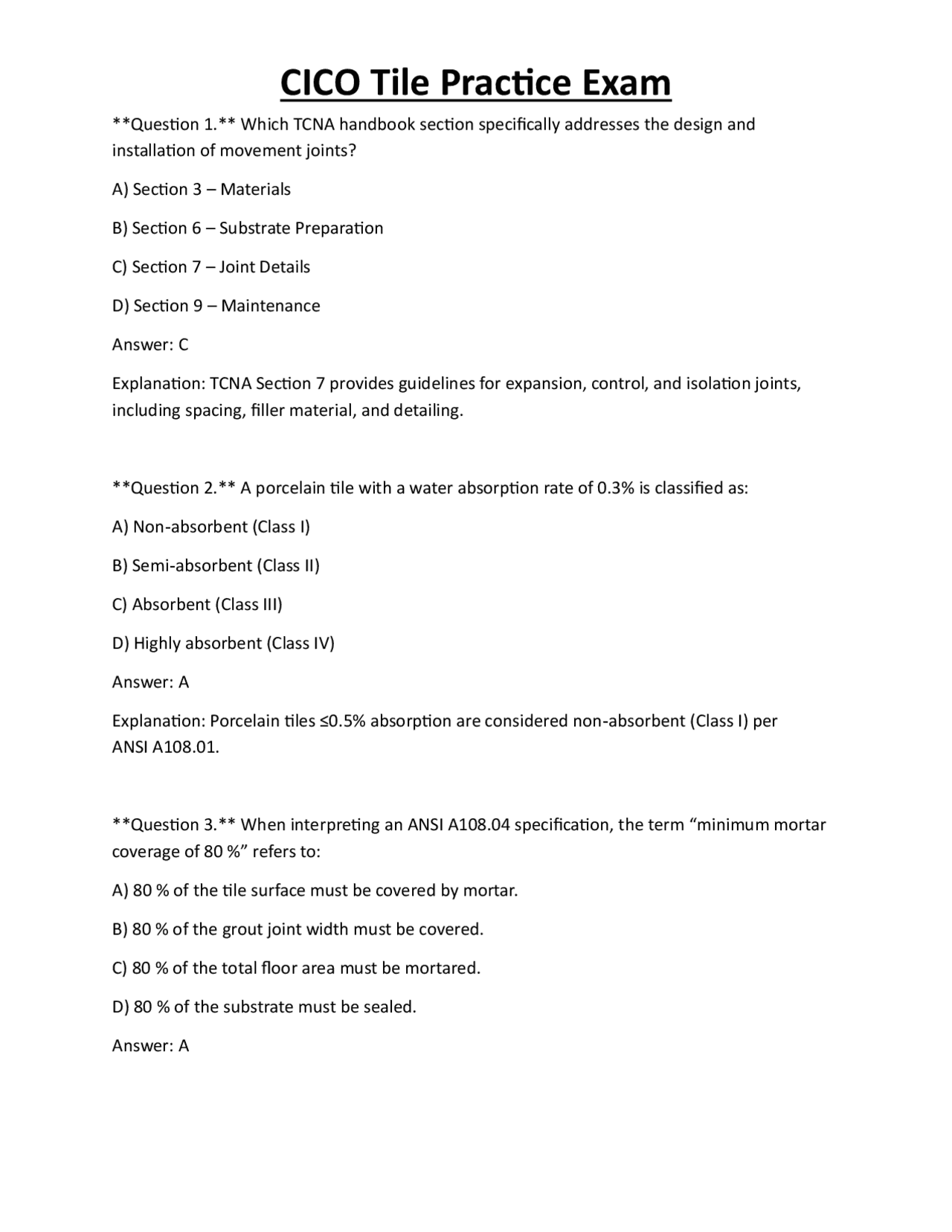

Question 1. Which TCNA handbook section specifically addresses the design and installation of movement joints? A) Section 3 – Materials B) Section 6 – Substrate Preparation C) Section 7 – Joint Details D) Section 9 – Maintenance Answer: C Explanation: TCNA Section 7 provides guidelines for expansion, control, and isolation joints, including spacing, filler material, and detailing. Question 2. A porcelain tile with a water absorption rate of 0.3% is classified as: A) Non‑absorbent (Class I) B) Semi‑absorbent (Class II) C) Absorbent (Class III) D) Highly absorbent (Class IV) Answer: A Explanation: Porcelain tiles ≤0.5% absorption are considered non‑absorbent (Class I) per ANSI A108.01. Question 3. When interpreting an ANSI A108.04 specification, the term “minimum mortar coverage of 80 %” refers to: A) 80 % of the tile surface must be covered by mortar. B) 80 % of the grout joint width must be covered. C) 80 % of the total floor area must be mortared. D) 80 % of the substrate must be sealed. Answer: A
Explanation: Coverage refers to the percentage of the tile’s underside that must be bonded by mortar after troweling. Question 4. Which of the following grout types is most suitable for a shower floor with continuous water exposure? A) Sanded cementitious grout B) Unsanded cementitious grout C) Epoxy grout D) Urethane grout Answer: C Explanation: Epoxy grout is non‑porous, highly resistant to water and stains, making it ideal for wet areas. Question 5. The PEI rating of a tile indicates: A) Its slip resistance. B) Its resistance to chemical stains. C) Its ability to withstand foot traffic. D) Its water absorption level. Answer: C Explanation: The Porcelain Enamel Institute (PEI) rating grades tiles for durability under traffic loads (I–IV). Question 6. A “control joint” is primarily used to: A) Allow for thermal expansion of the tile. B) Transfer loads to the structural slab. C) Prevent cracking due to substrate movement. D) Provide a decorative pattern.
C) Chemical tile remover that dissolves the adhesive D) High‑pressure water jet Answer: D Explanation: High‑pressure water can damage the substrate and is not an accepted removal technique. Question 10. When installing large‑format tile (≥ 30 in. × 30 in.), the recommended mortar coverage is: A) Minimum 50 % B) Minimum 65 % C) Minimum 80 % D) Minimum 95 % Answer: D Explanation: Large‑format tiles require at least 95 % coverage to avoid voids and lippage. Question 11. Which tool is most appropriate for cutting a glass mosaic tile without causing chipping? A) Carbide‑tipped snap cutter B) Wet saw with a diamond blade designed for glass C) Angle grinder with a metal cutting disc D) Manual tile nipper Answer: B Explanation: A wet saw equipped with a glass‑specific diamond blade provides a clean cut with minimal chipping. Question 12. A tile’s slip resistance is measured by the COF (Coefficient of Friction). A COF of 0.42 on a wet surface is considered:
A) Non‑slip (safe) B) Marginally slip‑resistant C) Slip‑hazardous D) Not applicable to tiles Answer: A Explanation: According to ASTM C1028, a COF ≥0.42 on wet surfaces is classified as non‑slip. Question 13. Which of the following sealants is recommended for sealing the perimeter joint between tile and a bathtub? A) Acrylic caulk B) Polyurethane sealant C) Silicone sealant (neutral cure) D) Epoxy grout Answer: C Explanation: Neutral‑cure silicone provides flexibility, water resistance, and does not discolor bathtub surfaces. Question 14. The primary purpose of a pre‑sloped mortar bed beneath a linear drain is to: A) Increase the thickness of the mortar for strength. B) Direct water toward the drain without a separate shower pan. C) Reduce the amount of grout needed. D) Provide a decorative slope. Answer: B Explanation: A pre‑sloped bed creates a built‑in slope that channels water to the linear drain, eliminating the need for an additional shower pan.
Question 18. The most common cause of efflorescence on a tiled surface is: A) Excessive grout moisture. B) Inadequate waterproofing allowing water to dissolve soluble salts in the substrate. C) Using a high‑gloss sealant. D) Over‑curing the thin‑set. Answer: B Explanation: Water migrating through the substrate dissolves salts, which migrate to the surface and crystallize as efflorescence. Question 19. For a residential shower, which TCNA method is recommended for a fully waterproofed substrate without a separate shower pan? A) Method B415 – Pre‑sloped mortar bed with sheet membrane B) Method B421 – Liquid‑applied membrane over a cement board C) Method B421C – Combination of sheet and liquid membranes D) Method B425 – Unmodified thin‑set over a cement board Answer: B Explanation: TCNA B421 details a liquid‑applied waterproofing membrane over backer board, eliminating the need for a separate shower pan. Question 20. The recommended minimum thickness for a cementitious backer board used as a wall substrate is: A) 1/4 in. B) 1/2 in. C) 3/8 in. D) 5/8 in. Answer: B
Explanation: Most manufacturers specify a minimum of 1/2 in. thickness to ensure rigidity and impact resistance. Question 21. Which type of sealant is best suited for a movement joint that experiences both vertical and horizontal movement? A) Acrylic caulk B) Silicone‑acrylic hybrid C) Polyurethane sealant D) Bitumen tape Answer: C Explanation: Polyurethane sealants retain elasticity over a wide temperature range and can accommodate multidirectional movement. Question 22. When using an unmodified thin‑set mortar, the substrate must be: A) Completely dry and free of any moisture. B) Moisture‑curing (wet) at the time of application. C) Primed with a polymer‑based primer. D) Covered with a vapor barrier. Answer: A Explanation: Unmodified thin‑set does not contain polymers that aid bonding to damp substrates; it requires a dry, stable surface. Question 23. Which of the following is a primary advantage of using a self‑leveling underlayment on a concrete floor before tiling? A) Increases the floor’s structural strength. B) Provides a waterproof barrier. C) Corrects minor deviations in flatness quickly.
C) The over‑hang of a tile edge over the adjacent tile. D) The cracking of grout lines. Answer: C Explanation: Lippage occurs when one tile edge extends higher than the adjacent tile, creating a noticeable ridge. Question 27. Which type of backer board is most appropriate for a wet‑area wall installation? A) Standard cement board (e.g., Durock) B) Gypsum‑based backer board (e.g., Durock Lite) C) Fiber‑cement board (e.g., HardieBacker) D) Plywood sheathing Answer: A Explanation: Cement boards are non‑absorbent and dimensional stable, making them suitable for wet‑area walls. Question 28. When installing a mosaic tile sheet, the recommended practice for handling the sheet is to: A) Cut the sheet into individual tiles before installation. B) Keep the sheet intact and cut only where necessary. C) Soak the sheet in water for 24 hours prior to installation. D) Apply a primer to the entire sheet surface. Answer: B Explanation: Maintaining the sheet’s integrity preserves the grout lines and simplifies installation; only necessary cuts are made. Question 29. A vapor retarder differs from a waterproofing membrane in that it:
A) Allows water vapor to pass while blocking liquid water. B) Is installed on the exterior side of the substrate. C) Is always a sheet‑applied product. D) Must be painted on after tile installation. Answer: A Explanation: Vapor retarders control moisture migration but are not designed to stop liquid water infiltration like waterproofing membranes. Question 30. Which of the following PPE is mandatory when operating a wet saw with a diamond blade? A) Disposable gloves only. B) Safety glasses, hearing protection, and a respirator. C) Steel‑toe boots only. D) None; the saw is safe without PPE. Answer: B Explanation: Wet saw operation generates silica dust and noise; eye protection, hearing protection, and a respirator (or adequate ventilation) are required. Question 31. The proper method to back‑butter a large‑format tile is to: A) Apply thin‑set only to the substrate, not the tile. B) Apply thin‑set to both the substrate and the back of the tile, then press together. C) Use a high‑viscosity adhesive only on the tile edges. D) Apply a pre‑mixed epoxy to the substrate only. Answer: B Explanation: Back‑buttering ensures full coverage on both surfaces, reducing voids under large tiles.
Explanation: Urethane grout remains flexible after curing, accommodating slight movement in wet areas. Question 35. When installing tile over a heated floor system, the minimum recommended mortar thickness is: A) 1 mm B) 3 mm C) 5 mm D) 10 mm Answer: C Explanation: A 5 mm minimum mortar bed provides sufficient coverage and accommodates the heating elements without compromising bond. Question 36. Which of the following statements about epoxy adhesive for tile is correct? A) It can be used over uncleaned substrates. B) It requires a minimum of 100 % coverage. C) It is compatible with all types of grout. D) It cures faster than thin‑set mortar. Answer: B Explanation: Epoxy adhesives must achieve 100 % coverage to prevent voids and ensure full bond strength. Question 37. The ANSI A118.4 standard addresses which product type? A) Modified thin‑set mortar B) Unmodified thin‑set mortar C) Epoxy grout
D) Portland cement grout Answer: B Explanation: ANSI A118.4 specifies the performance requirements for unmodified thin‑set mortars. Question 38. In a wet area where a shower niche is installed, the recommended practice for the niche’s backer board is to: A) Use regular drywall. B) Use cement board with a waterproofing membrane over it. C) Install plywood and seal it with paint. D) Use a single‑layer of tile directly on the wall. Answer: B Explanation: Cement board provides a stable, water‑resistant substrate; a waterproofing membrane protects the niche from moisture infiltration. Question 39. For a porcelain tile with a PEI rating of III, the suitable applications include: A) Residential bathrooms only. B) Light commercial (e.g., retail) and residential. C) Heavy commercial (e.g., airports). D) Outdoor slip‑resistant surfaces. Answer: B Explanation: PEI III tiles withstand moderate traffic, suitable for residential and light‑commercial use. Question 40. The most effective method to control dust when mixing thin‑set on site is to: A) Mix in an open area with a fan.
B) Act as a water‑stop barrier to contain water within the shower. C) Support the weight of the tile. D) Allow for expansion of the tile assembly. Answer: B Explanation: A properly constructed curb prevents water from escaping the shower enclosure. Question 44. Which of the following is a primary consideration when calculating material waste for a diagonal (45°) tile layout? A) Tile color matching. B) Increased number of cuts leading to higher waste factor. C) The need for a larger grout joint. D) The type of backer board used. Answer: B Explanation: Diagonal layouts generate more cuts and off‑cuts, requiring a higher waste allowance (often 15‑ 20 %). Question 45. The minimum recommended grout joint width for a 2 × 2 in. wall tile is: A) 1 mm B) 2 mm C) 3 mm D) 4 mm Answer: B Explanation: Small wall tiles typically use a 2 mm joint to allow for minor size variations and proper grout flow. Question 46. Which of the following is a legal requirement under OSHA for a tile contractor using a wet saw?
A) Providing a fire extinguisher within 30 ft. B) Posting a “wet saw in operation” sign only during night shifts. C) Using a water‑feed system to suppress dust. D) Ensuring the saw is grounded and has a functional blade guard. Answer: D Explanation: OSHA mandates that power tools be properly guarded and electrically safe. Question 47. In a steam room, which type of grout should be avoided? A) Epoxy grout B) Urethane grout C) Cementitious grout with a penetrating sealer D) Sanded cementitious grout without sealant Answer: D Explanation: Unsanded cementitious grout without a sealer can absorb moisture, leading to staining and degradation in high‑humidity environments. Question 48. When installing tile over a concrete slab with a moisture content of 6 %, which thin‑set is appropriate? A) Unmodified thin‑set B) Modified thin‑set with a moisture‑resistant additive C) Epoxy adhesive D) No thin‑set is needed; tile can be set directly. Answer: B Explanation: Modified thin‑set mortars contain polymers that tolerate higher substrate moisture levels. Question 49. The primary function of a sill seal in a shower wall assembly is to:
Question 52. When using a sheet‑applied waterproofing membrane, the seams should be: A) Overlapped 2 in. and taped with the manufacturer’s seam tape. B) Butt‑joined with no overlap. C) Sealed with silicone caulk. D) Left uncovered; the membrane self‑seals. Answer: A Explanation: Overlapping and taping seams ensure a continuous water‑tight barrier. Question 53. A crack isolation membrane (CIM) is typically installed over: A) New concrete floors with no cracks. B) Existing concrete with hairline cracks. C) Concrete with active, structural cracks. D) Wood subfloors. Answer: C Explanation: CIMs are designed to bridge and isolate active structural cracks, preventing them from transmitting to the tile. Question 54. Which of the following grout removal tools is most effective for removing cured grout from tile edges without damaging the tile? A) Wire brush B. C) Grout saw with a carbide blade D) Rotary tool with a diamond tip Answer: D
Explanation: A rotary tool with a diamond tip can precisely remove cured grout without scratching the tile surface. Question 55. The ANSI A118.15 standard specifies requirements for: A) Modified thin‑set mortar B) Epoxy grout C) Unmodified thin‑set mortar D) Polymer‑modified epoxy adhesive Answer: B Explanation: ANSI A118.15 governs the performance of epoxy grout products. Question 56. When installing tile over a swimming pool deck, which substrate preparation step is essential? A) Applying a standard thin‑set directly over the concrete. B) Installing a crack isolation membrane over the concrete. C) Using a sand‑filled mortar bed without waterproofing. D) Adding a decorative border before tiling. Answer: B Explanation: Pool decks experience movement and moisture; a crack isolation membrane protects the tile assembly. Question 57. The primary advantage of mastic over thin‑set for wall tile installation is: A) Higher bond strength. B) Faster cure time. C) Ease of cleanup and no mixing required. D) Compatibility with wet substrates. Answer: C
