Problem HH 1.9

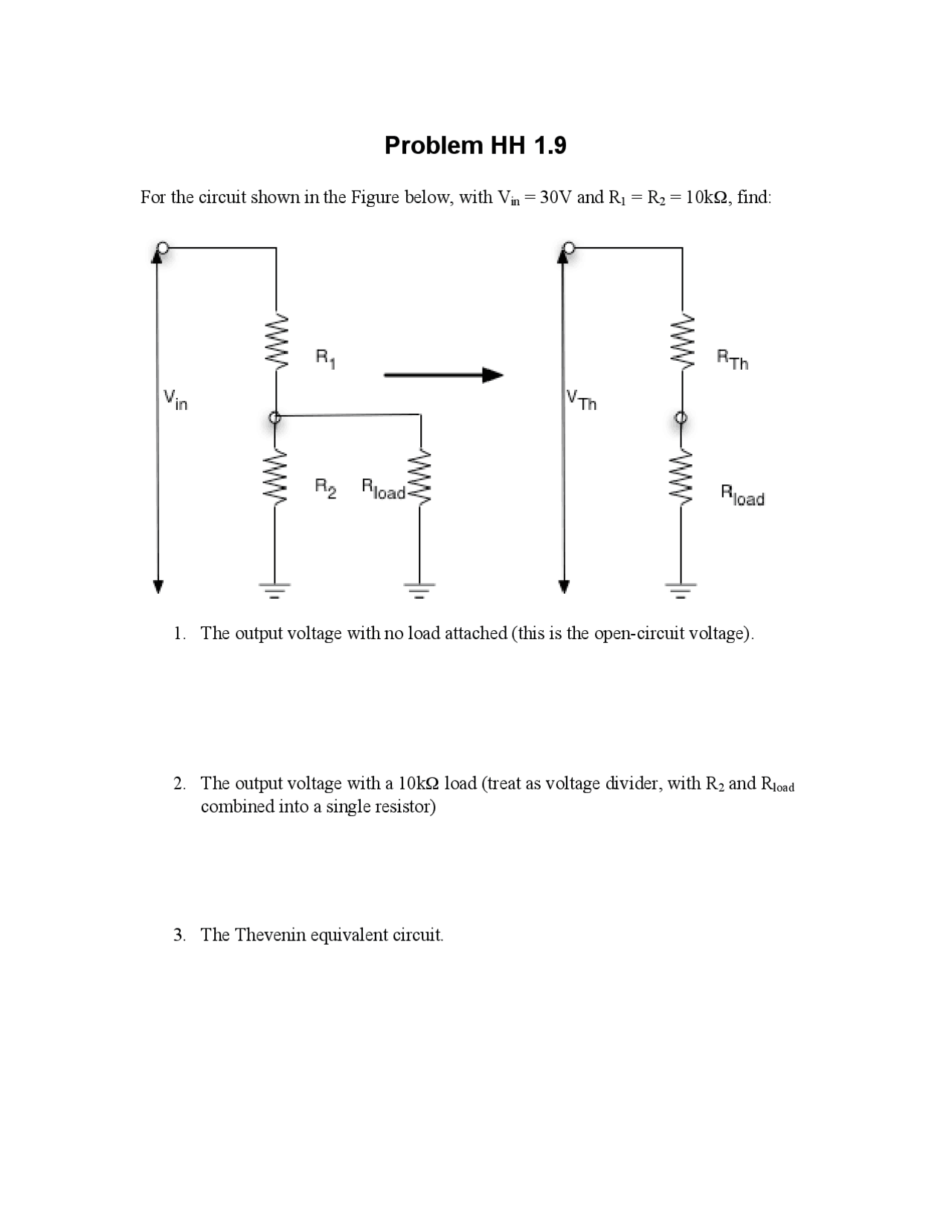

For the circuit shown in the Figure below, with Vin = 30V and R1 = R2 = 10kΩ, find:
1. The output voltage with no load attached (this is the open-circuit voltage).
2. The output voltage with a 10kΩ load (treat as voltage divider, with R2 and Rload
combined into a single resistor)
3. The Thevenin equivalent circuit.
