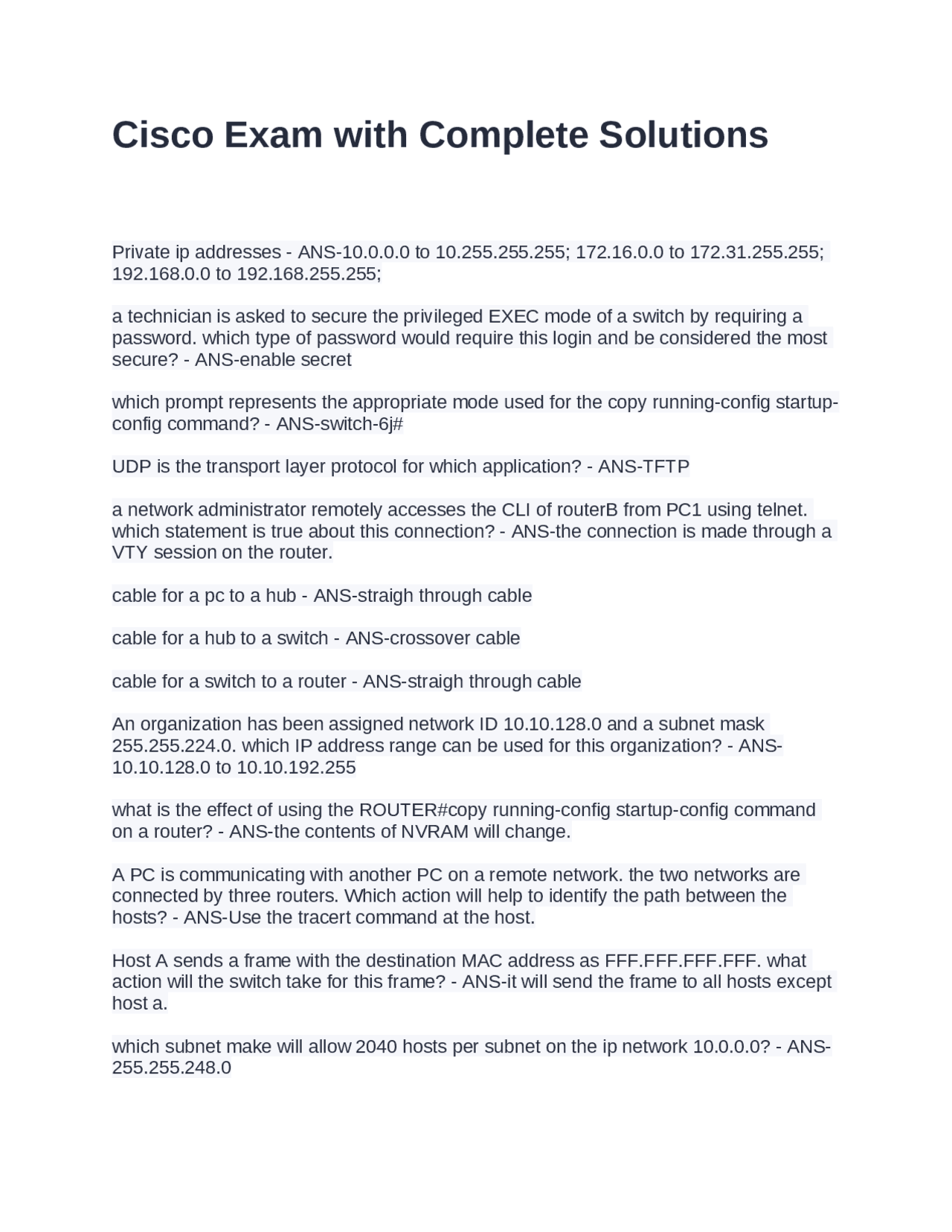

Cisco Exam with Complete Solutions
Private ip addresses - ANS-10.0.0.0 to 10.255.255.255; 172.16.0.0 to 172.31.255.255;
192.168.0.0 to 192.168.255.255;
a technician is asked to secure the privileged EXEC mode of a switch by requiring a
password. which type of password would require this login and be considered the most
secure? - ANS-enable secret
which prompt represents the appropriate mode used for the copy running-config startup-
config command? - ANS-switch-6j#
UDP is the transport layer protocol for which application? - ANS-TFTP
a network administrator remotely accesses the CLI of routerB from PC1 using telnet.
which statement is true about this connection? - ANS-the connection is made through a
VTY session on the router.
cable for a pc to a hub - ANS-straigh through cable
cable for a hub to a switch - ANS-crossover cable
cable for a switch to a router - ANS-straigh through cable
An organization has been assigned network ID 10.10.128.0 and a subnet mask
255.255.224.0. which IP address range can be used for this organization? - ANS-
10.10.128.0 to 10.10.192.255
what is the effect of using the ROUTER#copy running-config startup-config command
on a router? - ANS-the contents of NVRAM will change.
A PC is communicating with another PC on a remote network. the two networks are
connected by three routers. Which action will help to identify the path between the
hosts? - ANS-Use the tracert command at the host.
Host A sends a frame with the destination MAC address as FFF.FFF.FFF.FFF. what
action will the switch take for this frame? - ANS-it will send the frame to all hosts except
host a.
which subnet make will allow 2040 hosts per subnet on the ip network 10.0.0.0? - ANS-
255.255.248.0
