Electrical Code: NEC Article 230 Practice Questions and Answers, Exams of Urban Services Design and Administration

Chamberlain College of NursingUrban Services Design and Administration

A series of questions and answers related to article 230 of the national electrical code (nec), focusing on services, including definitions, requirements, and regulations for electrical installations. It covers various aspects such as service conductors, service points, overhead and underground systems, and service equipment. The questions address specific sections of the nec, testing the understanding of electrical professionals and students regarding code compliance and safe electrical practices. This resource is valuable for those preparing for electrical exams or seeking to deepen their knowledge of electrical codes.

Typology: Exams

2025/2026

Available from 12/19/2025

SirDenNis
SirDenNis 🇺🇸

147 documents

1 / 14

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

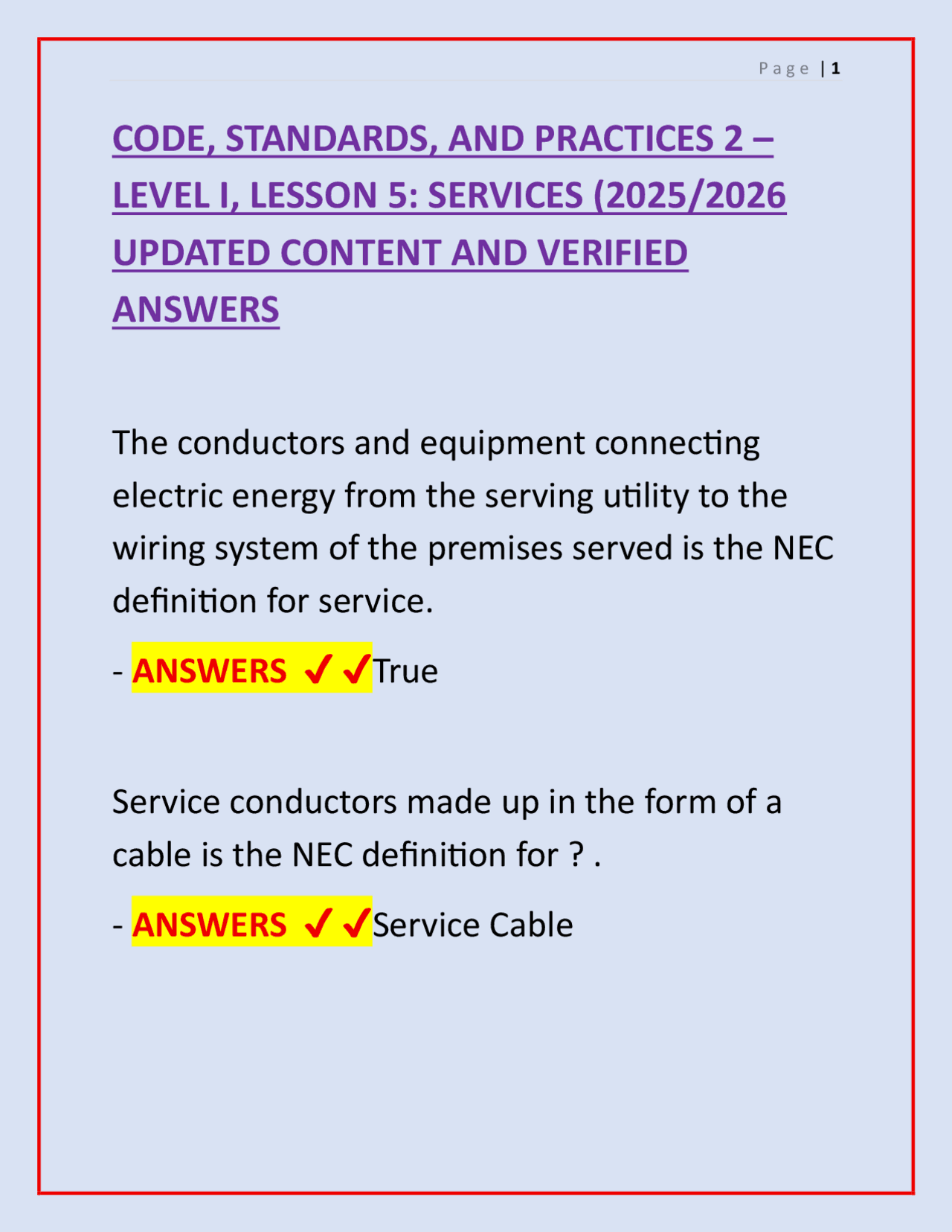

P a g e | 1
CODE, STANDARDS, AND PRACTICES 2 –
LEVEL I, LESSON 5: SERVICES (2025/2026
UPDATED CONTENT AND VERIFIED
ANSWERS
The conductors and equipment connecting
electric energy from the serving utility to the
wiring system of the premises served is the NEC
definition for service.
- ANSWERS ✔ ✔True
Service conductors made up in the form of a
cable is the NEC definition for ? .
- ANSWERS ✔ ✔Service Cable
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe

Partial preview of the text

Download Electrical Code: NEC Article 230 Practice Questions and Answers and more Exams Urban Services Design and Administration in PDF only on Docsity!

CODE, STANDARDS, AND PRACTICES 2 –

LEVEL I, LESSON 5: SERVICES (2025/

UPDATED CONTENT AND VERIFIED

ANSWERS

The conductors and equipment connecting electric energy from the serving utility to the wiring system of the premises served is the NEC definition for service.

  • ANSWERS ✔ ✔True Service conductors made up in the form of a cable is the NEC definition for?.
  • ANSWERS ✔ ✔Service Cable

? are defined in the NEC as the conductors from the service point to the service disconnecting means.

  • ANSWERS ✔ ✔Service Conductors Overhead service conductors are defined in the NEC as the overhead conductors between the service point and the first point of connection to the? at the building or other structure.
  • ANSWERS ✔ ✔Service-Entrance Conductors Underground service conductors are defined in the NEC as the underground conductors between the service point and the first point of connection to the overhead service conductors in a terminal box, meter, or other enclosure, inside or outside the building wall.

the service drop or overhead service conductors.

  • ANSWERS ✔ ✔Usually outside the building Underground system service-entrance conductors are defined in the NEC as the service conductors between the terminals of the service equipment and the point of connection to the service lateral or underground service conductors.
  • ANSWERS ✔ ✔True Service equipment is defined in the NEC as the necessary equipment, consisting of a circuit breaker(s) or switch(es) and fuse(s) and their accessories, connected to the serving utility and

intended to constitute the main control and disconnect of the serving utility.

  • ANSWERS ✔ ✔True Service lateral is defined in the NEC as the overhead conductors between the utility electric supply system and the service point.
  • ANSWERS ✔ ✔False How many parts is Article 230 divided into?
  • ANSWERS ✔ ✔ 8 Fuses are not permitted to be used with "service equipment."
  • ANSWERS ✔ ✔False, 230.90(A)

How many conditions does the NEC list whereby conductors shall be considered to be outside of a building or other structure?

  • ANSWERS ✔ ✔5, 230. Service conductors for one building are passed through the interior of another building. The service entrance conductors are installed in EMT and are located above a suspended ceiling.
  • ANSWERS ✔ ✔Violation, 230. The general rule permits up to two service(s) for a building.
  • ANSWERS ✔ ✔False, 230.

There are? special conditions which allow for additional services that modify the general rule allowing only one service to a building.

  • ANSWERS ✔ ✔ 8 Service conductors installed as a multiconductor cable without an overall outer jacket must have a clearance of not less than three feet from which of the following?
  • ANSWERS ✔ ✔All of the Above, 230.9(A) Overhead service conductors are generally not permitted to be smaller than? copper or? aluminum.
  • ANSWERS ✔ ✔B, 230.23(B)

- ANSWERS ✔ ✔8', 230.24(A)

Which wiring method is not permitted for use with service conductors rated for 1,000 volts, nominal, or less?

  • ANSWERS ✔ ✔Type NM Cable Which part of Article 230 addresses underground service conductors?
  • ANSWERS ✔ ✔Part III Which NEC first-level subdivision addresses the size of the grounded conductor installed as an underground service conductor?
  • ANSWERS ✔ ✔230.31(C)

Which part of Article 230 addresses "service equipment — general?"

  • ANSWERS ✔ ✔Part V Which part of Article 230 addresses the disconnecting means for service equipment? - ANSWERS ✔ ✔Part VI Each service disconnect must be permanently marked to identify it as a service disconnect. - ANSWERS ✔ ✔True, 230.70(B) Individual meter socket enclosures rated at 1,000 volts or less must be marked to identify them as being suitable for service equipment. - ANSWERS ✔ ✔False, 230.66(B)

Service equipment in other than dwelling units is required to be marked in the field with the maximum available fault current with one exception. This exception is in industrial installations where conditions of maintenance and supervision ensure that only qualified persons service the equipment. - ANSWERS ✔ ✔True, Where exposed to weather or where embedded in masonry, raceways containing service-entrance conductors must be arranged to drain. - ANSWERS ✔ ✔True, 230. The location of the service overcurrent device shall be?. - ANSWERS ✔ ✔Either A or B,

The ground-fault protection system for services must be performance tested when first installed on site. - ANSWERS ✔ ✔True, 230.95(C) Service conductors and equipment used on circuits exceeding 1,000 volts, nominal, are covered by Part VIII of Article 230 and are exempt from Parts I through VII. - ANSWERS ✔ ✔False, 230. In accordance with Part III of Article 230, underground service conductors shall be installed in accordance with the applicable requirements of the Code covering the type of wiring method used and shall be limited to the ? methods provided for. - ANSWERS ✔ ✔ 10
