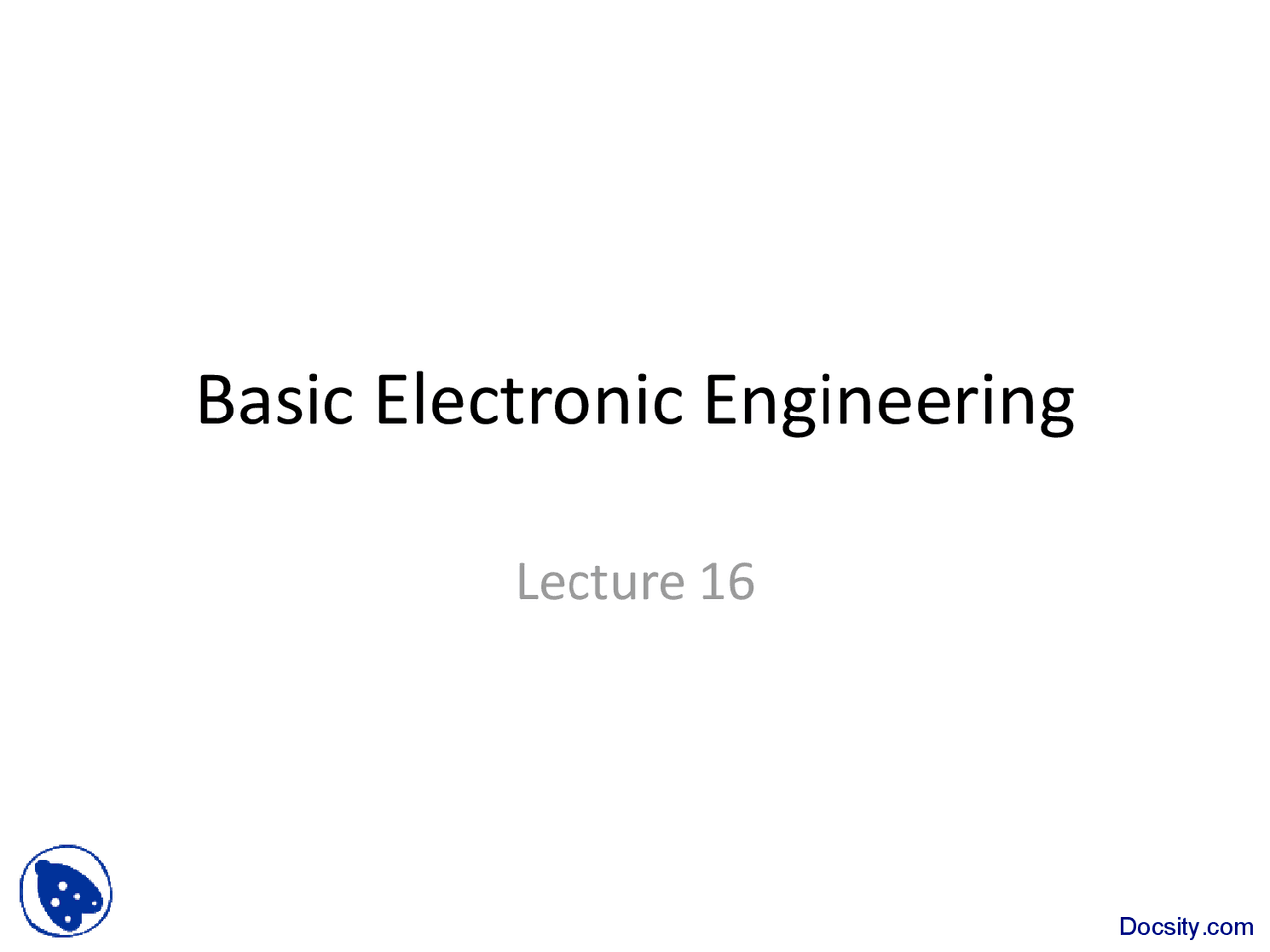

Basic Electronic Engineering
Lecture 16
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe

Partial preview of the text

Download Collector Feedback Bias-Basic Electronics Biasing-Lecture Slides and more Slides Basic Electronics in PDF only on Docsity!

Basic Electronic Engineering

Lecture 16

Collector Feedback Bias

• Stability of a bias circuit can be improved

by introducing a feedback path from

collector to base

• The sensitivity to changes in beta and

temperature is less compared to fixed

bias and emitter bias circuits

Collector-Emitter Loop

Approximating

Analysis of Collector Feedback Bias

Circuit

VCC IC RC VCE I RE E
IC I E IC
VCC  I RC C  VCE I RC E

V CE  VCC  IC (^)  RC  RE 

Collector Feedback Bias

• Example

Find ICQ and VCEQ for the following circuit

Common Collector Configuration

Emitter-Base Loop

Applying KVL

VEE  I RB B  VBE  I RE E

I E     1 IB

V EE  I RB B  VBE     1 I RB E

EE BE B B E

V V
I
R  R

Common Collector Configuration

Collector-Emitter Loop

Applying KVL

VEE  VCE  I RE E
VCE  VEE  I RE E

Common Base Configuration

• For common base configuration the input signal is connected

to the emitter and base is at ground potential

• Base is common between the input terminal(emitter) and

output terminal(collector)

Common Base Configuration

Base-Emitter Loop

• Applying KVL in the loop

VEE  I RE E VBE

EE BE E E

V V
I
R

Common Base Configuration

Collector-Base Loop

• Applying KVL in the loop

VCC  VCB  I RC C
VCB  VCC I RC C

Common Base Configuration

Find IE IB VCE and VCB for the following circuit
