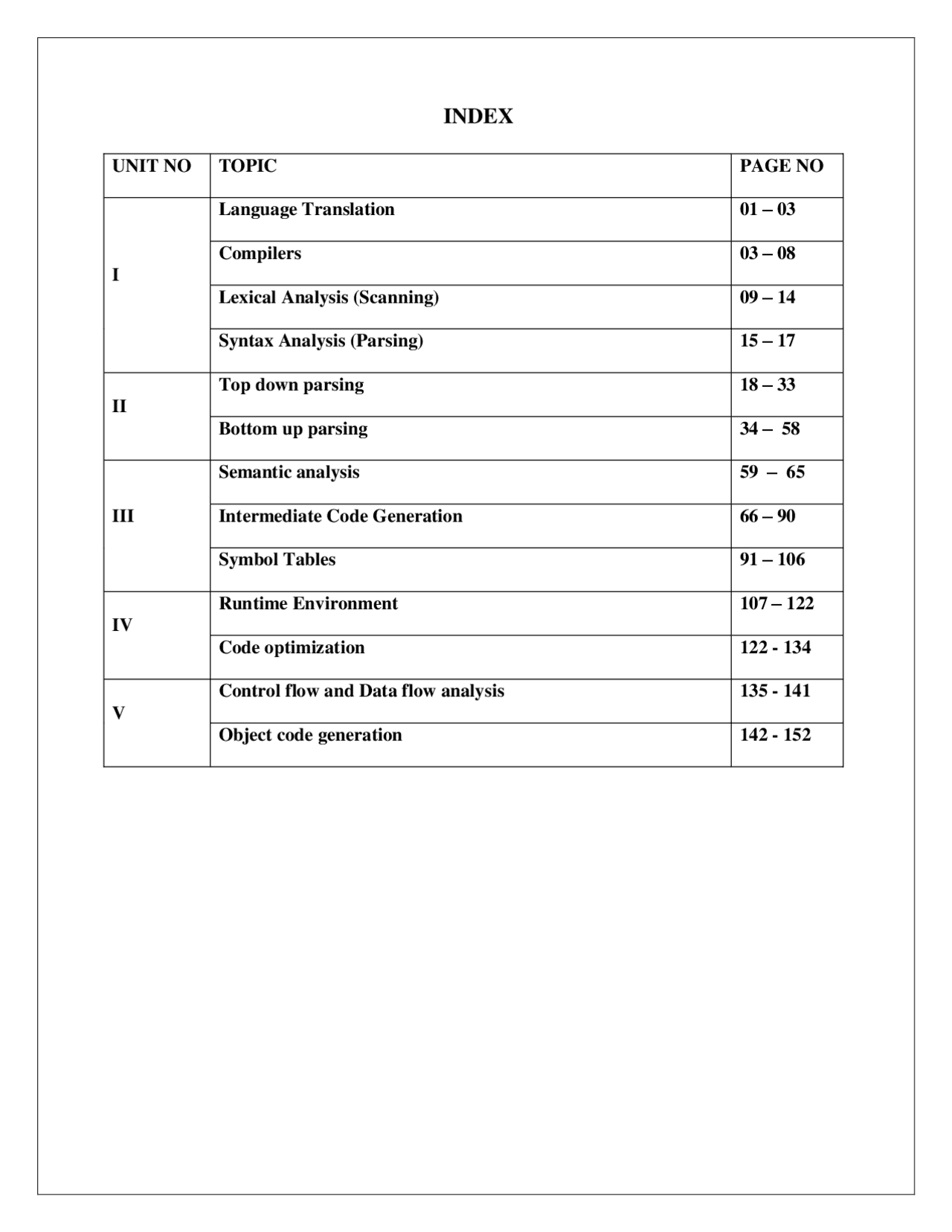

Language Translation 01 – 03
Compilers 03 – 08
Lexical Analysis (Scanning) 09 – 14
Syntax Analysis (Parsing) 15 – 17
Top down parsing 18 – 33
Bottom up parsing 34 – 58
Semantic analysis 59 – 65
Intermediate Code Generation 66 – 90
Symbol Tables 91 – 106
Runtime Environment 107 – 122
Code optimization 122 - 134
Control flow and Data flow analysis 135 - 141
Object code generation 142 - 152
Target Program
As Computers became inevitable and indigenous part of human life, and several languages
with different and more advanced features are evolved into this stream to satisfy or comfort the user
in communicating with the machine , the development of the translators or mediator Software‘s
have become essential to fill the huge gap between the human and machine understanding. This
process is called Language Processing to reflect the goal and intent of the process. On the way to
this process to understand it in a better way, we have to be familiar with some key terms and
concepts explained in following lines.
LANGUAGE TRANSLATORS :
Is a computer program which translates a program written in one (Source) language to its
equivalent program in other [Target]language. The Source program is a high level language where as
the Target language can be any thing from the machine language of a target machine (between
Microprocessor to Supercomputer) to another high level language program.
Two commonly Used Translators are Compiler and Interpreter
1. Compiler : Compiler is a program, reads program in one language called Source Language and translates in to its equivalent program in another Language called Target Language, in addition to this its presents the error information to the User.
If the target program is an executable machine-language program, it can then be called by the users to process inputs and produce outputs.
Input Output
Figure1.1: Running the target Program
Compiler
Loader/Linker
Assembler
In addition to these translators, programs like interpreters, text formatters etc., may be used in language processing system. To translate a program in a high level language program to an executable one, the Compiler performs by default the compile and linking functions.
Normally the steps in a language processing system includes Preprocessing the skeletal Source program which produces an extended or expanded source program or a ready to compile unit of the source program, followed by compiling the resultant, then linking / loading , and finally its equivalent executable code is produced. As I said earlier not all these steps are mandatory. In some cases, the Compiler only performs this linking and loading functions implicitly.
The steps involved in a typical language processing system can be understood with following diagram.
Source Program [ Example: filename.C ]
Preprocessor
Modified Source Program [ Example: filename.C ]
Target Assembly Program
Relocatable Machine Code [ Example: filename.obj ]
Library files Relocatable Object files Target Machine Code [ Example: filename. exe ] Figure1.3 : Context of a Compiler in Language Processing System
Based on the specific input it takes and the output it produces, the Compilers can be classified into the following types;
Traditional Compilers(C, C++, Pascal): These Compilers convert a source program in a HLL into its equivalent in native machine code or object code.
Interpreters(LISP, SNOBOL, Java1.0): These Compilers first convert Source code into intermediate code, and then interprets (emulates) it to its equivalent machine code.
Cross-Compilers: These are the compilers that run on one machine and produce code for another machine.
Incremental Compilers: These compilers separate the source into user defined–steps; Compiling/recompiling step- by- step; interpreting steps in a given order
Converters (e.g. COBOL to C++): These Programs will be compiling from one high level language to another.
Just-In-Time (JIT) Compilers (Java, Micosoft.NET): These are the runtime compilers from intermediate language (byte code, MSIL) to executable code or native machine code. These perform type – based verification which makes the executable code more trustworthy
Ahead-of-Time (AOT) Compilers (e.g., .NET ngen): These are the pre-compilers to the native code for Java and .NET
Binary Compilation: These compilers will be compiling object code of one platform into object code of another platform.
Due to the complexity of compilation task, a Compiler typically proceeds in a Sequence of compilation phases. The phases communicate with each other via clearly defined interfaces. Generally an interface contains a Data structure (e.g., tree), Set of exported functions. Each phase works on an abstract intermediate representation of the source program, not the source program text itself (except the first phase)
Compiler Phases are the individual modules which are chronologically executed to perform their respective Sub-activities, and finally integrate the solutions to give target code.
It is desirable to have relatively few phases, since it takes time to read and write immediate files. Following diagram (Figure1.4) depicts the phases of a compiler through which it goes during the compilation. There fore a typical Compiler is having the following Phases:
In addition to these, it also has Symbol table management , and Error handler phases. Not all the phases are mandatory in every Compiler. e.g, Code Optimizer phase is optional in some
All of these phases of a general Compiler are conceptually divided into The Front-end ,
and The Back-end. This division is due to their dependence on either the Source Language or
the Target machine. This model is called an Analysis & Synthesis model of a compiler.
The Front-end of the compiler consists of phases that depend primarily on the Source
language and are largely independent on the target machine. For example, front-end of the
compiler includes Scanner, Parser, Creation of Symbol table, Semantic Analyzer, and the
Intermediate Code Generator.
The Back-end of the compiler consists of phases that depend on the target machine, and
those portions don‘t dependent on the Source language, just the Intermediate language. In this we
have different aspects of Code Optimization phase, code generation along with the necessary
Error handling, and Symbol table operations.
LEXICAL ANALYZER (SCANNER): The Scanner is the first phase that works as interface between the compiler and the Source language program and performs the following functions:
Reads the characters in the Source program and groups them into a stream of tokens in which each token specifies a logically cohesive sequence of characters, such as an identifier , a Keyword , a punctuation mark, a multi character operator like :=.
The character sequence forming a token is called a lexeme of the token.
The Scanner generates a token-id, and also enters that identifiers name in the Symbol table if it doesn‘t exist.
Also removes the Comments, and unnecessary spaces.
The format of the token is < Token name, Attribute value>
SYNTAX ANALYZER (PARSER): The Parser interacts with the Scanner, and its subsequent phase Semantic Analyzer and performs the following functions:
Groups the above received, and recorded token stream into syntactic structures, usually into a structure called Parse Tree whose leaves are tokens.
The interior node of this tree represents the stream of tokens that logically belongs together.
It means it checks the syntax of program elements.
SEMANTIC ANALYZER: This phase receives the syntax tree as input, and checks the semantically correctness of the program. Though the tokens are valid and syntactically correct, it
may happen that they are not correct semantically. Therefore the semantic analyzer checks the semantics (meaning) of the statements formed.
The Syntactically and Semantically correct structures are produced here in the form of a Syntax tree or DAG or some other sequential representation like matrix.
INTERMEDIATE CODE GENERATOR(ICG): This phase takes the syntactically and semantically correct structure as input, and produces its equivalent intermediate notation of the source program. The Intermediate Code should have two important properties specified below:
It should be easy to produce,and Easy to translate into the target program. Example intermediate code forms are:
Three address codes,
Polish notations, etc.
CODE OPTIMIZER: This phase is optional in some Compilers, but so useful and beneficial in terms of saving development time, effort, and cost. This phase performs the following specific functions:
Attempts to improve the IC so as to have a faster machine code. Typical functions include – Loop Optimization, Removal of redundant computations, Strength reduction, Frequency reductions etc.
Sometimes the data structures used in representing the intermediate forms may also be changed.
CODE GENERATOR: This is the final phase of the compiler and generates the target code, normally consisting of the relocatable machine code or Assembly code or absolute machine code.
Memory locations are selected for each variable used, and assignment of variables to registers is done.
Intermediate instructions are translated into a sequence of machine instructions.
The Compiler also performs the Symbol table management and Error handling throughout the compilation process. Symbol table is nothing but a data structure that stores different source language constructs, and tokens generated during the compilation. These two interact with all phases of the Compiler.
As the first phase of a compiler, the main task of the lexical analyzer is to read the input characters of the source program, group them into lexemes, and produce as output tokens for each lexeme in the source program. This stream of tokens is sent to the parser for syntax analysis. It is common for the lexical analyzer to interact with the symbol table as well.
When the lexical analyzer discovers a lexeme constituting an identifier, it needs to enter that lexeme into the symbol table. This process is shown in the following figure.
Figure 1.6 : Lexical Analyzer
. When lexical analyzer identifies the first token it will send it to the parser, the parser receives the token and calls the lexical analyzer to send next token by issuing the getNextToken() command. This Process continues until the lexical analyzer identifies all the tokens. During this process the lexical analyzer will neglect or discard the white spaces and comment lines.
TOKENS, PATTERNS AND LEXEMES:
A token is a pair consisting of a token name and an optional attribute value. The token name is an abstract symbol representing a kind of lexical unit, e.g., a particular keyword, or a sequence of input characters denoting an identifier. The token names are the input symbols that the parser processes. In what follows, we shall generally write the name of a token in boldface. We will often refer to a token by its token name.
A pattern is a description of the form that the lexemes of a token may take [ or match]. In the case of a keyword as a token, the pattern is just the sequence of characters that form the keyword. For identifiers and some other tokens, the pattern is a more complex structure that is matched by many strings.
A lexeme is a sequence of characters in the source program that matches the pattern for a token and is identified by the lexical analyzer as an instance of that token.
Example: In the following C language statement ,
printf ("Total = %d\n‖, score) ;
both printf and score are lexemes matching the pattern for token id , and "Total = %d\n ‖ is a lexeme matching literal [or string].
Figure 1.7: Examples of Tokens
LEXICAL ANALYSIS Vs PARSING:
There are a number of reasons why the analysis portion of a compiler is normally separated into lexical analysis and parsing (syntax analysis) phases.
1. Simplicity of design is the most important consideration. The separation of Lexical and Syntactic analysis often allows us to simplify at least one of these tasks. For example, a parser that had to deal with comments and whitespace as syntactic units would be considerably more complex than one that can assume comments and whitespace have already been removed by the lexical analyzer.
2. Compiler efficiency is improved. A separate lexical analyzer allows us to apply specialized techniques that serve only the lexical task, not the job of parsing. In addition, specialized buffering techniques for reading input characters can speed up the compiler significantly.
3. Compiler portability is enhanced : Input-device-specific peculiarities can be restricted to the lexical analyzer.
Once the next lexeme is determined, forward is set to the character at its right end. Then,
after the lexeme is recorded as an attribute value of a token returned to the parser, 1exemeBegin
is set to the character immediately after the lexeme just found. In Fig, we see forward has passed
the end of the next lexeme, ** (the FORTRAN exponentiation operator), and must be retracted
one position to its left.
Advancing forward requires that we first test whether we have reached the end of one
of the buffers, and if so, we must reload the other buffer from the input, and move forward to
the beginning of the newly loaded buffer. As long as we never need to look so far ahead of the
actual lexeme that the sum of the lexeme's length plus the distance we look ahead is greater
than N, we shall never overwrite the lexeme in its buffer before determining it.
Sentinels To Improve Scanners Performance:
If we use the above scheme as described, we must check, each time we advance forward,
that we have not moved off one of the buffers; if we do, then we must also reload the other
buffer. Thus, for each character read, we make two tests: one for the end of the buffer, and one
to determine what character is read (the latter may be a multi way branch). We can combine the
buffer-end test with the test for the current character if we extend each buffer to hold a sentinel
character at the end. The sentinel is a special character that cannot be part of the source program,
and a natural choice is the character eof. Figure 1.8 shows the same arrangement as Figure 1.7,
but with the sentinels added. Note that eof retains its use as a marker for the end of the entire
input.
Figure1.8 : Sentential at the end of each buffer
Any eof that appears other than at the end of a buffer means that the input is at an end. Figure 1. summarizes the algorithm for advancing forward. Notice how the first test, which can be part of
a multiway branch based on the character pointed to by forward, is the only test we make, except in the case where we actually are at the end of a buffer or the end of the input.
switch ( *forward++ )
{
case eof : if ( forward is at end of first buffer ) { reload second buffer; forward = beginning of second buffer; } else if (forward is at end of second buffer ) {
break;
}
reload first buffer; forward = beginning of first buffer; } else /* eof within a buffer marks the end of input */ terminate lexical analysis;
Figure 1.9: use of switch-case for the sentential
SPECIFICATION OF TOKENS:
Regular expressions are an important notation for specifying lexeme patterns. While they cannot express all possible patterns, they are very effective in specifying those types of patterns that we actually need for tokens.
LEX the Lexical Analyzer generator
Lex is a tool used to generate lexical analyzer, the input notation for the Lex tool is referred to as the Lex language and the tool itself is the Lex compiler. Behind the scenes, the Lex compiler transforms the input patterns into a transition diagram and generates code, in a file called lex .yy .c, it is a c program given for C Compiler, gives the Object code. Here we need to know how to write the Lex language. The structure of the Lex program is given below.
then {return(THEN) ; }
else {return(ELSE) ; }
(id) {yylval = (int) installID(); return(1D);}
(number) {yylval = (int) installNum() ; return(NUMBER) ; }
‖ < ‖ {yylval = LT; return(REL0P) ; )}
― <=‖ {yylval = LE; return(REL0P) ; }
―=‖ {yylval = EQ ; return(REL0P) ; }
―<>‖ {yylval = NE; return(REL0P);}
―<‖ {yylval = GT; return(REL0P);)}
―<=‖ {yylval = GE; return(REL0P);}
%%
int installID0() {/* function to install the lexeme, whose first character is pointed to by yytext,
and whose length is yyleng, into the symbol table and return a pointer thereto */
int installNum() {/* similar to installID, but puts numerical constants into a separate table */}
Figure 1.10 : Lex Program for tokens common tokens
In our compiler model, the parser obtains a string of tokens from the lexical analyzer, as shown in the below Figure, and verifies that the string of token names can be generated by the grammar for the source language. We expect the parser to report any syntax errors in an intelligible fashion and to recover from commonly occurring errors to continue processing the remainder of the program. Conceptually, for well-formed programs, the parser constructs a parse tree and passes it to the rest of the compiler for further processing.
Figure2.1: Parser in the Compiler
During the process of parsing it may encounter some error and present the error information back to the user
Syntactic errors include misplaced semicolons or extra or missing braces; that is, ―{" or "}." As another example, in C or Java, the appearance of a case statement without an enclosing switch is a syntactic error (however, this situation is usually allowed by the parser and caught later in the processing, as the compiler attempts to generate code).
Based on the way/order the Parse Tree is constructed, Parsing is basically classified in to following two types:
Department of Computer Science & Engineering Course File : Compiler Design
Top-down parsing can be viewed as the problem of constructing a parse tree for the given input string, starting from the root and creating the nodes of the parse tree in preorder (depth-first left to right).
Equivalently, top-down parsing can be viewed as finding a leftmost derivation for an input string.
It is classified in to two different variants namely; one which uses Back Tracking and the other is Non Back Tracking in nature.
1. Table Driven Predictive Parsing :
i. LL (1) Parsing
2. Recursive Descent parsing
1. Brute Force method
LL (1) Parsing or Predictive Parsing
LL (1) stands for, left to right scan of input, uses a Left most derivation, and the parser takes 1 symbol as the look ahead symbol from the input in taking parsing action decision.
A non recursive predictive parser can be built by maintaining a stack explicitly, rather than implicitly via recursive calls. The parser mimics a leftmost derivation. If w is the input that has been matched so far, then the stack holds a sequence of grammar symbols a such that
The table-driven parser in the figure has
An input buffer that contains the string to be parsed followed by a $ Symbol, used to indicate end of input. A stack, containing a sequence of grammar symbols with a $ at the bottom of the stack, which initially contains the start symbol of the grammar on top of $.
A parsing table containing the production rules to be applied. This is a two dimensional array M [Non terminal, Terminal].
A parsing Algorithm that takes input String and determines if it is conformant to Grammar and it uses the parsing table and stack to take such decision.
Figure 2.2: Model for table driven parsing
The Steps Involved In constructing an LL(1) Parser are:
programming language constructs. The CFG is denoted as G, and defined using a four tuple notation.
Let G be CFG, then G is written as, G= (V, T, P, S)
Where
V is a finite set of Non terminal; Non terminals are syntactic variables that denote sets of strings. The sets of strings denoted by non terminals help define the language generated by the grammar. Non terminals impose a hierarchical structure on the language that is key to syntax analysis and translation.
T is a Finite set of Terminal; Terminals are the basic symbols from which strings are formed. The term "token name" is a synonym for '"terminal" and frequently we will use the word "token" for terminal when it is clear that we are talking about just the token name. We assume that the terminals are the first components of the tokens output by the lexical analyzer. S is the Starting Symbol of the grammar, one non terminal is distinguished as the start symbol, and the set of strings it denotes is the language generated by the grammar. P is finite set of Productions; the productions of a grammar specify the manner in which the
