1.4

0.00 1.0000 1.0000 1.0000

∞

1.2000 1.8929 1.5774

0.02 1.0001 1.0003 1.0002 28.942 1.1999 1.8924 1.5771

0.04 1.0003 1.0011 1.0008 14.481 1.1996 1.8908 1.5762

0.06 1.0007 1.0025 1.0018 9.6659 1.1991 1.8882 1.5746

0.08 1.0013 1.0045 1.0032 7.2616 1.1985 1.8845 1.5724

0.10 1.0020 1.0070 1.0050 5.8218 1.1976 1.8797 1.5696

0.12 1.0029 1.0101 1.0072 4.8643 1.1966 1.8740 1.5661

0.14 1.0039 1.0138 1.0098 4.1824 1.1953 1.8672 1.5621

0.16 1.0051 1.0180 1.0128 3.6727 1.1939 1.8594 1.5574

0.18 1.0065 1.0229 1.0163 3.2779 1.1923 1.8506 1.5522

0.20 1.0080 1.0283 1.0201 2.9635 1.1905 1.8409 1.5463

0.22 1.0097 1.0343 1.0244 2.7076 1.1885 1.8302 1.5399

0.24 1.0115 1.0409 1.0290 2.4956 1.1863 1.8185 1.5329

0.26 1.0135 1.0481 1.0341 2.3173 1.1840 1.8060 1.5254

0.28 1.0157 1.0560 1.0397 2.1656 1.1815 1.7926 1.5173

0.30 1.0180 1.0644 1.0456 2.0351 1.1788 1.7783 1.5086

0.32 1.0205 1.0735 1.0520 1.9219 1.1759 1.7633 1.4995

0.34 1.0231 1.0833 1.0588 1.8229 1.1729 1.7474 1.4898

0.36 1.0259 1.0937 1.0661 1.7358 1.1697 1.7308 1.4797

0.38 1.0289 1.1048 1.0738 1.6587 1.1663 1.7134 1.4691

0.40 1.0320 1.1166 1.0819 1.5901 1.1628 1.6953 1.4580

0.42 1.0353 1.1290 1.0905 1.5289 1.1591 1.6766 1.4465

0.44 1.0387 1.1422 1.0996 1.4740 1.1553 1.6573 1.4345

0.46 1.0423 1.1561 1.1092 1.4246 1.1513 1.6373 1.4222

0.48 1.0461 1.1708 1.1192 1.3801 1.1471 1.6168 1.4094

0.50 1.0500 1.1862 1.1297 1.3398 1.1429 1.5958 1.3963

0.52 1.0541 1.2024 1.1407 1.3034 1.1384 1.5743 1.3828

0.54 1.0583 1.2194 1.1522 1.2703 1.1339 1.5523 1.3690

0.56 1.0627 1.2373 1.1643 1.2403 1.1292 1.5299 1.3549

0.58 1.0673 1.2560 1.1768 1.2130 1.1244 1.5072 1.3405

0.60 1.0720 1.2755 1.1898 1.1882 1.1194 1.4841 1.3258

0.62 1.0769 1.2959 1.2034 1.1656 1.1143 1.4607 1.3108

0.64 1.0819 1.3173 1.2176 1.1451 1.1091 1.4370 1.2956

0.66 1.0871 1.3396 1.2322 1.1265 1.1038 1.4131 1.2801

0.68 1.0925 1.3628 1.2475 1.1097 1.0984 1.3890 1.2645

0.70 1.0980 1.3871 1.2633 1.0944 1.0929 1.3647 1.2487

0.72 1.1037 1.4124 1.2797 1.0806 1.0873 1.3402 1.2327

0.74 1.1095 1.4387 1.2967 1.0681 1.0815 1.3157 1.2165

0.76 1.1155 1.4661 1.3143 1.0570 1.0757 1.2911 1.2002

0.78 1.1217 1.4947 1.3325 1.0471 1.0698 1.2665 1.1838

0.80 1.1280 1.5243 1.3514 1.0382 1.0638 1.2418 1.1673

0.82 1.1345 1.5552 1.3709 1.0305 1.0578 1.2172 1.1507

0.84 1.1411 1.5873 1.3910 1.0237 1.0516 1.1925 1.1340

0.86 1.1479 1.6207 1.4118 1.0179 1.0454 1.1680 1.1173

0.88 1.1549 1.6553 1.4333 1.0129 1.0391 1.1436 1.1006

0.90 1.1620 1.6913 1.4555 1.0089 1.0327 1.1192 1.0838

0.92 1.1693 1.7287 1.4784 1.0056 1.0263 1.0950 1.0670

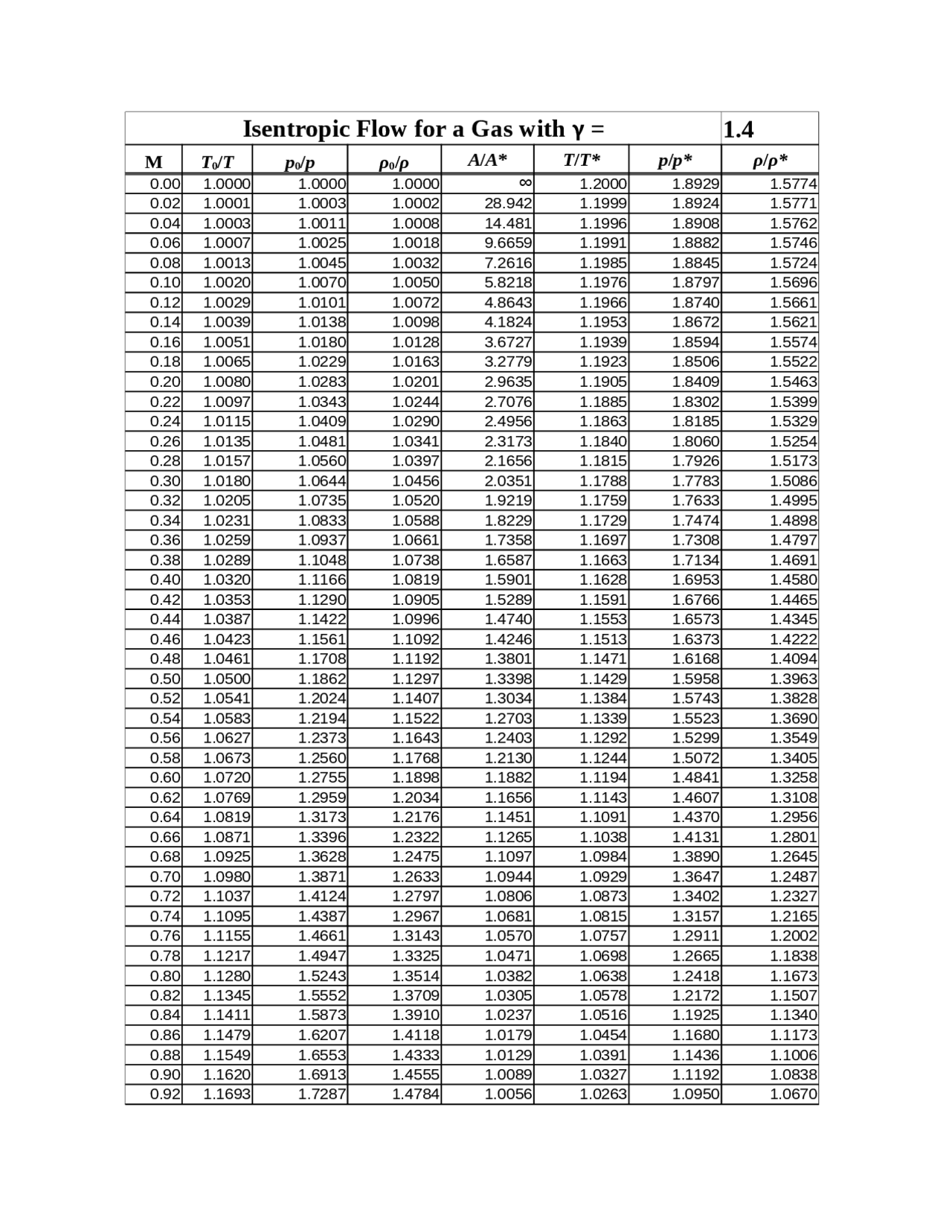

Isentropic Flow for a Gas with γ =

T0/T p0/p ρ0/ρA/A*T/T* p/p* ρ/ρ*
