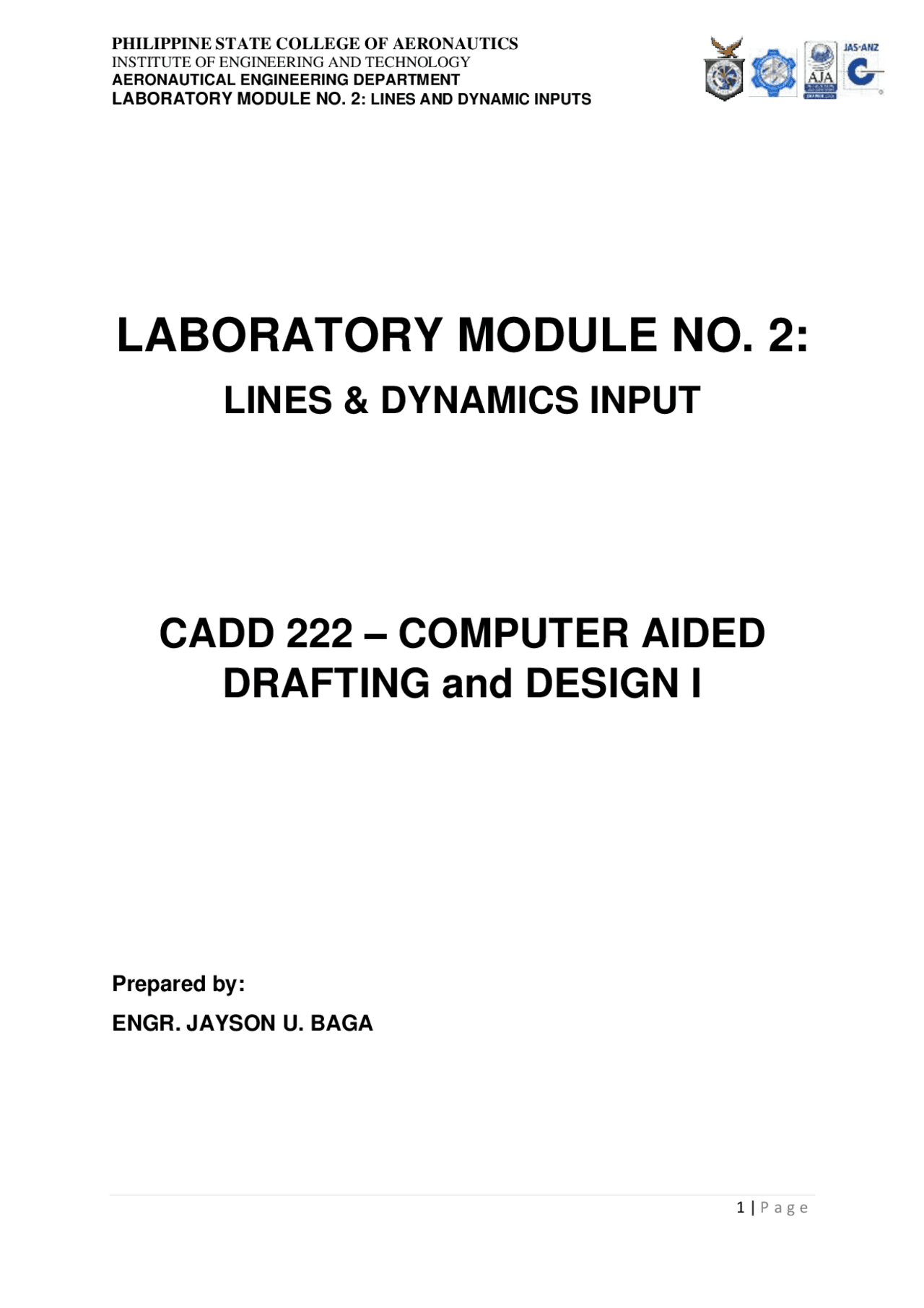

PHILIPPINE STATE COLLEGE OF AERONAUTICS
INSTITUTE OF ENGINEERING AND TECHNOLOGY
AERONAUTICAL ENGINEERING DEPARTMENT
LABORATORY MODULE NO. 2: LINES AND DYNAMIC INPUTS
1 | P a g e
LABORATORY MODULE NO. 2:
LINES & DYNAMICS INPUT
CADD 222 โ€“ COMPUTER AIDED
DRAFTING and DESIGN I
Prepared by:
ENGR. JAYSON U. BAGA
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18

Partial preview of the text

Download Computer Aided Drafting and Design and more Study Guides, Projects, Research Computer-Aided Design for Engineers in PDF only on Docsity!

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS

LABORATORY MODULE NO. 2 :

LINES & DYNAMICS INPUT

CADD 222 โ€“ COMPUTER AIDED

DRAFTING and DESIGN I

Prepared by:

ENGR. JAYSON U. BAGA

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS TABLE OF CONTENTS

TITLE REF NO. PAGE

Line 1 &2 5 Circle 1 &2 10 Arc 1 &2 10 Rectangle 1 &2 12 Ellipse 1 &2 12 Erase and Selection set 1 &2 13 Oops 1 &2 16 TIME COMMITMENT FOR THIS MODULE

READING MATERIALS TIME

Line 10 mins. Circle 10 mins. Arc 10 mins. Rectangle 10 mins. Ellipse 10 mins. Erase and Selection set 10 mins. Oops 10 mins.

ACTIVITY/PLATES

Activity No. 1 - CAD Coordinate System 1 hr. Activity No. 2 โ€“ 2D Figure I 1 hr. & 5 mins. Activity No. 3 - 2D Figure II 1 hr. & 5 mins. Activity No. 4 - 2D Figure III 1 hr. & 5 mins. Plate No. 3 โ€“ Lines 1 hr. & 5 mins. Plate No. 4 โ€“ Curves 1 hr. & 5 mins. Plate No. 5 โ€“ 2D Figure I 1 hr. & 5 mins. Plate No. 6 - 2D Figure II 1 hr. & 5 mins. Plate No. 7 - 2D Figure III 1 hr. & 5 mins. Plate No. 8 - 2D Figure IV 1 hr. & 10 mins.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Course Learning Outcomes [CLO] CLO 1. Manipulate and understand command functions by creating and recreating accurate figures. CLO 2. Produce accurate dimensions and scales of different figures and structures by the drafting program both in 2- dimensional and 3-dimensional planes.. CLO 4. Accomplish tasks via drafting software with accuracy and precision and develop a sense of automation when executing commands with the use of keyboard ie; automatically pressing the letter โ€œLโ€ instead of selecting program ribbons and toolbars. CLO 5. Handle criticism regarding designs and products that were individually done through improving initially submitted outputs CLO 6. Build logically on the foundation until the students has a reasonable competency in most of the functions of the CADD. CLO 7. Instill the engineering approach on designs that are realistic in nature. CLO 8. Fulfill certain tasks under a specified amount of time limit yet produces accurate drafts. CLO 9. Incur self-confidence and independence by individually working on accomplishing any given task. Module Learning Outcomes [MLO] MLO 1. Recreate figures exercising critical thinking and analysis MLO 2. Create 2D figures exercising creativity and imagination. Topic Learning Outcomes [TLO] TLO 3. Application of line command by recreating the given figure TLO 4 Demonstrate Familiarization on different CAD coordinate system by applying the correct data input when creating a figure. TLO 5. Recreate figures given figures using linear, curves, special objects, and object snap commands TLO 6. Demonstrate Creativity by creating a figure using dynamic input commands only. LEARNING OUTCOMES HONESTY CLAUSE As individuals of academic community. Students are expected to understand and uphold requirements of intellectual and educational integrity. The college assumes as a simple and minimal preferred of habits in academic matters that students be truthful and that they publish for deposit solely the merchandise of their efforts.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Line Command Creates single straight-line segments

  1. Choose Draw, Line. or
  2. Click the Line icon. or
  3. Type LINE from the command prompt Command: LINE or L
  4. Press ENTER
  5. Pick From point: ( point )
  6. Pick Specify next point o [Close/Undo] :( point )
  7. Pick Specify next point or [Close/Undo] :( point )
  8. Press ENTER to end line sequence or
  9. Type U to undo the last segment to point: U (undo) or
  10. Type C to create a closed polygon to point: C (close) Cartesian Coordinate System AutoCAD provides the user with an infinite two-dimensional area to work with. Any entities place on the working two-dimensional plane can be defined relative to the Cartesian coordinate system. The Cartesian coordinate system divides a two-dimensional plane with two perpendicular axes. The X axis runs horizontal across the bottom of the screen. The Y axis runs vertically along the left side of the screen. These two axes intersect at the bottom left corner of the screen.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Polar Coordinates

  1. Type @distance<angle when AutoCAD asks for a point. From point: pick point To point:@1< To point:@1< To point:@1< To point:@1< Dynamic Input Dynamic Input provides a command interface near the cursor to help you keep your focus in the drafting area. When Dynamic Input is on, tooltips display information near the cursor that is dynamically updated as the cursor moves. When a command is active, the tooltips provide a place for user entry. Turning Dynamic Input ON/OFF 1. Click Dyn on the status bar or 2. Press F Tip: Right-click Dyn and click Settings to control what is displayed by each component when Dynamic Input is on.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Orthogonal Lines Controls lines from being drawn at various angles to straight lines. When the snap grid is rotated, ortho mode rotates accordingly.

  1. Press Function Key F.
  2. Double Click or ORTHO from the Status Bar.
  3. Press or CTRL + L.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS

  1. Choose Draw, Circle. or
  2. Click the Circle icon. or
  3. Type CIRCLE at the command prompt. Command: CIRCLE
  4. Type One of the following options: 3P/2P/TTR/<
    >: or
  5. Pick A center point.
  6. Type A radius or diameter. or Circles TIPS: To create circles that are the same size, press ENTER when asked for the circle radius. When selecting a circle with a pick box, be sure to select the circumference of the circle. Arc Command Tips Except for 3-point arcs, arcs are drawn in a COUNTERCLOCKWISE direction. While in the arc command, press the right mouse button to select the following options for arcs:

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Arc Examples Activity No. 1: AUTOCAD COORDINATE SYSTEM. Encode the given coordinates to form a figure. Compile your work in a single PDF file. Use the provided short bond paper template. your work on the link provided by the instructor

1. Absolute Coordinate System Command:Line Specify first point:0, Specify next point:10, Specify next point:10, Specify next point:8, Specify next point:8, Specify next point:6, Specify next point:6, Specify next point:4, Specify next point:4, Specify next point:2, Specify next point:2, Specify next point:0, Specify next point:0,0 or C

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Specify axis end point of ellipse or [Arc / Center]: Specify other end point of axis: Specify distance to other axis or [Rotation]:

2. Center (specify the center and the end of each axis) Specify axis end point of ellipse or [Arc / Center]:C Specify center of ellipse: Specify end point of axis: Specify distance to other axis or [rotation]: ARC (create an eliipse arc) Specify axis end point of ellipse or [Arc / Center]:A Specify axis endpoint of elliptical arc or [center]: Specify other endpoint of axis: Specify distance to other axis or [rotation]: Specify start angle or [parameter]: Specify end angle or [parameter / included angle]: Erase and Selection Sets Erasing Objects

  1. Choose Modify, Erase. or
  2. Click the Erase icon. or
  3. Type ERASE at the command prompt. Command : ERASE or E
  4. Pick Object at the select object prompt. Select objects: ( pick object )
  5. Press ENTER when you are done choosing objects. Select objects: ENTER

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Selection Set Options Type one of the following options at the Select objects: prompt: (point)One object. ALL All objects within the drawing are selected unless they are on frozen or locked layers. Multiple Multiple objects selected without high lighting (faster edits). Last Last object. Previous All objects in the previous selection-set. Group Objects in a named group. Auto Automatic BOX (if pick in empty area). Single One selection (any type). Add Add mode: adds following objects to selection-set. Remove Remove mode: removes following objects from selection-set.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS OOPS Reinserts the last erased set of objects or block even if it was not the last command issued. Otherwise Oops acts like UNDO.

  1. Type OOPS at the command prompt to reinsert erased objects Command: OOPS Activity No. 2: 2D-FIGURES I Recreate the given figure. Compile your work in a single PDF file. Use the provided short bond paper template. Submit your work on the link provided by the instructor. All units are in inches.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS Activity No. 3: 2D-FIGURES II Recreate the given figure. Compile your work in a single PDF file. Use the provided short bond paper template. Submit your work on the link provided by the instructor. All units are in inches.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS PLATE No. 3 : LINES Recreate the given figure. Compile your work in a single PDF file. Use the provided short bond paper template. Submit your work on the link provided by the instructor. All units are in inches.

INSTITUTE OF ENGINEERING AND TECHNOLOGY AERONAUTICAL ENGINEERING DEPARTMENT LABORATORY MODULE NO. 2 : LINES AND DYNAMIC INPUTS PLATE No. 4 : CURVES Create an original output exercising curve. Compile your work in a single PDF file. Use the provided short bond paper template. Submit your work on the link provided by the instructor. PLATE No. 5 : 2D FIGURE I Recreate the given figure. Compile your work in a single PDF file. Use the provided short bond paper template. Submit your work on the link provided by the instructor. All units are in inches.
