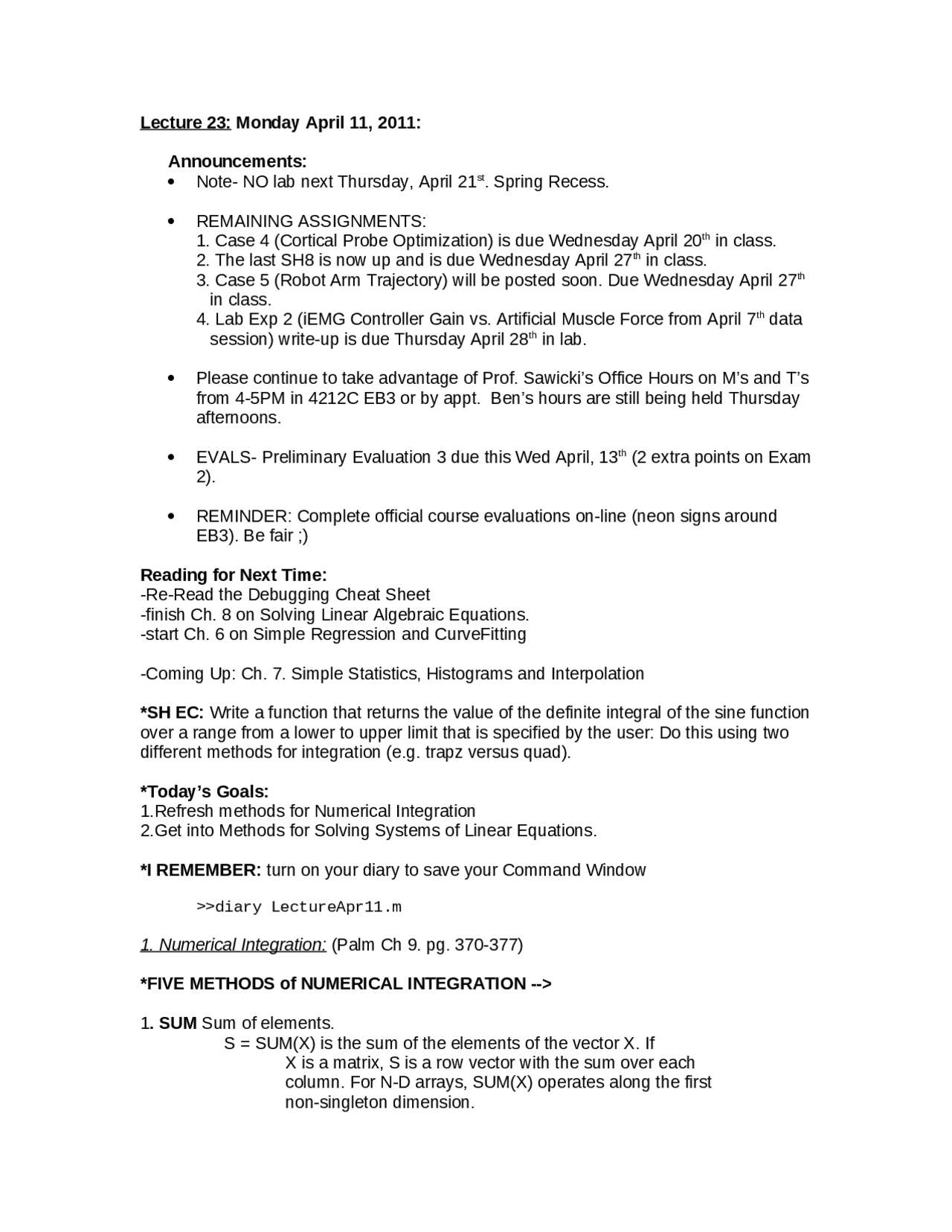

Lecture 23: Monday April 11, 2011:
Announcements:
Note- NO lab next Thursday, April 21st. Spring Recess.
REMAINING ASSIGNMENTS:
1. Case 4 (Cortical Probe Optimization) is due Wednesday April 20th in class.
2. The last SH8 is now up and is due Wednesday April 27th in class.
3. Case 5 (Robot Arm Trajectory) will be posted soon. Due Wednesday April 27th
in class.
4. Lab Exp 2 (iEMG Controller Gain vs. Artificial Muscle Force from April 7th data
session) write-up is due Thursday April 28th in lab.
Please continue to take advantage of Prof. Sawicki’s Office Hours on M’s and T’s
from 4-5PM in 4212C EB3 or by appt. Ben’s hours are still being held Thursday
afternoons.
EVALS- Preliminary Evaluation 3 due this Wed April, 13th (2 extra points on Exam
2).
REMINDER: Complete official course evaluations on-line (neon signs around
EB3). Be fair ;)
Reading for Next Time:
-Re-Read the Debugging Cheat Sheet
-finish Ch. 8 on Solving Linear Algebraic Equations.
-start Ch. 6 on Simple Regression and CurveFitting
-Coming Up: Ch. 7. Simple Statistics, Histograms and Interpolation
*SH EC: Write a function that returns the value of the definite integral of the sine function
over a range from a lower to upper limit that is specified by the user: Do this using two
different methods for integration (e.g. trapz versus quad).
*Today’s Goals:
1.Refresh methods for Numerical Integration
2.Get into Methods for Solving Systems of Linear Equations.
*I REMEMBER: turn on your diary to save your Command Window
>>diary LectureApr11.m
1. Numerical Integration: (Palm Ch 9. pg. 370-377)
*FIVE METHODS of NUMERICAL INTEGRATION -->
1. SUM Sum of elements.
S = SUM(X) is the sum of the elements of the vector X. If
X is a matrix, S is a row vector with the sum over each
column. For N-D arrays, SUM(X) operates along the first
non-singleton dimension.
