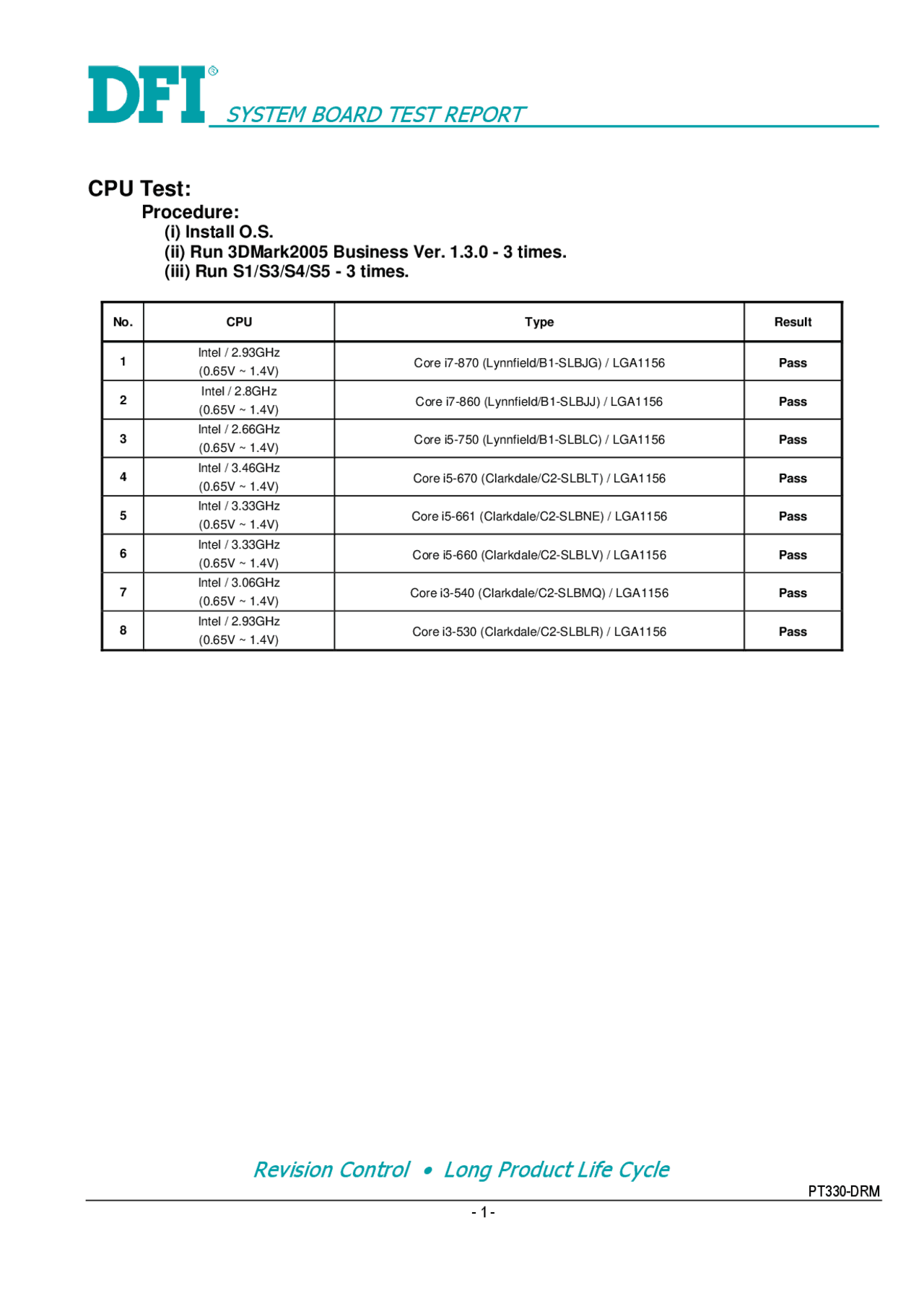

SYSTEM BOARD TEST REPORT
Revision Control • Long Product Life Cycle
PT330-DRM
- 1 -
CPU Test:
Procedure:
(i) Install O.S.
(ii) Run 3DMark2005 Business Ver. 1.3.0 - 3 times.
(iii) Run S1/S3/S4/S5 - 3 times.
No.
CPU
Type
Result
1
Intel / 2.93GHz
(0.65V ~ 1.4V)
Core i7-870 (Lynnfield/B1-SLBJG) / LGA1156
Pass
2
Intel / 2.8GHz
(0.65V ~ 1.4V)
Core i7-860 (Lynnfield/B1-SLBJJ) / LGA1156
Pass
3
Intel / 2.66GHz
(0.65V ~ 1.4V)
Core i5-750 (Lynnfield/B1-SLBLC) / LGA1156
Pass
4
Intel / 3.46GHz
(0.65V ~ 1.4V)
Core i5-670 (Clarkdale/C2-SLBLT) / LGA1156
Pass
5
Intel / 3.33GHz
(0.65V ~ 1.4V)
Core i5-661 (Clarkdale/C2-SLBNE) / LGA1156
Pass
6
Intel / 3.33GHz
(0.65V ~ 1.4V)
Core i5-660 (Clarkdale/C2-SLBLV) / LGA1156
Pass
7
Intel / 3.06GHz
(0.65V ~ 1.4V)
Core i3-540 (Clarkdale/C2-SLBMQ) / LGA1156
Pass
8
Intel / 2.93GHz
(0.65V ~ 1.4V)
Core i3-530 (Clarkdale/C2-SLBLR) / LGA1156
Pass
pf3

Partial preview of the text

Download computer motherboard and more Summaries Computer Science in PDF only on Docsity!

Revision Control • Long Product Life Cycle

PT330-DRM

CPU Test:

Procedure:

(i) Install O.S.

(ii) Run 3DMark2005 Business Ver. 1.3.0 - 3 times.

(iii) Run S1/S3/S4/S5 - 3 times.

No. CPU Type Result 1 Intel / 2.93GHz (0.65V ~ 1.4V) Core i7-^870 (Lynnfield/B1-SLBJG) /^ LGA1156^ Pass 2 Intel / 2.8GHz (0.65V ~ 1.4V) Core i7-^860 (Lynnfield/B1-SLBJJ) /^ LGA1156^ Pass 3 Intel / 2.66GHz (0.65V ~ 1.4V) Core i5- 750 (Lynnfield/B1-SLBLC) / LGA1156 Pass 4 Intel / 3.46GHz (0.65V ~ 1.4V) Core^ i5-^670 (Clarkdale/C2-SLBLT) /^ LGA1156^ Pass 5 Intel / 3.33GHz (0.65V ~ 1.4V) Core i5-^661 (Clarkdale/C2-SLBNE) /^ LGA1156^ Pass 6 Intel / 3.33GHz (0.65V ~ 1.4V) Core i5- 660 (Clarkdale/C2-SLBLV) / LGA1156 Pass 7 Intel / 3.06GHz (0.65V ~ 1.4V) Core i3-^540 (Clarkdale/C2-SLBMQ) /^ LGA1156^ Pass 8 Intel / 2.93GHz (0.65V ~ 1.4V) Core i3-^530 (Clarkdale/C2-SLBLR) /^ LGA1156^ Pass

Revision Control • Long Product Life Cycle

PT330-DRM

DDR3 Module Test:

Procedure:

(i) Install O.S.

(ii) Run 3DMark2005 Business Ver. 1.3.0 - 3 times.

(iii) Run S1/S3/S4/S5 - 3 times.

No. Brand Chip Size Type Chip Model No. Vendor Part No. Result 1 PATRIOT PATRIOT 2GB

PC3- 15000

(DDR3-1866)

PVS32G1866LLK 1.9V PVS32G1866LLK 1.9V (^) Pass 2 TEAM TEM 1GB

PC3- 15000

(DDR3-1866)

Xtreem TXD31024M1866HC8 1.9V Xtreem TXD31024M1866HC 1.9V Pass 3 TEAM TEAM 1GB

PC3- 12800

(DDR3-1600)

Xtreem TXD31024M1600HC7 1.75 ~ 1.85V Xtreem TXD31024M1600HC 1.75 ~ 1.85V Pass 4 Aeneon Aeneon 1GB

PC3- 12800

(DDR3-1600)

AXH760UD10-16H 1.5V

AXH760UD10-16H EPP2.0/XMP

1.5V Pass 5 Transcend SEC 2GB

PC3- 10600

(DDR3-1333)

K4B1G0846D TS256MLK64V3U 1.5V (^) Pass 6 Kingston ELPIDA 2GB

PC3- 10600

(DDR3-1333)

J1108BABG-DJ-E KVR1333D3N9/2G 1.5V Pass 7 NCP ELPIDA 2GB

PC3- 10600

(DDR3-1333)

J1108BASE-DJ-E ELPH8AUDR-13M88 1.5V (^) Pass 8 A-Data A-Data 2GB

PC3- 10600

(DDR3-1333)

AD30908C8D-151G AD31333002GOU(AD63I1B16) (^) Pass 9 Transcend Transcend 2GB

PC3- 10600

(DDR3-1333)

TK243WAF3 JM1333KLU-2G 1.5V (^) Pass 10 Apacer ELPIDA 1GB

PC3- 10600

(DDR3-1333)

J1108BABG-DJ-E AP1024UT1K2N (^) Pass 11 TEAM TEAM 1GB

PC3- 10600

(DDR3-1333)

Xtreem TXD31024M1333HC7 1.75 ~ 1.85V Xtreem TXD31024M1333HC 1.75 ~ 1.85V Pass 12 Aeneon Aeneon 1GB

PC3- 10600

(DDR3-1333)

AXH760UD00-13G 1.5V AXH760UD00-13G 1.5V (^) Pass 13 Transcend ELPIDA 1GB

PC3- 10600

(DDR3-1333)

J1108BASE-DJ-E TS128MLK64V3U 1.5V Pass
