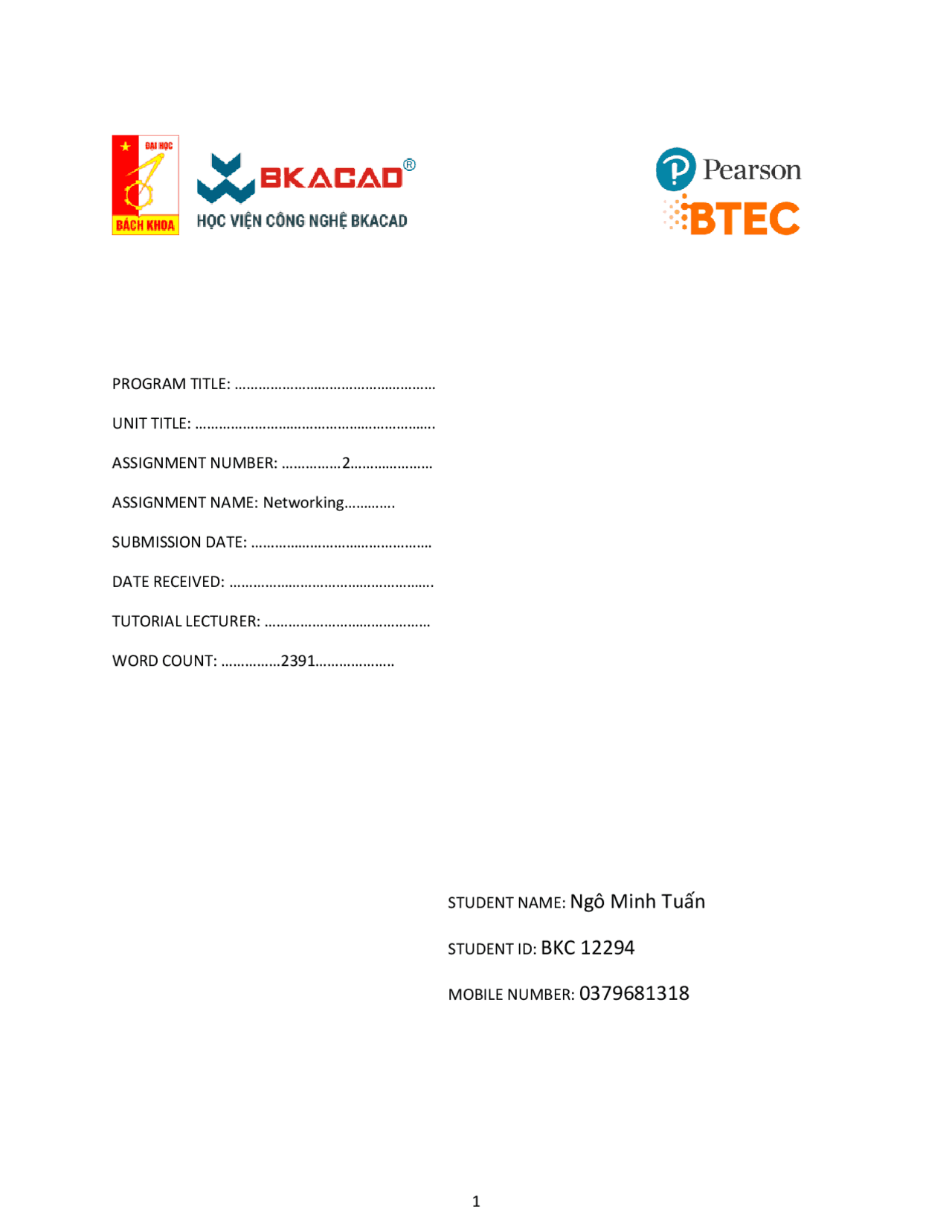

PROGRAM TITLE: ……………………………………………

UNIT TITLE: …………………………………………………….

ASSIGNMENT NUMBER: ……………2…………………

ASSIGNMENT NAME: Networking………….

SUBMISSION DATE: ……………………………………….

DATE RECEIVED: …………………………………………….

TUTORIAL LECTURER: ……………………………………

WORD COUNT: ……………2391………………..

STUDENT NAME: Ngô Minh Tuấn

STUDENT ID: BKC 12294

MOBILE NUMBER: 0379681318

Discover Study Guides, Projects, Research of Computer Networks Hanoi University of Science & Technology (HUST)

Partial preview of the text

Download Efficient Network System for Gold Star Co: IP Configuration & Server Maintenance and more Study Guides, Projects, Research Computer Networks in PDF only on Docsity!

PROGRAM TITLE: ……………………………………………

UNIT TITLE: …………………………………………………….

ASSIGNMENT NUMBER: …………… 2 …………………

ASSIGNMENT NAME: Networking…………. SUBMISSION DATE: ………………………………………. DATE RECEIVED: ……………………………………………. TUTORIAL LECTURER: …………………………………… WORD COUNT: …………… 2391 ………………..

STUDENT NAME: Ngô Minh Tuấn

STUDENT ID: BKC 12294

MOBILE NUMBER: 0379681318

I. The current status and the need to build the network of Gold Star company.
LO3. Design efficient networked systems.................................................................................................
[P5] Design a networked system to meet a given specification.
- I. Solution to build network system for Gold Star company.
  - HPE ProLiant DL20 Gen 10 4SFF Hot-Plug.
[M3] Install and configure network services and applications
LO4. Implement and diagnose networked systems.
[P6] Implement a networked system based on a prepared design.
[P7] Test and evaluate the design to meet the requirements and analyse user feedback.
I. Configure the IP address.
- II. Router configuration.
- III. DHCP Configuration................................................................................................................
- IV. Web Server configuration.......................................................................................................
- V. Mail Server configuration.
[D2] Design a maintenance schedule to support the networked system.
- a) Server maintenance.
- b) Network maintenance................................................................................................................
- c) PC and other devices.
- d) Maintenance Schedule.
[P8] Document and analyse test results against expected results.
- a) Access the Website.
- b) Ping between PC in different department.
- c) Telnet protocol
- d) SSH protocol.
[M4] Recommend potential enhancements for the networked systems.
[D3] Use critical reflection to evaluate own work and justify valid conclusions.......................................

I. The current status and the need to build the network of Gold Star

company.

1. Current state

- New construction.

- Less than 100 peoples, divided into 5 departments: General Manager,

administration, IT operations, Software Engineers, and HR.

2. Demand

- Each room have a private network.

- Have server to store information, and run mail, DNS, DHCP services.

- Access outside the internet, no high availability required.

LO3. Design efficient networked systems.

[P5] Design a networked system to meet a given specification.

I. Solution to build network system for Gold Star company.

a) Recommend selection of equipment and technology.

- List of devices:

Equipment Image Quantity

Router 2

Switch 4

Server 4

WIFI Modem 1

Repeater 1

Server

HPE ProLiant DL20 Gen 10 4SFF Hot-Plug.  Power Supply: 1x290w.  CPU: (1) Intel Xeon E Processor Family up to 8 cores.  Memory: 16GB.  SSD: 1x 240GB SATA.  Disk Controller: HPE FIO Enable Smart Array SW RAID.  Networking: 2x 1GbE ports (integrated), plus 2x 1GbE ports (PCIe).  ILO Software: ILO Advanced 3yr 24x7.

Modem ^ LAN Ports:^ WAN x 1, LAN x 4 RJ-45 for

10/100/1000 Base T  Antenna: 2 x antenna for 2.4 GHz with 3.8dBi gain 3 x antenna for 5 GHz with 5.1dBi gain  Memory: 8 MB flash and 128 MB RAM  Operating Frequency: Simultaneous 2.4GHz and 5GHz  Data Rate: 802.11n: up to 300Mbps.

Repeater

 Repeater EX2000 V2 extends the N standard WIFI waves, offering speeds of 300 Mbps at the 2.4 GHz band.  Compatible with IEEE 802.11b/g/n wireless standard.  With 2 antennas in addition to 4DBI for powerful broadcasting capabilities.  Expand coverage easily with the WPS button.  RJ45 port transmits network signals to other devices  Access Point Mode (AP Mode) gives you more flexibility to expand wi-fi.  WPA/WPA2(TKIP/AES) advanced security does not worry about unauthorized intrusion into your wireless network.  Stable connection of about 10 users with a coverage density of 15 m.

b) Solution directions for the network system.

Divide 5 departments into 4 LANs, each room have a LAN network and 1

additional room for servers:

 General Manager + HR room.

 Administration room.

 IT Operations room.

 Software Engineers room.

 Server room.

Each room have a Switch that connect to a router.
Users can access Web Server and Mail Server.
Security: install firewall software for each PC.

c) The physical topology of the network.

1. Tool used

Assignment using the Cisco Packet Tracer tool. Packet Tracer is a network

emulator for learning using Cisco network devices (routers / switches). The

product provides a tool to study the fundamentals of the network and skills

for working with Cisco-systems.

Cisco Packet Tracer.

2. Physical topology

Divide 5 departments into 4 rooms and 1 additional Server Room, each room

with 1 switch.

PCs of General Manager and HR are connected to Room1’s Switch.
Administration’s PCs are connected to Room2’Switch.
IT Operation’s PCs are connected to Room3’Switch.
Software Engineer’s PCs are connected to Room4’Switch.
All of the 4 servers are connected to Server Room.
Server Room and Room1’s Switches are connected to Router1.
Room 2, 3, 4’s Switches are connected to Router 2.
Router1 connected to the Wi-fi Modem in order to access to the Internet.
Repeater is used to expand, amplify, and help to transmit wi-fi signals

farther and more stable.

Router 1 and 2 are connected to each other using the HWIC-2T - a Cisco 2-

Port Serial High-Speed WAN Interface Card, providing 2 serial ports.

Dropbox for business.

LO4. Implement and diagnose networked systems.

[P 6 ] Implement a networked system based on a prepared design.

[P7] Test and evaluate the design to meet the requirements and analyse

user feedback.

I. Configure the IP address.

- General Manager and HR department share the same Switch but have

different IP address from each other.

- General Manager department has IP address: 192.168.2.0 /

 General Manager’s PC has an IP address automatically by DHCP

Server: 192.168. 2. 2

- HR department has IP address: 192.168. 3 .0 / 24

 HR’s PC has an IP address automatically by DHCP Server:

- Administration department has IP address: 192.168. 4 .0 /

 Administration’s PC has an IP address automatically by DHCP

Server: 192.168. 4. 2

- Server Room has IP address: 192.168.1.0 /

 IP address of Web Server: 192.168.1.

 IP address of Mail Server: 192.168.1.

 IP address of DNS Server: 192.168.1.

 IP address of DHCP Server: 192.168.1.

- IT Operations department has IP address: 192.168. 5 .0 /

 IT Operation’s PC has an IP address automatically by DHCP Server:

- Software Engineers department has IP address: 192.168. 6 .0 /

 Software Engineer’s PC has an IP address automatically by DHCP

Server: 192.168. 6. 2

II. Router configuration.

1) Turn on ports and set IP address for router.

_- on Switch-

on Router1-_
Repeat and apply the Router configuration steps to the other router and both

router ports until achieved these results:

- Router 1-

- Router 2-

On both Router, repeat the following command but “192.168.0.0” is IP

address of each Router’s port:

 router ospf 100

 network 192.168.0.0 255.255.255.0 area 0

In enable mode, use “show ip route” command to see the result: III. DHCP Configuration.
Set static IP address for DHCP Server:

Automatic IP address for PC. Example, PC in General Manager room:

 If the PC and DHCP Server are not the same LAN, use this command

#interface

#ip helper-address

IV. Web Server configuration.

Set static IP address for Web Server.
Select Service and turn on HTTP & HTTPS.

Configure Email Service and add user.
Add a record in DNS Server.

Configure on PCs:
Send mail and reply between 2 PC.
