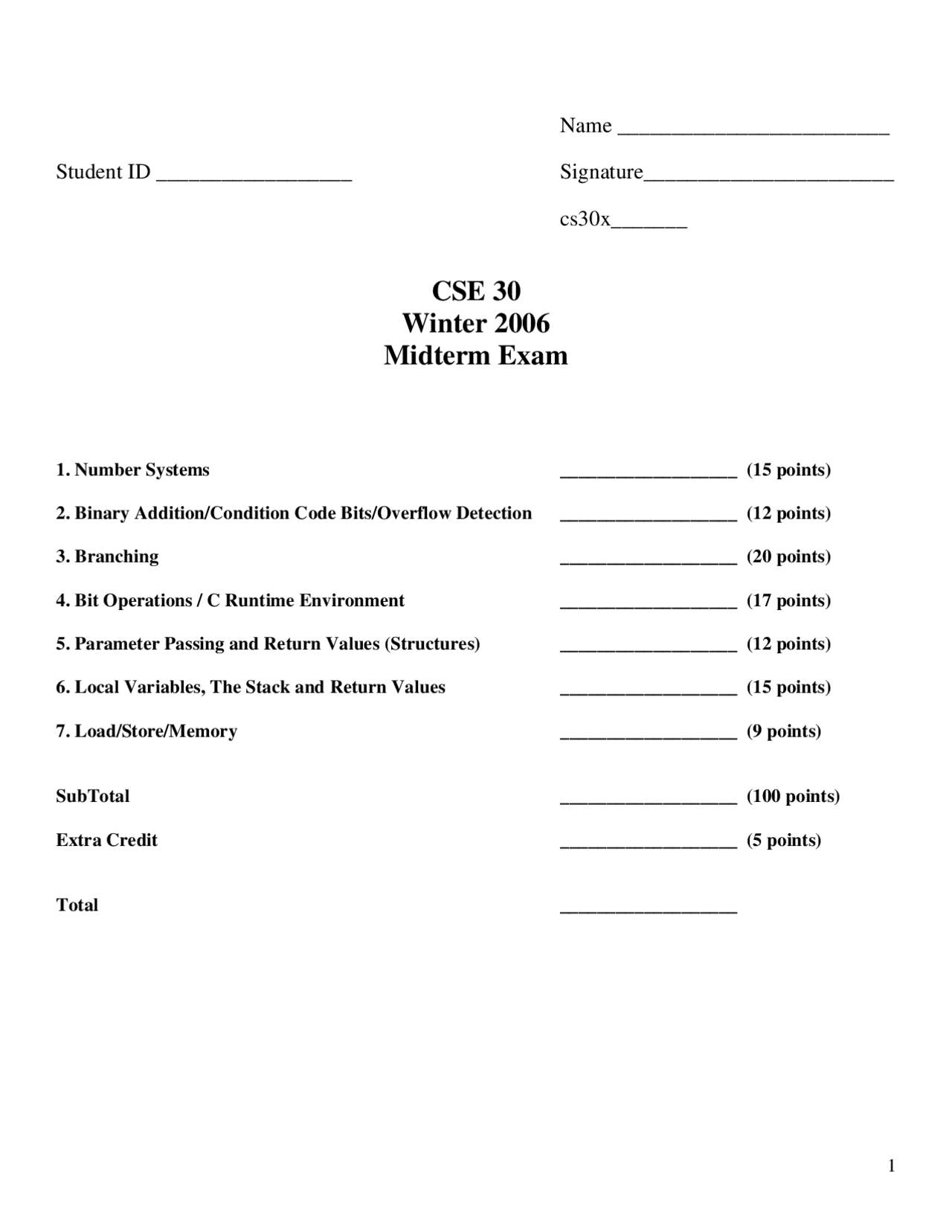

Name _________________________
Student ID __________________ Signature_______________________
cs30x_______
CSE 30
Winter 2006
Midterm Exam
**1. Number Systems ___________________ (15 points)
- Binary Addition/Condition Code Bits/Overflow Detection ___________________ (12 points)
- Branching ___________________ (20 points)
- Bit Operations / C Runtime Environment ___________________ (17 points)
- Parameter Passing and Return Values (Structures) ___________________ (12 points)
- Local Variables, The Stack and Return Values ___________________ (15 points)
- Load/Store/Memory ___________________ (9 points)**
SubTotal ___________________ (100 points)
Extra Credit ___________________ (5 points)
Total ___________________
1. Number Systems
Convert 0xF933 (2’s complement, 16-bit word) to the following. (6 points)
binary ____________________________________
octal 0 ___________________________________
decimal ____________________________________
Convert -316 to the following (assume 16-bit word). Express answers in hexadecimal. (6 points)
sign-magnitude 0x _______________________________________________
1’s complement 0x _______________________________________________
2’s complement 0x _______________________________________________
Convert +485 to the following (assume 16-bit word). Express answers in hexadecimal. (3 points)
sign-magnitude 0x _______________________________________________
1’s complement 0x _______________________________________________
2’s complement 0x _______________________________________________
2. Binary Addition/Condition Code Bits/Overflow Detection Indicate what the condition code bits are when adding the following 8-bit 2’s complement numbers. (12 points)
01010111 10000101 11111111 +00001001 +10111001 +
N Z V C N Z V C N Z V C
| | | | | | | | | | | | | | |
4. Bit Operations / C Runtime Environment
What is the value of %l0 after each statement is executed? Express your answers in hexadecimal.
set 0x8A8B1112, %l sra %l0, 13, %l
Value in %l0 is 0x _______________________________________ (2 points)
set 0x8A8B1112, %l sll %l0, 11, %l
Value in %l0 is 0x _______________________________________ (2 points)
set 0x8A8B1112, %l set 0x????????, %l xor %l0, %l1, %l0! Value in %l0 is now OxCAFEBABE
Value set in %l1 must be this bit pattern 0x _______________________________________ (3 points)
Fill in the names of the 5 areas of the C Runtime Environment as laid out by the SPARC architecture. Then state what parts of a C program are in each area. (10 points)
low memory
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
high memory
5. Parameter Passing and Return Values (Structures)
Write the equivalent unoptimized SPARC assembly language instructions to perform the following C code fragment. You can assume just this one local variable. (12 points)
C SPARC assembly
/* Function Prototype */
int foo( unsigned short, short, char );
/* ... Other code ... */
/* Assume this local variable is declared appropriately and is the only local var. */
struct fubar { char a[5]; unsigned short b; int c; short d[2]; } fb; /* Local variable fb */
/* ... Other code ... */
/ Write the code for just this function call saving the return value appropriately /
fb.c = foo(fb.b, fb.d[1], fb.a[3] );
7. Load/Store/Memory What gets printed in the following program? (9 points)
.global main .section ".data" fmt: .asciz "0x%X\n"! prints value as hex 0xXXXXXXXX
c: .byte 0x
.align 2 s: .half 0xBA
.align 4 i1: .word 0xACDC i2: .word 0xACDC i3: .word 0xACDC x: .word 0
.section ".text" main: save %sp, -96, %sp set i2, %l set c, %l ldsb [%l1], %l sth %l1, [%l0] set fmt, %o ld [%l0], %o call printf _________________________________ nop set i3, %l set x, %l ldub [%l0+1], %l sth %l2, [%l1+2] ldsh [%l0+2], %l stb %l2, [%l1] mov %l1, %l set fmt, %o ld [%l0], %o call printf _________________________________ nop set i1, %l set s, %l lduh [%l1], %l sth %l1, [%l0+2] set fmt, %o ld [%l0], %o call printf _________________________________ nop ret restore
Extra Credit (5 points)
Optimize the following SPARC Assembly code fragment. You can assume there are other instructions above and below this code fragment, but only optimize using the instructions given in this code fragment. Some optimizations may be worth more than others.
Unoptimized SPARC Assembly Optimized SPARC Assembly
/* Other code you cannot use */
cmp %i2, %l bg L nop add %i2, %i0, %i mov 256, %o mov %i2, %o call .mul nop mov %o0, %i ba L nop
L1: add %l5, %l1, %l sub %i2, %i0, %i
L2: inc %i
/* Other code you cannot use */
Scratch Paper
