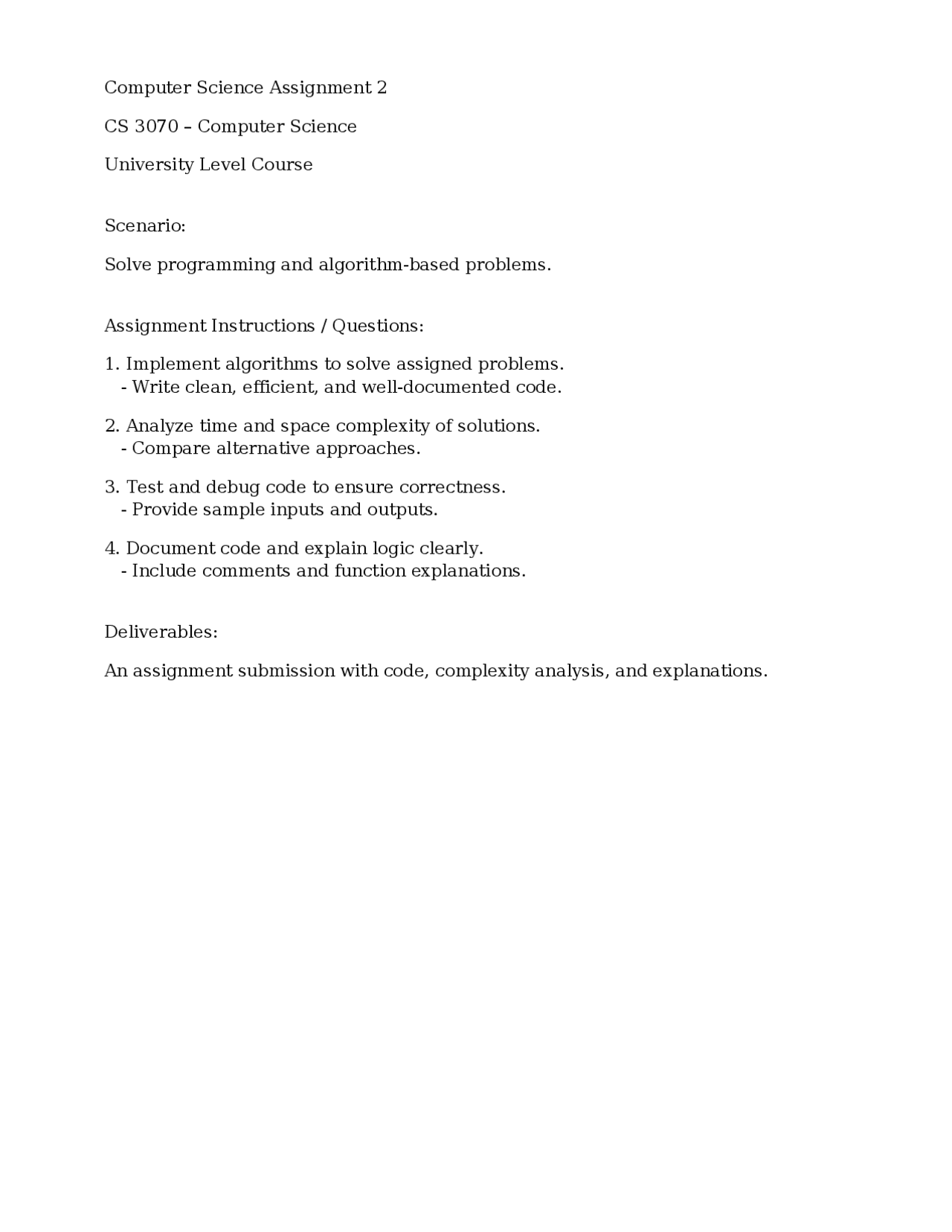

Computer Science Assignment 2 CS 3070 – Computer Science University Level Course Scenario: Solve programming and algorithm-based problems. Assignment Instructions / Questions:
- Implement algorithms to solve assigned problems.
- Write clean, efficient, and well-documented code.
- Analyze time and space complexity of solutions.
- Compare alternative approaches.
- Test and debug code to ensure correctness.
- Provide sample inputs and outputs.
- Document code and explain logic clearly.
- Include comments and function explanations. Deliverables: An assignment submission with code, complexity analysis, and explanations.
Designing UML Diagrams Computer Science 307 : Software Engineering Contents Introduction ........................................................................................................ ............................ 3 UML Use Case Diagram ................................................................................................................... 4 Definition......................................................................................................... ............................ 4 Relevance ....................................................................................................... ............................. 5 Design.............................................................................................................. ............................ 5 UML Sequence Diagram.............................................................................................................. .... 6
Introduct ion This projects designs a smart thermostat system for residential heating and cooling. The system is controlled by a physical thermostat that allows homeowners to set and adjust temperatures for comfort and energy efficiency. This presentation shows the Unified Modeling Language (UML) diagrams for the use cases, sequence of interactions and deployment. These diagrams are important to visualize the design of the system and ensure the components work together. The widespread adoption of UML diagrams has revolutionized software development, making them an integral part of the software engineering process (Watson, 2008 ). The report will also justify the design decisions for each diagram and provide insight into why they are important for the system.
UML Use Case Diagram Definition An UML Use Case Diagram is used to show the functional requirements of a system by showing the interactions between actors (users or other systems)
Relevance This diagram is crucial as it gives a clear view of the main actions within the system, so both business and technical teams can see what the system needs to do. It shows the interactions and relationships between the system and its users so the system design can be aligned to user needs. Design For the smart thermostat, the two actors are the homeowner and the HVAC system. The homeowner can set the temperature of the HVAC system through the thermostat. They can adjust the temperature of the HVAC system through the thermostat; Set a schedule for the HVAC system through the thermostat; Override the schedule for the HVAC system through the thermostat; And monitor the temperature of the room and adjust the HVAC system accordingly. The key use cases includes monitor, set and adjust temperature, set and override schedules, and communicate with HVAC, all of which are the core functions of the system. This design captures the most important system interactions.
UML Sequence Diagram Definition
Relevance Sequence diagrams are good for showing dynamic behavior and flow of control between system components. They are widely employed to specify communication and behavior within computer systems, making them particularly effective in validating and verifying system constraints (Mauw et al., 2 01 5). Design The objects in this system are the homeowner, the thermostat and the HVAC system. The homeowner sets the temperature on the thermostat. The thermostat sends a message to the HVAC system to turn on/off or adjust the temperature. The HVAC system sends a message back to the thermostat to say it received the message. The diagram above shows the flow of messages to make the system work and be usable.
UML Deployment Diagram Definition An UML Deployment Diagram shows the physical architecture of a system, the hardware nodes and the software artefacts on them. It shows how software components are deployed across different physical devices or environments. Relevance This diagram is important because it provides a clear view of where the system's software components live and how they talk to each other. It ensures the system is scalable and that all components are deployed on the right devices, so it performs reliably.
and the HVAC system hardware are connected through a wireless communication protocol. Database is connected to Thermostat software through SQL. A wireless communication protocol was chosen to connect the thermostat and the HVAC system. No wires need to be run between the two components, so installation is easier and more flexible. The thermostat has a simple user interface to set temperature, adjust temperature, set schedule and override schedule. This simplifies the user experience and reduces the learning curve for the homeowner. It was also designed with the ability to monitor the room temperature and adjust the HVAC system. This allows the homeowner to monitor their home remotely, making it more convenient and user friendly. The thermostat software is cloud based. This allows for over the air updates and remote monitoring of the system. This reduces the need for the homeowner to update the thermostat software manually and allows for quick and easy troubleshooting.
Conclusi on The UML diagrams in this project provided a structured and clear design for the smart thermostat system. The Use Case Diagram outlines the main functions of the system and identifies the users and how they interact with the system. The Sequence Diagram depicts the interactions between components during a typical use case, such as adjusting the temperature, so the system behaves correctly. The Deployment Diagram shows the physical setup, clarifying how software components are deployed across devices and ensuring it is optimal. These diagrams not only serve as blueprints for development but they also help align the technical design with user needs, thus improving the quality and efficiency of the system.
