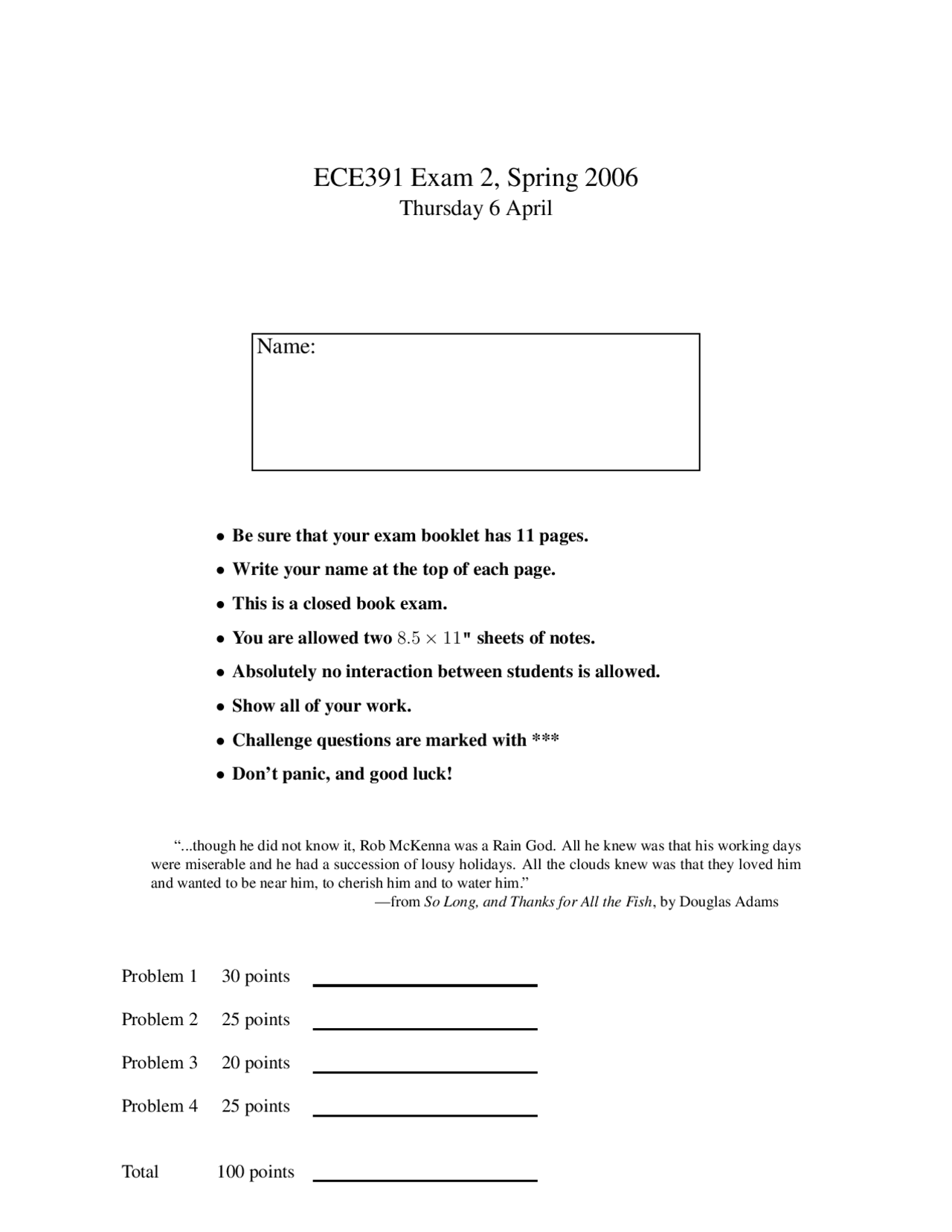

ECE391 Exam 2, Spring 2006
Thursday 6 April
Name:
ā¢ Be sure that your exam booklet has 11 pages.
ā¢ Write your name at the top of each page.
ā¢ This is a closed book exam.
ā¢ You are allowed two 8. 5 Ć 11 " sheets of notes.
ā¢ Absolutely no interaction between students is allowed.
ā¢ Show all of your work.
ā¢ Challenge questions are marked with ***
ā¢ Donāt panic, and good luck!
ā...though he did not know it, Rob McKenna was a Rain God. All he knew was that his working days
were miserable and he had a succession of lousy holidays. All the clouds knew was that they loved him
and wanted to be near him, to cherish him and to water him.ā
āfrom So Long, and Thanks for All the Fish , by Douglas Adams
Problem 1 30 points
Problem 2 25 points
Problem 3 20 points
Problem 4 25 points
Total 100 points
Problem 1 (30 points): Short Answers
Please answer concisely. If you find yourself writing more than a few sentences, your answer is probably wrong.
Part A (5 points): As you may recall, the task state segment (TSS) of the x86 includes an I/O bitmap that allows
the task to use individual I/O ports directly from user-level ( i.e. , without a system call). Is it possible to leave this
bitmap out of the ISA and still avoid requiring system calls? If so, explain one way of doing without the bitmap and
describe an advantage of including it.
Part B (5 points): Explain how software disablement of specific interrupts (e.g., IRQ 10) works in Linux (as
opposed to masking the interrupt on the PIC). In particular, what actions are taken when a software-disabled interrupt
is raised by the hardware, and when (if ever) does the corresponding interrupt handler execute?
Problem 1, continued:
Part E (5 points): Explain the motivation for tasklets ( i.e. , software interrupts) in Linux. In particular, why not
just execute all interrupt-related activity in the (hardware) interrupt handler?
Part F (5 points): Describe one advantage and one disadvantage to interrupt chaining.
Problem 2 (25 points): Read-Copy Update Synchronization
This problem focuses on an advanced form of synchronization used in parts of the Linux kernel and asks you to
describe the benefits of the scheme.
Imagine that you have extended MP1 into a multi-player pong game with several paddle controllers based on artificial
intelligence (AI). In your game, the real-time clockās interrupt handler adds and removes balls from the list of balls in
play, and each AI task repeatedly walks over the list of balls (inside a system call) in order to make informed decisions
about what to do next with its paddle.
Part A (6 points): You could choose to protect the ball list with a reader-writer spin lock. In this case, the
interrupt handler acquires a write lock to add or remove a ball, and the AI tasks acquire read locks to read the list of
balls. Explain why such a scheme is likely to fail on a multiprocessor but is probably acceptable on a uniprocessor.
Part of the implementation for the read-copy update (RCU) synchronization scheme appears on the next page, and is
used for the remaining parts of this question. The links in the ball structure are shown along with global variables (the
ball list, etc. ) and two pieces of code.
Under the RCU scheme, each AI task has a unique ID from 0 to NUM AI - 1 , and after each system call in which
the ball list is walked, the task calls the quiesce AI function on the next page. Pointers to balls are never saved in
data structures other than those on the next page, and are never returned to user level.
Under RCU, the interrupt handler can add and remove balls from the list without directly synchronizing its actions with
the AI tasks. To remove a ball, the interrupt handler first links around the ball in ball list without changing the
next list field of the ball that was removed. The interrupt handler then links the ball into the āhotā list of discarded
balls, i.e. , the list pointed to by q hot. Note that the interrupt handler does not call kfree on the dynamically-
allocated ball structure. Eventually, discarded balls are cleaned up by some AI task inside of quiesce AI.
Part B (4 points): Explain why balls that have been successfully removed from ball list cannot safely be
freed by the interrupt handler using kfree.
Problem 2, continued:
Part C (6 points): Write the remove ball function, which is called by the interrupt handler to eliminate a ball
(as described earlier).
void remove ball (ball t* b) {
Part D (4 points): Adding balls to the ball list is easier and does not involve any deferred work. What
ordering (if any) must be obeyed when changing the link fields in the new ball and modifying global variables? In
particular, mention all necessary changes and explain any constraints on the order of changes that must be made to
add a ball.
**Part E***** (5 points): Use the structure of the quiesce AI function to prove that balls are never freed and
subsequently used by one or more of the AI tasks. Hint: draw a timeline.
Problem 3 (20 points): Virtual Memory Techniques and Tradeoffs
For each of the following three issues, explain briefly how they are handled for both segmentation and paging on x86.
Write no more than two sentences for each question.
Part A (4 points): Address translation requires additional memory accesses, which can be slow.
Part B (4 points): Some memory should not be accessible to unprivileged users.
Part C (4 points): The operating system may not want to use this virtual memory architecture.
Problem 4 (25 points): Scheduling
The diagram below illustrates scheduling decisions made by the Linux scheduler for one processor in a two-processor
system over a period of time (from left to right). Processes scheduled on the second processor are not shown. The
black sections represent interrupt handlers executed in response to the timer ticks. Assume that the timer interrupt
handlers shown are executed by both processors in the system at the same time. No other interrupts occur other than
those shown. No task schedules any kernel timers for the time period shown.
a b c
A total of four tasks are in the system:
Task 1, the dark task, has realtime priority.
Task 2, the medium task, has realtime priority equal to that of Task 1.
Task 3, not shown, has realtime priority equal to that of Task 1.
Task 4, the light task, has normal priority.
All four tasks are runnable at point a in the diagram. Questions A-E refer to the diagram.
Part A (3 points): What task(s) might be running on the other processor at point b?
Part B (4 points): List the types of scheduling policies for realtime jobs in Linux, and give a one-line explanation
of each policy.
Part C (3 points): If possible, state the realtime scheduling policy for each of the realtime tasks (Tasks 1, 2, and
3). If this is impossible to tell (for a particular task) from the information given, give a brief explanation why.
Part D (4 points): What happened in Task 2 at point c on the timeline?
Part E (6 points): Assume that Task 1 remains runnable throughout the interval shown. Describe a scenario that
would produce the schedule as shown after point c.
Part F (5 points): In general, is the concept of epochs necessary to schedule realtime jobs? Why or why not?
