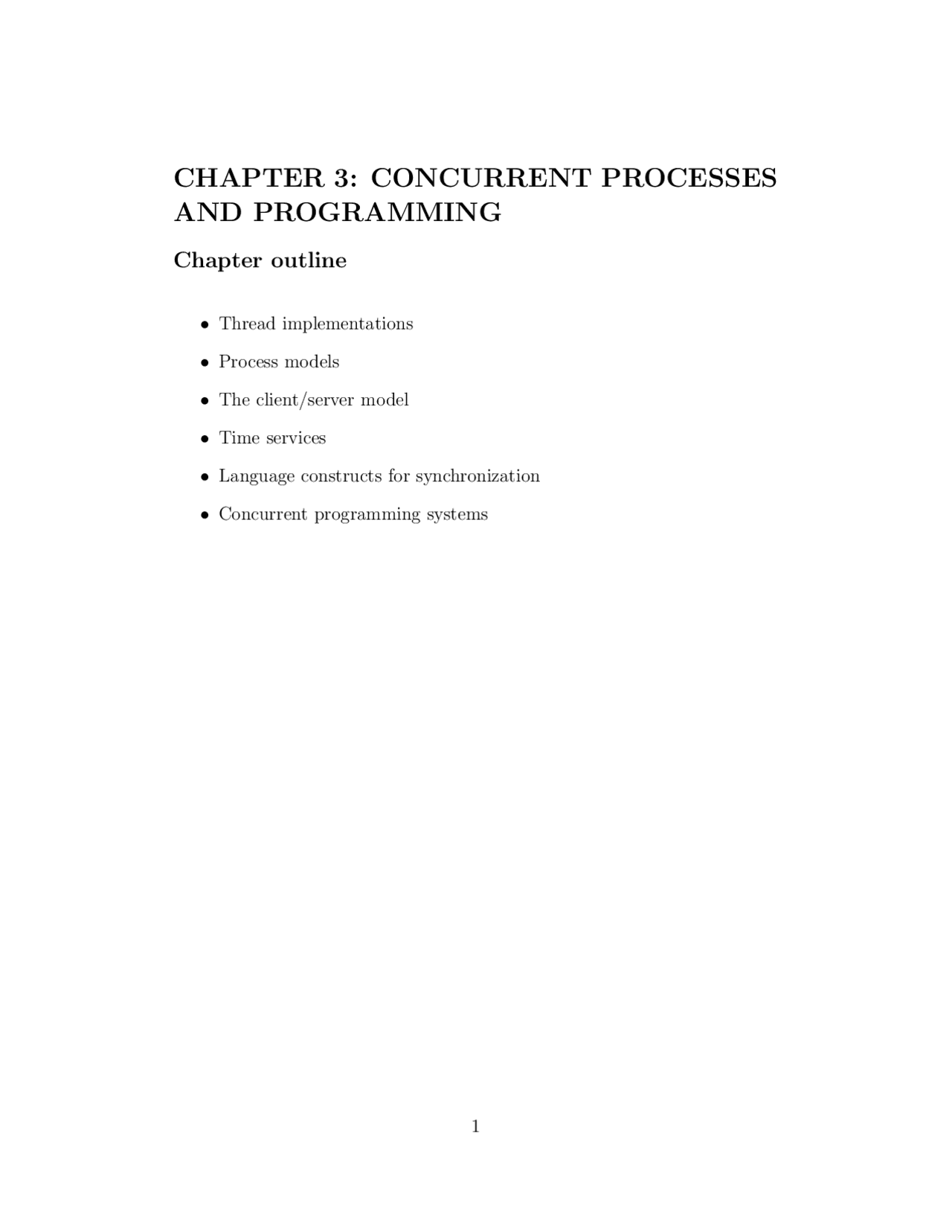

CHAPTER 3: CONCURRENT PROCESSES
AND PROGRAMMING
Chapter outline
•Thread implementations
•Process models
•The client/server model
•Time services
•Language constructs for synchronization
•Concurrent programming systems
1
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Concurrent Processes and Programming - Notes | COP 5615, Study notes of Computer Science
Material Type: Notes; Professor: Newman; Class: DIST OPER SYS PRINC; Subject: COMPUTER PROGRAMMING; University: University of Florida; Term: Fall 2009;
Typology: Study notes
Pre 2010
1 / 21
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Concurrent Processes and Programming - Notes | COP 5615 and more Study notes Computer Science in PDF only on Docsity!
CHAPTER 3: CONCURRENT PROCESSES
AND PROGRAMMING
Chapter outline
- Thread implementations
- Process models
- The client/server model
- Time services
- Language constructs for synchronization
- Concurrent programming systems
Processes and threads
- Processes: separate logical address space
- Threads: common logical address space
Major Issues
- Process/thread creation
- Light weight context switching
- Blocking and scheduling
Thread implementations
- User space: simple but non-preemptable
- Kernel space: efficient but not portable
Solaris thread implementation
multiple processor system
LWP LWP LWP LWP
Heavy-weight process Heavy-weight process
User space threads
Light-weight processes
Kernel space threads
Process models
Synchronous Process, Asynchronous Communication, Time-Space
Graph representations
precedence relations
communication channels
one - way
client / server
peer
Synchronous process graph (^) communication scenarios
Asynchronous process graph and
Time services
- time and timer
- physical and logical clocks
Physical clock
A distributed time service architecture
TS
TS TS TC
TC
Distributed Time Service
Client Time Clerks
T ime Servers
External UTC Sources
Time Discrepancies
UTC 5
discarded new UTC
UTC 4
UTC 3
UTC 2
UTC 1
Lamport Logical Clock
The happens-before relationship: →
- If a → b within a same process then C(a) < C(b).
- If a is the sending event of Pi and b is the corresponding receiving event of Pj , then a → b and Ci(a) < Cj (b).
For it to be possible for a to have an influence on b, then a → b must be true.
Implementation:
C(b) = C(a) + d and Cj (b) = max(T Sa + d, Cj (b)), where T Sa is the timestamp of the sending event and d is a positive number.
d = 1
a, b, c,
d, e, f,
g, h,
So, a → b =⇒ C(a) < C(b), but C(a) < C(b) =/⇒ a → b.
Matrix Logical Clock
MCi represents Pi’s knowledge of its local events (MCi[i, i]), its knowledge of the events that Pj knows about (MCi[i, j]), and its knowledge of Pj ’s knowledge of events at Pk (MCi[j, k]). MCi[i, i] = MCi[i, i] + d – Pi updates local event counter on send
When Pj receives a message from Pi with timestamp T S, MCj [j, l] = max(MCj [j, l], T Si[i, l]) : l = 1..n update vector clock, and
MCj [k, l] = max(MCj [k, l], T Si[k, l]) : k = 1..n, l = 1..n update Pk’s knowledge of Pl’s counter
i
i
i,i
j j
Pi’s Vector Clock
Pj’s Vector Clock
k Pi’s knowledge of Pk’s Vector Clock k Pj’s knowledge of Pk’s Vector Clock
i
TS = MCi MCj
Pj’s knowledge of Pi’s Vector Clock
Pi’s knowledge of Pj’s knowledge of Pi’s Lamport Clock
elementwise max merge
Concurrent languages
- Specification of concurrent activities
- Synchronization of processes
- Interprocess communication
- Nonderterministic execution of processes
Language constructs
- Program structure
- Data structure
- Control structure
- Procedure and system call
- Input and output
- Assignment
Example: the Reader/Writer Problems synchronization + concurrency
Basics
- if DB empty, allow anyone in
- if reader in DB, writer not allowed in
- if writer in DB, nobody allowed in
Write Lock
Lock Held
Read Lock Write Lock
Read Lock
Requested
Lock
Variations
- reader preference Allow a reader in if other readers are in
- strong reader preference Allow readers in when writer leaves
- weak reader preference When writer leaves, select a process at random
- weaker reader preference Allow a writer in when writer leaves
- writer preference Do not allow readers in if writer is waiting
Semaphore solution to the weak reader preference problem
var mutex=1, db=1: semaphore; rc=0: integer
reader processes writer processes
do (forever) do (forever) BEGIN BEGIN
otherStuff() otherStuff()
P(mutex) rc := rc + 1 if rc = 1 then P(db) P(db) V(mutex)
read database write database
P(mutex) rc := rc - if rc = 0 then V(db) V(db) V(mutex)
END END
CCR solution
var db: shared; rc: integer;
reader processes writer processes
region db begin rc := rc + 1 end; region db when rc = 0 read database begin write dat abase end region db begin rc := rc - 1 end;
Serializer solution
rw : serializer var readq, writeq: queue; rcrowd, wcrowd: crowd;
procedure read begin enqueue(readq) until empty(wcrowd); joincrowd(rcrowd) then begin read database end; end
procedure write begin enqueue(writeq) until (empty(wcrowd) and empty(rcrowd)); joincrowd(wcrowd) then begin write database end; end
Path Expression solution
path 1:([read],write) end
Message Passing Synchronization
- Asynchronous: non-blocking send, blocking receive
- Synchronous: blocking send, blocking receive
Mutual exclusion using asyn. msg. passing
process Pi channel server process Pj begin begin begin receive(channel) create channel receive(channel) critical section send(channel) critical section send(channel) manage channel send(channel) end end end
Mutual exclusion using syn. msg. passing
process Pi semaphore server process Pj begin loop begin send(sem,msg) receive(pid,msg) send(sem,msg) critical section send(pid,msg) critical section receive(sem,msg) end receive(sem,msg) end end
Concurrent Programming Languages
A taxonomy
synchronization and communication mechanisms
shared variable message passing
type abstraction
control structure
program structure
monitor CCR Path
asynchronous
direct process naming
procedure naming
indirect port/mailbox naming
synchronous
request / reply (passive)
rendezvous (active)
process naming
procedure naming
process naming
procedure naming
RPC
asynchronous RPC
rendezvous form of RPC
Concurrent Pascal
Path Pascal
PLITS Gypsy CSP ADA Argus (^) DP DP Concurrent C
SR
SR
X- window sockets
embedded in many OS
DP none
asymmetric symmetric
Coordination languages
- OCCAM: based on CSP process model, use PAR, ALT, and SEQ con- structors, use explict global links for communication.
- SR: based on resource (object) model, use synchronous CALL and asyn- chronous SEND and rendezvous IN, use capability for channel naming.
- LINDA: based on distributed data structure model, use tuples to repre- sent both process and object, use blocking IN and RD and non-blocking OUT for communication.
concurrent programming language concurrent programming language concurrent programming paradigm
OCCAM
SR
LINDA
processes
resources
distributed data structures
static global channels dynamic capabilities associative tags
System Object model Channel naming
