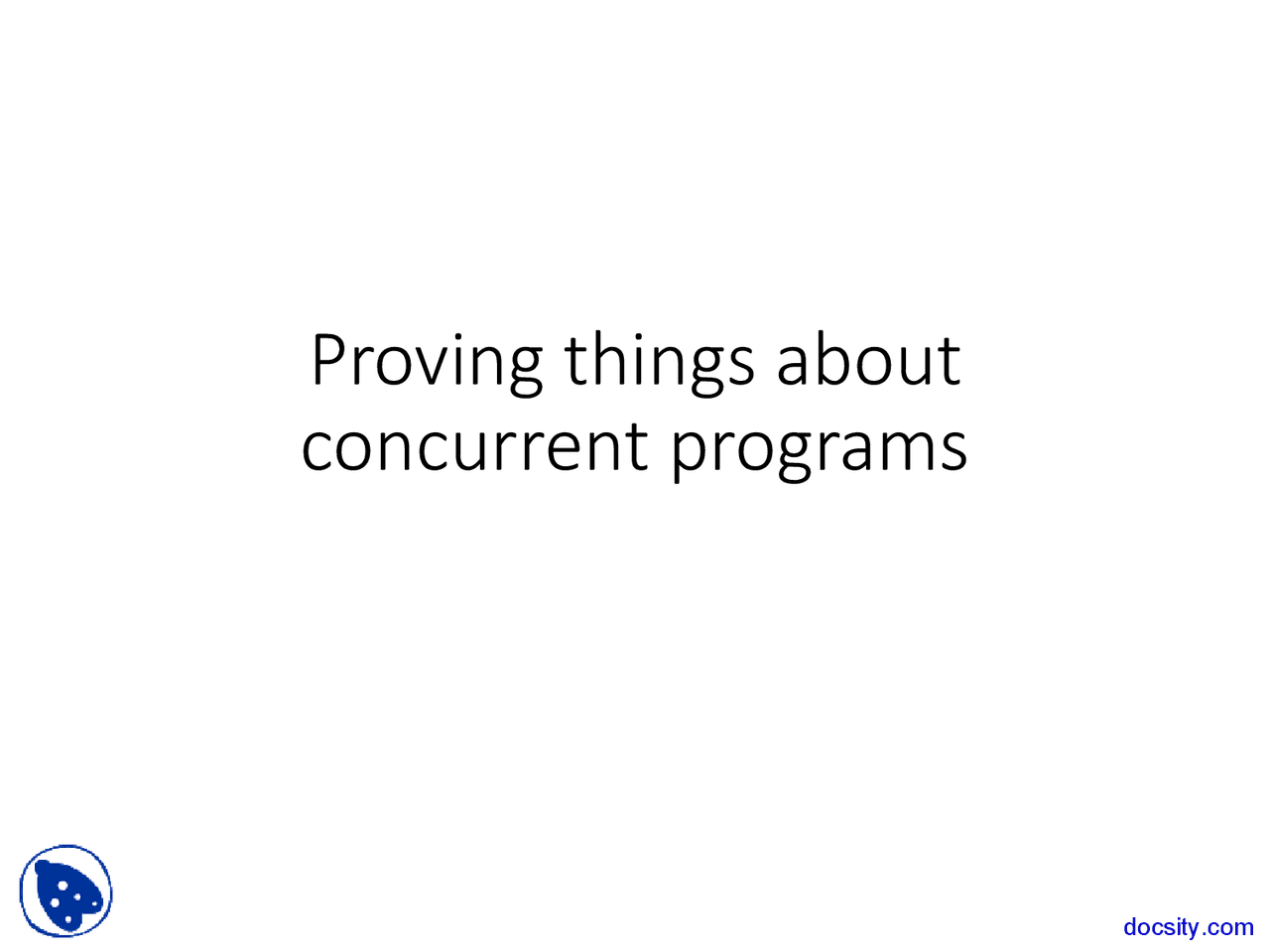

Proving things about

concurrent programs

Overview

• Two weeks ago we looked at techniques for proving things about recursive algorithms - We saw that in general, recursion matches with the notion of an inductive proof
• How can one reason about a concurrent algorithm?
  • We still want proofs of correctness
  • Techniques aren’t identical but we often use induction
  • Induction isn’t the only way to prove things

Safety and Liveness

• Leslie Lamport suggested that we think about the question in terms of safety and liveness - A program is safe if nothing bad happens. The guarantee that concurrently accessed memory will be locked first is a safety property. - The property is also called mutual exclusion - A program is live if good things eventually happen. The guarantee that all threads get to make progress is a liveness property

Proper synchronization

• Consider a program with multiple threads in it
  • Perhaps threads T1 and T
  • They share some objects
• First, we need to ask if the shared objects are thread safe
  • Every access protected by synchronized() { … }

Hardware needs synchronization too!

• Without synchronization locks, if a thread updates objects the thread itself always sees the exact updates in the order they were done
• But other threads on other cores could see them out of order and could see some updates but not others
• Java volatile keyword: warns compiler that a global variable isn’t protected by synchronization. Volatile is difficult to use correctly.

Interleavings

• Suppose that a program correctly locks all accesses to shared objects, or uses volatile correctly
• Would it now be safe?
• Issue that arises involves interleavings

Determinism

• What Lamport would call a safety property
• A program is deterministic if it produces the identical results every time it is run with identical input - This is desirable
• A program is non deterministic if the same inputs sometimes result in different outcomes - This is confusing and can signal problems

Linearizability

• Concept was proposed by Wing and Herlihy
  • Start with your concurrent program
  • But prove that it behaves like a non-concurrent program that does the same operations in some “linear” order - Idea behind proof: if the effect of two executions is

the same, then we can treat them as equivalent

• Program is concurrent yet acts deterministic
• Not all programs are linearizable

Deadlock

• Recall from last week
• Deadlock depends on four conditions
  • A wait-for cycle
  • Locks that are held until the thread finishes what it wants to do, not released
  • No preemption of locks
  • Mutual exclusion

Revisit: Deadlock avoidance

• Suppose that threads acquire locks in some standard

order. Thm: deadlock cannot occur!

• Slightly oversimplified proof: A deadlock means that there is

some cycle of threads A, B…. T each waiting for the next to take

some action.

• Consider thread A and assume A holds lock X a

• A is waiting on B: A wants a lock Xb and B holds that lock.
• Now look at B: it holds Xb and wants Xc.
• We eventually get to thread T that holds Xt and wants Xa
• But per our rules Xa < Xb < …. Xt < Xa: a contradiction! QED
• Notice that this is similar to an inductive argument

Paris traffic circles: Deadlock in action

• Paris has a strange rule at some traffic circles: priorité a droite
• Traffic circles around, say, the Arc de Triomphe
• Roads enter from the right
• You must yield to let them enter

Paris traffic circle: priorité a droite

• An issue at Place d’Etoile and Place Victor Hugo (rest of France uses priorité a gauche )
• Think of cars as threads and “space” as objects
  • If thread A occupies a space that thread B wishes to enter, then B waits for A
  • Under this rule, deadlocks can form!
• To see this, look for a wait-for cycle

Why is priorité a droite a bad rule?

Why is priorité a droite a bad rule?

Ooh la la! Quel

catastrophe!
