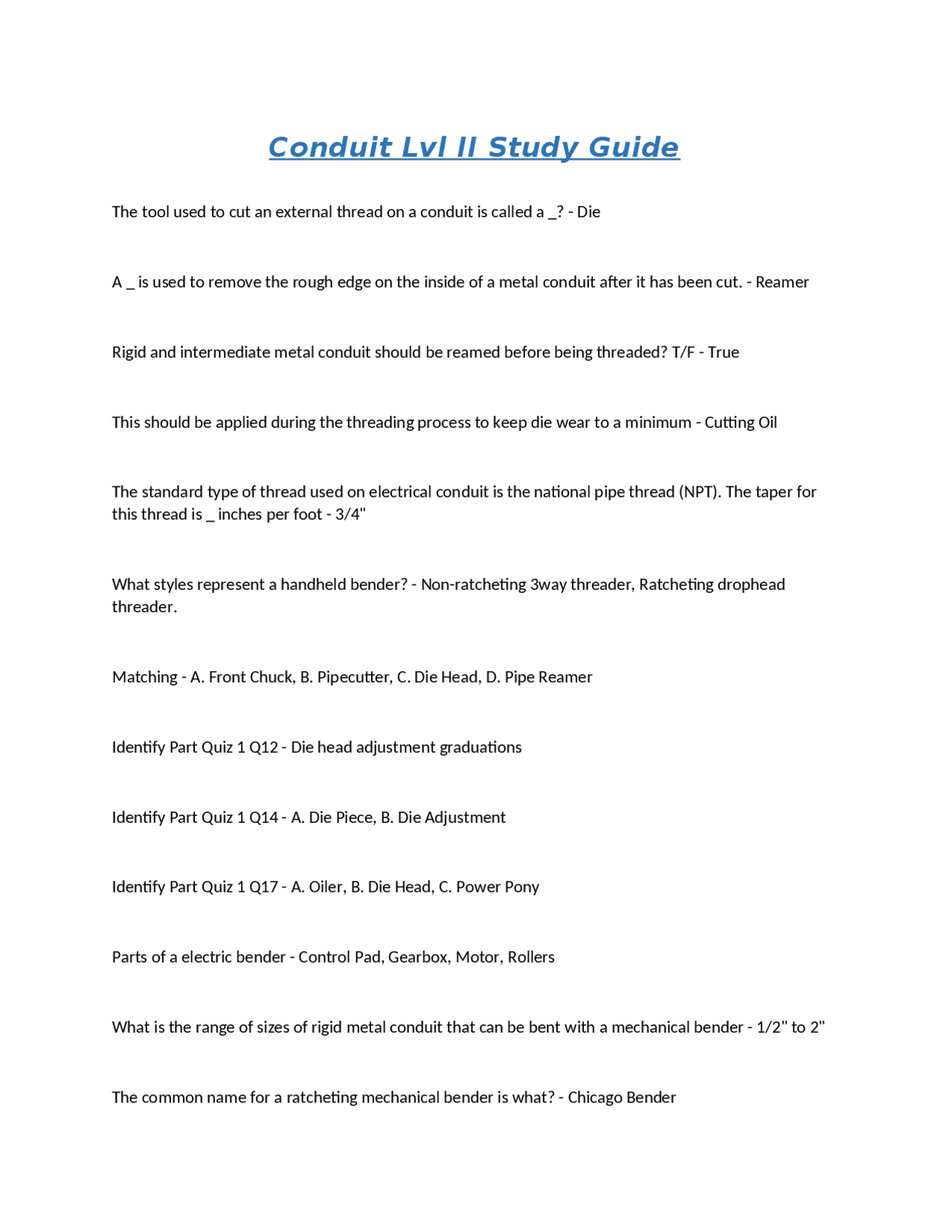

Conduit Lvl II Study Guide
The tool used to cut an external thread on a conduit is called a _? - Die
A _ is used to remove the rough edge on the inside of a metal conduit after it has been cut. - Reamer
Rigid and intermediate metal conduit should be reamed before being threaded? T/F - True
This should be applied during the threading process to keep die wear to a minimum - Cutting Oil
The standard type of thread used on electrical conduit is the national pipe thread (NPT). The taper for
this thread is _ inches per foot - 3/4"
What styles represent a handheld bender? - Non-ratcheting 3way threader, Ratcheting drophead
threader.
Matching - A. Front Chuck, B. Pipecutter, C. Die Head, D. Pipe Reamer
Identify Part Quiz 1 Q12 - Die head adjustment graduations
Identify Part Quiz 1 Q14 - A. Die Piece, B. Die Adjustment
Identify Part Quiz 1 Q17 - A. Oiler, B. Die Head, C. Power Pony
Parts of a electric bender - Control Pad, Gearbox, Motor, Rollers
What is the range of sizes of rigid metal conduit that can be bent with a mechanical bender - 1/2" to 2"
The common name for a ratcheting mechanical bender is what? - Chicago Bender
