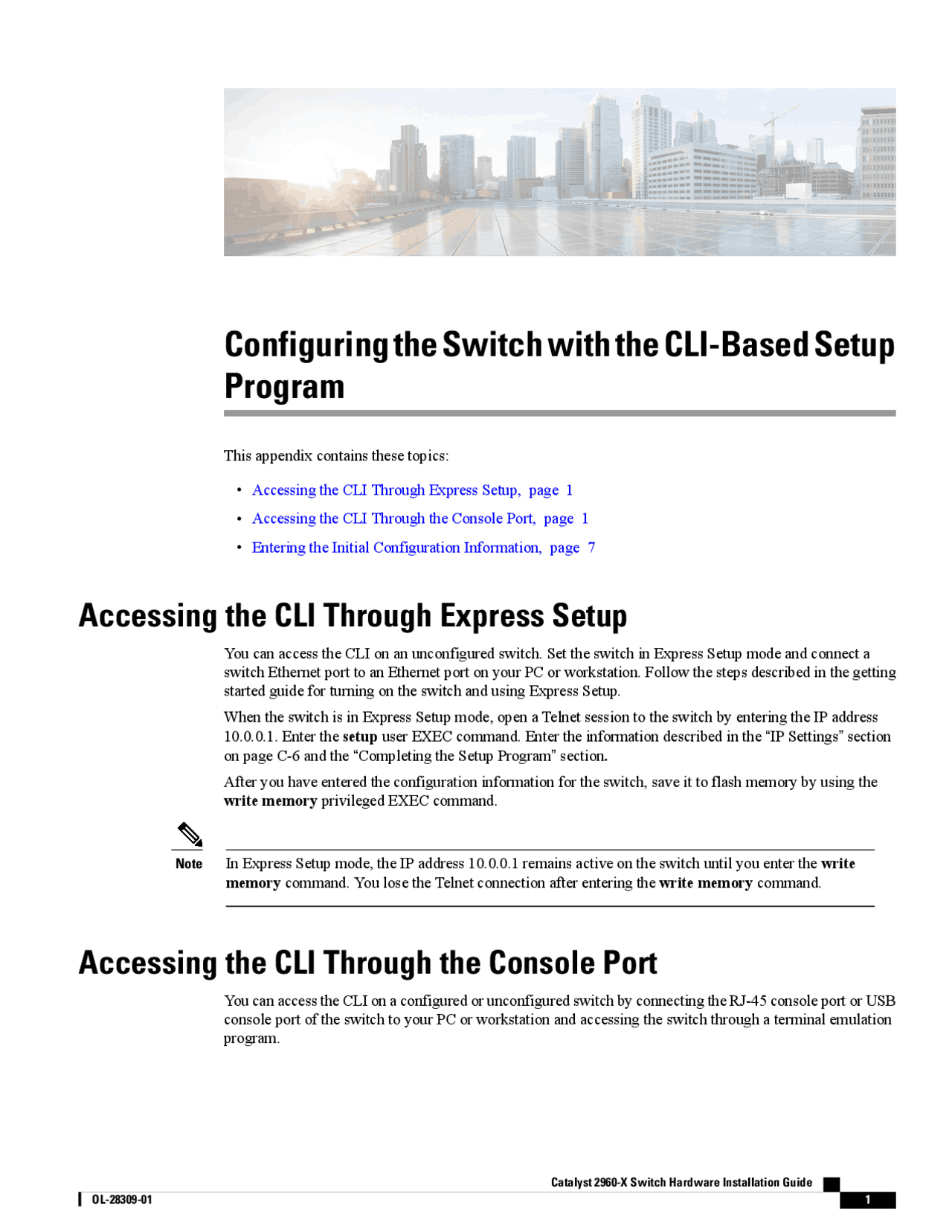

This appendix contains these topics:
You can access the CLI on an unconfigured switch. Set the switch in Express Setup mode and connect a switch Ethernet port to an Ethernet port on your PC or workstation. Follow the steps described in the getting started guide for turning on the switch and using Express Setup. When the switch is in Express Setup mode, open a Telnet session to the switch by entering the IP address 10.0.0.1. Enter the setup user EXEC command. Enter the information described in the “IP Settings” section on page C-6 and the “Completing the Setup Program” section. After you have entered the configuration information for the switch, save it to flash memory by using the write memory privileged EXEC command.
In Express Setup mode, the IP address 10.0.0.1 remains active on the switch until you enter the write memory command. You lose the Telnet connection after entering the write memory command.
Note
You can access the CLI on a configured or unconfigured switch by connecting the RJ-45 console port or USB console port of the switch to your PC or workstation and accessing the switch through a terminal emulation program.
Catalyst 2960-X Switch Hardware Installation Guide
If you have stacked your switches, connect to the console port of one of the switches in the stack. You can initially configure the entire stack from any member switch.
Note
Step 1 Connect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC. Connect the other end of the cable to the switch console port. Step 2 Start the terminal-emulation program on the PC or the terminal. The program, frequently a PC application such as HyperTerminal or ProcommPlus, makes communication between the switch and your PC or terminal possible. Step 3 Configure the baud rate and character format of the PC or terminal to match the console port default characteristics:
Step 4 Power on the switch as described in the switch getting started guide. Step 5 The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow the steps in Entering the Initial Configuration Information, on page 7.
Catalyst 2960-X Switch Hardware Installation Guide
Connecting the RJ-45 Console Port
Step 5 Power on the switch as described in the switch getting started guide. Step 6 The PC or terminal displays the bootloader sequence. Press^ Enter^ to display the setup prompt. Follow the steps in the Setup program.
A USB device driver must be installed the first time a Microsoft Windows-based PC is connected to the USB console port on the switch.
Installing the Cisco Microsoft Windows XP USB Driver
Step 1 Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it. Note You can download the driver file from the Cisco.com site for downloading the switch software.
Step 2 If using 32-bit Windows XP, double-click the setup.exe file in the Windows_32 folder. If using 64-bit Windows XP, double-click the setup(x64).exe file in the Windows_64 folder. Step 3 The Cisco Virtual Com InstallShield Wizard begins. Step 4 The Ready to Install the Program window appears. Click Install. Step 5 The InstallShield Wizard Completed window appears. Click Finish. Step 6 Connect the USB cable to the PC and the switch console port. The USB console port LED turns green, and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.
Catalyst 2960-X Switch Hardware Installation Guide
Installing the Cisco Microsoft Windows USB Device Driver
Installing the Cisco Microsoft Windows 2000 USB Driver
Step 1 Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it. Note You can download the driver file from the Cisco.com site for downloading the switch software.
Step 2 Double-click the setup.exe file. Step 3 The Cisco Virtual Com InstallShield Wizard begins. Click Next. Step 4 The Ready to Install the Program window appears. Click^ Install. Step 5 The InstallShield Wizard Completed window appears. Click Finish. Step 6 Connect the USB cable to the PC and the switch console port. The USB console port LED turns green, and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.
Installing the Cisco Microsoft Windows Vista and Windows 7 USB Driver
Step 1 Obtain the Cisco USB console driver file from the Cisco.com web site and unzip it. Note You can download the driver file from the Cisco.com site for downloading the switch software.
Step 2 If using 32-bit Windows Vista or Windows 7, double-click the setup.exe file in the Windows_32 folder. If using 64-bit Windows Vista or Windows 7, double-click the setup(x64).exe file in the Windows_64 folder. Step 3 The Cisco Virtual Com InstallShield Wizard begins. Click^ Next. Step 4 The Ready to Install the Program window appears. Click Install. Note If a User Account Control warning appears, click Allow - I trust this program to proceed.
Step 5 The InstallShield Wizard Completed window appears. Click Finish. Step 6 Connect the USB cable to the PC and the switch console port. The USB console port LED turns green, and the Found New Hardware Wizard appears. Follow the instructions to complete the driver installation.
Uninstalling the Cisco Microsoft Windows XP and 2000 USB Driver Use the Windows Add or Remove Programs utility or the setup.exe file.
Catalyst 2960-X Switch Hardware Installation Guide
Uninstalling the Cisco Microsoft Windows USB Driver
Step 5 When the InstallShield Wizard Completed window appears, click^ Finish.
Entering the Initial Configuration Information
To set up the switch, you need to complete the setup program, which runs automatically after the switch is powered on. You must assign an IP address and other configuration information necessary for the switch to communicate with the local routers and the Internet. This information is also needed to use Device Manager or Cisco Network Assistant to configure and manage the switch.
Obtain this information from your network administrator before you start the setup program:
If your switches are stacked and there are multiple console connections to individual switches in the stack, the initial setup dialog box appears at the console where you first press Enter.
Step 1 Enter Yes at these two prompts:
Would you like to enter the initial configuration dialog? [yes/no]: yes
At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt. Default settings are in square brackets '[]'.
Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system.
Would you like to enter basic management setup? [yes/no]: yes
Step 2 Enter a host name for the switch, and press Return.
Catalyst 2960-X Switch Hardware Installation Guide
Entering the Initial Configuration Information
On a command switch, the host name is limited to 28 characters; on a member switch the name is limited to 31 characters. Do not use -n , where n is a number, as the last character in a host name for any switch.
Enter host name [Switch]: host_name
Step 3 Enter an enable secret password, and press Return. The password can be from 1 to 25 alphanumeric characters, can start with a number, is case sensitive, allows spaces, but ignores leading spaces. The secret password is encrypted, and the enable password is in plain text.
Enter enable secret: secret_password
Step 4 Enter an enable password, and press^ Return.
Enter enable password: enable_password
Step 5 Enter a virtual terminal (Telnet) password, and press Return. The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading spaces.
Enter virtual terminal password: terminal-password
Step 6 To configure the country code, enter yes and press Return.
Do you want to configure country code? [no]: yes
Step 7 Enter the country code, and press Return.
Enter the country code[US]: US
Step 8 (Optional) Configure Simple Network Management Protocol (SNMP) by responding to the prompts. You can also configure SNMP later through the CLI, Device Manager, or the Network Assistant application. To configure SNMP later, enter no.
Configure SNMP Network Management? [no]: no
Step 9 Enter the interface name (physical interface or VLAN name) of the connection to the management network, and press Return. For this release, always use vlan1 as that interface.
Enter interface name used to connect to the management network from the above interface summary: vlan
Step 10 Configure the interface by entering the switch IP address and subnet mask and pressing Return. The IP address and subnet masks shown are examples.
Configuring interface vlan1: Configure IP on this interface? [yes]: yes IP address for this interface: 10.4.120. Subnet mask for this interface [255.0.0.0]: 255.0.0.
Catalyst 2960-X Switch Hardware Installation Guide
Completing the Setup Program
The switch now runs this default configuration. If you want to change this configuration or perform other management tasks, see Management Options.
Catalyst 2960-X Switch Hardware Installation Guide
Completing the Setup Program
