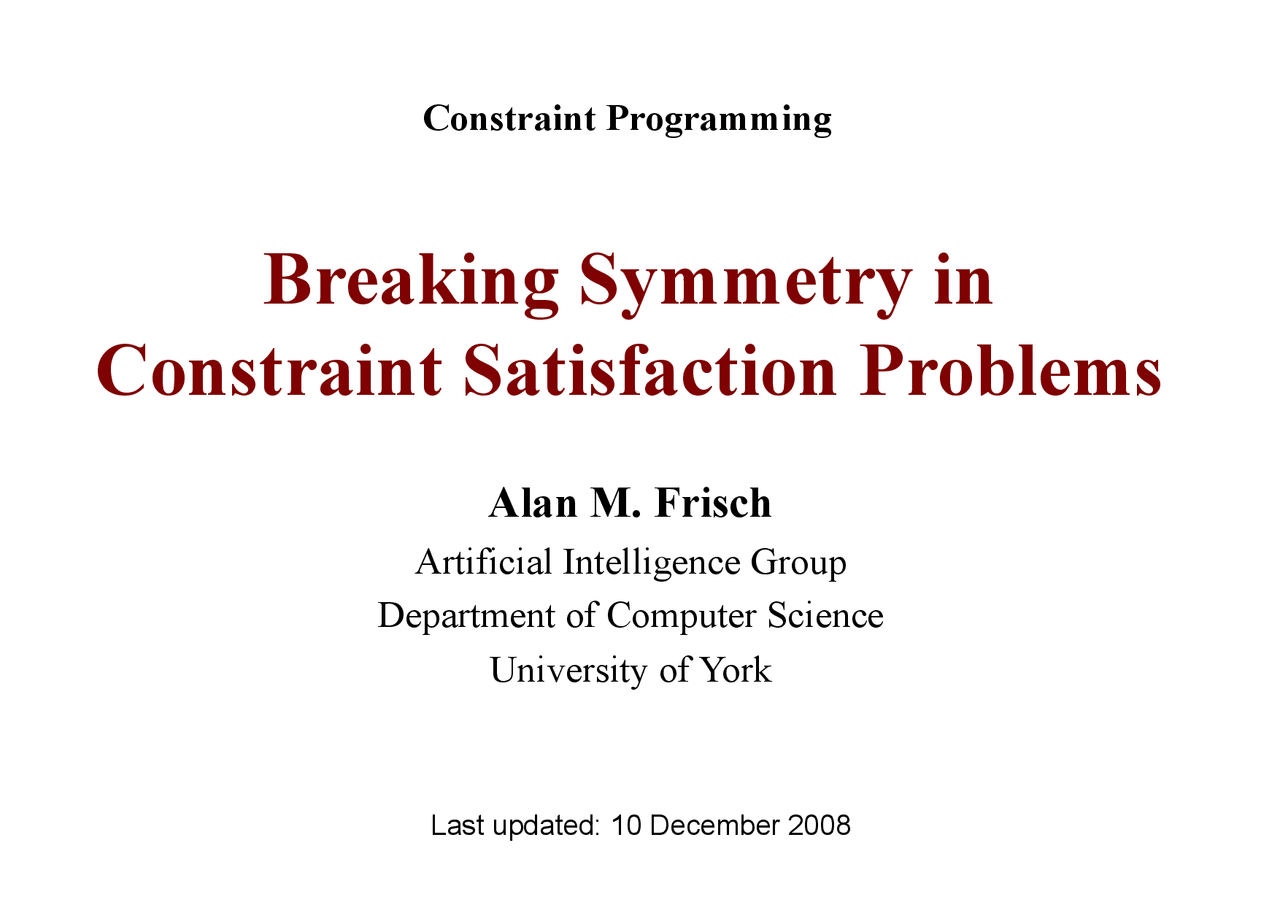

Alan M. Frisch Artificial Intelligence Group Department of Computer Science University of York
Breaking Symmetry in
Constraint Satisfaction Problems
Constraint Programming Last updated: 10 December 2008
Example of a CSP with Symmetry
- Find three distinct digits that sum to 4.
- X, Y, Z in {0,1,2,3,4,5,6,7,8,9} X ≠ Y, Y ≠ Z, X ≠ Z X +Y + Z = 4
Value Symmetry
- A group of symmetries on values that induces a
group of symmetries on assignments.
- Example: “Assign r, b or g to each node of a
graph so that no arc connects two nodes of the
same colour” has value symmetry.
S = {r ↦ b, b ↦ g, g ↦ r}.
- Induces a symmetry on assignments that maps
{N1 ↦ r, N2 ↦ b, N3 ↦ g} to
{N1 ↦ S(r), N2 ↦ S(b), N3 ↦ S(g)} =
{N1 ↦ b, N2 ↦ g, N3 ↦ r}
Variable Symmetry
- A group of symmetries on variables that induces a
group of symmetries on assignments.
- Example: “Assign 0,…,9 to X, Y, Z such that X,
Y, Z are all different and sum to 4” has variable
symmetry.
S = {X ↦ Y, Y ↦ Z, Z ↦ X}.
- Induces a symmetry on assignments that maps
{X→0, Y→1, Z→3} to
{S(X) ↦ 0, S(Y) ↦ 1, S(Z) ↦ 3} =
{Y ↦ 0, Z ↦ 1, X ↦ 3}
Matrix Models are Prevalent
- Commonly used to implement sets, subsets,
partitions, relations, functions,
permutations…
- Of first 31 problems in CSPlib (www.csplib.org),
27 have natural matrix models, most already
published and arguably the most natural
models.
- Many have row and column symmetries.
8
Partial Assignment Search
0 0 1 0 0 0 1 1 1 0 1 0 0 0 0 0 1 0 1 0 0 0 1 0 0 1 0 1 1 0 0 0 1 1 1 0 0 1 0 0 0 1 1 1 0 0 0 1 1 1 0 0 1 1 0 1 1 X X 0 1 0 0 0 0 1 0 0 1 1 0 1 0 1 1 0 X ! 0 0 0 1 0 X 0 1 0 1 0 1 !! !! ! Find a 2x3 matrix of 0/1 such that
- rows are different
- cols are different (^) forward checking
10
Where Does Symmetry Originate?
- Naturally : Chessboard is symmetric in n-queens.
- Formulation :
- Find 3 distinct digits summing to 4
- Find S subset {0, 1, …, 9}, |S| = 3, Sum(S) = 4
- X, Y, Z in {0, 1, …, 9} X ≠ Y, Y Z, X ≠ Z X + Y + Z = 4
- Add X ≤ Y ≤ Z Infer (GAC): X, Y , Z in {0, 1, 2, 3, 4}
- Infer: X < Y < Z Infer (GAC): X in {0, 1, 2}, Y in {1, 2, 3}, Z in {2, 3, 4}
Index Symmetry in One Dimension
- Indistinguishable Rows
A B C
D E F
G H I
Symmetry breaking constraint
[A B C] ≤
lex
[D E F] ≤
lex
[G H I]
(consistent and complete)
Incompleteness of Lex
2 1 0
Swap 2 columns Swap row 1 and 3
Lex
2
- Identified different conditions under which it is
complete.
- Extended it to n dimensions and partial symmetry.
- Developed linear-time algorithm for enforcing GAC
on a lex ordering constraint between 2 vectors of
variables.
- Shown experimentally on a range of problems that
breaking symmetry by imposing lex/lex
2
and
enforcing it with our algorithm is highly effective.
Transforming Value Symmetry to
Index Symmetry
- a, b, c, d are indistinguishable values a c {b, d} 0 0 1
a 1 0 0 b c d Now the rows are indistinguishable X Y Z (set) X Y Z (set)
Breaking Value Symmetry with Value Precedence Constraints
- Consider colouring a 4-node graph with 3 colours.
- Calling the colours 1, 2, 3 introduces value .symmetry. All the values are interchangeable. {1,2,3} {1,2,3} {1,2,3} {1,2,3} C:
- Can break all the value symmetry with the constraint 1 ≤ C
C
where v1 ≤ C v2 means that if v2 occurs in C then so does v1 and the first occurrence of v2 is after the first occurrence of v1.
Important Open Problems for
Symmetry-Breaking Constraints
- Generality: generate effective constraints for any
symmetry group.
- Understand interaction with problem constraints.
- Understand interaction with search strategies.
- Understand interaction with dynamic methods.
- Automatically introduce symmetry breaking during
refinement.
- Do all this for problem classes, not just problem
