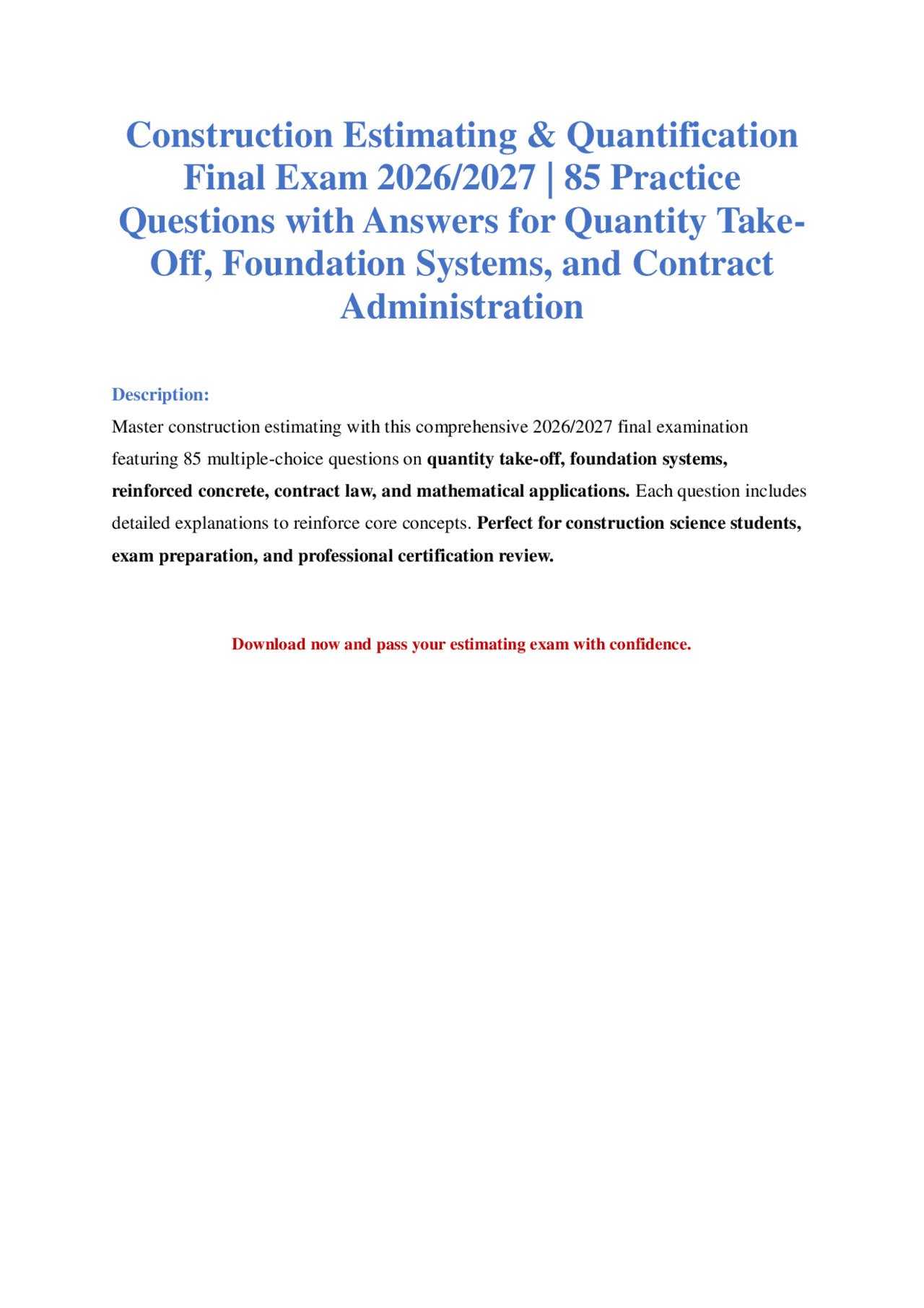

Construction Estimating & Quantification
Final Exam 2026/2027 | 85 Practice
Questions with Answers for Quantity Take-
Off, Foundation Systems, and Contract
Administration
Description: Master construction estimating with this comprehensive 2026/2027 final examination featuring 85 multiple-choice questions on quantity take-off, foundation systems, reinforced concrete, contract law, and mathematical applications. Each question includes detailed explanations to reinforce core concepts. Perfect for construction science students, exam preparation, and professional certification review. Download now and pass your estimating exam with confidence.
Construction Estimating Exam 2026/
SECTION A: DEFINITIONS AND FUNDAMENTAL CONCEPTS
(Questions 1–20) Question 1 The process of determining the anticipated cost of materials, labor, and equipment required for a proposed construction project is known as: A. Quantification B. Take-off C. Estimating D. Quantity surveying Answer: C Explanation: Estimating is the comprehensive process of calculating anticipated costs for materials, labor, and equipment needed to complete a construction project. It involves analyzing project requirements and assigning monetary values to each component. Question 2 In construction terminology, the compilation of detailed lists of materials and equipment based on drawings and specifications is referred to as a: A. Quantity survey B. Take-off C. Cost analysis D. Material requisition Answer: B Explanation: A take-off is the systematic process of reviewing construction drawings and specifications to identify and list all materials and equipment required for a project. This list serves as the foundation for cost estimation.
Answer: B Explanation: Addenda are issued during the bidding period to modify contract documents before award. Amendments are modifications made to an already executed contract through subsequent agreement between the parties. Question 6 Which term describes the measurement of a given planar region or the surface area of a solid object? A. Area B. Length C. Volume D. Dimension Answer: A Explanation: Area is the two-dimensional measurement of a surface or planar region, expressed in square units such as square feet (SF) or square yards (SY). Question 7 The area method of construction cost estimating employs: A. Unit cubic foot costs multiplied by building volume B. Unit square foot costs multiplied by adjusted gross floor area C. Unit linear foot costs multiplied by perimeter measurements D. Unit labor hour costs multiplied by estimated duration Answer: B Explanation: The area method uses established unit costs per square foot, which are then multiplied by the building's adjusted gross floor area to generate a preliminary cost estimate. This method is commonly used for conceptual estimating. Question 8 In construction drawings, the term "NTS" indicates: A. Not to Specification B. National Technical Standard
C. Not to Scale D. Non-Typical Section Answer: C Explanation: NTS (Not to Scale) is a notation used on drawings to indicate that the drawing is not drawn to a measurable scale and dimensions should be obtained from written dimensions rather than scaling the drawing. Question 9 Which of the following best describes the concept of "clear cover" in reinforced concrete construction? A. The distance between reinforcing bars B. The thickness of concrete between reinforcing steel and exterior surfaces C. The protective coating applied to rebar before concrete placement D. The exposed surface of concrete after form removal Answer: B Explanation: Clear cover is the specified thickness of concrete that must be maintained between reinforcing steel and any exterior surface. This cover protects the reinforcement from corrosion and ensures proper fire resistance and structural performance. Question 10 What is the primary purpose of a geotechnical data report? A. To determine the aesthetic characteristics of site materials B. To provide information about soil types, bearing capacity, and site conditions C. To calculate the total project budget D. To establish the construction schedule Answer: B Explanation: A geotechnical data report provides critical information about subsurface conditions, including soil types, bearing capacity, groundwater conditions, and other factors that influence foundation design and construction methods.
uncertainties in soil conditions, material properties, and loading assumptions, ensuring adequate structural reliability. Question 14 The liquid limit (LL) of soil is defined as: A. The moisture content at which soil flows under its own weight B. The moisture content at which soil changes from plastic to liquid state C. The total water holding capacity of soil D. The moisture content at which soil achieves maximum density Answer: B Explanation: The liquid limit is the moisture content, expressed as a percentage of the oven- dried soil weight, at which soil transitions from a plastic state to a liquid state. This is a fundamental property in soil classification. Question 15 What does the plasticity index (PI) of soil represent? A. The total range of moisture content from dry to saturated B. The range of moisture in which soil remains in a plastic state C. The compressibility potential of soil under load D. The shear strength of soil at failure Answer: B Explanation: The plasticity index represents the range of moisture content over which soil exhibits plastic behavior. It is calculated as the difference between the liquid limit and the plastic limit. Question 16 What is the purpose of lime stabilization in roadway construction? A. To increase the permeability of clay soils B. To chemically alter clay soils to reduce reactivity with water C. To improve the aesthetic appearance of subgrade D. To accelerate construction schedules
Answer: B Explanation: Lime stabilization chemically modifies clay soils, reducing their susceptibility to moisture-induced volume changes and improving their engineering properties for use beneath roadways and other structures. Question 17 In test boring reports, the presence of water is indicated by: A. A solid circle B. An inverted triangle C. A horizontal line D. A wavy line Answer: B Explanation: In geotechnical boring logs, an upside-down triangle (▽) is the standard symbol used to indicate water or groundwater levels encountered during drilling operations. Question 18 The finish floor elevation (FFE) shown on structural and civil plans is typically referenced to: A. Existing grade elevation B. Mean sea level (MSL) C. Top of foundation elevation D. Subgrade elevation Answer: B Explanation: Finish floor elevation is typically referenced to mean sea level (MSL) or an established benchmark, providing a consistent vertical reference point across all disciplines involved in the project. Question 19 A kip is equivalent to: A. 100 pounds B. 500 pounds C. 1,000 pounds D. 2,000 pounds
C. The bearing layer of soil is within 10 feet of the surface D. Soil conditions are highly variable across the site Answer: C Explanation: Spread footings are considered shallow foundation systems and are typically used when competent bearing soil is located within approximately 10 feet of the surface, allowing the footing to distribute loads directly to that layer. Question 23 Mat foundations are most appropriate when: A. The building has a simple structural grid B. Column loads are very high and differential settlement must be minimized C. The site has limited access for construction equipment D. Soil bearing capacity is exceptionally high Answer: B Explanation: Mat foundations combine all structural loads into a single continuous footing, eliminating differential settlement between individual footings. They are commonly used for high-rise buildings and structures with high column loads. Question 24 Pile foundations are typically selected when: A. The bearing stratum is too deep for spread footings or mats B. Shallow foundations would be more economical C. The site has no groundwater issues D. Building loads are light Answer: A Explanation: Pile foundations are deep foundation systems used to transfer structural loads through unsuitable surface soils to deeper, competent bearing strata that cannot be reached economically with shallow foundations.
Question 25 Drilled shafts that transfer loads primarily through end bearing are classified as: A. Belled shafts B. Straight shafts C. Friction shafts D. Composite shafts Answer: B Explanation: Straight drilled shafts (also called socketed caissons) transmit loads to underlying rock or rock-like strata primarily through end bearing, with the shaft extending into the bearing material. Question 26 Which type of drilled shaft features an enlarged base to increase bearing capacity? A. Straight shaft B. Tapered shaft C. Belled shaft D. Composite shaft Answer: C Explanation: Belled shafts feature an enlarged base (bell) that increases the bearing area, allowing the shaft to transfer loads to deeper strata while providing greater end-bearing capacity than a straight shaft of the same diameter. Question 27 What is the primary function of reinforcing steel (rebar) in concrete construction? A. To increase the aesthetic appearance of concrete B. To provide tensile strength that concrete lacks C. To reduce the weight of concrete elements D. To accelerate the curing process Answer: B Explanation: Concrete is strong in compression but weak in tension. Reinforcing steel
Answer: B Explanation: Ready-mix concrete is ordered, batched, and measured in cubic yards (CY) for commercial construction projects, with 1 cubic yard equaling 27 cubic feet. Question 31 Formwork in concrete construction is quantified in: A. Cubic yards B. Square feet of contact area C. Linear feet D. Each Answer: B Explanation: Formwork is typically measured in square feet of contact area (the surface area of concrete that contacts the formwork). This measurement accounts for the material and labor required to construct and remove the forms. Question 32 Which of the following is NOT a required item for calculating drilled pier quantities? A. Finish floor elevation B. Existing grade elevation C. Roof elevation D. Pier bearing elevation Answer: C Explanation: Roof elevation is not required for drilled pier calculations. Essential information includes finish floor elevation, existing grade, pier bearing elevation, penetration requirements, and structural details affecting the foundation. Question 33 What are stirrups in reinforced concrete construction? A. Vertical reinforcement in columns B. Round-formed rebar that holds longitudinal bars in position C. Horizontal reinforcement in beams D. Prefabricated rebar assemblies
Answer: B Explanation: Stirrups are closed-loop reinforcing bars, typically formed in circular or rectangular shapes, that encircle and secure longitudinal reinforcing bars, providing shear reinforcement and maintaining bar positioning. Question 34 A sonotube is used in drilled pier construction to: A. Prevent groundwater infiltration B. Provide structural reinforcement C. Prevent haunching around the pier top D. Accelerate concrete curing Answer: C Explanation: Sonotubes are fiber forms placed around the top of drilled piers to create a clean, uniform column shape and prevent the formation of haunches (irregular bulges) at the ground surface that could interfere with grade beam construction. Question 35 The term "casing" in drilled pier construction refers to: A. The reinforcing cage B. A temporary or permanent form for the concrete pier C. The concrete mix design D. The drilling equipment Answer: B Explanation: Casing is a tube, either temporary or permanent, placed in the drilled hole to maintain hole integrity and serve as a form for the concrete pier. Temporary casing may be withdrawn during concrete placement. Question 36 In drilled pier construction, a trimming tube is used to: A. Trim excess reinforcement B. Pump concrete from bottom to top around the reinforcing cage
Question 39 What is a chamfer in concrete construction? A. A rounded corner on concrete elements B. An angled corner, typically 45 degrees, on concrete edges C. A groove formed in concrete surfaces D. A type of concrete finish Answer: B Explanation: A chamfer is an angled cut, typically at 45 degrees, applied to the corners of concrete elements. This detail reduces stress concentrations, improves appearance, and protects vulnerable corners from damage. Question 40 Pan construction in concrete floor systems results in: A. A smooth, flat underside surface B. A waffle-like underside with intersecting ribs C. A post-tensioned slab system D. A precast concrete panel system Answer: B Explanation: Pan construction uses removable metal or fiberglass pans to form a series of intersecting ribs in concrete slabs, creating a characteristic waffle pattern on the underside that provides structural efficiency for long spans. SECTION C: QUANTITY TAKE-OFF PRINCIPLES AND PRACTICES (Questions 41–60) Question 41 According to the general rules for quantity take-off, what is the first step when beginning work on a new drawing sheet? A. Begin measuring dimensions immediately B. Read all notes and text and note the scales used C. Identify the drawing sheet number D. Consult with the project manager
Answer: B Explanation: Before taking any measurements, the estimator should read all notes and text on the drawing sheet and note the scales used. This ensures understanding of special conditions, exceptions, and appropriate scaling factors. Question 42 When taking off dimensions from drawings, estimators should: A. Always use scaled measurements from the drawings B. Use dimensions shown and avoid scaling when possible C. Use the most convenient measurement method regardless of accuracy D. Average scaled and dimensioned values Answer: B Explanation: The preferred practice is to use dimensions explicitly shown on the drawings. Scaling should only be used when dimensions are missing, as scaling introduces potential measurement errors. Question 43 What is the recommended approach when taking off areas from a plan? A. Work randomly to avoid bias B. Work in a consistent clockwise direction and label points C. Always start from the center of the building D. Use only digital take-off methods Answer: B Explanation: Working in a consistent clockwise direction and labeling measurement points helps ensure all areas are accounted for, reduces the chance of omissions or double-counting, and improves documentation. Question 44 When performing quantity take-offs, estimators should work with: A. Fractions for greater accuracy B. Decimals instead of fractions
C. They identify critical structural elements D. They determine the precision of cost estimates Answer: B Explanation: Significant digits should be consistent with measurement capabilities and the precision of conversion factors used. Overly precise measurements imply accuracy not achievable in actual construction. Question 48 The practice of having a second person review a completed quantity take-off addresses which general rule? A. Work as a team member B. Be organized C. Have a second pair of eyes review the work D. Mark it and move on Answer: C Explanation: Independent review by another estimator helps identify errors, omissions, or inconsistencies that the original estimator may have overlooked, improving the accuracy and reliability of the take-off. Question 49 What does the general rule "mark it and move on" emphasize in quantity take-off? A. Speed is more important than accuracy B. Completed items should be clearly marked to avoid duplication C. Estimates should be completed without interruption D. Digital methods are preferred over manual Answer: B Explanation: Marking completed items on the drawings as they are taken off prevents duplicate counting and ensures systematic coverage of all required elements. This practice also facilitates review by others.
Question 50 When performing a quantity take-off, what should an estimator do with work items that involve only labor with no material requirements? A. Omit them from the take-off B. Include them in the take-off C. Note them separately for later consideration D. Convert them to material equivalents Answer: B Explanation: All work items, including those with no material requirements, must be included in the take-off. Labor-only items such as excavation, demolition, or specialized installations still impact project cost and schedule. Question 51 The concept of gross and net quantities is important because: A. It determines the final project cost B. Materials must be ordered to account for waste and overlap C. It simplifies the estimating process D. It affects labor productivity rates Answer: B Explanation: Understanding the difference between net and gross quantities ensures that materials are ordered in sufficient quantities to account for waste, cutting losses, overlaps, and other unavoidable factors in construction. Question 52 What is the building footprint? A. The total floor area of the building B. The area the building occupies on the ground C. The perimeter measurement of the building D. The foundation excavation area
