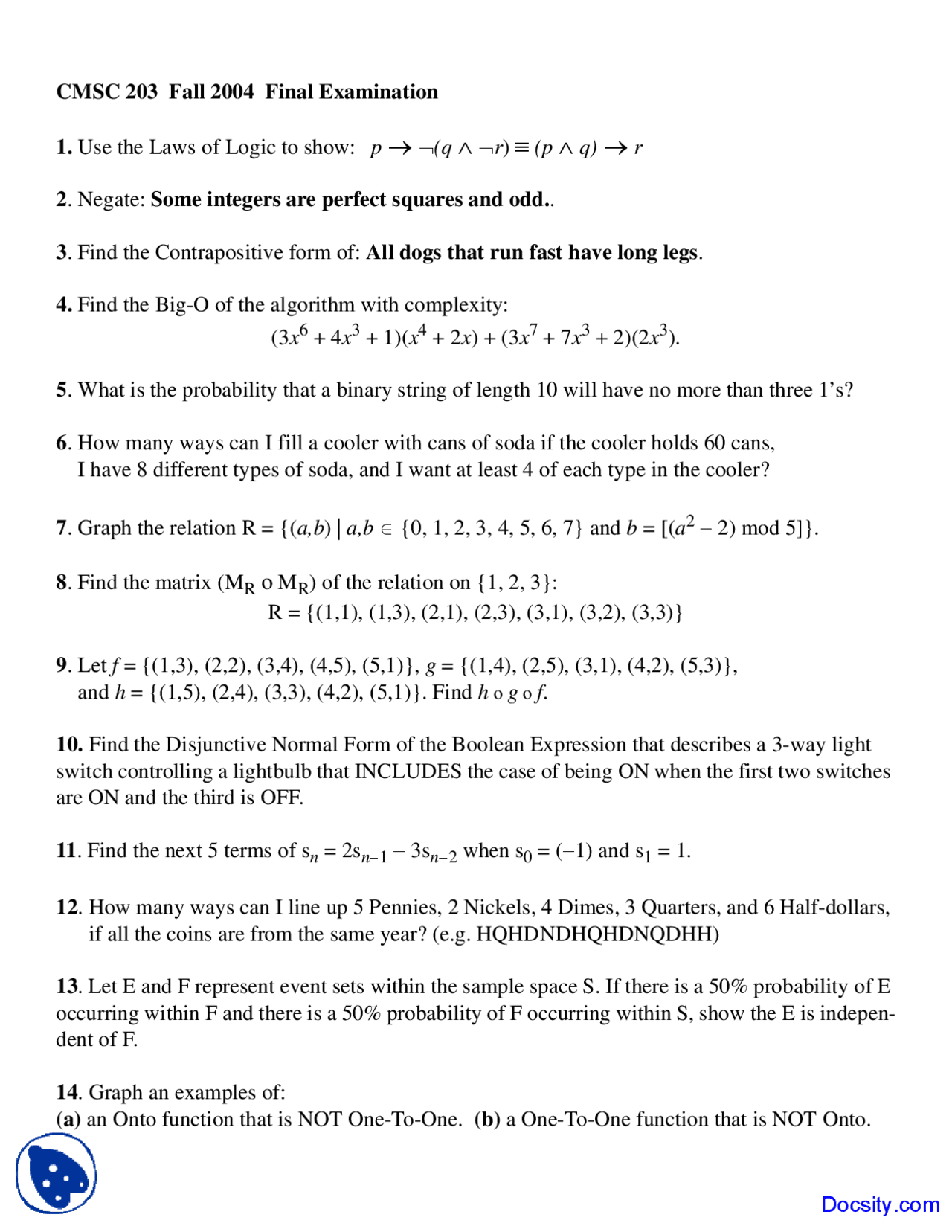

CMSC 203 Fall 2004 Final Examination
1. Use the Laws of Logic to show: p ¬(q ¬r) (p q) r
2. Negate: Some integers are perfect squares and odd..
3. Find the Contrapositive form of: All dogs that run fast have long legs.
4. Find the Big-O of the algorithm with complexity:
(3x6 + 4x3 + 1)(x4 + 2x) + (3x7 + 7x3 + 2)(2x3).
5. What is the probability that a binary string of length 10 will have no more than three 1’s?
6. How many ways can I fill a cooler with cans of soda if the cooler holds 60 cans,
I have 8 different types of soda, and I want at least 4 of each type in the cooler?
7. Graph the relation R = {(a,b) | a,b {0, 1, 2, 3, 4, 5, 6, 7} and b = [(a2 2) mod 5]}.
8. Find the matrix (MR o MR) of the relation on {1, 2, 3}:
R = {(1,1), (1,3), (2,1), (2,3), (3,1), (3,2), (3,3)}
9. Let f = {(1,3), (2,2), (3,4), (4,5), (5,1)}, g = {(1,4), (2,5), (3,1), (4,2), (5,3)},
and h = {(1,5), (2,4), (3,3), (4,2), (5,1)}. Find h o g o f.
10. Find the Disjunctive Normal Form of the Boolean Expression that describes a 3-way light
switch controlling a lightbulb that INCLUDES the case of being ON when the first two switches
are ON and the third is OFF.
11. Find the next 5 terms of sn = 2sn1 3sn2 when s0 = (1) and s1 = 1.
12. How many ways can I line up 5 Pennies, 2 Nickels, 4 Dimes, 3 Quarters, and 6 Half-dollars,
if all the coins are from the same year? (e.g. HQHDNDHQHDNQDHH)
13. Let E and F represent event sets within the sample space S. If there is a 50% probability of E
occurring within F and there is a 50% probability of F occurring within S, show the E is indepen-
dent of F.
14. Graph an examples of:
(a) an Onto function that is NOT One-To-One. (b) a One-To-One function that is NOT Onto.
Docsity.com
pf2

Partial preview of the text

Download Fall 2004 CS Department Final Examination Questions and more Exams Discrete Structures and Graph Theory in PDF only on Docsity!

CMSC 203 Fall 2004 Final Examination

1. Use the Laws of Logic to show: p → ¬ (q ∧ ¬ r ) ≡ (p ∧ q) → r

2. Negate: Some integers are perfect squares and odd..

3. Find the Contrapositive form of: All dogs that run fast have long legs.

4. Find the Big-O of the algorithm with complexity:

(3 x^6 + 4 x^3 + 1)( x^4 + 2 x ) + (3 x^7 + 7 x^3 + 2)(2 x^3 ).

5. What is the probability that a binary string of length 10 will have no more than three 1’s?

6. How many ways can I fill a cooler with cans of soda if the cooler holds 60 cans, I have 8 different types of soda, and I want at least 4 of each type in the cooler?

7. Graph the relation R = {( a,b ) | a,b ∈ {0, 1, 2, 3, 4, 5, 6, 7} and b = [( a^2 − 2) mod 5]}.

8. Find the matrix (MR o M R) of the relation on {1, 2, 3}:

R = {(1,1), (1,3), (2,1), (2,3), (3,1), (3,2), (3,3)}

9. Let f = {(1,3), (2,2), (3,4), (4,5), (5,1)}, g = {(1,4), (2,5), (3,1), (4,2), (5,3)}, and h = {(1,5), (2,4), (3,3), (4,2), (5,1)}. Find h o g o f.

10. Find the Disjunctive Normal Form of the Boolean Expression that describes a 3-way light switch controlling a lightbulb that INCLUDES the case of being ON when the first two switches are ON and the third is OFF.

11. Find the next 5 terms of s n = 2s n − 1 − 3s n − 2 when s 0 = (−1) and s 1 = 1.

12. How many ways can I line up 5 Pennies, 2 Nickels, 4 Dimes, 3 Quarters, and 6 Half-dollars, if all the coins are from the same year? (e.g. HQHDNDHQHDNQDHH)

13. Let E and F represent event sets within the sample space S. If there is a 50% probability of E occurring within F and there is a 50% probability of F occurring within S, show the E is indepen- dent of F.

14. Graph an examples of: (a) an Onto function that is NOT One-To-One. (b) a One-To-One function that is NOT Onto.

Docsity.com

15. Prove one of the following theorems by Induction:

Theorem: For all Integers n > 0 and a ≠ 0,1,.

Theorem: If a 1 , a 2 , a 3 , ... is the sequence: a 0 = 3, a 1 = 5, a 2 = 7 with a (^) n = a (^) n − 1 + an − 2 + a (^) n − 3 ,

then a (^) n is odd for all n ≥ 3.

16. Prove one of the following theorems by Contradiction:

Theorem: is irrational. Theorem: If every integer is divisable by a prime, then the set of primes is infinite.

17. Prove one of the following theorems: Theorem: If f(x) = 4 x + 8, then R = {( x,y ) | x,yR and f(x) = f(y) } is an Equivalence Relation. Theorem: If f(x) = 4 x + 8, then f is a Bijection from R to R.

a i i = 0

n

a n^ +^1 – 1 a – 1

= ---------------------

2

Docsity.com
