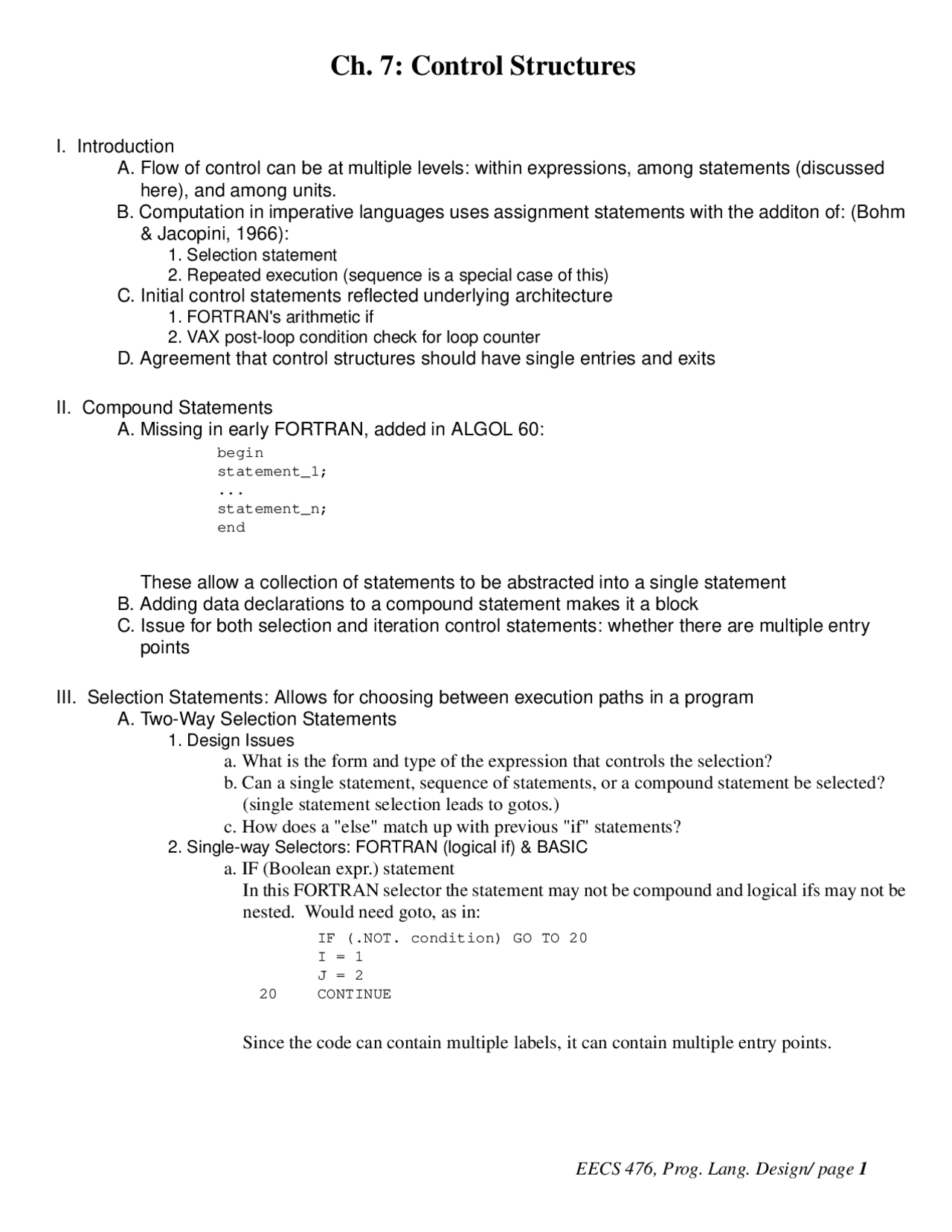

Ch. 7: Control Structures
I. Introduction
A. Flow of control can be at multiple levels: within expressions, among statements (discussed
here), and among units.
B. Computation in imperative languages uses assignment statements with the additon of: (Bohm
& Jacopini, 1966):
1. Selection statement
2. Repeated execution (sequence is a special case of this)
C. Initial control statements reflected underlying architecture
1. FORTRAN's arithmetic if
2. VAX post-loop condition check for loop counter
D. Agreement that control structures should have single entries and exits
II. Compound Statements
A. Missing in early FORTRAN, added in ALGOL 60:
These allow a collection of statements to be abstracted into a single statement
B. Adding data declarations to a compound statement makes it a block
C. Issue for both selection and iteration control statements: whether there are multiple entry
points
III. Selection Statements: Allows for choosing between execution paths in a program
A. Two-Way Selection Statements
1. Design Issues
a. What is the form and type of the expression that controls the selection?
b. Can a single statement, sequence of statements, or a compound statement be selected?
(single statement selection leads to gotos.)
c. How does a "else" match up with previous "if" statements?
2. Single-way Selectors: FORTRAN (logical if) & BASIC
a. IF (Boolean expr.) statement
In this FORTRAN selector the statement may not be compound and logical ifs may not be
nested. Would need goto, as in:
Since the code can contain multiple labels, it can contain multiple entry points.
begin statement_1; ... statement_n; end
IF (.NOT. condition) GO TO 20 I = 1 J = 2 20 CONTINUE
b. Compound statement in ALGOL 60 adds the capability:
3. Examples of Two-Way Selectors
a. ALGOL 60 was the first, with the form:
Where both statements could be compounded
4. Nesting Selectors: which "if" does an "else" go with?
a. Example:
Which if does the "else" go with?
b. Static semantics: Language definition tells which it should be. E.g. in Pascal: "else" goes
with most recent unpaired "if"
c. Syntax can be used instead: E.g. ALGOL 60 where an if may not be directly nested in a
"then" clause, but must be in a compound statement::
or else as:
Same thing in Pascal & C
if (Boolean expr) then begin statement_1; ... statement_2; end
if (Boolean expr) then statement else statement
if (cond1.) then if (cond2.) then statement1; else statement2;
if (cond1.) then begin if (cond2.) then statement else statement end
if (cond1.) then begin if (cond2.) then statement end else statement
2. Early Multiple Selectors in FORTRAN: three-way selector (arithmetic if)
a. IF (arithmetic expression) N1, N2, N
where the three labels are statements corresponding to the expression values of negative,
0, positive respectively. It would often be used as:
Problem: allows multiple entry & exit points using labels and gotos
b. First true multiple selection statement: again in FORTRAN:
GO TO (label 1, label 2, ... label n), expression
where the integer result of evaluating "expression" functioned as an index into the branch
labels (1 went to the first, etc.)
3. Modern Multiple Selectors
a. ALGOL-W (1966):
where statements could be compound, and only one is chosen.
b. Pascal:
Which functions similarly to ALGOL-W, except expression is of ordinaly type (integer,
boolean, character, enumerated type), and selectors are lists.
(1). Only one of the selectors is executed, constant lists must be mutually exclusive,
and the constant lists' union need not be exhaustive. It has single entry & exit
point.
(2). Issue: what about unrepresented selector options? An "else" clause was added
to take care of this.
IF (expression) 10, 20, 30 10 ... ... GO TO 40 20 ... ... GO TO 40 30 ... ... 40 ...
case integer-expression of begin statement1; ... statementn; end
case expression of constant_list1: statement1; ... constant_listn: statementn; end
c. C mutiple selector
Note that without a break control flow continues to the next statement.
d. Ada requires that the union of the constant lists be exhaustive, and also provides an "oth-
ers" clause to help ensure this.
e. In cases where the selectors are not integer or an ordinal type, nested if statements must be
used, as in Ada's:
IV. Iterative Statements:
- cause a statement or collection of statements to be executed 0, 1, or more times. Thus, sequence
is a special case of iteration.
A. Counter-Controlled Loops
1. loop parameters: loop variable, initial value, terminal value, stapsize
2. Design Issues
a. What is the type and scope of the loop counting variable?
b. Is the loop variable defined upon exiting the loop?
c. Can the loop variable or loop parameters be changed inside the loop?
d. Is the test for completion at the top or the bottom of the loop?
e. Are the loop parameters evaluated on every iteration?
3. FORTRAN IV DO loop
DO label variable = initial, terminal [,stepsize]
where loop parameters must be unsigned integer constants or positive integers (no descending
loops). Loop variable is undefined upon exiting loop, but is defined upon abnormal termination.
Loop parameters may not be changed inside the loop, so loop parameters evaluated only once.
Allows multiple entry and exit points to the loop. It is a posttest loop construct.
4. FORTRAN 77 & 90 DO loop: same as FORTRAN IV except that:
a. loop variable is allowed to be integer, real, or double; loop parameters can be expressions
and can have negative values; loop parameters are evaluated at the beginning of the exe-
cution to give an iteration count, after which loop parameters may be changed inside the
loop without affecting the loop control.
b. comma optionally added after the label
DO 10, K = 1, 10
So that "DO 10 K = 1, 10" with an inadvertant decimal replacing the comma would not
become the assignment statement:
DO10K = 1.
switch (index) { case 1: case 3: statement1; statement2; break; case 2: case 4: statement3; statement4; break; default: statement5; //possibly an error message? }
if score >= 90 then grade := 'A'; elsif score >= 80 then grade := 'B'; elsif score >= 70 then grade := 'C'; end if;
8. C & C++ for statement
a. Syntax:
Expressions in C can be statements and return a value. Zero value means False, a non-
zero value means True.
b. Example:
c. All expressions in the "for" are optional. It is legal to branch into a "for" loop.
d. Multiple statements may be used in a single expression in a "for" loop, separated by com-
mas. E.g.
e. In C++, the declaration of the loop counter has scope until the end of the function. E.g.
which is different from:
f. Note that C's "for" loop can both count and contain logical tests
B. Logically Controlled Loops
1. Design Issues
a. Is the control pretest or posttest?
b. Is the loop simply a special case of a counting loop?
2. Examples
a. C:
for (initial_exp.; continuing_cond_expression; post_loop_exp) statement
for (index = 0; index < 10; index++) sum = sum + list[ index];
for (count = 0, sum = 0; x >0; scanf("%d", x), sum += x, count++) ;
for (int count = 0; count < length; count++) { ... }
{ int count; for (count = 0; count < length; count++) { ... } }
scanf( "%d", &indat); while (indat >= 0) { sum += indat; scanf ("%d", &indat); }
do { indat /= 10; digits++; } while (indat >0);
C. User-Located Loop Control Mechanisms (explicitly exiting loop): design issue:
should only one loop be exited, or can enclosing loops also be exited?
1. Ada:
which can contain an "exit" statement which may be conditional or unconditional:
exit [loop_label][when condition]
For instance:
Multiple enclosing loops may be exited using a label:
2. C: Uses continue to repeat the loop with the next iteration. E.g.
and also the break statement to exit the loop entirely:
D. User-Defined Iteration Control
- Rather than use a counter, use the number of elements in a user-defined structure. This is
known as aniterator
1. LISP: thedolist function iterates on simple lists
2. Iterator to traverse a tree, example in C:
loop ... end loop
loop ... if SUM >= 1000 then exit; {Could also be: exit when SUM >= 1000;} ... end loop;
OUTER:
for ROW in 1 .. MAX_ROWS loop INNER: for COL in 1 .. MAX_COLS loop SUM := SUM + MAT(ROW, COL); exit OUTER when SUM > 1000; end loop INNER; end loop OUTER;
while (sum < 1000) { scanf("%d", &value); if (value < 0) continue; {goto the top of the loop again} sum += value; }
while (sum < 1000) { scanf("%d", &value); if (value < 0) break; {leave immediate enclosing loop} sum += value; }
for (ptr = root; ptr; traverse( ptr)) { ... }
3. Example where a goto seems to help the code's readability: (a letter to the editor of CACM by
Rubin in 1987). This code finds the first row of an n x n integer matrix that has all zeros.
VI. Guarded Commands (Dijkstra, 1975).
- This format is particularly important for specifying concurrent programming.
A. if statement usingfatbars:
where all the boolean expressions are evaluated each time. If more than one is true, one of
the true ones is chosen nondeterministically. If none is true, it gives a run-time error.
1. Another example:
Note that if i = 0 and j > i, then either the first or third is chosen nondeterministically.
If i = j but i != 0 then a run-time error occurs since no condition is true.
2. E.g. a do loop using guarded commands:
where all the boolean expressions are evaluated on each iteration. If more than one boolean
expression is true, one is chosen nondeterministically, after which the expressions are again
evaluated (and so on...).
3. E.g. sorting the four variables q1, q2, q3, & q 4 into ascending order
VII. Conclusions
A. Only selection, loops, and sequence (a special kind of loop) are absolutely required.
B. Fundamental question: should the size of a language be minimized?
C. Note that the functional and logical programming mechanisms are quite different from the
imperative language control structures presented here.
for i := 1 to n do begin for j := 1 to n do if x[i, j] <> 0 then goto reject; writeln ('First all-zero row is: ', i); break; reject: end;
if -> [] -> [] ... [] -> fi
if i = 0 -> sum := sum + i [] i > j -> sum := sum + j [] j > i -> sum := sum + i fi
do -> [] -> [] ... [] -> od
do q1 > q2 -> temp := q1;q1 := q2; q2 := temp; [] q2 > q3 -> temp := q2; q2 := q3; q3 := temp; [] q3 > q4 -> temp := q3; q3 := q4; q4 := temp; od
