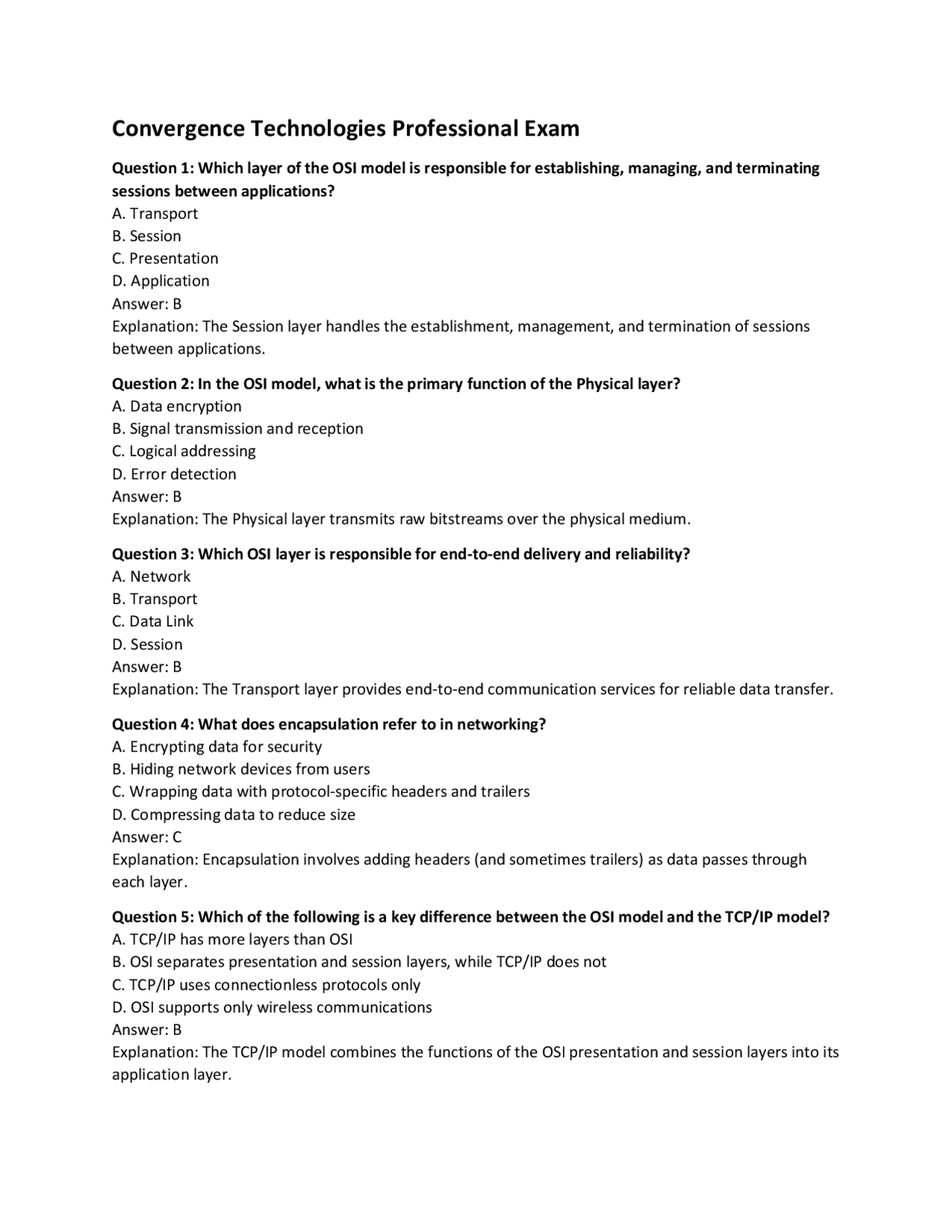

Convergence Technologies Professional Exam
Question 1: Which layer of the OSI model is responsible for establishing, managing, and terminating sessions between applications? A. Transport B. Session C. Presentation D. Application Answer: B Explanation: The Session layer handles the establishment, management, and termination of sessions between applications. Question 2: In the OSI model, what is the primary function of the Physical layer? A. Data encryption B. Signal transmission and reception C. Logical addressing D. Error detection Answer: B Explanation: The Physical layer transmits raw bitstreams over the physical medium. Question 3: Which OSI layer is responsible for end-to-end delivery and reliability? A. Network B. Transport C. Data Link D. Session Answer: B Explanation: The Transport layer provides end-to-end communication services for reliable data transfer. Question 4: What does encapsulation refer to in networking? A. Encrypting data for security B. Hiding network devices from users C. Wrapping data with protocol-specific headers and trailers D. Compressing data to reduce size Answer: C Explanation: Encapsulation involves adding headers (and sometimes trailers) as data passes through each layer. Question 5: Which of the following is a key difference between the OSI model and the TCP/IP model? A. TCP/IP has more layers than OSI B. OSI separates presentation and session layers, while TCP/IP does not C. TCP/IP uses connectionless protocols only D. OSI supports only wireless communications Answer: B Explanation: The TCP/IP model combines the functions of the OSI presentation and session layers into its application layer.
Question 6: Which protocol is primarily associated with the Internet Protocol Suite for addressing devices? A. IP B. FTP C. SMTP D. SNMP Answer: A Explanation: IP (Internet Protocol) is responsible for addressing and routing packets in the TCP/IP suite. Question 7: What is the main difference between IPv4 and IPv6 addressing? A. IPv6 supports fewer devices than IPv B. IPv6 uses a 128-bit address compared to IPv4’s 32-bit address C. IPv4 supports multicast while IPv6 does not D. IPv4 addresses are alphanumeric while IPv6 addresses are numeric Answer: B Explanation: IPv6 addresses are 128 bits long, providing a vastly larger address space than the 32-bit IPv4 addresses. Question 8: What does CIDR stand for in networking? A. Classless Inter-Domain Routing B. Certified Internet Data Routing C. Class-based IP Data Routing D. Centralized Internet Domain Registration Answer: A Explanation: CIDR stands for Classless Inter-Domain Routing, a method for allocating IP addresses and routing. Question 9: Which routing protocol uses distance-vector algorithms and is known for its simplicity? A. OSPF B. RIP C. EIGRP D. BGP Answer: B Explanation: RIP (Routing Information Protocol) is a distance-vector routing protocol that is simple but has limitations. Question 10: Which routing protocol is a link-state protocol commonly used in enterprise networks? A. RIP B. OSPF C. EIGRP D. BGP Answer: B Explanation: OSPF (Open Shortest Path First) is a link-state routing protocol widely used in large networks. Question 11: What type of network topology features a central hub with all nodes connected to it? A. Ring
Explanation: Convergence simplifies network management by integrating various communication services into one platform. Question 17: What is a major challenge of network convergence? A. Lack of available technologies B. Managing quality of service for different traffic types C. Reducing the number of protocols D. Eliminating the need for routers Answer: B Explanation: One major challenge is ensuring that different types of traffic (voice, video, data) receive the appropriate quality of service. Question 18: Which design principle is critical when planning a converged network? A. Reducing all traffic to one protocol B. Isolating voice and data traffic completely C. Considering network scalability and integration D. Avoiding the use of Quality of Service (QoS) Answer: C Explanation: Scalability and seamless integration are key design considerations in converged networks. Question 19: Which emerging technology allows centralized control of network devices through software? A. Network Function Virtualization (NFV) B. Software-Defined Networking (SDN) C. Cloud Computing D. MPLS Answer: B Explanation: SDN decouples the control plane from the data plane, enabling centralized network management. Question 20: How does Network Function Virtualization (NFV) benefit converged networks? A. By reducing the number of physical devices through software-based functions B. By increasing reliance on hardware routers C. By eliminating the need for any virtual machines D. By providing only security functions Answer: A Explanation: NFV virtualizes network functions, reducing reliance on specialized hardware and increasing flexibility. Question 21: Which protocol is commonly used for initiating, maintaining, and terminating VoIP calls? A. FTP B. SIP C. HTTP D. DNS Answer: B Explanation: SIP (Session Initiation Protocol) is widely used in VoIP for establishing, maintaining, and terminating calls.
Question 22: What is the primary role of RTP in VoIP communications? A. Establishing call signaling B. Encrypting voice data C. Transporting real-time media streams D. Authenticating users Answer: C Explanation: RTP (Real-time Transport Protocol) is used to transport audio and video in real time. Question 23: Which video codec is known for its high compression efficiency and is widely used in video conferencing? A. MP B. H. C. JPEG D. GIF Answer: B Explanation: H.264 offers efficient compression and is commonly used in video conferencing applications. Question 24: What distinguishes unified communications (UC) from traditional communication systems? A. UC integrates voice, video, messaging, and collaboration tools into one platform B. UC uses only analog technology C. UC excludes video conferencing D. UC is limited to email services Answer: A Explanation: Unified communications bring together various communication modalities into a single, integrated solution. Question 25: Which component is essential in a cloud-based unified communications solution? A. Traditional PBX hardware B. Software applications accessible over the internet C. Only analog telephony systems D. Stand-alone fax machines Answer: B Explanation: Cloud-based UC solutions rely on software applications that run on cloud infrastructure. Question 26: In an IP PBX system, what is a major advantage compared to traditional PBX systems? A. Higher maintenance costs B. Integration with VoIP and IP data networks C. Limited scalability D. Exclusive use of analog lines Answer: B Explanation: IP PBX systems integrate with VoIP and data networks, offering greater flexibility and scalability. Question 27: What is the function of SIP trunking in IP telephony? A. Providing a dedicated physical line for calls
D. WAN does not support internet connectivity Answer: C Explanation: LANs are designed for small, localized areas, whereas WANs span larger geographic regions. Question 33: What is the role of a router in a converged network? A. To store user data B. To direct data packets between different networks C. To encrypt communications D. To monitor network performance exclusively Answer: B Explanation: Routers forward data packets between different networks based on their IP addresses. Question 34: How do VLANs improve network management? A. By physically separating network cables B. By logically segmenting a network into separate broadcast domains C. By encrypting data traffic D. By increasing the number of required routers Answer: B Explanation: VLANs allow for logical segmentation of networks, which enhances security and management. Question 35: Which protocol is used for monitoring network devices and performance? A. HTTP B. SNMP C. SMTP D. FTP Answer: B Explanation: SNMP (Simple Network Management Protocol) is used to manage and monitor network devices. Question 36: What key performance indicators (KPIs) are typically monitored in converged networks? A. Temperature and humidity only B. Traffic volume, latency, jitter, and packet loss C. Number of employees online D. Printer usage statistics Answer: B Explanation: KPIs such as traffic volume, latency, jitter, and packet loss help assess network performance. Question 37: Which tool is commonly used to diagnose network connectivity issues? A. Word processor B. Traceroute C. Spreadsheet software D. Image editor Answer: B Explanation: Traceroute helps identify the path packets take through the network and diagnose connectivity issues.
Question 38: What does QoS stand for in network design? A. Quality of Security B. Quality of Service C. Quantity of Signals D. Query of Systems Answer: B Explanation: QoS (Quality of Service) refers to the overall performance of a network service, ensuring that critical traffic is prioritized. Question 39: Which factor is crucial when implementing QoS in a converged network? A. Ignoring bandwidth limitations B. Prioritizing voice and video traffic C. Removing all encryption D. Increasing the number of broadcast domains Answer: B Explanation: Prioritizing voice and video traffic is vital for maintaining call quality and video performance in converged networks. Question 40: What is the primary purpose of cloud computing in converged networks? A. To increase hardware dependence B. To provide scalable and flexible resources C. To reduce network security D. To eliminate virtualization Answer: B Explanation: Cloud computing offers scalability and flexibility, enabling efficient management of converged network resources. Question 41: Which cloud deployment model provides services over the internet with minimal user management? A. Private cloud B. Hybrid cloud C. Public cloud D. On-premise cloud Answer: C Explanation: Public clouds offer services over the internet with reduced user management responsibilities. Question 42: What is a virtual machine (VM) in the context of network convergence? A. A physical server B. A software-based emulation of a computer system C. A type of router D. An encrypted tunnel Answer: B Explanation: A virtual machine is a software-based simulation of a physical computer that can run its own operating system.
Question 48: Which RFC is associated with SIP for VoIP communications? A. RFC 1918 B. RFC 3261 C. RFC 791 D. RFC 1034 Answer: B Explanation: RFC 3261 defines the Session Initiation Protocol (SIP) used in VoIP communications. Question 49: How does GDPR impact converged network services? A. By increasing hardware costs B. By imposing strict data privacy and protection regulations C. By standardizing network protocols D. By eliminating the need for encryption Answer: B Explanation: GDPR sets strict guidelines for data privacy and protection, affecting how converged networks handle personal data. Question 50: What is the main objective of implementing role-based access control (RBAC) in converged networks? A. To randomly assign access rights B. To ensure users have access only to the resources necessary for their roles C. To allow universal access to all network areas D. To eliminate the need for passwords Answer: B Explanation: RBAC restricts system access to authorized users based on their roles, enhancing network security. Question 51: Which attack involves overwhelming a network resource with excessive traffic? A. Phishing attack B. Denial-of-Service (DoS) attack C. Man-in-the-middle attack D. Spoofing attack Answer: B Explanation: A DoS attack floods a network resource with excessive traffic, making it unavailable to legitimate users. Question 52: What technique is commonly used to mitigate Distributed Denial-of-Service (DDoS) attacks in VoIP networks? A. Increasing bandwidth allocation B. Rate limiting and traffic filtering C. Disabling encryption D. Reducing network redundancy Answer: B Explanation: Rate limiting and traffic filtering are effective methods to reduce the impact of DDoS attacks.
Question 53: Which wireless standard is widely used for high-speed mobile data communications? A. Bluetooth B. LTE C. ZigBee D. NFC Answer: B Explanation: LTE (Long-Term Evolution) is widely used for high-speed mobile data communication. Question 54: What is the primary purpose of a firewall in a converged network? A. To increase network speed B. To monitor and control incoming and outgoing network traffic C. To route data packets D. To store user credentials Answer: B Explanation: Firewalls filter network traffic based on predefined security rules to protect the network from unauthorized access. Question 55: Which encryption protocol is commonly used to secure VPN tunnels? A. FTP B. IPSec C. SMTP D. ARP Answer: B Explanation: IPSec is widely used to secure VPN tunnels by encrypting data and authenticating endpoints. Question 56: Which device in a converged network is primarily responsible for switching data frames between local devices? A. Router B. Switch C. Hub D. Firewall Answer: B Explanation: Switches operate at the Data Link layer to forward frames between devices in a LAN. Question 57: What is the significance of inter-VLAN routing in converged networks? A. It isolates all network traffic B. It allows communication between devices in different VLANs C. It converts digital signals to analog D. It disables network segmentation Answer: B Explanation: Inter-VLAN routing enables communication between devices on separate VLANs, enhancing network flexibility. Question 58: Which diagnostic tool uses ICMP echo requests to check connectivity between hosts? A. Ping B. Traceroute
D. Service Interconnection Path Answer: B Explanation: SIP stands for Session Initiation Protocol, used to manage multimedia communication sessions. Question 64: Which of the following is a common advantage of using SIP trunking? A. Higher operational costs B. Scalability and cost savings by reducing physical lines C. Limited integration with data networks D. Increased dependency on analog systems Answer: B Explanation: SIP trunking offers scalability and reduces costs by utilizing the internet instead of traditional phone lines. Question 65: What is the primary function of a VoIP gateway? A. To physically connect computers B. To convert analog voice signals to digital format for IP networks C. To provide wireless connectivity D. To store large amounts of data Answer: B Explanation: VoIP gateways convert analog signals into digital data for transmission over IP networks. Question 66: Which of the following best describes a LAN? A. A network spanning multiple cities B. A localized network within a building or campus C. A network that uses satellite communication exclusively D. A network without any physical connections Answer: B Explanation: A LAN (Local Area Network) is confined to a small geographic area such as a building or campus. Question 67: What is the role of a switch in VLAN implementation? A. To increase the broadcast domain size B. To create logical segmentation of network traffic C. To encrypt data transmissions D. To perform inter-VLAN routing by default Answer: B Explanation: Switches can create VLANs, which logically segment network traffic to improve performance and security. Question 68: Which wireless technology is known for low power consumption and is often used in IoT devices? A. Wi-Fi B. Bluetooth C. ZigBee D. LTE
Answer: C Explanation: ZigBee is a low-power wireless technology commonly used in IoT applications. Question 69: What is the primary advantage of using fiber optics in data communications? A. High susceptibility to interference B. Low bandwidth capacity C. High speed and resistance to electromagnetic interference D. High maintenance cost Answer: C Explanation: Fiber optics provide high-speed data transmission and are immune to electromagnetic interference. Question 70: Which protocol is commonly used for secure remote access to a network? A. FTP B. SSL/TLS C. HTTP D. ARP Answer: B Explanation: SSL/TLS protocols secure remote access by encrypting data transmitted over the network. Question 71: Which term describes the process of dividing a network into smaller sub-networks? A. Supernetting B. Subnetting C. Aggregation D. Encapsulation Answer: B Explanation: Subnetting divides a network into smaller segments to improve performance and management. Question 72: What is the significance of dynamic routing protocols in modern networks? A. They require manual route configuration B. They automatically adjust routing paths based on network changes C. They only work with static IP addresses D. They reduce network flexibility Answer: B Explanation: Dynamic routing protocols automatically update routing tables as network conditions change. Question 73: Which convergence technology enables centralized control by separating the control and data planes? A. NFV B. SDN C. MPLS D. VPN Answer: B Explanation: SDN (Software-Defined Networking) separates the control plane from the data plane to centralize network management.
Question 79: What is the primary function of a media gateway in converged networks? A. To store user data B. To facilitate media stream conversion between different networks C. To filter spam emails D. To monitor network traffic exclusively Answer: B Explanation: Media gateways convert media streams between disparate networks, ensuring interoperability. Question 80: Which of the following is a characteristic of cloud-based unified communication platforms? A. Reliance on local PBX systems B. Centralized management via the cloud C. Exclusive use of analog signals D. No support for video conferencing Answer: B Explanation: Cloud-based UC platforms allow centralized management of communication services through the cloud. Question 81: What is one key difference between wired and wireless networking? A. Wired networking always has higher latency B. Wireless networks do not require physical cables C. Wired networks are immune to interference D. Wireless networks cannot support voice communication Answer: B Explanation: Wireless networking uses radio waves to transmit data and does not require physical cabling. Question 82: Which dynamic routing protocol uses a hybrid approach, combining features of both distance-vector and link-state protocols? A. RIP B. OSPF C. EIGRP D. BGP Answer: C Explanation: EIGRP (Enhanced Interior Gateway Routing Protocol) is considered a hybrid routing protocol that incorporates features of both distance-vector and link-state protocols. Question 83: In converged networks, what is the main role of intrusion detection systems (IDS)? A. To increase network speed B. To monitor and detect potential security breaches C. To route data packets D. To manage Quality of Service Answer: B Explanation: IDS systems monitor network traffic for suspicious activity and alert administrators to potential security breaches.
Question 84: What does SSL stand for in the context of network security? A. Secure Socket Layer B. Secure Signal Link C. Systematic Security Line D. Server Socket License Answer: A Explanation: SSL (Secure Socket Layer) is a protocol for establishing encrypted links between networked computers. Question 85: Which regulation focuses on protecting personal data in the European Union? A. HIPAA B. GDPR C. FCC D. ETSI Answer: B Explanation: The General Data Protection Regulation (GDPR) is designed to protect personal data and privacy for individuals in the EU. Question 86: Which of the following is an example of a regulatory body for telecommunications in the United States? A. ITU-T B. IEEE C. FCC D. IETF Answer: C Explanation: The Federal Communications Commission (FCC) is a regulatory authority for telecommunications in the United States. Question 87: What is the primary concern when implementing security for VoIP communications? A. Reducing call quality B. Securing call signaling and media streams C. Increasing hardware costs D. Eliminating encryption Answer: B Explanation: Securing both the signaling and media streams is essential to protect VoIP communications from eavesdropping and attacks. Question 88: Which method is commonly used to protect against eavesdropping in video conferencing? A. Disabling video B. End-to-end encryption C. Increasing bandwidth D. Using analog signals Answer: B Explanation: End-to-end encryption ensures that video conferencing data remains private and secure from unauthorized access.
Question 94: Which IoT protocol is known for its lightweight messaging suitable for constrained devices? A. HTTP B. MQTT C. FTP D. SNMP Answer: B Explanation: MQTT is a lightweight messaging protocol designed for IoT devices with limited resources. Question 95: What is one of the security concerns related to IoT in converged networks? A. Overabundance of bandwidth B. Limited device processing power for robust security C. Excessive encryption algorithms D. Too few connected devices Answer: B Explanation: Many IoT devices have limited processing power, which can restrict their ability to run robust security measures. Question 96: Which element is crucial when troubleshooting VoIP issues in converged networks? A. Evaluating only physical cabling B. Analyzing signaling protocols and media streams C. Disabling QoS features D. Ignoring latency issues Answer: B Explanation: Troubleshooting VoIP issues requires analyzing both signaling protocols (like SIP) and media streams (via RTP) to pinpoint problems. Question 97: Which of the following best describes the term “media transcoding” in VoIP gateways? A. Compressing media files B. Converting media streams from one format to another C. Encrypting voice communications D. Routing data packets without modification Answer: B Explanation: Media transcoding involves converting media streams between different codecs or formats to ensure compatibility. Question 98: What is the benefit of integrating network management platforms like Cisco Prime or SolarWinds? A. They increase manual configuration requirements B. They provide centralized monitoring and management of network devices C. They require specialized hardware for every device D. They reduce network visibility Answer: B Explanation: These platforms centralize network management, simplifying monitoring, configuration, and troubleshooting tasks.
Question 99: In cloud computing, which service model delivers software applications over the internet? A. IaaS B. PaaS C. SaaS D. DaaS Answer: C Explanation: SaaS (Software as a Service) delivers applications over the internet, eliminating the need for local installations. Question 100: Which convergence technology is particularly effective for dynamic scaling of network services? A. Traditional PBX systems B. Virtualized Network Functions (VNFs) C. Fixed routing protocols D. Analog voice systems Answer: B Explanation: VNFs allow network services to be scaled dynamically through virtualization, increasing flexibility and efficiency. Question 101: Which of the following protocols is used for error reporting and diagnostics in IP networks? A. ICMP B. TCP C. UDP D. ARP Answer: A Explanation: ICMP (Internet Control Message Protocol) is used to report errors and perform diagnostics in IP networks. Question 102: What does ARP stand for, and what is its function? A. Address Resolution Protocol; it maps IP addresses to MAC addresses B. Automatic Routing Protocol; it finds the best route for data C. Advanced Routing Procedure; it secures network communications D. Access Request Protocol; it authenticates users Answer: A Explanation: ARP resolves IP addresses to their corresponding MAC addresses, facilitating local network communications. Question 103: Which technology is primarily used for high-speed local area network communications over twisted pair cables? A. Wi-Fi B. Ethernet C. Fiber Channel D. Token Ring
