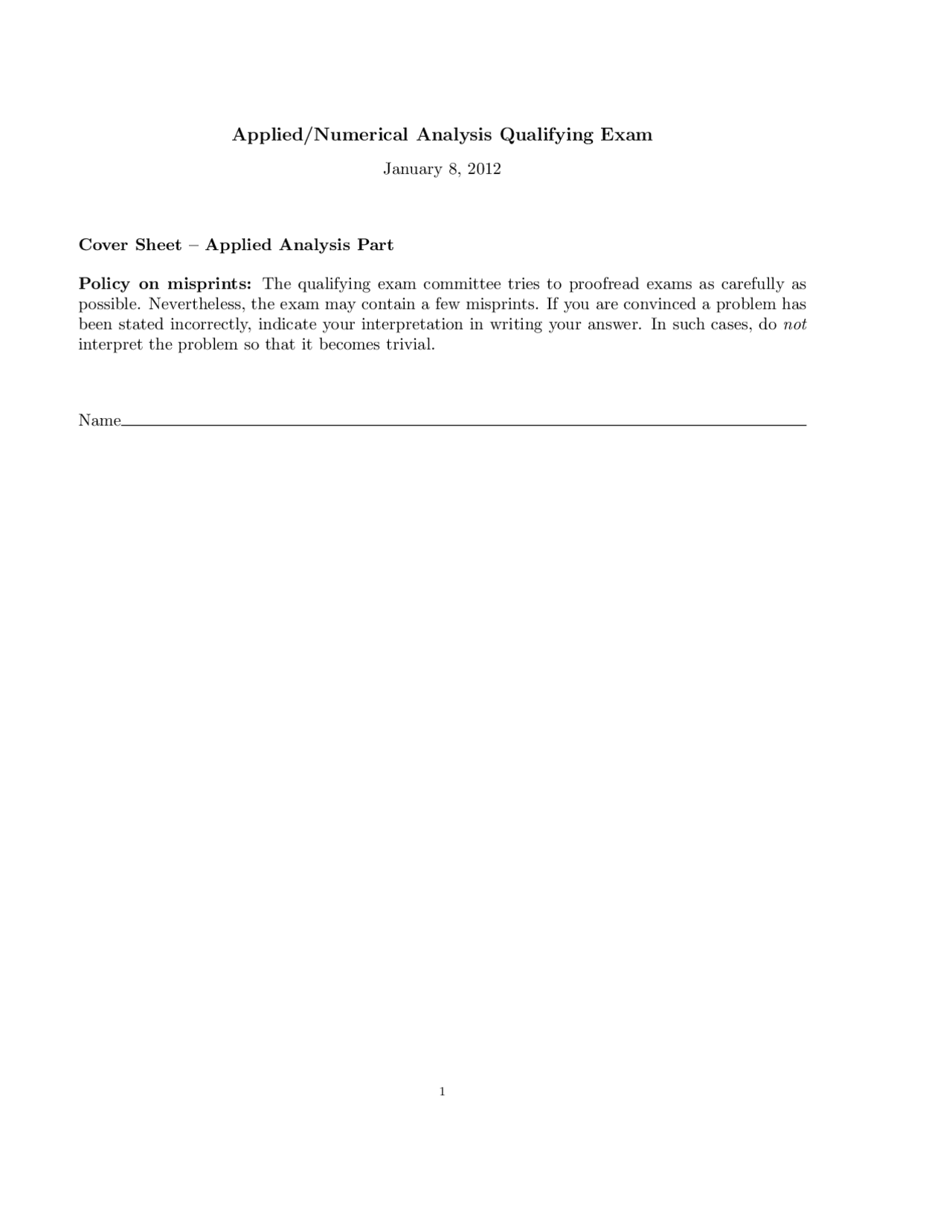

Applied/Numerical Analysis Qualifying Exam
January 8, 2012
Cover Sheet Applied Analysis Part
Policy on misprints: The qualifying exam committee tries to proofread exams as carefully as
possible. Nevertheless, the exam may contain a few misprints. If you are convinced a problem has
been stated incorrectly, indicate your interpretation in writing your answer. In such cases, do not
interpret the problem so that it becomes trivial.
Name
1
pf3
pf4
pf5

Partial preview of the text

Download Applied Analysis and Numerical Analysis Qualifying Exam: Problem Solutions and more Exams Stress Analysis in PDF only on Docsity!

Applied/Numerical Analysis Qualifying Exam

January 8, 2012

Cover Sheet – Applied Analysis Part

Policy on misprints: The qualifying exam committee tries to proofread exams as carefully as possible. Nevertheless, the exam may contain a few misprints. If you are convinced a problem has been stated incorrectly, indicate your interpretation in writing your answer. In such cases, do not interpret the problem so that it becomes trivial.

Name

Combined Applied Analysis/Numerical Analysis Qualifier Applied Analysis Part January 8, 2012

Instructions: Do any 3 of the 4 problems in this part of the exam. Show all of your work clearly. Please indicate which of the 4 problems you are skipping.

Problem 1. Let D be the set of compactly supported functions defined on R and let D′^ be the corresponding set of distributions.

(a) Define convergence in D and D′. (b) Consider a function f ∈ C(1)(R) such that both f and f ′^ are in L^1 (R), and

R f^ (x)dx^ = 1. Define the sequence of functions {Tn(x) := n^2 f ′(nx) : n = 1, 2 ,.. .}. Show that, in the sense of distributions — i.e., in D′^ —, Tn converges to δ′.

Problem 2. Let M : C[0, 1] → C[0, 1] be defined by M (u) :=

0 (2 +^ st^ +^ u(s)

(^2) )− (^1) ds. Let

‖ · ‖ := ‖ · ‖C[0,1]. Let Br := {u ∈ C[0, 1] | ‖u‖ ≤ r}.

(a) Show that M : B 1 → B 1 / 2 ⊂ B 1. (b) Show that M is Lipschitz continuous on B 1 , with Lipschitz constant 0 < α < 1 – i.e., ‖M [u] − M [v]‖ ≤ α‖u − v‖. (c) Show that M has a fixed point in B 1. State the theorem you are using to show that the fixed point exists.

Problem 3. Let Lu = − d

(^2) u dx^2 ,^ −π^ ≤^ x^ ≤^ π, with the domain of^ L^ given by DL := {u ∈ L^2 [−π, π] : u′′^ ∈ L^2 [π, π], u(−π) = −u(π), u′(−π) = −u′(π)}. (a) Show that L is self adjoint on D(L). (b) Find the Green’s function G(x, y) for the problem Lu = f , u ∈ DL. (c) Show that Ku :=

∫ (^) π −π G(·, y)u(y)dy^ is a compact self-adjoint operator. (d) Without actually finding them, show that the eigenfunctions of L form a complete, or- thogonal set for L^2 [−π, π]. (Hint: Relate the eigenfunctions of L to those of K. Use compactness.)

Problem 4. Let T be a (possibly unbounded) linear operator on a Hilbert space H, defined on the domain DT.

(a) Define these: the resolvent set of T , ρ(T ); the discrete spectrum, σd(T ); the continuous spectrum, σc(T ); and the residual spectrum, σr(T ). (b) Assume T is bounded. Show that the set {λ ∈ C : |λ| > ‖T ‖} ⊆ ρ(T ). (Hint: Use a Neumann series expansion.) (c) Let H = ℓ^2 , with the usual inner product. Define T to be the shift operator T (x 1 , x 2 ,.. .) = (0, x 1 , x 2 ,.. .). Show that every |λ| > 1 is in ρ(T ), that λ = 1 is in σc(T ), and that λ = 0 is in σr(T ).

Combined Applied Analysis/Numerical Analysis Qualifier Numerical analysis part January 8, 2012

Problem 1:

Let Ω = (0, 1) × (0, 1), f ∈ C^0 (Ω) and q ∈ R with q ≥ 0. Consider the boundary value problem

−∆u + qu = f in Ω; u = 0 on ∂Ω.

We are interested in approximating the quantity α :=

∂Ω n·∇u^ where^ n^ is the outward unit normal of Ω.

  1. The boundary problem has a weak formulation: Find u ∈ V such that ∀v ∈ V : a(u, v) = L(v). Identify V, a(u, v) and L(v). Show that there exists a unique solution u ∈ V satisfying the above weak formulation.
  2. Let {Th} 0 <h< 1 be a sequence of conforming shape-regular subdivisions of Ω such that diam(T ) ≤ h, for all T ∈ Th and define Vh :=

v ∈ C^0 (Ω) ∩ V | ∀T ∈ Th, v|T is linear

Write the weak formulation satisfied by the finite element approximation uh ∈ Vh of u. Prove that the function uh exists and is unique.

  1. Assume from now that u ∈ H^2 (Ω). Derive the error estimate ‖u − uh‖H (^1) (Ω) ≤ c 1 h‖u‖H (^2) (Ω), where c 1 is a constant independent of h and u. Hint: you can use without proof the fact that there exists a constant C independent of h such that for any v ∈ H^2 (Ω) inf vh∈Vh

‖v − vh‖V ≤ Ch‖v‖H (^2) (Ω).

  1. Show that that for the constant function w(x) = 1 we have α = a(u, w) − L(w). Now let αh := a(uh, w) − L(w). Using the previous parts, show that when q > 0 there holds |α − αh| ≤ c 2 h^2 ‖u‖H (^2) (Ω), where c 2 is a constant independent of h and u. What can you say about |α − αh| when q = 0?

Problem 2:

Let K be a polyhedron in Rd, d ≥ 1. Let h = diam(K) and define

Kˆ = {ˆx = x/diam(K), x ∈ K}.

Show that there exists a constant c solely depending on Kˆ such that for any v ∈ H^1 (K),

‖v‖L (^2) (∂K) ≤ c

h−^1 /^2 ‖v‖L (^2) (K) + h^1 /^2 ‖∇v‖L (^2) (K)

Problem 3:

Let u 0 : (0, 1) → R be a given smooth initial condition and T > 0 be a given final time. Let u : [0, T ] × Ω → R be a smooth function satisfying u(t, 0) = u(t, 1) = 0 for any t ∈ [0, T ] and

∀v ∈ C c∞ ([0, T ) × (0, 1)) :

∫ T

0

0

u(t, x) vt(t, x) dx dt −

0

u 0 (x)v(0, x) dx

∫ T

0

0

ux(t, x) vx(t, x) dx dt +

∫ T

0

0

u(t, x) v(t, x) dx dt = 0.

Here C∞ c ([0, T ) × (0, 1)) is the space of functions belonging to C∞([0, T ] × [0, 1]) and compactly supported in [0, T ) × (0, 1).

  1. Derive the corresponding strong formulation.
  2. Let N > 0 be an integer, h = 1/N and xn = n h, n = 0, ..., N. Derive the semi-discrete approximation of (4.1) using continuous piecewise linear finite elements.
  3. In addition, let M > 0 be an integer, τ = T /M and tm = mτ for m = 0, .., M. Write the fully discrete schemes corresponding to backward Euler and forward Euler methods, respectively.
  4. Prove that the backward (implicit) Euler scheme is unconditionally stable while the forward (explicit) Euler method is stable provided τ ≤ ch^2 , where c is a constant independent of h and τ.
