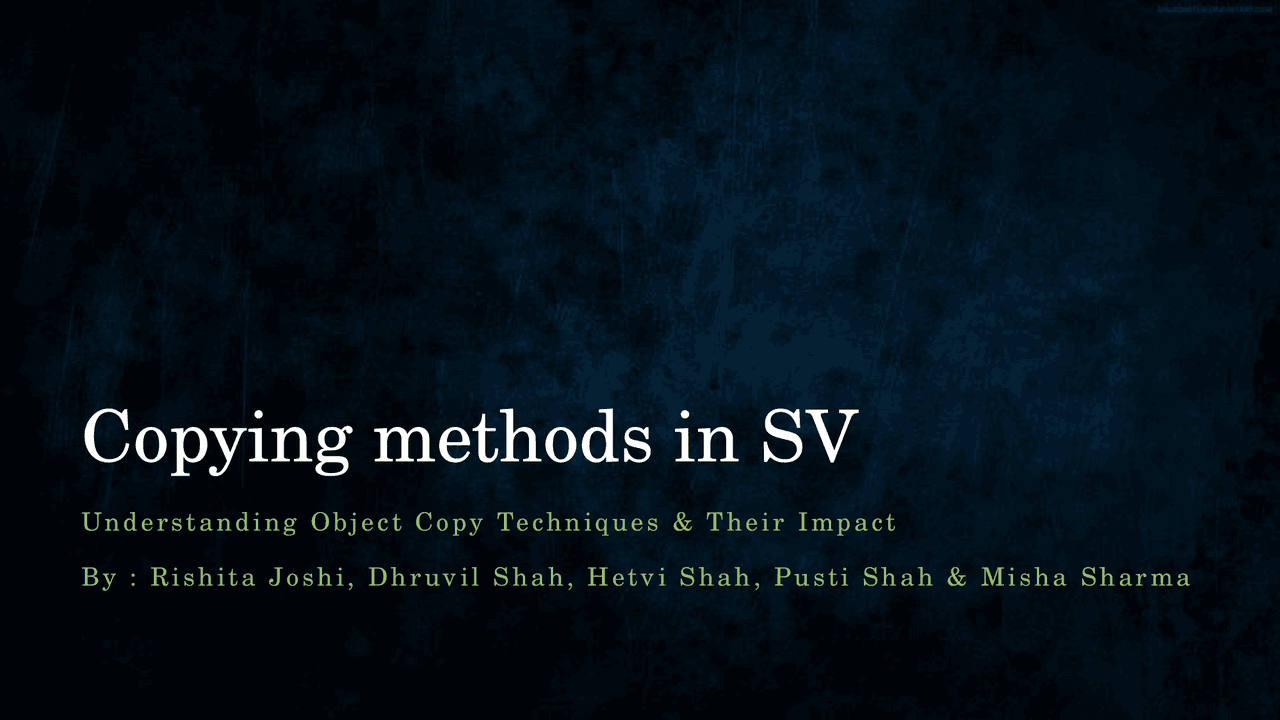

Copying methods in SV
Un d e r s t a n d i n g O b j e c t C o p y T e c h n i q u e s & T h e i r I mp a c t
B y : R i s h i t a J o s h i , D h r u v i l S h a h , H e t v i S h a h , P u s t i S h a h & M i s h a S h a r m a
Introduction
- (^) SystemVerilog supports Object-Oriented Programming.
- (^) Objects are manipulated using handles.
- (^) What is an Object? An object in SystemVerilog is an instance of a class that contains data (properties) and functions (methods).
- (^) What is a Handle? A handle is like a pointer that references the memory location of an object, allowing access to that object's members.
3 methods to copy objects :
- (^) Copy by Handle : 1 memory, 2 handles (same object)
- (^) Shallow Copy : 2 objects, primitive copied, references shared
- (^) Deep Copy : fully independent objects, including nested data
Copy by Handle :
- (^) Only the object handle is copied.
- (^) Both variables refer to the same object in memory. class packet; int id; endclass module copy_by_handle; initial begin packet p1; packet p2; p1 = new(); p1.id = 1; p2 = p1; $display("BEFORE CHANGING P2 :\np1.id = %0d \np2.id = %0d", p1.id, p2.id); p2.id = 2; $display("AFTER CHANGING P2 :\np1.id = %0d \np2.id = %0d", p1.id, p2.id); end endmodule Output :
Deep Copy :
- (^) A complete clone is created.
- (^) All referenced objects are duplicated. class packet; int id; //declaration of properties int data; function packet deep_copy(); //declaration of method packet pc = new(); pc.id = this.id; pc.data = this.data; return pc; endfunction endclass module deep_copy; packet p1, p2; // object declaration initial begin p1 = new(); p1.id = 1; p1.data = 123; p2 = p1.deep_copy(); $display("BEFORE CHANGING P2 :\np1.id = %0d, p1.data = %0d \np2.id = %0d, p2.data = %0d", p1.id, p1.data, p2.id, p2.data); p2.id = 2; p2.data = 456; $display("AFTER CHANGING P2 :\np1.id = %0d, p1.data = %0d \np2.id = %0d, p2.data = %0d", p1.id, p1.data, p2.id, p2.data); Output :
Comparision : Feature Copy by Handle Shallow Copy Deep Copy Object memory Shared Separate Separate Nested Object Copy? Shared Shared Cloned Safe from overwrite? No No Yes Performance Fast Medium Slower
Advantages of Shallow Copy :
- (^) Creates a separate outer object, allowing partial independence.
- (^) More efficient than deep copy in terms of speed and memory.
- (^) Useful when inner references don’t need to be isolated.
Advantages of Deep Copy :
- (^) Complete independence from the original object.
- (^) Prevents side effects caused by shared references.
- (^) Safer for preserving state across simulations.
- (^) Only required properties can be copied.
