AL 1
Linked List

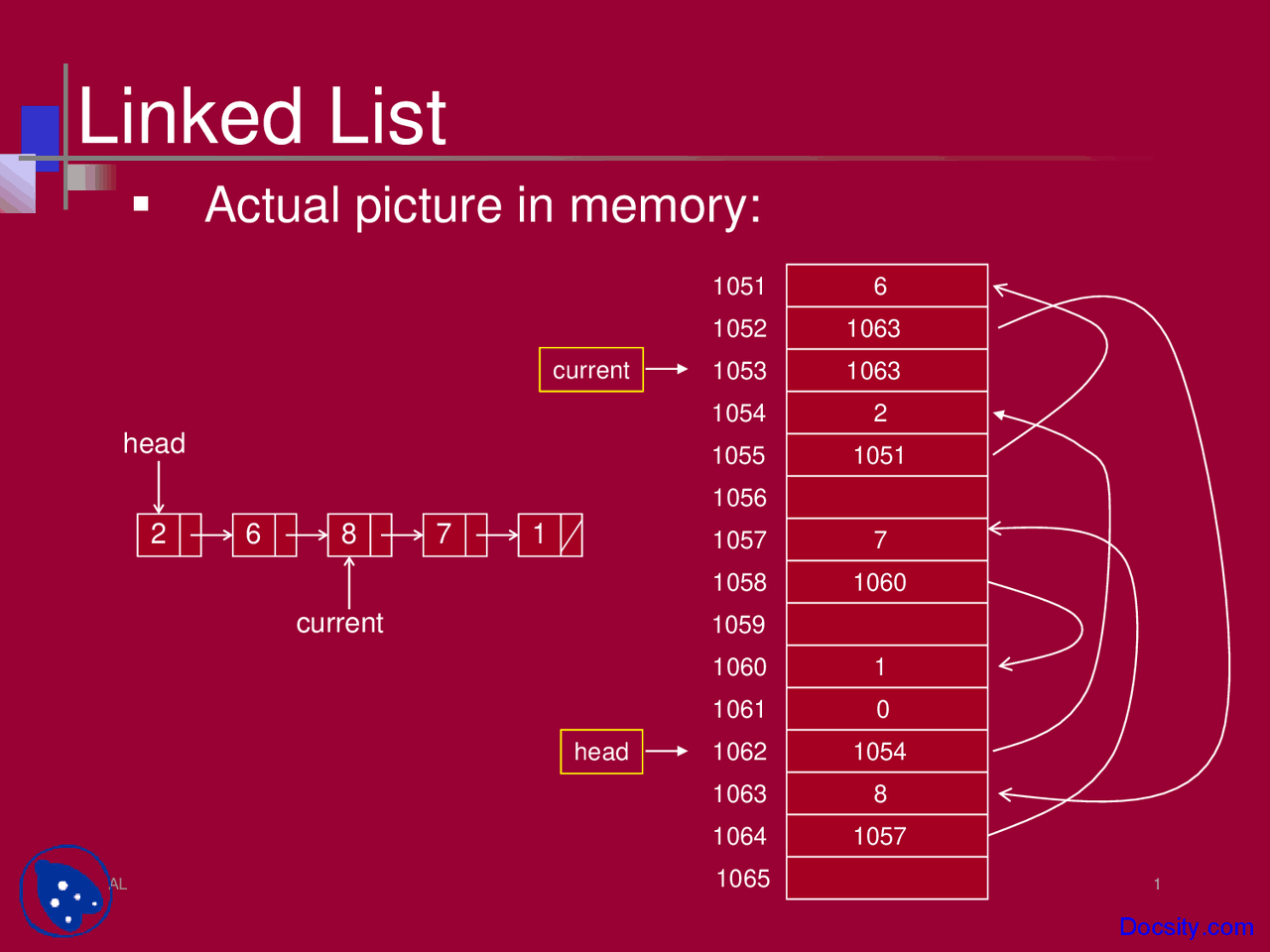

Actual picture in memory:
1051
1052
1055
1059
1060
1061
1062
1063
1064
1056
1057
1058
1053
1054 2
6
8
7
1
1051
1063
1057
1060
0
head 1054
1063
current
2 6 8 7 1
head
current
1065
Docsity.com
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Cpp Code for Linked List - Data Stuctures - Lecture Slides, Slides of Data Structures and Algorithms
C Code for Linked List, The Node class, Building a Linked List, Linked List, Actual picture in memory, Linked List Operations, New node in memory
Typology: Slides
2011/2012
1 / 45
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Cpp Code for Linked List - Data Stuctures - Lecture Slides and more Slides Data Structures and Algorithms in PDF only on Docsity!
AL 1
Linked List
Actual picture in memory:
1051 1052 1055 1059 1060 1061 1062 1063 1064 1056 1057 1058 1053 1054 2 6 8 7 1 1051 1063 1057 1060 0 head 1054 current 1063 2 6 8 7 1 head current 1065
AL 2
Linked List Operations
add(9): Create a new node in memory to hold ‘9’
Node* newNode = new Node(9); newNod 9 e
AL 4
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 5
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 7
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 8
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 10
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 11
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 13
The Node class
class Node { public: int get() { return object; }; void set(int object) { this->object = object; }; Node *getNext() { return nextNode; }; void setNext(Node *nextNode) { this->nextNode = nextNode; }; private: int object; Node *nextNode; };
AL 14
#include <stdlib.h>
#include "Node.cpp"
class List {
public:
// Constructor
List() {
headNode = new Node();
headNode->setNext(NULL);
currentNode = NULL;
size = 0;
AL 16
#include <stdlib.h>
#include "Node.cpp"
class List {
public:
// Constructor
List() {
headNode = new Node();
headNode->setNext(NULL);
currentNode = NULL;
size = 0;
AL 17
#include <stdlib.h>
#include "Node.cpp"
class List {
public:
// Constructor
List() {
headNode = new Node();
headNode->setNext(NULL);
currentNode = NULL;
size = 0;
AL 19
#include <stdlib.h>
#include "Node.cpp"
class List {
public:
// Constructor
List() {
headNode = new Node();
headNode->setNext(NULL);
currentNode = NULL;
size = 0;
AL 20
