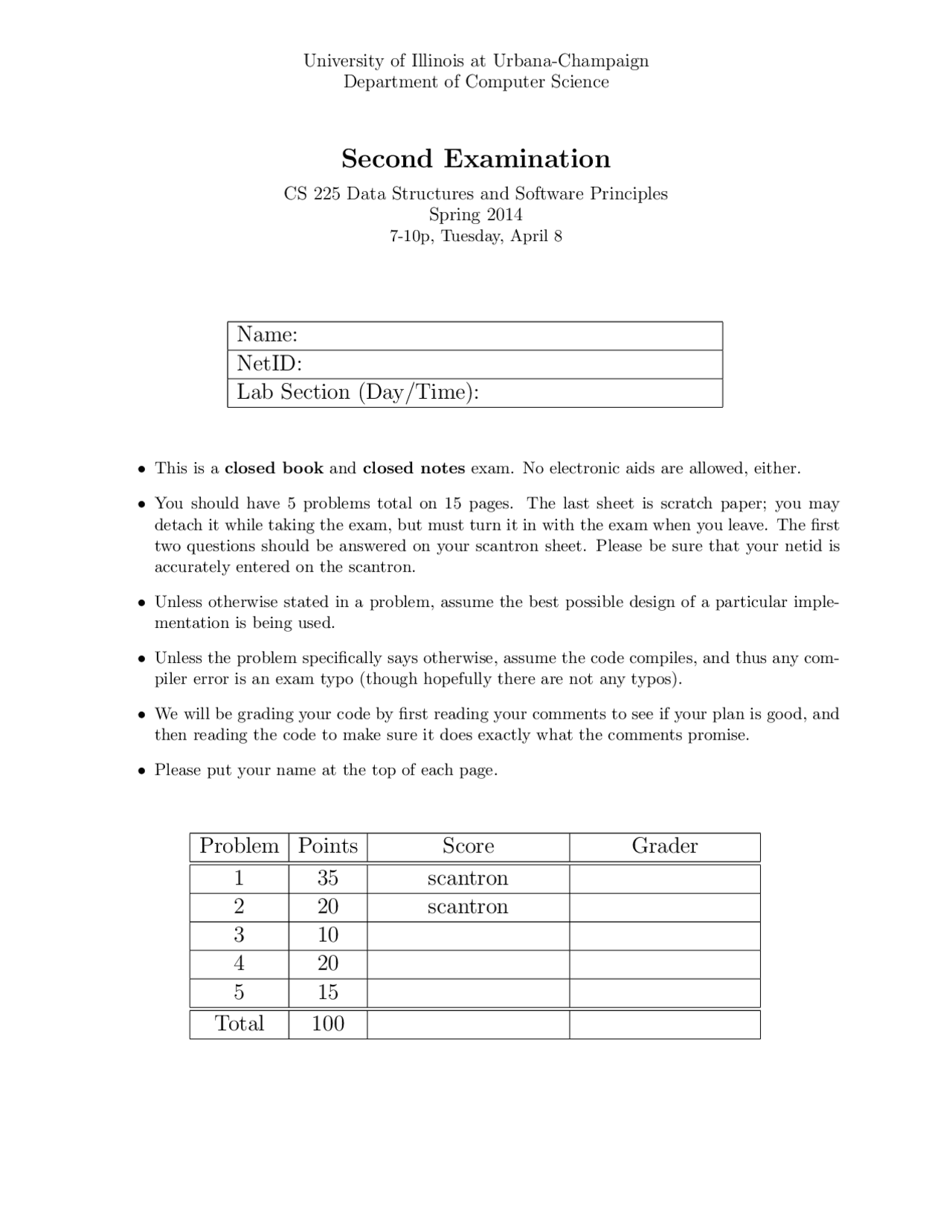

University of Illinois at Urbana-Champaign
Department of Computer Science
Second Examination
CS 225 Data Structures and Software Principles
Spring 2014
7-10p, Tuesday, April 8
Name:
NetID:
Lab Section (Day/Time):
- This is a closed book and closed notes exam. No electronic aids are allowed, either.
- You should have 5 problems total on 15 pages. The last sheet is scratch paper; you may detach it while taking the exam, but must turn it in with the exam when you leave. The first two questions should be answered on your scantron sheet. Please be sure that your netid is accurately entered on the scantron.
- Unless otherwise stated in a problem, assume the best possible design of a particular imple- mentation is being used.
- Unless the problem specifically says otherwise, assume the code compiles, and thus any com- piler error is an exam typo (though hopefully there are not any typos).
- We will be grading your code by first reading your comments to see if your plan is good, and then reading the code to make sure it does exactly what the comments promise.
- Please put your name at the top of each page.
Problem Points Score Grader
1 35 scantron
2 20 scantron
Total 100
- [Miscellaneous – 35 points].
MC1 (2.5pts)
Suppose you implement a queue using a singly linked list with head and tail pointers so that the front of the queue is at the tail of the list, and the rear of the queue is at the head of the list. What is the best possible worst-case running time for enqueue and dequeue in this situation? (As a reminder, enqueue occurs at the rear of the queue.)
(a) O(1) for both functions. (b) O(1) for enqueue and O(n) for dequeue. (c) O(n) for enqueue and O(1) for dequeue. (d) O(n) for both functions. (e) None of these is the correct response.
MC2 (2.5pts)
Think of an algorithm that uses a Stack to efficiently check for unbalanced brackets. What is the maximum number of characters that will appear on the stack at any time when the algorithm analyzes the string ([()])?
(a) 3 (b) 4 (c) 5 (d) 6 (e) None of these is correct.
MC3 (2.5pts)
Consider a sequence of push and pop operations used to push the integers 0 through 9 on a stack. The numbers will be pushed in order, however the pop operations can be interleaved with the push operations, and can occur any time there is at least one item on the stack. When an item is popped, it is printed to the terminal. Which of the following could NOT be the output from such a sequence of operations?
(a) 0 1 2 3 4 5 6 7 8 9 (b) 4 3 2 1 0 5 6 7 8 9 (c) 5 6 7 8 9 0 1 2 3 4 (d) 4 3 2 1 0 9 8 7 6 5 (e) All of these output sequences are possible.
MC6 (2.5pts)
Consider a level order traversal of the following binary tree. Which node is the last node enqueued before the node containing y is dequeued?
e"
c"
y"
m"
z" a"
u"
o"
r" s" i"
d"
(a) The node containing c. (b) The node containing o. (c) The node containing m. (d) The node containing s. (e) None of these is the correct answer.
MC7 (2.5pts)
How many data structures in this list can used to implement a Dictionary so that all of its functions have strictly better than O(n) running time (worst case)?
linked list stack queue binary search tree AVL tree
(a) 1 (b) 2 (c) 3 (d) 4 (e) 5
MC8 (2.5pts)
Suppose that we have numbers between 1 and 1000 in a binary search tree and we want to search for the number 363. Which of the following sequences can not be the sequence of nodes visited in the search?
(a) 2, 252, 401, 398, 330, 344, 397, 363 (b) 924, 220, 911, 244, 898, 258, 362, 363 (c) 2, 399, 387, 219, 266, 382, 381, 278, 363 (d) 925, 202, 911, 240, 912, 245, 363 (e) 935, 278, 347, 621, 399, 392, 358, 363
MC9 (2.5pts)
Consider the nearly balanced Binary Search Tree in the figure below.
F
A H P
C M S Y
E X
R
Perform the appropriate rotation about R to restore the height balance of the tree. What is the level order traversal of the tree after it has been balanced?
(a) R E X C M S Y A H P F (b) R M X E P S Y C H A F (c) M E R C H P X A F S Y (d) E C M A H P F R X S Y (e) None of these is the correct level order traversal.
MC13 (2.5pts)
Suppose we would like to build a dictionary that maps a set of student names (short strings) to a study group identifier. Which of the following would work as a key function for our dictionary? Hint: the ordering of the students in the original set should not matter.
(a) Concatenate the names. (b) Sort the students’ names and then sum the values of the characters in their names. (c) Sort each name by character, then form a concatenation of all the sorted names. (d) Sort and then concatenate the first letters of the students’ names. (e) None of the above is correct.
MC14 (2.5pts)
Suppose a hash table has size 10, and that the search keys are strings consisting of 3 lower case letters. We want to hash 7 unknown values from this keyspace. In the hash function, when we refer to the alphabet positions of the letters, we mean: “a”= 1, “b”= 2,... , “z”= 26.
h(k) = (product of the alphabet positions of k′s letters)^4 %
Which of these ideal hash function characteristics are violated by this hash function?
(i) A good hash function distributes the keys uniformly over the array. (ii) A good hash function is deterministic. (iii) A good hash function is computed in constant time.
(a) Only (i) is violated. (b) Only (ii) is violated. (c) Only (iii) is violated. (d) At least two of (i), (ii) and (iii) are violated. (e) None of these characteristics are violated–our hash function is a good one!
- [Efficiency – 20 points]. Each item below is a description of a data structure, its implementation, and an operation on the structure. In each case, choose the appropriate running time from the list below. The variable n represents the number of items (keys, data, or key/data pairs) in the structure. In answering this question you should assume the best possible implementation given the constraints, and also assume that every array is sufficiently large to handle all items (unless otherwise stated).
(a) O(1) (b) O(log n) (c) O(n) (d) O(n log n) (e) O(n^2 )
(MC 15) The slower of Enqueue or Dequeue for a Queue implemented with an array.
(MC 16) Find the maximum key in a Binary Tree (not necessarily BST).
(MC 17) Find the In Order Predecessor of a given key in a Binary Tree (if it exists).
(MC 18) Find the In Order Predecessor of a given key in an AVL Tree (if it exists).
(MC 19) Perform rightLeftRotate around a given node in an AVL Tree.
(MC 20) Determine if a given Binary Search Tree is height balanced.
(MC 21) Build a binary search tree (not AVL) with keys that are the numbers between 0 and n, in that order, by repeated insertions into the tree.
(MC 22) Remove the right subtree from the root of an AVL tree, and restore the height balance of the structure.
- [Quadtrees – 20 points].
For this question, consider the following partial class definition for the Quadtree class, which uses a quadtree to represent a square PNG image as in MP5.
class Quadtree { public: // ctors and dtor and all of the public methods from MP5, including:
void buildTree(PNG const & source, int resolution); RGBApixel getPixel(int x, int y) const; PNG decompress() const; void prune(int tolerance); ... // a NEW function for you to implement void prunish(int tolerance, double percent);
private: class QuadtreeNode { QuadtreeNode* nwChild; // pointer to northwest child QuadtreeNode* neChild; // pointer to northeast child QuadtreeNode* swChild; // pointer to southwest child QuadtreeNode* seChild; // pointer to southeast child
RGBApixel element; // the pixel stored as this node’s "data" };
QuadtreeNode* root; // pointer to root of quadtree, NULL if tree is empty int resolution; // init to be the resolution of the quadtree NEW int distance(RGBApixel const & a, RGBApixel const & b); // returns sq dist between color void clear(QuadtreeNode * & cRoot); // free memory and set cRoot to null // a couple of private helpers are omitted here. };
You may assume that the quadtree is perfect and that it has been built from an image that has size 2k^ × 2 k. As in MP5, the element field of each leaf of the quadtree stores the color of a square block of the underlying PNG image; for this question, you may assume, if you like, that each non-leaf node contains the component-wise average of the colors of its children. You may not use any methods or member data of the Quadtree or QuadtreeNode classes which are not explicitly listed in the partial class declaration above. You may assume that each child pointer in each leaf of the Quadtree is NULL.
(a) (4 points) Write a private member function int Quadtree::tallyNear(RGBApixel const & target, QuadtreeNode const * curNode, int tolerance), which calculates the number of leaves in the tree rooted at curNode with element less than or equal to tolerance distance from target. You may assume that you are working on a per- fect (unpruned), non-empty Quadtree. Write the method as it would appear in the quadtree.cpp file for the Quadtree class. We have included a skeleton for your code below–just fill in the blanks to complete it.
int Quadtree::tallyNear(RGBApixel const & target, QuadtreeNode const * curNode, int tolerance) __________ {
// function not called with curNode == NULL; if (curNode->__________ == __________) { // check for leaf
RGBApixel current = curNode->element;
if (distance(current, target) __________ tolerance) return __________; else return 0;
}
// otherwise...recurse! int devTotal = _____________________
return __________; }
(b) (6 points) Our next task is to write a private member function declared as void Quadtree::prunish(QuadtreeNode * curNode, int tolerance, int res, double percent) whose functionality is very similar to the prune function you wrote for MP5. Rather than prune a subtree if ALL leaves fall within a tolerance of the current node’s pixel value, prunish will prune if at least percent of them do. Parameter res is intended to represent the number of pixels on one side of the square represented by the subtree rooted at curNode. All the constraints on pruning from the prune function apply here, as well. That is, you should prune as high up in the tree as you can, and once a subtree is pruned, its ancestors should not be re-evaluated for pruning. As before, we’ve given you most of the code below. Just fill in the blanks on the next page.
(d) In this part of the problem we will derive an expression for the maximum number of nodes in a Quadtree of height h, and prove that our solution is correct. Let N (h) denote the maximum number of nodes in a Quadtree of height h. i. (3 points) Give a recurrence for N (h). (Don’t forget appropriate base case(s).)
We solved the recurrence and found a closed form solution for N (h) to be:
N (h) =
4 h+1^ − 1 3 , h ≥ − 1
ii. (3 points) Prove that our solution to your recurrence from part (i) is correct by induction: Consider a maximally sized Quadtree of arbitrary height h.
- If h = −1 then the expression above gives: which is the maximum number of nodes in a tree of height -1 (briefly explain).
- otherwise, if h > −1 then by an inductive hypothesis that says:
we have N ( ) = nodes.
so that N (h) = = , which was what we wanted to prove. iii. (2 points) Use your result from part (d) to give a lower bound for the height of a quad tree containing n nodes.
- [Stacks and Queues – 15 points].
In this problem you will write a function reverseOdd that takes a queue of integers as a parameter, and that modifies that queue, reversing the order of the odd integers in the queue while leaving the even integers in place. For example given this queue (back to front):
< 14 13 17 8 4 10 11 4 15 18 19 >
calling the function would change it to:
< 14 19 15 8 4 10 11 4 17 18 13 >
We have given you the Stack and Queue interfaces below. You may also assume the existence of a helper function isOdd() that returns true for odd integers and false for even integers.
template class Stack { public: // ctors and dtor and all of the public methods, including:
T pop(); void push(T data); bool isEmpty(); private: ... }
template class Queue { public: // ctors and dtor and all of the public methods, including:
T dequeue(); void enqueue(T data); bool isEmpty(); private: ... }
(c) (2 points) Suppose the queue contains O(n) even integers, and O(log n) odd integers. What is the worst case total running time of the algorithm? Give the tightest bound you can.
(d) (2 points) Suppose the queue contains O(n) even integers, and O(log n) odd integers. How much memory does the algorithm use? Give the tightest bound you can.
scratch paper
