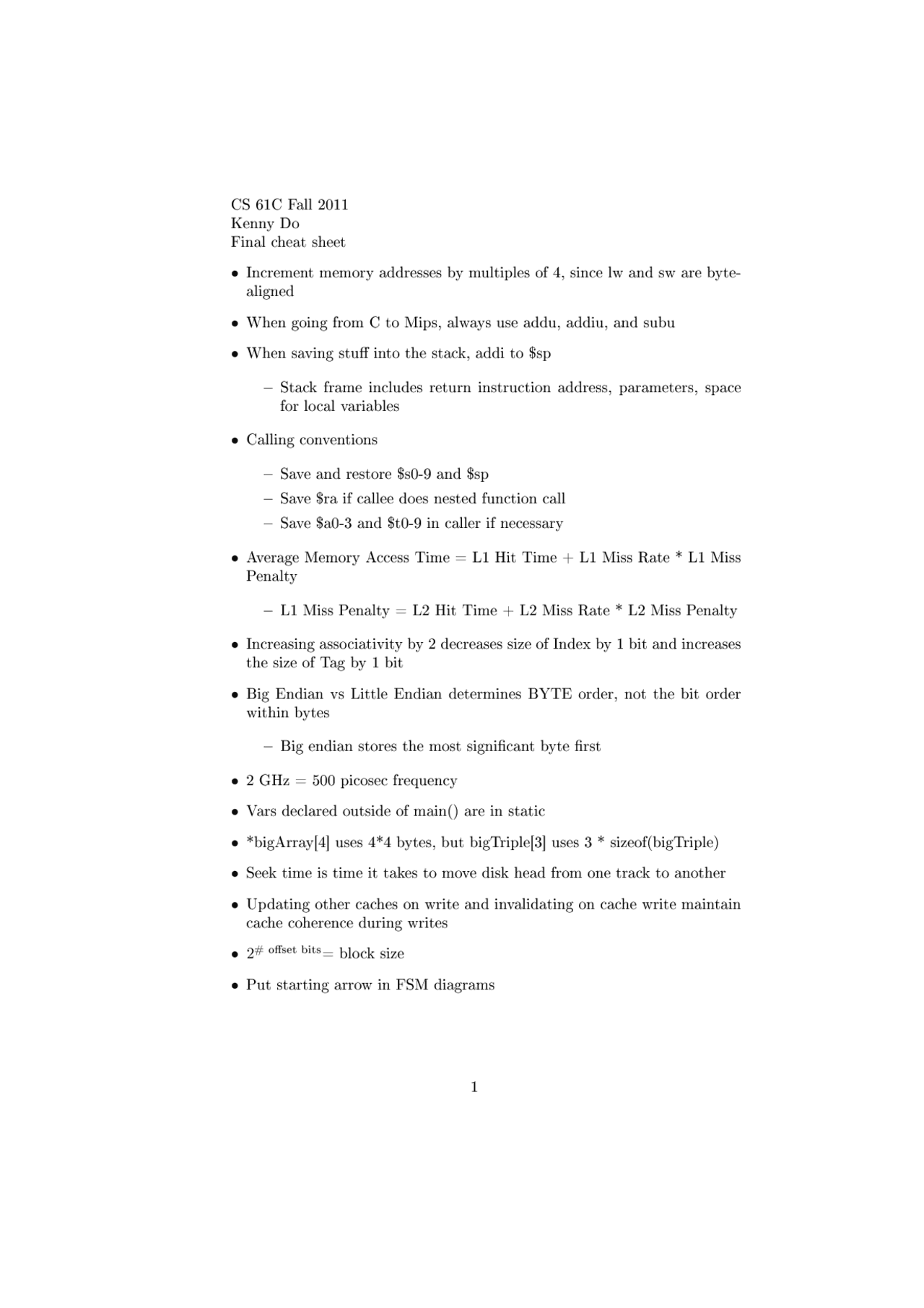

CS 61C Fall 2011 Kenny Do Final cheat sheet
- Increment memory addresses by multiples of 4, since lw and sw are byte- aligned
- When going from C to Mips, always use addu, addiu, and subu
- When saving stu into the stack, addi to $sp
Stack frame includes return instruction address, parameters, space for local variables
Save and restore $s0-9 and $sp Save $ra if callee does nested function call Save $a0-3 and $t0-9 in caller if necessary
- Average Memory Access Time = L1 Hit Time + L1 Miss Rate * L1 Miss Penalty
L1 Miss Penalty = L2 Hit Time + L2 Miss Rate * L2 Miss Penalty
- Increasing associativity by 2 decreases size of Index by 1 bit and increases the size of Tag by 1 bit
- Big Endian vs Little Endian determines BYTE order, not the bit order within bytes
Big endian stores the most signi cant byte rst
- 2 GHz = 500 picosec frequency
- Vars declared outside of main() are in static
- bigArray[4] uses 44 bytes, but bigTriple[3] uses 3 * sizeof(bigTriple)
- Seek time is time it takes to move disk head from one track to another
- Updating other caches on write and invalidating on cache write maintain cache coherence during writes
- 2 # oset bits= block size
- Put starting arrow in FSM diagrams
1 Data Level Parallelism
{Single, Multiple} Instruction {Single, Multiple} Data Stream
- 8 XMM registers are 128 bits wide
2 Thread Level Parallelism
- Example SSE instrinsics on _m128d data type
mm{load, store, loadu, storeu, load1, add, mul}_pd
- All multicore CPUs are Shared Memory Multiprocessors
Single address space shared by all cores Coordination/communication through shared variables in memory ∗ Shared data coordinated via synchronization primitives (locks)
- MOESI protocol for each block in cache:
Modi ed = up-to-date data, changed (dirty), no other cache has a copy, OK to write, memory out-of-date Owner = up-to-date data, other caches may have a copy (they must be in Shared state) ∗ Only cache that supplies data on read instead of going to memory Exclusive = up-to-date data, no other cache has a copy, OK to write, memory up-to-date ∗ Avoids writing to memory if block replaced ∗ Supplies data on read instead of going to memory Shared = up-to-date data, other caches may have a copy Invalid = not in cache
All threads can access globally shared memory, but each thread also has private data
- Main bottleneck of SMP is the memory system
- Data race is when two serial memory accesses from dierent threads to same location and at least one is a write
- Locks create critical section where only one thread operates
5 Boolean algebra
- means OR, • means AND, x means NOT
- Laws of boolean algebra
Complementarity ∗ x · x = 0 ∗ x + x = 1 Laws of 0's and 1's ∗ x · 0 = 0 ∗ x + 1 = 1 Identities ∗ x · 1 = x ∗ x + 0 = x Idempotent law ∗ x · x = x ∗ x + x = x Commutativity, associativity, and distrubution also apply Uniting theorem ∗ (x + y) x = x Uniting theorem 2 ∗ (x + y) x = xy DeMorgan's Law ∗ x · y = x + y ∗ x + y = x · y
- Truth table <-> boolean sum-of-products <-> gate diagram -> truth table
- over ow = cn XOR cn− 1 for left-most adder
cn is carry out, cn− 1 is carry in
Truth table for mux with 4-bits of signals controls 16 inputs, so it has 220 rows in truth table
6 CPU Design
- Stages of the datapath
- Instruction fetch (a) Also where we increment PC
- Instruction decode (a) Read opcode and read data from necessary registers
- ALU (Execute) (a) Includes calculating the address of memory for lw and sw
- Memory access (a) Only lw and sw do anything at this stage (b) Expected to be fast because of cache, otherwise multicycle stall
- Register write (a) Idle for stores, branches, and jumps
- Load uses all 5 stages
- Registers between each stage to hold intermediate data and control signals
- Always include incrementing the PC in Reg Transfer Language, and always start by fetching the instruction
Ex: {op, rs, rt, Imm 16 } ← M EM [P C]
- Critical path is longest path through logic and determines length of clock period
- Control signals
nPCsel = 0 (next PC is PC + 4), 1 (branch), X (jump) Jump = 1 (is a jump), 0 ExtOp = zero, sign ALUsrc = 0 (regB), 1 (immed) ALUctr = ADD, SUB, OR MemWr = 1 (write memory), 0 MemToReg = 0 (ALU output goes to reg), 1 (Mem output goes) RegDst = 0 (rt), 1 (rd) RegWr = 1 (write register), 0
- Pipelining rate limited by slowest pipeline stage
Cols are valid?, access rights, physical page address Row index == virtual address' page number Physical address is PPN, oset
- Translation Lookaside Buer is cache of page table
VPN is split into TLB tag and index Cols are TLB tag, PPN, dirty? (== need to write to disk when replaced), ref (to calculate LRU replacement) Row index == index from VPN
8 I/O
- Memory Mapped Input/Output dedicates portion of address space to com- munication with devices
Polling: processor reads from control register in loop until it is ready, then writes/reads data register, which resets ready bit of control register
- Exceptions arise within CPU
PC of oending instr is saved in Exception Program Counter, cause is saved in Cause register, and jumps to exception handler code at 0x8000 0180 ∗ After exception, pipeline ushed, handler executed, then instr executed from scratch or program terminated ∗ Precise exceptions (actually used) · Earliest exception-causing instr is handled rst ∗ Imprecise exceptions · Pipeline stopped, software handler works out cause and what to do
- Interrupts from external IO controller
Asynchronous, but does not prevent any instruction from completion
- Switched network has higher bandwidth than shared network
- Mean Time to Failure
- RAID 3 = Sequential bytes on dierent drives, dedicated parity drive
- RAID 5 = rotated parity, faster small writes
9 Amdahl's Law
f (n) =
(1 − P ) + NP
- P is percentage of parallelizable code
- N is number of cores used
- f(n) is amount of speedup code gains
- Assumptions
No contention for shared resources (ideal!) No per-thread overhead (ideal!) No pipelining
