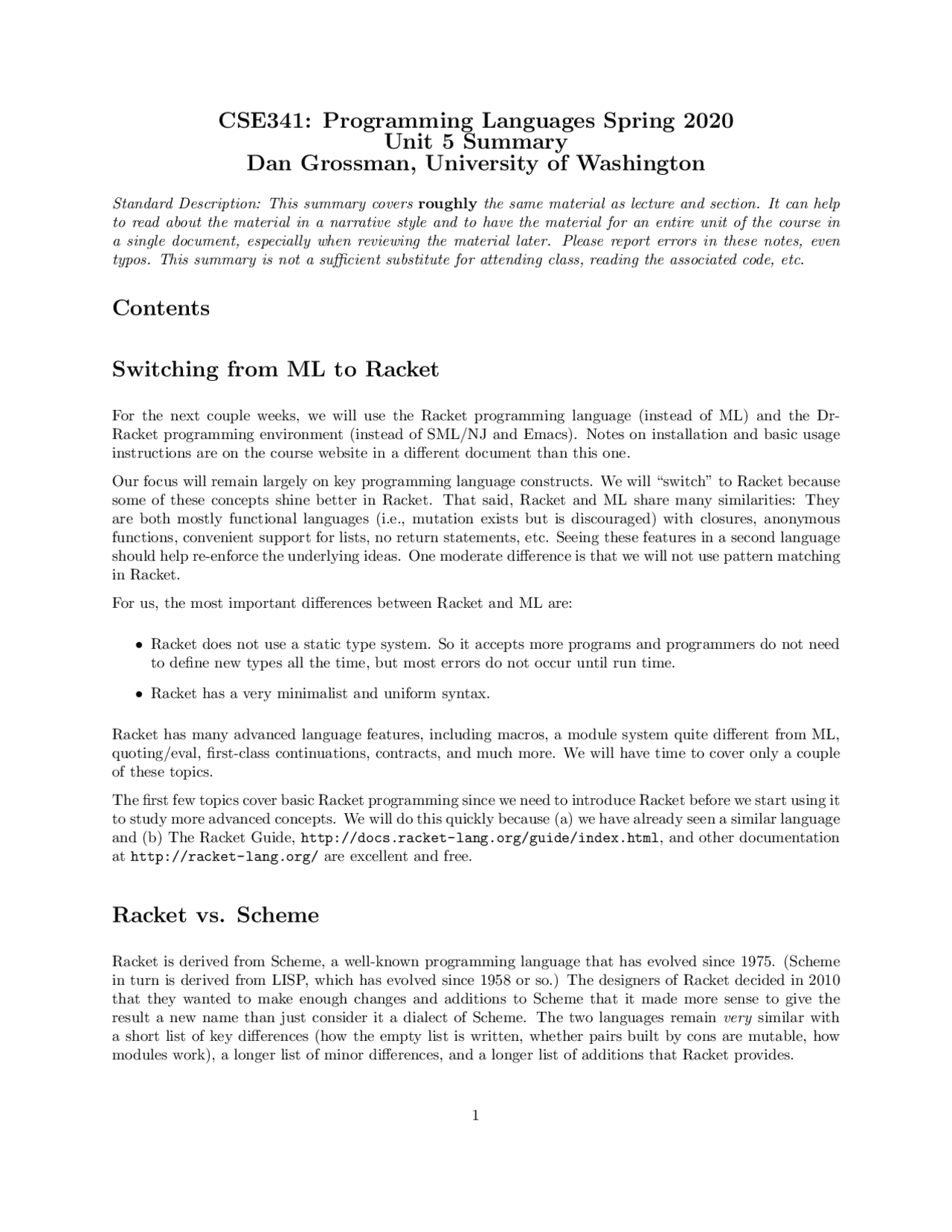

CSE341: Programming Languages Spring 2020
Unit 5 Summary
Dan Grossman, University of Washington
Standard Description: This summary covers roughly the same material as lecture and section. It can help to read about the material in a narrative style and to have the material for an entire unit of the course in a single document, especially when reviewing the material later. Please report errors in these notes, even typos. This summary is not a sufficient substitute for attending class, reading the associated code, etc.
Contents
Switching from ML to Racket
For the next couple weeks, we will use the Racket programming language (instead of ML) and the Dr- Racket programming environment (instead of SML/NJ and Emacs). Notes on installation and basic usage instructions are on the course website in a different document than this one.
Our focus will remain largely on key programming language constructs. We will “switch” to Racket because some of these concepts shine better in Racket. That said, Racket and ML share many similarities: They are both mostly functional languages (i.e., mutation exists but is discouraged) with closures, anonymous functions, convenient support for lists, no return statements, etc. Seeing these features in a second language should help re-enforce the underlying ideas. One moderate difference is that we will not use pattern matching in Racket.
For us, the most important differences between Racket and ML are:
- Racket does not use a static type system. So it accepts more programs and programmers do not need to define new types all the time, but most errors do not occur until run time.
- Racket has a very minimalist and uniform syntax.
Racket has many advanced language features, including macros, a module system quite different from ML, quoting/eval, first-class continuations, contracts, and much more. We will have time to cover only a couple of these topics.
The first few topics cover basic Racket programming since we need to introduce Racket before we start using it to study more advanced concepts. We will do this quickly because (a) we have already seen a similar language and (b) The Racket Guide, http://docs.racket-lang.org/guide/index.html, and other documentation at http://racket-lang.org/ are excellent and free.
Racket vs. Scheme
Racket is derived from Scheme, a well-known programming language that has evolved since 1975. (Scheme in turn is derived from LISP, which has evolved since 1958 or so.) The designers of Racket decided in 2010 that they wanted to make enough changes and additions to Scheme that it made more sense to give the result a new name than just consider it a dialect of Scheme. The two languages remain very similar with a short list of key differences (how the empty list is written, whether pairs built by cons are mutable, how modules work), a longer list of minor differences, and a longer list of additions that Racket provides.
Overall, Racket is a modern language under active development that has been used to build several “real” (whatever that means) systems. The improvements over Scheme make it a good choice for this course and for real-world programming. However, it is more of a “moving target” — the designers do not feel as bound to historical precedent as they try to make the language and the accompanying DrRacket system better. So details in the course materials are more likely to become outdated.
Getting Started: Definitions, Functions, Lists (and if)
The first line of a Racket file (which is also a Racket module) should be
#lang racket
This is discussed in the installation/usage instructions for the course. These lecture notes will focus instead on the content of the file after this line. A Racket file contains a collection of definitions.
A definition like
(define a 3)
extends the top-level environment so that a is bound to 3. Racket has very lenient rules on what characters can appear in a variable name, and a common convention is hyphens to separate words like my-favorite-identifier.
A subsequent definition like
(define b (+ a 2))
would bind b to 5. In general, if we have (define x e) where x is a variable and e is an expression, we evaluate e to a value and change the environment so that x is bound to that value. Other than the syntax, this should seem very familiar, although at the end of the lecture we will discuss that, unlike ML, bindings can refer to later bindings in the file. In Racket, everything is prefix, such as the addition function used above.
An anonymous function that takes one argument is written (lambda (x) e) where the argument is the variable x and the body is the expression e. So this definition binds a cubing function to cube1:
(define cube (lambda (x) (* x (* x x))))
In Racket, different functions really take different numbers of arguments and it is a run-time error to call a function with the wrong number. A three argument function would look like (lambda (x y z) e). However, many functions can take any number of arguments. The multiplication function, *, is one of them, so we could have written
(define cube (lambda (x) (* x x x)))
You can consult the Racket documentation to learn how to define your own variable-number-of-arguments functions.
Racket has built-in lists, much like ML, and Racket programs probably use lists even more often in practice than ML programs. We will use built-in functions for building lists, extracting parts, and seeing if lists are empty. The function names car and cdr are a historical accident.
Primitive Description Example null The empty list null cons Construct a list (cons 2 (cons 3 null)) car Get first element of a list (car some-list) cdr Get tail of a list (cdr some-list) null? Return #t for the empty-list and #f otherwise (null? some-value)
Unlike Scheme, you cannot write () for the empty list. You can write ’(), but we will prefer null.
There is also a built-in function list for building a list from any number of elements, so you can write (list 2 3 4) instead of (cons 2 (cons 3 (cons 4 null))). Lists need not hold elements of the same type, so you can create (list #t "hi" 14) without error.
Here are three examples of list-processing functions. map and append are actually provided by default, so we would not write our own.
(define (sum xs) (if (null? xs) 0 (+ (car xs) (sum (cdr xs)))))
(define (append xs ys) (if (null? xs) ys (cons (car xs) (append (cdr xs) ys))))
(define (map f xs) (if (null? xs) null (cons (f (car xs)) (map f (cdr xs)))))
Syntax and Parentheses
Ignoring a few bells and whistles, Racket has an amazingly simple syntax. Everything in the language is either:
- Some form of atom, such as #t, #f, 34 , "hi", null, etc. A particularly important form of atom is an identifier, which can either be a variable (e.g., x or something-like-this!) or a special form such as define, lambda, if, and many more.
- A sequence of things in parentheses (t1 t2 ... tn).
The first thing in a sequence affects what the rest of the sequence means. For example, (define ...) means we have a definition and the next thing can be a variable to be defined or a sequence for the sugared version of function definitions.
If the first thing in a sequence is not a special form and the sequence is part of an expression, then we have a function call. Many things in Racket are just functions, such as + and >.
As a minor note, Racket also allows [ and ] in place of ( and ) anywhere. As a matter of style, there are a few places we will show where [...] is the common preferred option. Racket does not allow mismatched parenthesis forms: ( must be matched by ) and [ by ]. DrRacket makes this easy because if you type ) to match [, it will enter ] instead.
By “parenthesizing everything” Racket has a syntax that is unambiguous. There are never any rules to learn about whether 1+23 is 1+(23) or (1+2)*3 and whether f x y is (f x) y or f (x y). It makes parsing, converting the program text into a tree representing the program structure, trivial. Notice that XML-based languages like HTML take the same approach. In HTML, an “open parenthesis” looks like and the matching close-parenthesis looks like .
For some reason, HTML is only rarely criticized for being littered with parentheses but it is a common complaint leveled against LISP, Scheme, and Racket. If you stop a programmer on the street and ask him or her about these languages, they may well say something about “all those parentheses.” This is a bizarre obsession: people who use these languages quickly get used to it and find the uniform syntax pleasant. For example, it makes it very easy for the editor to indent your code properly.
From the standpoint of learning about programming languages and fundamental programming constructs, you should recognize a strong opinion about parentheses (either for or against) as a syntactic prejudice. While everyone is entitled to a personal opinion on syntax, one should not allow it to keep you from learning advanced ideas that Racket does well, like hygienic macros or abstract datatypes in a dynamically typed language or first-class continuations. An analogy would be if a student of European history did not want to learn about the French Revolution because he or she was not attracted to people with french accents.
All that said, practical programming in Racket does require you to get your parentheses correct and Racket differs from ML, Java, C, etc. in an important regard: Parentheses change the meaning of your program. You cannot add or remove them because you feel like it. They are never optional or meaningless.
In expressions, (e) means evaluate e and then call the resulting function with 0 arguments. So (42) will be a run-time error: you are treating the number 42 as a function. Similarly, ((+ 20 22)) is an error for the same reason.
Programmers new to Racket sometimes struggle with remembering that parentheses matter and determining why programs fail, often at run-time, when they are misparenthesized. As an example consider these seven definitions. The first is a correct implementation of factorial and the others are wrong:
(define (fact n) (if (= n 0) 1 (* n (fact (- n 1))))) ; 1 (define (fact n) (if (= n 0) (1) (* n (fact (- n 1))))) ; 2 (define (fact n) (if = n 0 1 (* n (fact (- n 1))))) ; 3 (define fact (n) (if (= n 0) 1 (* n (fact (- n 1))))) ; 4 (define (fact n) (if (= n 0) 1 (* n fact (- n 1)))) ; 5 (define (fact n) (if (= n 0) 1 (* n ((fact) (- n 1))))) ; 6 (define (fact n) (if (= n 0) 1 (n * (fact (- n 1))))) ; 7
Line Error 2 calls 1 as a function taking no arguments 3 uses if with 5 subexpressions instead of 3 4 bad definition syntax: (n) looks like an expression followed by more stuff 5 calls * with a function as one of the arguments 6 calls fact with 0 arguments 7 treats n as a function and calls it with *
Local bindings: let, let*, letrec, local define
For all the usual reasons, we need to be able to define local variables inside functions. Like ML, there are expression forms that we can use anywhere to do this. Unlike ML, instead of one construct for local bindings, there are four. This variety is good: Different ones are convenient in different situations and using the most natural one communicates to anyone reading your code something useful about how the local bindings are related to each other. This variety will also help us learn about scope and environments rather than just accepting that there can only be one kind of let-expression with one semantics. How variables are looked up in an environment is a fundamental feature of a programming language.
First, there is the expression of the form
(let ([x1 e1] [x2 e2] ... [xn en]) e)
As you might expect, this creates local variables x1, x2, ... xn, bound to the results of evaluating e1, e2, ..., en. and then the body e can use these variables (i.e., they are in the environment) and the result of e is the overall result. Syntactically, notice the “extra” parentheses around the collection of bindings and the common style of where we use square parentheses.
But the description above left one thing out: What environment do we use to evaluate e1, e2, ..., en? It turns out we use the environment from “before” the let-expression. That is, later variables do not have earlier ones in their environment. If e3 uses x1 or x2, that would either be an error or would mean some outer variable of the same name. This is not how ML let-expressions work. As a silly example, this function doubles its argument:
(define (silly-double x) (let ([x (+ x 3)] [y (+ x 2)]) (+ x y -5)))
This behavior is sometimes useful. For example, to swap the meaning of x and y in some local scope you can write (let ([x y][y x]) ...). More often, one uses let where this semantics versus “each binding has the previous ones in its environment” does not matter: it communicates that the expressions are independent of each other.
If we write let* in place of let, then the semantics does evaluate each binding’s expression in the environment produced from the previous ones. This is how ML let-expressions work. It is often convenient: If we only had “regular” let, we would have to nest let-expressions inside each other so that each later binding was in the body of the outer let-expressions. (We would have use n nested let expressions each with 1 binding instead of 1 let* with n bindings.) Here is an example using let*:
(define (silly-double x) (let* ([x (+ x 3)] [y (+ x 2)]) (+ x y -8)))
As indicated above, it is common style to use let instead of let* when this difference in semantics is irrelevant.
Neither let nor let* allows recursion since the e1, e2, ..., en cannot refer to the binding being defined or any later ones. To do so, we have a third variant letrec, which lets us write:
(define (triple x) (letrec ([y (+ x 2)] [f (lambda (z) (+ z y w x))] [w (+ x 7)]) (f -9)))
One typically uses letrec to define one or more (mutually) recursive functions, such as this very slow method for taking a non-negative number mod 2:
(define (mod2 x) (letrec ([even? (lambda (x) (if (zero? x) #t (odd? (- x 1))))] [odd? (lambda (x) (if (zero? x) #f (even? (- x 1))))]) (if (even? x) 0 1)))
Alternately, you can get the same behavior as letrec by using local defines, which is very common in real Racket code and is in fact the preferred style over let-expressions. In this course, you can use it if you like but do not have to. There are restrictions on where local defines can appear; at the beginning of a function body is one common place where they are allowed.
(define (mod2_b x) (define even? (lambda(x) (if (zero? x) #t (odd? (- x 1))))) (define odd? (lambda(x) (if (zero? x) #f (even? (- x 1))))) (if (even? x) 0 1))
We need to be careful with letrec and local definitions: They allow code to refer to variables that are initialized later, but the expressions for each binding are still evaluated in order.
For mutually recursive functions, this is never a problem: In the examples above, the definition of even? refers to the definition of odd? even though the expression bound to odd? has not yet been evaluated. This is okay because the use in even? is in a function body, so it will not be used until after odd? has been initialized. In contrast, this use of letrec is bad:
(define (bad-letrec x) (letrec ([y z] [z 13]) (if x y z)))
The semantics for letrec requires that the use of z for initializing y refers to the z in the letrec, but the expression for z (the 13 ) has not been evaluated yet. In this situation, Racket will raise an error when bad-letrec is called. (Prior to Racket Version 6.1, it would instead bind y to a special “undefined” object, which almost always just had the effect of hiding a bug.)
For this class, you can decide whether to use local defines or not. The lecture materials generally will not, choosing instead whichever of let, let*, or letrec is most convenient and communicates best. But you are welcome to use local defines, with those “next to each other” behaving like letrec bindings.
b is mutated to hold an unexpected value. If f needed to defend against this possibility it would need to avoid using b after b might change. There is a general technique in software development you should know: If something might get mutated and you need the old value, make a copy before the mutation can occur. In Racket, we could code this up easily enough:
(define f (let ([b b]) (lambda (x) (* 1 (+ x b)))))
This code makes the b in the function body refer to a local b that is initialized to the global b.
But is this as defensive as we need to be? Since * and + are just variables bound to functions, we might want to defend against them being mutated later as well:
(define f (let ([b b] [+ +] [* ]) (lambda (x) ( 1 (+ x b)))))
Matters would get worse if f used other helper functions: Making local copies of variables bound to the functions would not be enough unless those functions made copies of all their helper functions as well.
Fortunately, none of this is necessary in Racket due to a reasonable compromise: A top-level binding is not mutable unless the module that defined it contains a set! for it. So if the file containing (define b 4) did not have a set! that changed it, then we can rest assured that no other file will be allowed to use set! on that binding (it will cause an error). And all the predefined functions like + and * are in a module that does not use set! for them, so they also cannot be mutated. (In Scheme, all top-level bindings really are mutable, but programmers typically just assume they won’t be mutated since it is too painful to assume otherwise.)
So the previous discussion is not something that will affect most of your Racket programming, but it is useful to understand what set! means and how to defend against mutation by making a copy. The point is that the possibility of mutation, which Racket often avoids, makes it very difficult to write correct code.
The Truth about cons
So far, we have used cons, null, car, cdr, and null? to create and access lists. For example, (cons 14 (cons #t null)) makes the list ’(14 #t) where the quote-character shows this is printing a list value, not indicating an (erroneous) function call to 14.
But the truth is cons just makes a pair where you get the first part with car and the second part with cdr. Such pairs are often called cons cells in languages like Racket. So we can write (cons (+ 7 7) #t) to produce the pair ’(14. #t) where the period shows that this is not a list. A list is, by convention and according to the list? predefined function, either null or a pair where the cdr (i.e., second component) is a list. A cons cell that is not a list is often called an improper list, especially if it has nested cons cells in the second position, e.g., (cons 1 (cons 2 (cons 3 4))) where the result prints as ’(1 2 3. 4).
Most list functions like length will give a run-time error if passed an improper list. On the other hand, the built-in pair? primitive returns true for anything built with cons, i.e., any improper or proper list except the empty list.
What are improper lists good for? The real point is that pairs are a generally useful way to build an each-of type, i.e., something with multiple pieces. And in a dynamically typed language, all you need for lists are
pairs and some way to recognize the end of the list, which by convention Racket uses the null constant (which prints as ’()) for. As a matter of style, you should use proper lists and not improper lists for collections that could have any number of elements.
Cons cells are immutable, but there is mcons
Cons cells are immutable: When you create a cons cell, its two fields are initialized and will never change. (This is a major difference between Racket and Scheme.) Hence we can continue to enjoy the benefits of knowing that cons cells cannot be mutated by other code in our program. It has another somewhat subtle advantage: The Racket implementation can be clever enough to make list? a constant-time operation since it can store with every cons cell whether or not it is a proper list when the cons cell is created. This cannot work if cons cells are mutable because a mutation far down the list could turn it into an improper list.
It is a bit subtle to realize that cons cells really are immutable even though we have set!. Consider this code:
(define x (cons 14 null)) (define y x) (set! x (cons 42 null)) (define fourteen (car y))
The set! of x changes the contents of the binding of x to be a different pair; it does not alter the contents of the old pair that x referred to. You might try to do something like (set! (car x) 27), but this is a syntax error: set! requires a variable to assign to, not some other kind of location.
If we want mutable pairs, though, Racket is happy to oblige with a different set of primitives:
- mcons makes a mutable pair
- mcar returns the first component of a mutable pair
- mcdr returns the second component of a mutable pair
- mpair? returns #t if given a mutable pair
- set-mcar! takes a mutable pair and an expression and changes the first component to be the result of the expression
- set-mcdr! takes a mutable pair and an expression and changes the second component to be the result of the expression
Since some of the powerful idioms we will study next use mutation to store previously computed results, we will find mutable pairs useful.
Introduction to Delayed Evaluation and Thunks
A key semantic issue for a language construct is when are its subexpressions evaluated. For example, in Racket (and similarly in ML and most but not all programming languages), given (e1 e2 ... en) we evaluate the function arguments e2, ..., en once before we execute the function body and given a function (lambda (...) ...) we do not evaluate the body until the function is called. We can contrast this rule (“evaluate arguments in advance”) with how (if e1 e2 e3) works: we do not evaluate both e2 and e3. This is why:
(if (mcar th) (mcdr th) (begin (set-mcar! th #t) (set-mcdr! th ((mcdr th))) (mcdr th))))
We can create a thunk f and pass it to my-delay. This returns a pair where the first field indicates we have not used the thunk yet. Then my-force, if it sees the thunk has not been used yet, uses it and then uses mutation to change the pair to hold the result of using the thunk. That way, any future calls to my-force with the same pair will not repeat the computation. Ironically, while we are using mutation in our implementation, this idiom is quite error-prone if the thunk passed to my-delay has side effects or relies on mutable data, since those effects will occur at most once and it may be difficult to determine when the first call to my-force will occur.
Consider this silly example where we want to multiply the result of two expressions e1 and e2 using a recursive algorithm (of course you would really just use * and this algorithm does not work if e1 produces a negative number):
(define (my-mult x y) (cond [(= x 0) 0] [(= x 1) y] [#t (+ y (my-mult (- x 1) y))]))
Now calling (my-mult e1 e2) evaluates e1 and e2 once each and then does 0 or more additions. But what if e1 evaluates to 0 and e2 takes a long time to compute? Then evaluating e2 was wasteful. So we could thunk it:
(define (my-mult x y-thunk) (cond [(= x 0) 0] [(= x 1) (y-thunk)] [#t (+ (y-thunk) (my-mult (- x 1) y-thunk))]))
Now we would call (my-mult e1 (lambda () e2)). This works great if e1 evaluates to 0, fine if e1 evaluates to 1, and terribly if e1 evaluates to a large number. After all, now we evaluate e2 on every recursive call. So let’s use my-delay and my-force to get the best of both worlds:
(my-mult e1 (let ([x (my-delay (lambda () e2))]) (lambda () (my-force x))))
Notice we create the delayed computation once before calling my-mult, then the first time the thunk passed to my-mult is called, my-force will evaluate e2 and remember the result for future calls to my-force x. An alternate approach that might look simpler is to rewrite my-mult to expect a result from my-delay rather than an arbitrary thunk:
(define (my-mult x y-promise) (cond [(= x 0) 0] [(= x 1) (my-force y-promise)] [#t (+ (my-force y-promise) (my-mult (- x 1) y-promise))]))
(my-mult e1 (my-delay (lambda () e2)))
Some languages, most notably Haskell, use this approach for all function calls, i.e., the semantics for function calls is different in these languages: If an argument is never used it is never evaluated, else it is evaluated
only once. This is called call-by-need whereas all the languages we will use are call-by-value (arguments are fully evaluated before the call is made).
Streams
A stream is an infinite sequence of values. We obviously cannot create such a sequence explicitly (it would literally take forever), but we can create code that knows how to produce the infinite sequence and other code that knows how to ask for however much of the sequence it needs.
Streams are very common in computer science. You can view the sequence of bits produced by a synchronous circuit as a stream, one value for each clock cycle. The circuit does not know how long it should run, but it can produce new values forever. The UNIX pipe (cmd1 | cmd2) is a stream; it causes cmd1 to produce only as much output as cmd2 needs for input. Web programs that react to things users click on web pages can treat the user’s activities as a stream — not knowing when the next will arrive or how many there are, but ready to respond appropriately. More generally, streams can be a convenient division of labor: one part of the software knows how to produce successive values in the infinite sequence but does not know how many will be needed and/or what to do with them. Another part can determine how many are needed but does not know how to generate them.
There are many ways to code up streams; we will take the simple approach of representing a stream as a thunk that when called produces a pair of (1) the first element in the sequence and (2) a thunk that represents the stream for the second-through-infinity elements. Defining such thunks typically uses recursion. Here are three examples:
(define ones (lambda () (cons 1 ones))) (define nats (letrec ([f (lambda (x) (cons x (lambda () (f (+ x 1)))))]) (lambda () (f 1)))) (define powers-of-two (letrec ([f (lambda (x) (cons x (lambda () (f (* x 2)))))]) (lambda () (f 2))))
Given this encoding of streams and a stream s, we would get the first element via (car (s)), the sec- ond element via (car ((cdr (s)))), the third element via (car ((cdr ((cdr (s)))))), etc. Remember parentheses matter: (e) calls the thunk e.
We could write a higher-order function that takes a stream and a predicate-function and returns how many stream elements are produced before the predicate-function returns true:
(define (number-until stream tester) (letrec ([f (lambda (stream ans) (let ([pr (stream)]) (if (tester (car pr)) ans (f (cdr pr) (+ ans 1)))))]) (f stream 1)))
As an example, (number-until powers-of-two (lambda (x) (= x 16))) evaluates to 4.
As a side-note, all the streams above can produce their next element given at most their previous element. So we could use a higher-order function to abstract out the common aspects of these functions, which lets
This takes linear time, so (fibonacci 10000) returns almost immediately (and with a very large number), but it required a quite different approach to the problem. With memoization we can turn fibonacci into an efficient algorithm with a technique that works for lots of algorithms. It is closely related to “dynamic programming,” which you often learn about in advanced algorithms courses. Here is the version that does this memoization (the assoc library function is described below):
(define fibonacci (letrec([memo null] [f (lambda (x) (let ([ans (assoc x memo)]) (if ans (cdr ans) (let ([new-ans (if (or (= x 1) (= x 2)) 1 (+ (f (- x 1)) (f (- x 2))))]) (begin (set! memo (cons (cons x new-ans) memo)) new-ans)))))]) f))
It is essential that different calls to f use the same mutable memo-table: if we create the table inside the call to f, then each call will use a new empty table, which is pointless. But we do not put the table at top-level just because that would be bad style since its existence should be known only to the implementation of fibonacci.
Why does this technique work to make (fibonacci 10000) complete quickly? Because when we evaluate (f (- x 2)) on any recursive calls, the result is already in the table, so there is no longer an exponential number of recursive calls. This is much more important than the fact that calling (fibonacci 10000) a second time will complete even more quickly since the answer will be in the memo-table.
For a large table, using a list and Racket’s assoc function may be a poor choice, but it is fine for demon- strating the concept of memoization. assoc is just a library function in Racket that takes a value and a list of pairs and returns the first pair in the list where the car of the pair equal to the value. It returns #f if no pair has such a car. (The reason assoc returns the pair rather than the cdr of the pair is so you can distinguish the case where no pair matches from the case where the pair that matches has #f in its cdr. This is the sort of thing we would use an option for in ML.)
Macros: The Key Points
The last topic in this unit is macros, which add to the syntax of a language by letting programmers define their own syntactic sugar. We start with the key ideas before learning how to define macros in Racket.
A macro definition introduces some new syntax into the language. It describes how to transform the new syntax into different syntax in the language itself. A macro system is a language (or part of a larger languages) for defining macros. A macro use is just using one of the macros previously defined. The semantics of a macro use is to replace the macro use with the appropriate syntax as defined by the macro definition. This process is often called macro expansion because it is common but not required that the syntactic transformation produces a larger amount of code.
The key point is that macro expansion happens before anything else we have learned about: before type- checking, before compiling, before evaluation. Think of “expanding all the macros” as a pre-pass over your
entire program before anything else occurs. So macros get expanded everywhere, such as in function bodies, both branches of conditionals, etc.
Here are 3 examples of macros one might define in Racket:
- A macro so that programmers can write (my-if e1 then e2 else e3) where my-if, then, and else are keywords and this macro-expands to (if e1 e2 e3).
- A macro so that programmers can write (comment-out e1 e2) and have it transform to e2, i.e., it is a convenient way to take an expression e1 out of the program (replacing it with e2) without actually deleting anything.
- A macro so that programmers can write (my-delay e) and have it transform to (mcons #f (lambda () e)). This is different from the my-delay function we defined earlier because the function required the caller to pass in a thunk. Here the macro expansion does the thunk creation and the macro user should not include an explicit thunk.
Racket has an excellent and sophisticated macro system. For precise, technical reasons, its macro system is superior to many of the better known macro systems, notably the preprocessor in C or C++. So we can use Racket to learn some of the pitfalls of macros in general. Below we discuss:
- How macro systems must handle issues of tokenization, parenthesization, and scope — and how Racket handles parenthesization and scope better than C/C++
- How to define macros in Racket, such as the ones described above
- How macro definitions should be careful about the order expressions are evaluated and how many times they are evaluated
- The key issue of variable bindings in macros and the notion of hygiene
Tokenization, Parenthesization, and Scope
The definition of macros and macro expansion is more structured and subtle than “find-and-replace” like one might do in a text editor or with a script you write manually to perform some string substitution in your program. Macro expansion is different in roughly three ways.
First, consider a macro that, “replaces every use of head with car.” In macro systems, that does not mean some variable headt would be rewritten as cart. So the implementation of macros has to at least understand how a programming language’s text is broken into tokens (i.e., words). This notion of tokens is different in different languages. For example, a-b would be three tokens in most languages (a variable, a subtraction, and another variable), but is one token in Racket.
Second, we can ask if macros do or do not understand parenthesization. For example, in C/C++, if you have a macro
#define ADD(x,y) x+y
then ADD(1,2/3)4 gets rewritten as 1 + 2 / 3 * 4, which is not the same thing as (1 + 2/3)4. So in such languages, macro writers generally include lots of explicit parentheses in their macro definitions, e.g.,
#define ADD(x,y) ((x)+(y))
(define-syntax comment-out (syntax-rules () [(comment-out e1 e2) e2]))
Our third example is a macro my-delay so that, unlike the my-delay function defined earlier, users would write (my-delay e) to create a promise such that my-force would evaluate e and remember the result, rather than users writing (my-delay (lambda () e)). Only a macro, not a function, can “delay evaluation by adding a thunk” like this because function calls always evaluate their arguments.
(define-syntax my-delay (syntax-rules () [(my-delay e) (mcons #f (lambda () e))]))
We should not create a macro version of my-force because our function version from earlier is just what we want. Give (my-force e) we do want to evaluate e to a value, which should be an mcons-cell created by my-delay and then perform the computation in the my-force function. Defining a macro provides no benefit and can be error prone. Consider this awful attempt:
(define-syntax my-force (syntax-rules () [(my-force e) (if (mcar e) (mcdr e) (begin (set-mcar! e #t) (set-mcdr! e ((mcdr e))) (mcdr e)))]))
Due to macro expansion, uses of this macro will end up evaluating their argument multiple times, which can have strange behavior if e has side effects. Macro users will not expect this. In code like:
(let ([t (my-delay some-complicated-expression)]) (my-force t))
this does not matter since t is already bound to a value, but in code like:
(my-force (begin (print "hi") (my-delay some-complicated-expression)))
we end up printing multiple times. Remember that macro expansion copies the entire argument e everywhere it appears in the macro definition, but we often want it to be evaluated only once. This version of the macro does the right thing in this regard:
(define-syntax my-force (syntax-rules () [(my-force e) (let ([x e]) (if (mcar x) (mcdr x) (begin (set-mcar! x #t) (set-mcdr! x ((mcdr x))) (mcdr x))))]))
But, again, there is no reason to define a macro like this since a function does exactly what we need. Just stick with:
(define (my-force th) (if (mcar th) (mcdr th) (begin (set-mcar! th #t) (set-mcdr! th ((mcdr th))) (mcdr th))))
Variables, Macros, and Hygiene
Let’s consider a macro that doubles its argument. Note this is poor style because if you want to double an ar- gument you should just write a function: (define (double x) (* 2 x)) or (define (double x) (+ x x)) which are equivalent to each other. But this short example will let us investigate when macro arguments are evaluated and in what environment, so we will use it just as a poor-style example.
These two macros are not equivalent:
(define-syntax double (syntax-rules () [(double1 e) (* 2 e)])) (define-syntax double (syntax-rules () [(double2 e) (+ e e)]))
The reason is double2 will evaluate its argument twice. So (double1 (begin (print "hi") 17)) prints "hi" once but (double2 (begin (print "hi") 17)) prints "hi" twice. The function versions print "hi" once, simply because, as always, function arguments are evaluated to values before the function is called.
To fix double2 without “changing the algorithm” to multiplication instead of addition, we should use a local variable:
(define-syntax double (syntax-rules () [(double3 e) (let ([x e]) (+ x x))]))
Using local variables in macro definitions to control if/when expressions get evaluated is exactly what you should do, but in less powerful macro languages (again, C/C++ is an easy target for derision here), local variables in macros are typically avoided. The reason has to do with scope and something that is called hygiene. For sake of example, consider this silly variant of double3:
(define-syntax double (syntax-rules () [(double4 e) (let* ([zero 0]
