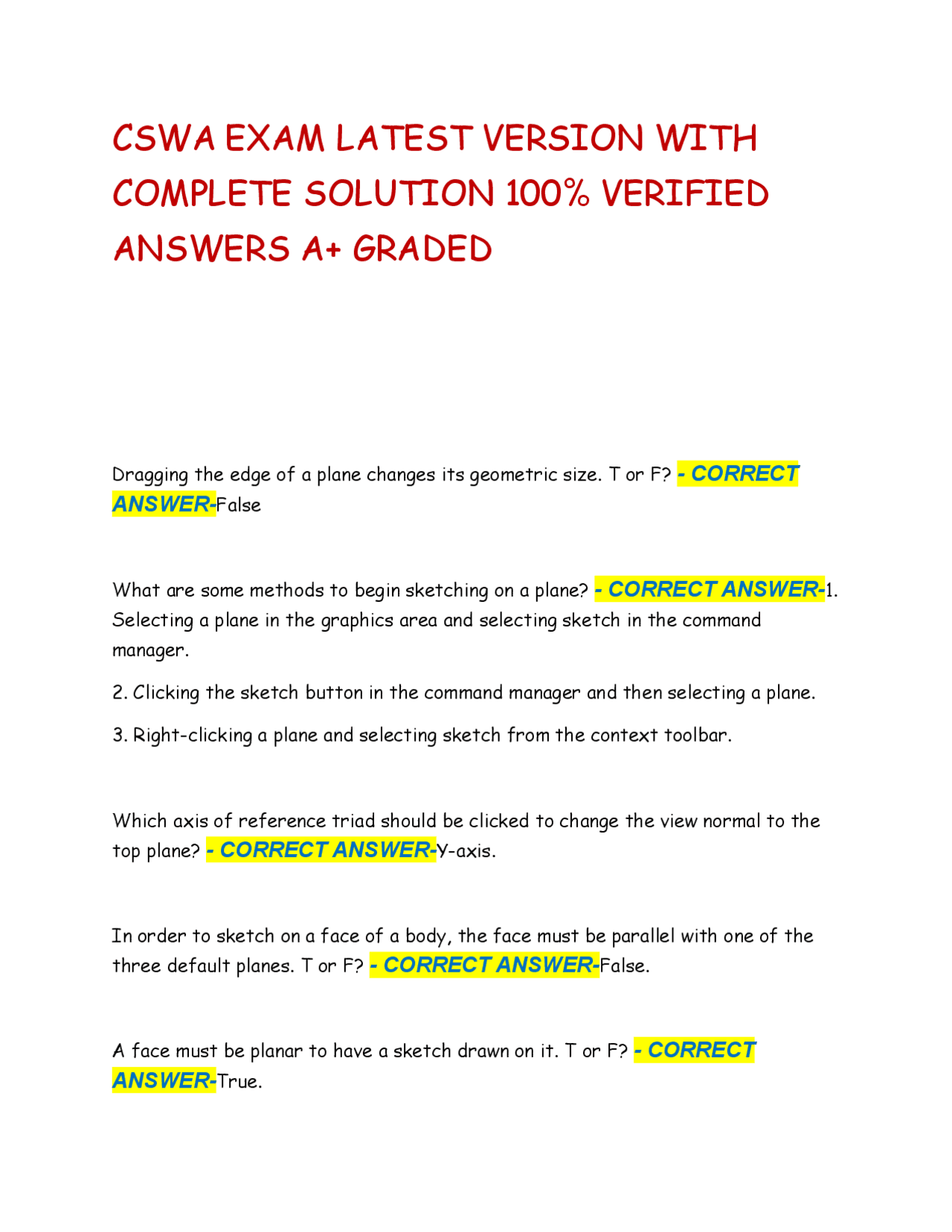

Dragging the edge of a plane changes its geometric size. T or F? - CORRECT
ANSWER- False
What are some methods to begin sketching on a plane? - CORRECT ANSWER- 1.
Selecting a plane in the graphics area and selecting sketch in the command manager.
- Clicking the sketch button in the command manager and then selecting a plane.
- Right-clicking a plane and selecting sketch from the context toolbar. Which axis of reference triad should be clicked to change the view normal to the
top plane? - CORRECT ANSWER- Y-axis.
In order to sketch on a face of a body, the face must be parallel with one of the
three default planes. T or F? - CORRECT ANSWER- False.
A face must be planar to have a sketch drawn on it. T or F? - CORRECT
ANSWER- True.
How does the smart dimension tool determine what type of dimension to add? -
CORRECT ANSWER- The proper dimension is based on the geometry you select.
How can you access the smart dimension tool? - CORRECT ANSWER- 1. Launch
the shortcut toolbar by pressing "S" and click smart dimension.
- Use mouse gestures by right-clicking and dragging up in the graphics area.
- Click the smart dimension icon from the sketch tab in the command manager. When you select and arc, the smart dimension tool automatically adds what type of
dimension? - CORRECT ANSWER- Radial.
Using the modify dialog box for smart dimension, how can you edit the value of a
dimension? - CORRECT ANSWER- 1. Use the spin box.
- Use the arrows.
- Click in the window and type a new value. When dimensioning to centerlines, SOLIDWORKS provides the ability to change
from linear to diameter dimensions. T or F? - CORRECT ANSWER- True.
Which of the following line types cannot have a length specified prior to being drawn: As sketched Horizontal Vertical
- Right-clicking a line and then selecting the "Construction Geometry" button in
the context toolbar. - CORRECT ANSWER- 2. Selecting a line in the graphics
area, and then clicking the "Centerline" button in the Command Manager. When a corner rectangle is sketched, two of the sides are automatically set to
horizontal and the other two are automatically set to vertical. T or F? -
CORRECT ANSWER- True.
Which of the following types of rectangle tools adds centerlines when the sketch entity is drawn: Corner Rectangle Center Rectangle 3 Point Corner Rectangle
Parallelogram - CORRECT ANSWER- Center Rectangle
Which rectangle tool requires more than two points to be selected in order to draw the sketch entity: Corner Rectangle Center Rectangle Parallelogram
None of the above - CORRECT ANSWER- Parallelogram
To create a "3 point center rectangle" you first click at the center point, then click at the midpoint of one edge of the rectangle, and then click to set the height of
the rectangle. T or F? - CORRECT ANSWER- True.
Two identical rectangles can be created by sketching one rectangle on top of
another and then dragging it to a new position. T or F? - CORRECT ANSWER-
False. Which circle tool requires clicking three points to draw a circle:
Standard Circle or Perimeter Circle - CORRECT ANSWER- Perimeter Circle.
The center point of a perimeter circle cannot be selected since it is interpolated
using three selected points on its perimeter. T or F? - CORRECT ANSWER-
False. Which of the following is not a type of arc that can be drawn in SOLIDWORKS: 3 Point arc Variable arc Center point arc
Tangent arc - CORRECT ANSWER- Variable arc.
Which arc tool only requires two points to be created: Centerpoint arc Tangent arc 3 point arc
None of the above - CORRECT ANSWER- Tangent Arc
The Tangent arc is the only arc that requires existing geometry. T or F? -
CORRECT ANSWER- True.
When creating a sketch chamfer, the order in which geometry is selected does not
matter. T or F? - CORRECT ANSWER- False.
Which of the following operations will invoke the trim entities command:
- Tools> Sketch Tools> Trim Entities
- Command Manager> Sketch Toolbar> Trim Entities
- Right Click on sketch> Trim Entities
4. All of the above - CORRECT ANSWER- 4. All of the above.
Which of the following trimming methods is considered to be the most flexible trimming method and requires the cursor to be dragged over the entities to be erased: Power Trim Corner Trim away inside
Trim to closest - CORRECT ANSWER- Power Trim
Which of the following trimming methods can be used to trim or extend and entity to the nearest intersection: Power Trim Corner Trim away inside
Trim to closest - CORRECT ANSWER- Trim to closest.
The function of the red square which appears as the power trim cursor is being dragged is:
- To allow the user to skip over and edge not meant to be deleted
- To auto-select all nearby edges to be deleted
- To allow to user to pick a point to extend an edge to
4. To allow the user to undo unwanted trims - CORRECT ANSWER- To allow the
user to undo unwanted trims. Which pair of trimming methods requires the user to first select two bounding entities or a face and then select the entities to be trimmed: Power trim, corner Trim to closest, power trim Trim away inside, trim away outside
Trim to closest, Trim away outside - CORRECT ANSWER- Trim away inside,
trim away outside The second axis for an ellipse is the minor axis which must be smaller than the
major axis set beforehand. T or F? - CORRECT ANSWER- False.
The partial ellipse tool has the option to specify what angle the ellipse contour
passes through. T or F? - CORRECT ANSWER- True.
When sketching a center point straight slot, the second point selection sets:
- The edge of the slot contour
- The center point
A coincident relation can constrain two lines to lie along the same path. T or F? -
CORRECT ANSWER- False.
A perpendicular relation does not force the selected entities to intersect. T or F?
- CORRECT ANSWER- True. In order to create a symmetric relation between two entities, a construction line
must divide them and be chosen as the axis of symmetry. T or F? - CORRECT
ANSWER- True.
A co-radial relation is a combination of which two sketch relations: Concentric and tangent Tangent and equal radius Concentric and equal radius
None of the above - CORRECT ANSWER- Concentric and equal radius.
Which of the following is not an automatic relation that can be added to a sketch profile Coincident Perpendicular 45 Degree angle
Collinear - CORRECT ANSWER- 45 Degree angle
Automatic sketch relations are immediately added once the sketch element is
drawn. T or F? - CORRECT ANSWER- True.
Utilizing inference lines will always result in automatic sketch relations being added
to the sketch. T or F? - CORRECT ANSWER- False.
A yellow icon with two concentric circles indicates which aspect about the sketch:
- The point being sketched will be concentric with a curved sketch entity
- The point being sketched will be coincident with the endpoint of another sketch element
- The point being sketched will create a curved sketch entity
4. None of the above - CORRECT ANSWER- 2. The point being sketched will be
coincident with the endpoint of another sketch element Which of the following automatic relations will not appear when you sketch on a yellow inference line immediately after sketching another line: Perpendicular Parallel Vertical or Horizontal
Collinear - CORRECT ANSWER- Parallel
Sketch entities shown in blue are: - CORRECT ANSWER- Under defined
It is best practice to add dimensions first followed by sketch relations. T or F? -
CORRECT ANSWER- False.
- The symmetric relations and the sketch on the other side remain unchanged
- The sketch entity on the other side is deleted, but the symmetric relations
remain unchanged - CORRECT ANSWER- 1. The sketch entity on the other side
will be deleted as well
To use a symmetric sketch relation, how many entities must be selected -
CORRECT ANSWER- 3
Which types of geometry can you offset using the offset entities tool: Sketch entities Existing model edges Model Faces
All of the above - CORRECT ANSWER- All of the above
When you create new sketch entities using the convert entities sketch tool, any
changes made to the original entities will cause new entities to update. T or F? -
CORRECT ANSWER- True.
What option in the offset entities property manager must be selected in order to use the cap ends option: Base geometry Reverse Add dimensions
Bi-directional - CORRECT ANSWER- Bi-directional
When you use the convert entities sketch tool, what geometric relation is automatically added between the new sketch geometry and the entity: Fix Pierce On edge
Symmetric - CORRECT ANSWER- On edge
When you use convert entities, the geometry to be converted cannot be
perpendicular to the sketch plane. T or F? - CORRECT ANSWER- True.
The contour selection tool is automatically activated when a new sketch is started.
T or F? - CORRECT ANSWER- False.
Contours can be chosen by:
- Selecting the perimeter shapes
- Selecting the internal shapes
- Both 1 and 2
4. None of the above - CORRECT ANSWER- 3. Both selecting perimeter and
internal shapes If a sketch is listed under a feature in the feature manager design tree, it cannot
be used to create a new feature. T or F? - CORRECT ANSWER- True.
To apply the cut-extrude command to only a single contour of a sketch with multiple contours:
Which of the following statements best describes the merge result check box in the extruded boss property manager:
- Combines multiple extruded bosses into a single feature
- Combines the resultant feature into an existing solid body if the resultant feature coincides or intersects an existing body
- Forces SOLIDWORKS to ignore the weight of the resultant feature in mass properties calculations
4. Combines multiple closed sketch profiles into a single extruded boss feature -
CORRECT ANSWER- 2. Combines the resultant feature into an existing solid
body if the resultant feature coincides or intersects with an existing body Extruded cuts always cut through the entire part if the blind option is selected. T
or F? - CORRECT ANSWER- False.
What type of path does the revolve feature use? - CORRECT ANSWER-
Circular.
A construction line must be used as the centerline of the revolve feature. T or F? -
CORRECT ANSWER- False.
The diameter of the revolve feature can be specified in the sketch profile. T or F?
- CORRECT ANSWER- True. Which of the following is not an end condition found in the "Revolved Boss/Base" property manager:
Blind Up to Vertex Offset from Surface
Up to Body - CORRECT ANSWER- Up to Body
Revolved features can create multiple solid bodies. T or F? - CORRECT
ANSWER- True.
Creating a round using the fillet feature causes material to be added. T or F? -
CORRECT ANSWER- False.
The "select through faces" option allows you to select hidden edges to be filleted.
T or F? - CORRECT ANSWER- True.
Multiple edges can have the same radius value within a single fillet feature. T or F?
- CORRECT ANSWER- True. Which of the following is not an available chamfer type: Angle Angle Angle Distance Distance Distance
None of the above - CORRECT ANSWER- Angle Angle.
The "Distance Distance" chamfer type has which of the following options: Offset distance
Which of the following end conditions is not defined by existing 3D geometry: Through all Up to surface Up to body
Offset from surface - CORRECT ANSWER- Through all
Which of the following end conditions does not match the entire contour of a body's surface: Up to next Up to surface Up to body
None of the above - CORRECT ANSWER- Up to surface
The "Up to body" end condition allows a sketch profile to extrude through other
bodies. T or F? - CORRECT ANSWER- True.
Which end condition requires existing geometry to be selected as well as specified
distance - CORRECT ANSWER- Offset from surface
How many sketches does the hole wizard create in the feature tree? - CORRECT
ANSWER- 2
What can you do if you want to add different types of holes using the hole wizard:
- Use the same hole wizard feature to add different holes
- You can only add countersink holes using the hole wizard
- Add the holes as separate hole wizard features
4. You can only add counterbore holes using the holes wizard - CORRECT
ANSWER- 3. Add the holes as separate hole wizard features
The hole wizard cannot position holes in 3D sketches. T or F? - CORRECT
ANSWER- False.
What should you do if you need to make changes to an existing hole wizard hole? -
CORRECT ANSWER- Edit the hole wizard feature, not the sketches.
When positioning hole wizard holes, multiple instances of the same hole type can be
created. T or F? - CORRECT ANSWER- True.
When a linear pattern is being created and changes are made to the original geometry, the copies of the geometry will not update and reflect the changes. T or
F? - CORRECT ANSWER- False.
The linear pattern property manager requires that a direction be defined by the direction reference. Which of the following can be used as direction references for a linear pattern: Linear edges of a solid model Planes Curved Faces
Linear Edges and planes - CORRECT ANSWER- Linear edges
