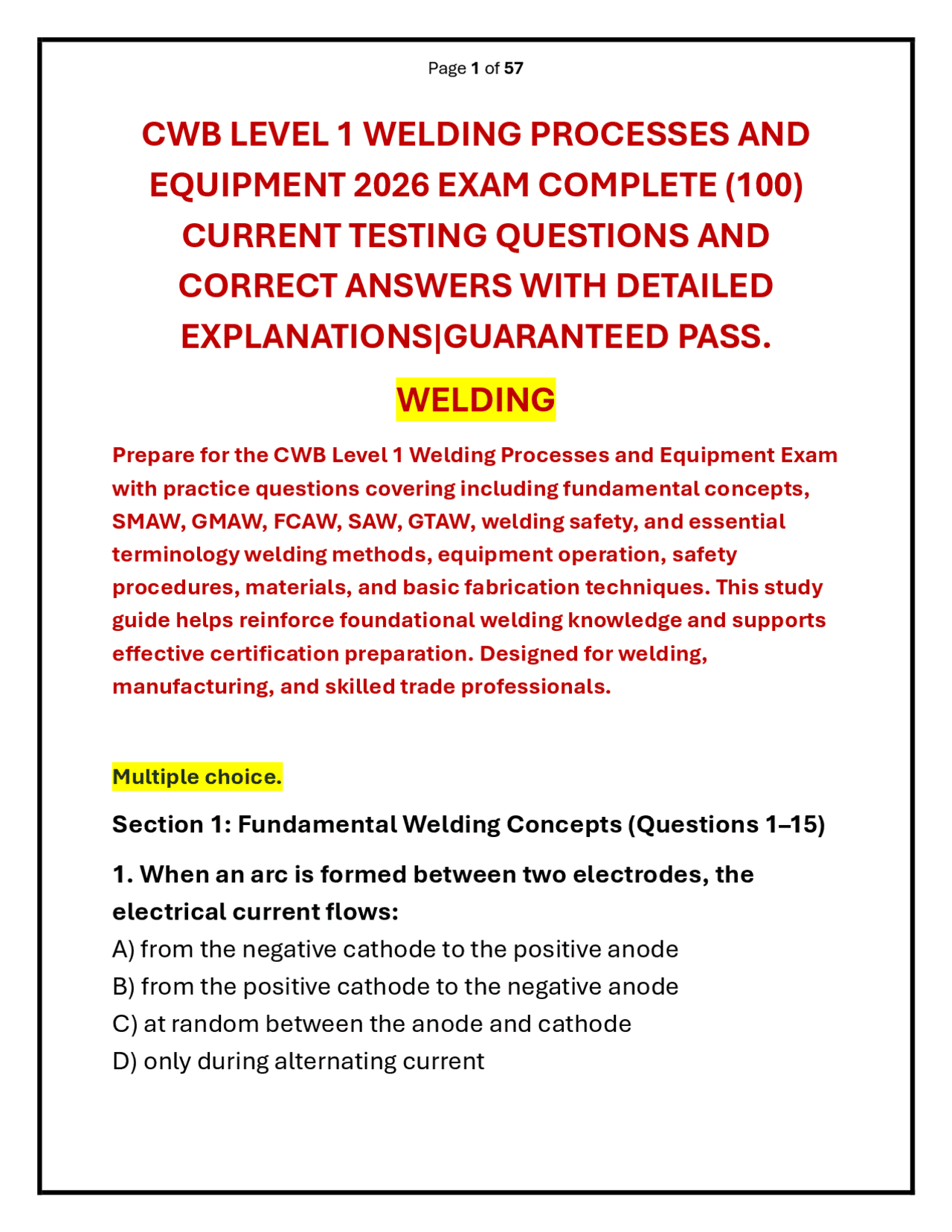

CWB LEVEL 1 WELDING PROCESSES AND
EQUIPMENT 2026 EXAM COMPLETE (100)
CURRENT TESTING QUESTIONS AND
CORRECT ANSWERS WITH DETAILED
EXPLANATIONS|GUARANTEED PASS.
WELDING
Prepare for the CWB Level 1 Welding Processes and Equipment Exam with practice questions covering including fundamental concepts, SMAW, GMAW, FCAW, SAW, GTAW, welding safety, and essential terminology welding methods, equipment operation, safety procedures, materials, and basic fabrication techniques. This study guide helps reinforce foundational welding knowledge and supports effective certification preparation. Designed for welding, manufacturing, and skilled trade professionals. Multiple choice. Section 1: Fundamental Welding Concepts (Questions 1–15)
- When an arc is formed between two electrodes, the electrical current flows: A) from the negative cathode to the positive anode B) from the positive cathode to the negative anode C) at random between the anode and cathode D) only during alternating current
Answer: A. from the negative cathode to the positive anode Explanation: The direction of conventional current flow in a welding arc is from the negative electrode (cathode) to the positive electrode (anode). In DCEN (Direct Current Electrode Negative), the electrode is the cathode and the workpiece is the anode; therefore, electrons flow from negative to positive.
- What are the two main methods of arc shielding in welding? A) Gas shielding and vacuum shielding B) Flux shielding and gas shielding C) Water shielding and flux shielding D) Magnetic shielding and gas shielding Answer: B. Flux shielding and gas shielding Explanation: The two primary methods of protecting the molten weld pool from atmospheric contamination are gas shielding (e.g., GMAW, GTAW) and flux shielding (e.g., SMAW, FCAW). Flux may produce a gas shield and a slag covering to protect the weld.
- The heat of the welding arc is used to: A) heat the entire workpiece B) locally melt the base material and filler material to create fusion upon solidification C) only melt the filler material D) preheat the workpiece
Answer: C. travel angle Explanation: The travel angle is the angle of the electrode or torch relative to the direction of welding. It influences the depth of penetration and the shape of the weld bead, helping to direct the molten weld pool along the joint.
- Which of the following is an example of solid state welding (SSW)? A) Gas tungsten arc welding (GTAW) B) Oxy-fuel welding (OFW) C) Explosion welding (EXW) D) Submerged arc welding (SAW) Answer: C. Explosion welding (EXW) Explanation: Solid-state welding processes join materials without melting the base metal. Explosion welding (EXW) uses controlled detonations to bond metals at high velocity and pressure. Other examples include friction welding and ultrasonic welding.
- What is the primary function of the covering on a shielded metal arc welding (SMAW) electrode? A) To provide color for identification B) To provide deoxidizers, arc stabilizers, and a shielding gas/slag C) To increase the current carrying capacity of the electrode D) To make the electrode stiffer
Answer: B. To provide deoxidizers, arc stabilizers, and a shielding gas/slag Explanation: The electrode coating (flux) performs multiple functions: it provides a protective gas shield and slag cover, stabilizes the arc, adds deoxidizing elements to the weld metal, and can introduce alloying elements to improve the weld deposit‘s mechanical properties.
- In resistance welding, the heat required to fuse the metal is generated by: A) an electric arc B) a chemical reaction C) electrical resistance in the workpiece and at the faying surfaces D) an exothermic compound Answer: C. electrical resistance in the workpiece and at the faying surfaces Explanation: Resistance welding (e.g., spot welding) utilizes Joule heating. When a high electrical current passes through the workpieces, the greatest resistance occurs at the interface (faying surfaces), generating intense localized heat that melts and forges the metals together.
- What is an autogenous weld? A) A weld made with a continuously fed electrode B) A weld made without the addition of filler material C) A weld that has been stress-relieved D) A weld made by an automated process
Answer: C. Gas tungsten arc welding (GTAW) Explanation: In GTAW (TIG), the tungsten electrode does not become part of the weld. The arc is established between this non-consumable electrode and the workpiece, while filler metal is added separately, if required. This process is known for producing high-quality, clean welds.
- What term describes a smooth, uniform deposit of filler metal along the joint? A) Weld spatter B) Weld bead C) Weld crater D) Weld root Answer: B. Weld bead Explanation: A weld bead is the continuous deposit of filler metal produced in a single welding pass. A well-formed bead has a uniform width and height, indicating proper technique and adherence to the welding procedure.
- Two examples of physical properties that influence the GMAW arc are: A) flow rate, temperature range, and density B) radiation potential, thermal expansion, and weight C) thermal conductivity, density, and viscosity D) ionizing potential, thermal conductivity, and specific gravity Answer: D. ionizing potential, thermal conductivity, and specific gravity
Explanation: The stability and characteristics of a GMAW arc are directly affected by the physical properties of the shielding gas used. Ionizing potential affects how easily the arc starts, thermal conductivity influences heat transfer, and specific gravity determines how the gas blanket behaves in different welding positions.
- The portion of the weld that was penetrated below the original surface of the base metal is known as: A) reinforcement B) root pass C) penetration D) cover pass Answer: C. penetration Explanation: Penetration (or depth of fusion) refers to the depth the weld extends into the base material. Adequate penetration is essential for achieving the required strength of the joint and is influenced by welding current, travel speed, and technique.
- Which of the following is NOT a requirement for a welding arc to be established? A) A sufficient voltage B) A conductive path (the electrode and workpiece) C) An insulating layer of flux between the electrode and workpiece D) A suitable atmosphere for ionization
tip and the workpiece (arc length), and the angle of the electrode relative to the joint axes.
- What do the first two digits of an SMAW electrode classification (e.g., E4918) indicate? A) The weld metal‘s minimum tensile strength B) The welding position for which the electrode is suitable C) The type of current the electrode can be used with D) The type of electrode coating Answer: A. The weld metal's minimum tensile strength Explanation: In the CSA (Canadian Standards Association) system, the first two digits (e.g., ‘49’ in E4918) indicate the minimum tensile strength of the weld deposit in thousands of psi. For example, E4918 has a minimum tensile strength of 490 MPa (70 ksi).
- What does the third digit in an SMAW electrode classification represent? A) The minimum tensile strength B) The welding position(s) for which the electrode is qualified C) The type of coating and the polarity of current D) The chemical composition of the core wire Answer: B. The welding position(s) for which the electrode is qualified Explanation: In the designation system, the third digit (e.g., the ‘1’ in E4918) indicates the welding positions. A ‘1’ means it is an ‘all-position’ electrode (flat, horizontal, vertical,
overhead), while ‘2’ restricts it to flat and horizontal positions only.
- The last two digits in the SMAW electrode classification E4918 indicate: A) The type of coating and operating characteristics (current/polarity) B) The minimum tensile strength C) The chemical composition of the flux D) The manufacturer’s batch number Answer: A. The type of coating and operating characteristics (current/polarity) Explanation: The last two digits indicate the type of covering and the type of current for which the electrode is designed. The ‘18’ in E4918 designates a low-hydrogen covering suitable for DC+ or AC, and is known for producing high-quality, crack-resistant deposits.
- According to CSA W48, low-hydrogen SMAW electrodes (e.g., E4918) are classified in what group? A) F B) F C) F D) F Answer: D. F Explanation: CSA W48 groups electrodes based on their operating characteristics. Low-hydrogen electrodes, such as
Answer: C. CC power supply, electrode holder, and ground cable Explanation: The SMAW system is relatively simple. It uses a constant current (CC) power source to maintain a stable arc despite variations in arc length. The key components are the power supply, electrode holder (stinger), and the ground (work) cable. No external shielding gas is required as the electrode‘s flux provides the protection.
- SMAW power supplies are typically of the constant current (CC) type because: A) they automatically adjust the voltage to maintain a stable arc length as the welder manipulates the electrode B) they automatically adjust the wire feed speed to maintain a constant current C) they operate at a fixed voltage regardless of arc length D) they require a high-frequency generator to strike the arc Answer: A. they automatically adjust the voltage to maintain a stable arc length as the welder manipulates the electrode Explanation: In SMAW, the welder manually controls the arc length. A constant current (CC) power source responds to changes in arc length by varying the voltage, keeping the current relatively constant. This prevents large current spikes that could burn through the workpiece or cause an unstable arc.
- What is arc blow in SMAW and how can it be minimized? A) Excessive spatter caused by high current; reduce current
B) Deflection of the arc due to magnetic fields; use AC instead of DC or change ground connection position C) Porosity caused by moisture in the flux; re-bake electrodes D) Incomplete fusion at the weld toe; increase travel speed Answer: B. Deflection of the arc due to magnetic fields; use AC instead of DC or change ground connection position Explanation: Arc blow is a phenomenon where the welding arc is deflected from its intended path by magnetic fields generated by the welding current. It is more common with DC. Minimizing it involves using AC, repositioning the work lead, or reducing the arc length.
- Each electrode for SMAW must have its classification imprinted on the flux covering. This statement is: A) True B) False Answer: A. True Explanation: CSA W48 standards require that all SMAW electrodes be clearly marked with their classification (e.g., E4918) to ensure traceability and correct usage. This marking is applied to the flux covering near the grip end of the electrode.
- Which of the following is NOT a typical function of the flux covering on an SMAW electrode? A) To provide a gas shield around the arc B) To produce a slag that covers and protects the cooling weld
low-humidity oven (often called a rod oven) at a manufacturer-specified temperature, typically around 120 - 150°C.
- The primary control on a SMAW power source that the welder uses to set the heat input is: A) voltage B) current (amperage) C) wire feed speed D) gas flow rate Answer: B. current (amperage) Explanation: In SMAW, the heat of the arc is primarily controlled by adjusting the welding current (amperage) on the power source. Higher current increases penetration and deposition rate, while lower current reduces heat input and is used for thinner materials or out-of-position welding.
- If an SMAW electrode‘s classification number ends with ‘8’ (e.g., E4918), what does it signify about its iron powder content? A) It contains no iron powder B) It contains iron powder, which increases deposition efficiency C) It contains iron powder for color coding D) Iron powder in the coating is used exclusively for underwater welding Answer: B. It contains iron powder, which increases deposition efficiency
Explanation: In SMAW electrode classifications, an ending of ‘8’ (like the ‘18’ in E4918) indicates an electrode with an iron powder, low-hydrogen coating. The iron powder in the flux increases the deposition rate (the amount of weld metal deposited per hour) and helps produce a smooth, fine-rippled bead appearance.
- An SMAW electrode with an E4910 classification is commonly used for: A) Welding in all positions with a deep-penetrating arc and fast-freezing slag B) High-deposition flat and horizontal fillet welds C) Welding stainless steel D) Welding cast iron Answer: A. Welding in all positions with a deep-penetrating arc and fast-freezing slag Explanation: The ‘10’ classification denotes a high-cellulose sodium coating. This electrode produces a deeply penetrating, forceful arc and a fast-freezing slag, making it ideal for vertical-up and overhead welding, as well as for welding through light rust and mill scale. Section 3: Gas Metal Arc Welding (GMAW / MIG) (Questions 31 – 45)
- In Gas Metal Arc Welding (GMAW), the welding arc is established between:
- In GMAW, the shielding gas serves to protect the molten weld pool from contamination by the atmosphere. Argon is commonly used for welding non-ferrous metals because: A) it produces a deep, narrow penetration profile B) it reduces spatter and promotes a stable arc C) it is an inert gas, meaning it does not react with the weld metal D) it is a reactive gas that improves wetting Answer: C. it is an inert gas, meaning it does not react with the weld metal Explanation: Argon is an inert gas (noble gas) that does not chemically react with the weld pool. It is the primary shielding gas for non-ferrous metals like aluminum and magnesium. In contrast, carbon dioxide (CO₂) is an active gas that participates in the arc chemistry and is used for ferrous metals.
- Which shielding gas mixture is commonly used for welding low-carbon steel with GMAW to achieve a balance between weld quality, penetration, and cost? A) 100% Helium B) 100% Argon C) 75-90% Argon / 10-25% Carbon Dioxide (CO₂) D) 100% Carbon Dioxide Answer: C. 75-90% Argon / 10-25% Carbon Dioxide (CO₂) Explanation: An argon-CO₂ mixture is the most common shielding gas for GMAW on low-carbon steel. The argon
provides arc stability and minimizes spatter, while the CO₂ is an active gas that improves penetration, bead wetting, and overall weld quality at a lower cost than pure argon.
- Which transfer mode in GMAW is characterized by a ‘pop and sizzle‘ sound, a somewhat irregular arc, and a significant amount of spatter? A) Spray transfer B) Globular transfer C) Short-circuiting (short-arc) transfer D) Pulsed spray transfer Answer: B. Globular transfer Explanation: Globular transfer occurs at lower current levels and produces large, irregular droplets of molten metal that cross the arc gap under the influence of gravity. This results in a less stable arc, a characteristic popping sound, and a high degree of spatter. It is typically used less often in production welding due to its lower quality.
- The short-circuiting (short-arc) transfer mode in GMAW is best suited for: A) welding thick plates in the flat position B) high-deposition overlay applications C) welding thin sheet metal and out-of-position joints D) deep-penetration root passes Answer: C. welding thin sheet metal and out-of-position joints
