P. Thomas and H.-W. Gellersen (Eds.): HUC 2000, LNCS 1927, pp. 172-186, 2000. © Springer-Verlag Berlin Heidelberg 2000

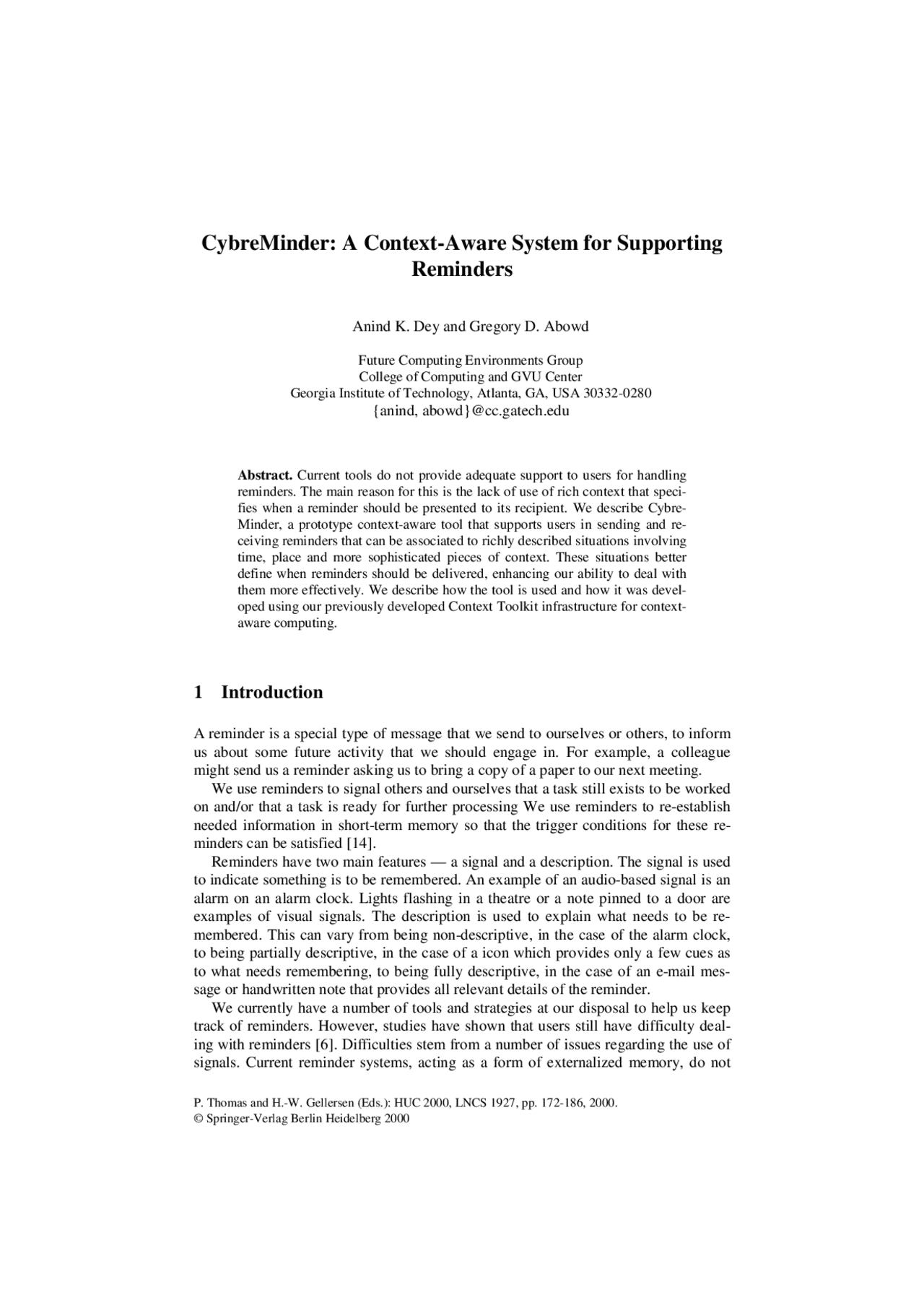

CybreMinder: A Context-Aware System for Supporting
Reminders
Anind K. Dey and Gregory D. Abowd
Future Computing Environments Group College of Computing and GVU Center Georgia Institute of Technology, Atlanta, GA, USA 30332- {anind, abowd}@cc.gatech.edu
Abstract. Current tools do not provide adequate support to users for handling reminders. The main reason for this is the lack of use of rich context that speci- fies when a reminder should be presented to its recipient. We describe Cybre- Minder, a prototype context-aware tool that supports users in sending and re- ceiving reminders that can be associated to richly described situations involving time, place and more sophisticated pieces of context. These situations better define when reminders should be delivered, enhancing our ability to deal with them more effectively. We describe how the tool is used and how it was devel- oped using our previously developed Context Toolkit infrastructure for context- aware computing.
1 Introduction
A reminder is a special type of message that we send to ourselves or others, to inform us about some future activity that we should engage in. For example, a colleague might send us a reminder asking us to bring a copy of a paper to our next meeting. We use reminders to signal others and ourselves that a task still exists to be worked on and/or that a task is ready for further processing We use reminders to re-establish needed information in short-term memory so that the trigger conditions for these re- minders can be satisfied [14]. Reminders have two main features — a signal and a description. The signal is used to indicate something is to be remembered. An example of an audio-based signal is an alarm on an alarm clock. Lights flashing in a theatre or a note pinned to a door are examples of visual signals. The description is used to explain what needs to be re- membered. This can vary from being non-descriptive, in the case of the alarm clock, to being partially descriptive, in the case of a icon which provides only a few cues as to what needs remembering, to being fully descriptive, in the case of an e-mail mes- sage or handwritten note that provides all relevant details of the reminder. We currently have a number of tools and strategies at our disposal to help us keep track of reminders. However, studies have shown that users still have difficulty deal- ing with reminders [6]. Difficulties stem from a number of issues regarding the use of signals. Current reminder systems, acting as a form of externalized memory, do not
CybreMinder: A Context-Aware System for Supporting Reminders 173
present appropriate signals at appropriate times. More specifically, these tools are not sufficient because they are not proactive and do not make use of rich contextual in- formation to trigger reminders at appropriate times in appropriate locations. Herstad et al. claim that in order to build useful, functional and powerful tools for supporting human-human interaction, we must take context into account [9]. For example, to be most effective, a reminder to bring a paper to a meeting should be delivered when we are leaving our office and heading towards the meeting, and not when we happen to read our e-mail. We will investigate this idea further by looking at traditional ways of handling reminders, indicating how insufficient use of context causes problems. By reviewing existing reminder tools, we will show that users have trouble dealing with reminders due to the lack of use of rich context. We will then propose a list of features that an ideal reminder should support. We describe CybreMinder, a reminder tool that supports these features and some scenarios that it currently supports. Finally, we describe CybreMinder’s system architecture and how it leverages off an existing context-sensing infrastructure (the Context Toolkit [4,16]) to allow the specification of situations in which reminders can be delivered.
2 Current Reminder Tools
We use a variety of tools that help us in creating and managing our reminders. In this section, we examine these tools and investigate our claim that they do not use enough context information to adequately support our needs. This brief review of reminder tools will lead us to a list of desirable features for a context-aware reminder system.
2.1 Paper To-Do Lists
A common reminder tool is a to-do list written on a piece of paper. The to-do list may contain both traditional calendar/scheduler information and a set of tasks that need to be completed. While it is simple to create a list, it is not so easy to remember to use it in the appropriate situation. A to-do list lacks the ability to proactively remind us when an item on the list needs to be accomplished. Instead, the list creator must re- member to check it often, to determine which items need/can be accomplished. In other words, a to-do list provides reminders with descriptions, but no signals.
2.2 E-Mail Mailbox
An e-mail mailbox is often used as an informal to-do list. Some people send them- selves e-mail as a reminder to perform some activity at a later date. A study of e-mail tool usage showed that when checking their e-mail, people often flag messages con- taining to-do items to create a visual reminder [8]. Another strategy is to file them in a special mail folder, creating the electronic equivalent of a paper-based to-do list. As with the paper-based to-do list, e-mail tools cannot proactively remind us of to-do items. We are forced to repeatedly review these flagged or stored messages, in an
CybreMinder: A Context-Aware System for Supporting Reminders 175
may not be enough. In most cases, personal assistants can only present reminders when they are co-located with us. They can provide two types of reminders, those that are relevant right now and those that are relevant in a future context when they will not be with us. It is the second case that is troublesome. How many of us have been re- minded to pick up an item from a grocery store as we are leaving for work, only to forget to stop at the store on the way home? An ideal assistant would provide the re- minder in the context that maximizes the chance for appropriate action.
2.6 Desired Features of a Reminder System
The externalized memory tools we have discussed are simple to use, but all take lim- ited advantage of context for signaling; or for indicating that a reminder is relevant in our current situation. Human assistants come closest to being the ideal reminder tool, but as shown, there are opportunities to improve on their capabilities, and we cannot all have human assistants. Based on our analysis of current tools, here is a list of the features an ideal reminder tool should support:
- the use of rich context for specifying reminders, beyond simple time and location and for proactively determining when to deliver them;
- the ability for users and third parties to submit reminders;
- the ability to create reminders using a variety of input devices;
- the ability to receive reminders using a variety of devices, appropriate to the user’s situation;
- the use of reminders that include both a signal that something is to be remembered and a full description of what is to be remembered; and
- allowing users to view a list of all active reminders.
3 Related Work
There has not been a lot of previous work in the area of context-aware reminders. As discussed in the previous section, commercial efforts have focused on e-mail tools that use no context or PIM tools that use only time. Another system that uses time-aware reminders is Lifestreams [6]. Lifestreams is a system for organizing documents that is intended to replace conventional files and directory structures. Instead, Lifestreams organizes documents temporally, based on when they were created, received, and/or modified. The beginning of a stream contains the oldest documents while the end of a stream contains the most recently created documents. The interface allows users to even visit the future portion of the document stream. When a user creates a document in the future portion of the stream, they are effectively creating a time-based reminder. When they return to present time, these documents are hidden and only appear when present time matches the future time of the documents. The comMotion project [13] moved beyond this by using a combination of location and time information to deliver relevant messages. When a reminder message is cre- ated, a location is associated with it. Then, when the intended recipient arrives at that
176 A.K. Dey and G.D. Abowd
location (work or a grocery store, for example), the messages associated with that location are delivered via speech synthesis. In addition, when a user arrives at work, her calendar events for that day are delivered, taking advantage of time as well as location information. Proem is a wearable computer-based system that supports profile-based coopera- tion [11]. Wearers can write simple rules that indicate their interests in other people. When someone physically close to the wearer has a profile that matches one or more of his interests, Proem can alert him. Interests are limited to fairly static pieces of information such as names and personal interests and hobbies. Memory Glasses is a wearable computer-based context-aware reminder system [3]. It proposes the use of time, location, and activity to deliver reminders. It focuses on personal context and uses body-worn sensors (a camera and a microphone) to deter- mine what activity the wearer is engaged in, including walking down stairs or taking part in a conversation. When Memory Glasses determines the current activity, remind- ers associated with that activity are presented to the using audio output. Memory Glasses proposes that knowledge of this activity may be used to better determine when it is appropriate to interrupt the wearer with a reminder. While these systems address many of the features of an ideal reminder tool, they are limited by their restricted use of context. The notion of context is quite rich and encompasses many information types beyond location, time and activity, such as identity, physical/environmental conditions, as well as information about other indi- viduals besides the user [5,18]. As the context associated with a reminder is made richer, the system’s ability to deliver the reminder in the appropriate situation is im- proved. The CybreMinder reminder tool we will present in the next section attempts to address all the features of the ideal reminder tool, concentrating on increasing the variety of context used to associate with reminders. It is not intended to replace exist- ing calendar or to-do list tools, but to augment them.
4 The CybreMinder Tool
To aid our investigation of reminder tools and interfaces, we built the Java-based CybreMinder tool. It has two main parts — reminder creation and reminder delivery.
4.1 Reminder Creation
When users launch CybreMinder, they are presented with an interface that looks quite similar to an e-mail creation tool. As shown in Figure 1, users can enter the names of the recipients for the reminder. The recipients could just be themselves, indicating a personal reminder, or a list of other people, indicating a third party reminder is being created. The reminder has a subject, a priority level (ranging from lowest to highest), a body in which the reminder description is placed, and an expiration date. The expira- tion date indicates the date and time at which the reminder should expire and be deliv- ered, if it has not already been delivered.
178 A.K. Dey and G.D. Abowd
Fig. 3. Sub-situation editor The user indicates which context types are important by selecting the checkbox next to those attributes. For the types that they have selected, users may enter a rela- tion other than ‘=’. For example, the user can set the timestamp after 9 p.m. by using the ‘>’ relation. Other supported relations are ‘>=’, ‘<’, and ‘<=’. For the context value, users can either choose from a list of pre-generated values, or enter their own. At the bottom of Figure 2, the currently specified situation is visible. The overall situation being defined is the conjunction of the sub-situations listed. Once a reminder and an associated situation have been created, the user can send the reminder. If there is no situation attached, the reminder is delivered immediately after the user sends the reminder. However, unlike e-mail messages, sending a reminder does not necessarily imply immediate delivery. If a situation is attached, the reminder is delivered to re- cipients at a future time when all the sub-situations can be simultaneously satisfied. If the situation cannot be satisfied before the reminder expires, the reminder is delivered both to the sender and recipients with a note indicating that the reminder has expired.
4.2 Reminder Delivery
Thus far, we have concentrated on the process of creating context-aware reminders. We will now describe the delivery process. When a reminder can be delivered, either because its associated situation was satisfied or because it has expired, CybreMinder determines what is the most appropriate delivery mechanism for each reminder recipi- ent. The default signal is to show the reminder on the closest available display, aug- mented with an audio cue. However, if a recipient wishes, they can specify a configu- ration file that will override this default. A user’s configuration file contains information about all of the available methods for contacting the user, as well as rules defined by the user on which method to use in which situation. If the recipient’s current context and reminder information (sender identity and/or priority) matches any situation defined in his configuration file, the specified delivery mechanism is used. Currently, we support the delivery of reminders via SMS on a mobile phone, e-mail, displaying on a nearby display (wearable, hand- held, or static CRT) and printing to a local printer (to emulate paper to-do lists).
CybreMinder: A Context-Aware System for Supporting Reminders 179
Fig. 4. Delivered reminder
Fig. 5. List of all reminders For the latter three mechanisms, both the reminder and associated situation are de- livered to the user. Delivery of the situation provides additional useful information to the user, helping them understand why the reminder is being sent at this particular time. Along with the reminder and situation, users are given the ability to change the status of the reminder (Figure 4). A status of “completed” indicates that the reminder has been addressed and can be dismissed. The “delivered” status means the reminder has been delivered but still needs to be addressed. A “pending” status means that the reminder should be delivered again when the associated situation is next satisfied. Users can explicitly set the status through a hyperlink in an e-mail reminder or through the interface shown in Figure 4. Since SMS messages have limited length, only the subject of a reminder is deliv- ered when using this delivery mechanism. Users receiving such an SMS message have the option of going to a networked device and launching their interface (Figure
- to CybreMinder. By selecting the View All tab, users can view a personalized list of all reminders and can change the status of any of these reminders (Figure 5).
CybreMinder: A Context-Aware System for Supporting Reminders 181
5.3 Co-location-Based Reminder
Of the systems we reviewed, only Proem [11] supported proactive reminders when two or more people were co-located in an arbitrary location. It can be argued that post-it notes could be used in this setting, although it currently breaks normal social conventions to stick post-it notes to people. An example co-location scenario follows: Sally wants to engage a colleague in a discussion about an interesting paper she read, but forgets when she sees her colleague. She can create a context-aware reminder that will be delivered when she is in close proximity with her colleague. The situation she creates is slightly more complex than the ones we have discussed so far, and it makes use of variables. Variables allow users to create relationships between sub-situations. First Sally creates an initial sub-situation where she sets the user name to be her col- league’s name and the location to be variable (indicated in Table 1 by *1). Then, she creates a second sub-situation, where she sets the user name to be her name and the location to the variable used in the first sub-situation. Now when Sally and her col- league are in the same arbitrary location, the reminder will be delivered.
5.4 Complex Reminder
CybreMinder supports the unlimited use of rich context, allowing users to create as rich a situation as can be sensed. We describe two such situations. In the first scenario, Bob owns stock in Company X and has decided to sell that stock when it is valued over $50 per share. He only wants to be reminded to sell, however, when he is alone and has free time. To create this situation to signal a reminder to sell, Bob creates a number of sub-situations: stock price of company X > $50, Bob is the only occupant of his location, and Bob’s schedule shows that he has > 30 minutes before his next meeting. When this situation occurs, Bob receives the reminder to sell his stock. In our second complex scenario, Sally needs to make a phone call to her friend Tom. She wants to receive a context-aware reminder when she arrives at her office, has some free time in her schedule, and her friend is not busy. To create this situation, she creates three sub-situations: Sally is in her office, Tom’s activity status is low, and Sally has at least one hour before her next appointment.
6 The CybreMinder Architecture
In the previous two sections, we described how CybreMinder works from the user’s perspective. Here, we discuss how CybreMinder was built. When users write situa- tions to be associated with reminders, CybreMinder must have a way to determine when they have been realized. It uses the Context Toolkit 1 for this purpose.
(^1) The Context Toolkit and tutorial can be downloaded from http://www.cc.gatech.edu/fce/
contexttoolkit.
182 A.K. Dey and G.D. Abowd
6.1 The Context Toolkit
The Context Toolkit is a software toolkit that aids in the building of context-aware applications [4,16]. It promotes three main concepts for building context-aware appli- cations; separation of context sensing, or acquisition, from context use; context aggre- gation; and context interpretation. It relieves developers from having to deal with how to sense and access context information, allowing them instead to concentrate on how to use the context. It provides simplifying abstractions like aggregation and interpre- tation to make it easier for applications to obtain the context they require. Aggregation provides “one-stop shopping” for context about an entity, allowing application design- ers to think in terms of high level information, rather than low-level details.
Fig. 6. Context Toolkit components: arrows indicate data flow The architecture makes it easy to add the use of context to existing applications that don’t use context and to evolve applications that already use context. In addition, the architecture makes context-aware applications resistant to changes in the context- sensing layer. It encapsulates changes and the impact of changes, so applications do not need to be modified. The Context Toolkit consists of three basic building blocks: context widgets, context aggregators and context interpreters. Figure 6 shows the relationship between the context components and applications. Context widgets encapsulate information about a single piece of context, such as location or activity, for example. They provide a uniform interface to components or applications that use the context, hiding the details of the underlying context-sensing mechanism(s). They allow other components to both poll and subscribe to the context information they maintain. Widgets are mainly re- sponsible for collecting information about the environment. However, they also sup- port services that allow them to affect the environment. For example, a Light widget that detects the intensity of the light in a particular location, and have a service that controls a lamp to change the intensity. A context aggregator is very similar to a widget, in that it supports the same set of features as a widget. The difference is that an aggregator aggregates multiple pieces of context. In fact, it is responsible for the entire context about a particular entity (person,
184 A.K. Dey and G.D. Abowd
Services can also return information to the component that calls them. For example, the display service not only shows the reminder and associated situation, but also a form allowing the user to set the state of this reminder. The user input to this form is sent back to the recipient’s aggregator, which can update the reminder status. In the case of SMS, when the user must set the status using the CybreMinder, the application contacts the user’s aggregator and queries for all the reminders and associated infor- mation. The application sends any updated status information to the aggregator.
7 Conclusions and Future Work
The goal of CybreMinder is to provide users with a tool that provides appropriate support for dealing with reminders. In particular, our objective is to support all the features of an ideal reminder tool:
- use of rich context for specifying reminders, beyond simple time and location and for proactively determining when to deliver them;
- ability for users and third parties to submit reminders;
- ability to create reminders using a variety of input devices;
- ability to receive reminders using a variety of devices, appropriate to the user’s situation;
- use of reminders that include both a signal that something is to be remembered and a full description of what is to be remembered; and
- allowing users to view a list of all active reminders. We believe that we have been mostly successful in this objective. We provide some support for all of these features, except for the ability to create reminders using a vari- ety of input devices. We will discuss each of these features in turn. The first feature, allowing for the use of rich context in reminders, is the most im- portant feature for a reminder tool and is the one that is most lacking in existing re- minder tools. By leveraging off of the Context Toolkit’s ability to acquire and distrib- ute context, we allow users to create arbitrarily complex situations to attach to re- minders and to create custom rules for governing how reminders should be delivered to them. Users are not required to use templates or hardcoded situations, but can use any context that can be sensed and is available from their environment. From initial use of the system, we have found that while the interface supports the specification of complex situations, it can be complex to use, particularly when variables are involved. We would like to find the correct balance of sophistication and simplicity in an effort to improve the interface. One potential solution is a suite of special-purpose reminders with highly simplified interfaces that suit their specific use. By using a discovery protocol for determining what context is available, we attempt to limit users in creating situations that CybreMinder is able to detect. However, it is possible for users to create situations that CybreMinder cannot detect. Some of these situations can be caught by the aggregator, but not all. We intend to improve the checking ability of CybreMinder. Part of the reminder creation process is the specification of recipients. A user can set the recipients of the reminder to be herself, herself and others, or just others. In this
CybreMinder: A Context-Aware System for Supporting Reminders 185
way, CybreMinder supports the ability to send reminders to yourself or third parties. Currently, users can only create reminders using the Java-based CybreMinder. This application can run on any networked device that can support Java, including desktop computers, WinCE devices and wearable computers. However, the Context Toolkit does not require that applications be written in Java. We envision, in the near future, creating simplified versions of CybreMinder that can be executed on a Palm Pilot, a pager, or a mobile phone, which a user interacts with not only using text, but also pen and speech input. We would also like to support the automatic creation of reminders from user’s calendars and to-do lists. On the delivery side, CybreMinder sends both the reminder and the associated situation to a service for display (via e-mail, available screen, or SMS). The quality of the reminder signal and the completeness of the reminder description depend on the service being used. E-mail provides a poor signal if the user is not at reading their e- mail at the reminder time, but does present a complete description. Displaying a re- minder on a nearby screen with an audio cue provides both a good signal and a com- plete description. SMS provides a very good signal but only a partial description. Likewise, there are advantages and disadvantages to automatically printed reminders. By supporting a greater variety of devices and display services, we can allow users to make better personal choices about how they want to receive reminders (both in terms of the signal and description) in various situations. CybreMinder delivers a reminder when the associated situation has been realized, and chooses the delivery mechanism/service based on the recipient’s current context. However, it does not take into account how interruptible the recipient is. We realize that the use of static user configuration files is not the answer, but determining interruptiblity is an enormous unsolved research problem [10,14,17,19], and as researchers make progress in this area, we would like to improve CybreMinder accordingly. Initial responses to CybreMinder have been promising. We intend to expand our current user population and perform an objective evaluation of CybreMinder and comparison to existing reminder tools. We would also like to examine the use of the CybreMinder reminder tool as part of a larger context-aware messaging system.
8 Acknowledgements
We would like to thank the Future Computing Environments research group for con- tributing to these ideas. This work was supported in part by a NSF CAREER Grant # 9703384, a Motorola University Partnerships in Research grant and the ITO division of DARPA through the Expeditions/Ubiquitous Computing program.
References
- Bergqvist, J., Ljungberg, F.: ComCenter: A Person Oriented Approach to Mobile Com- munication. Extended abstract In Proceedings of CHI 2000 (2000) 123– 124
