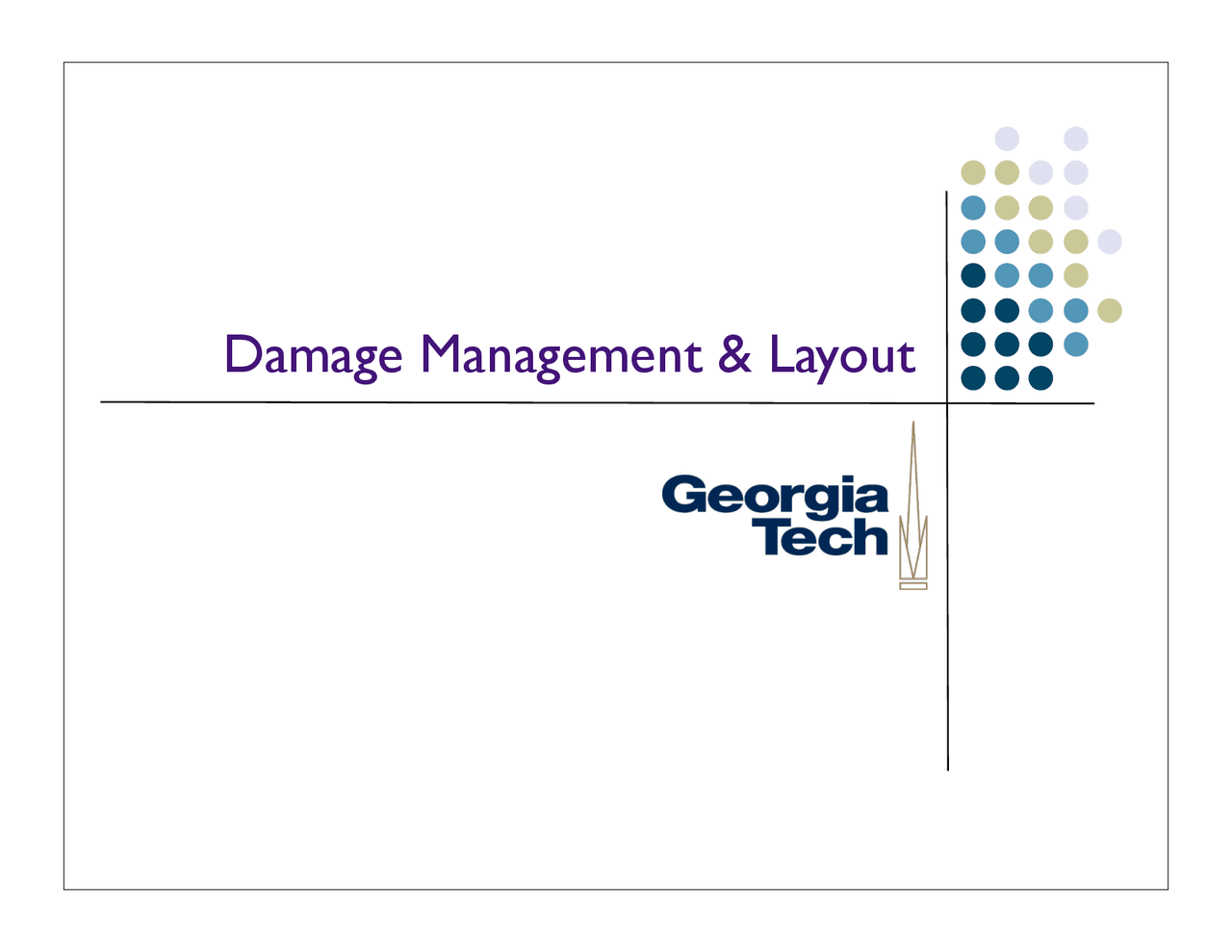

Damage Management & Layout

Damage management

 Need to keep track of parts of the screen that need update

 (^) interactor has changed appearance, moved, appeared, disappeared, etc.  (^) done by “declaring damage”  (^) each object responsible for telling system when part of its appearance needs update

Damage Management

 (^) Can optimize somewhat  (^) Multiple rectangles of damage  (^) Knowing about opaque objects  (^) But typically not worth the effort

Damage Management in Swing

JComponent RepaintManager repaint() addDirtyRegion() paintImmediately() paintComponent() paintBorder() paintChildren() Event Dispatch Queue

Layout

 (^) Deciding size and placement of every object  (^) easiest version: static layout  (^) objects don’t move or change size  (^) easy but very limiting  (^) hard to do dynamic content  (^) only good enough for simplest cases

Dynamic layout

 (^) Change layout on the fly to reflect the current situation  (^) Need to do layout before redraw  (^) Can’t be done e.g., in paintComponent()  (^) Why?

Layout in Swing

 (^) invalidate() method  (^) Called on a container to indicate that its children need to be laid out  (^) Called on a component to indicate that something about it has changed that may change the overall layout (change in size, for example)  (^) validate() method  (^) Starts the process that makes an invalid layout valid--recomputes sizes and positions to get correct layout

“Issues” with Swing validation

 (^) invalidate() is often called automatically  (^) e.g., in response to changes to components’ state  (^) ... but not always  (^) e.g., if a JButton’s font or label changes, no automatic call to invalidate()  (^) Mark the button as changed by calling invalidate() on it  (^) Tell the container to redo layout by calling validate() on it  (^) In older versions of Swing you had to do this by hand  (^) Newer versions (post 1.2) add a shortcut: revalidate()  (^) Invalidates the component you call it on  (^) Begins the process of validating the layout, starting from the appropriate parent container  (^) Validation also uses the RepaintManager

Layout with containers

 (^) Containers (parent components) can control size/position of children  (^) example: rows & columns  (^) Two basic strategies  (^) Top-down (AKA outside-in)  (^) Bottom-up (AKA inside-out)

Top-down or outside-in layout

 (^) Parent determines layout of children  (^) Typically used for position , but sometimes size  (^) Example?

Bottom-up or inside-out layout

 (^) Children determine layout of parent  (^) Typically just size  (^) Example?

Bottom-up or inside-out layout

 (^) Children determine layout of parent  (^) Typically just size  (^) Shrink-wrap container  (^) parent just big enough to hold all children  (^) e.g., pack() method on JWindow and JFrame  (^) Resizes container to just big enough to accommodate contents’ preferredSizes

Neither one is sufficient

 (^) Need both  (^) May even need both in same object  (^) horizontal vs. vertical  (^) size vs. position (these interact!)  (^) Need more general strategies

Layout Policies in Swing

 (^) Swing layout policies are (generally) customizable  (^) Some containers come with a “built-in” layout policy  (^) JSplitPane, JScrollPane, JTabbedPane  (^) Others support “pluggable” policies through LayoutManagers  (^) LayoutManagers installed in Containers via setLayout()  (^) Two interfaces (from AWT): LayoutManager and LayoutManager  (^) Determines position and size of each component within a container  (^) Looks at components inside container:  (^) Uses getMinimumSize(), getPreferredSize(), getMaximumSize()  (^) ... but is free to ignore these  (^) Example LayoutManagers:  (^) FlowLayout, BorderLayout, GridLayout, BoxLayout, ...
