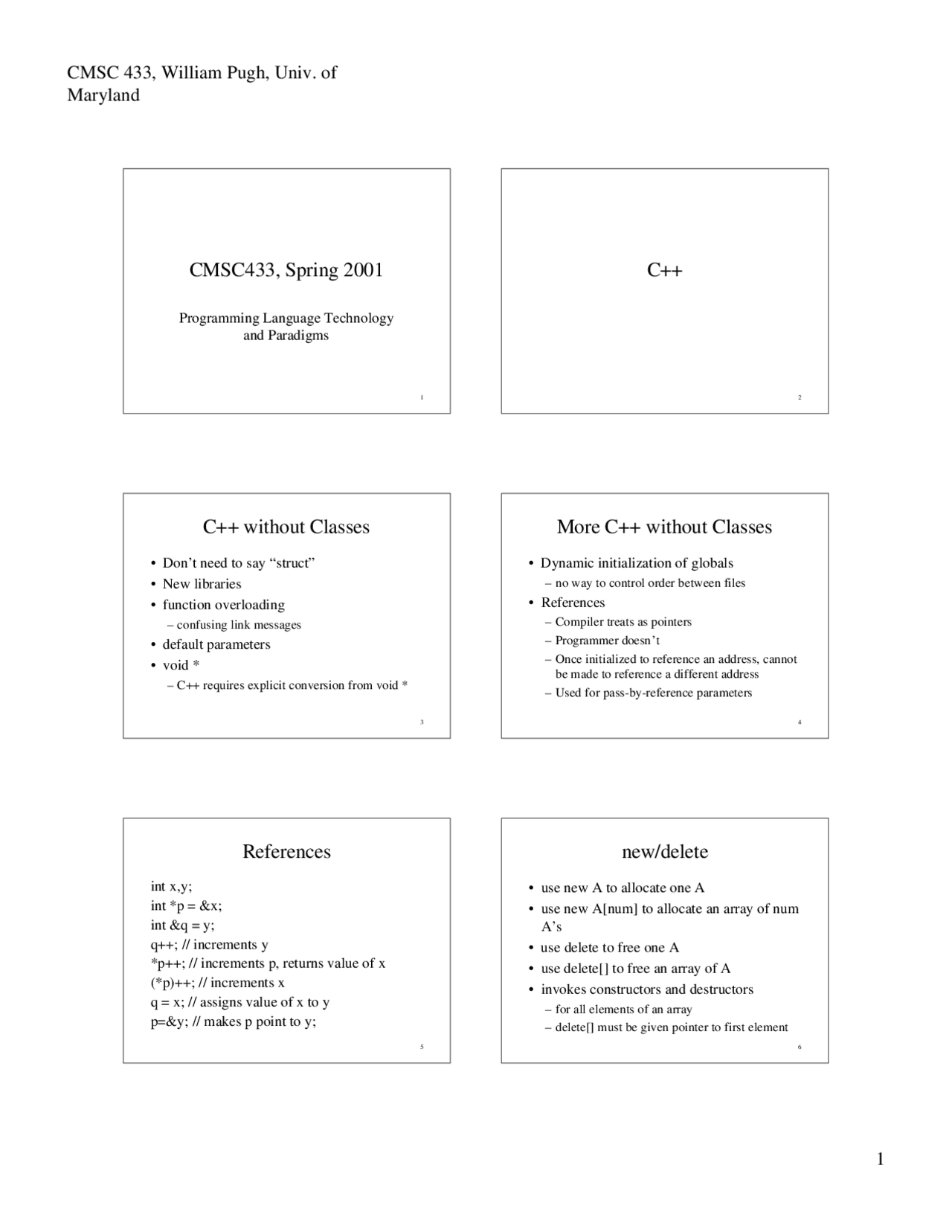

CMSC 433, William Pugh, Univ. of
Maryland
1
1
CMSC433, Spring 2001
Programming Language Technology
and Paradigms
2
C++
3
C++ without Classes
Don’t need to say “struct”
New libraries
function overloading
confusing link messages
default parameters
void *
C++ requires explicit conversion from void *
4
More C++ without Classes
Dynamic initialization of globals
no way to control order between files
References
Compiler treats as pointers
Programmer doesn ’t
Once initialized to reference an address, cannot
be made to reference a different address
Used for pass-by-reference parameters
5
References
int x,y;
int *p = &x;
int &q = y;
q++; // increments y
*p++; // increments p, returns value of x
(*p)++; // increments x
q = x; // assigns value of x to y
p=&y; // makes p point to y;
6
new/delete
use new A to allocate one A
use new A[num] to allocate an array of num
A’s
use delete to free one A
use delete[] to free an array of A
invokes constructors and destructors
for all elements of an array
delete[] must be given pointer to first element
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Exploring C++, Data Abstraction, and OOP in Programming Language Technology - Prof. Willia and more Exams Programming Languages in PDF only on Docsity!

Maryland

1

CMSC433, Spring 2001

Programming Language Technology and Paradigms

2

C++

3

C++ without Classes

  • Don’t need to say “struct”
  • New libraries
  • function overloading
    • confusing link messages
  • default parameters
  • void *
    • C++ requires explicit conversion from void *

4

More C++ without Classes

  • Dynamic initialization of globals
    • no way to control order between files
  • References
    • Compiler treats as pointers
    • Programmer doesn’t
    • Once initialized to reference an address, cannot be made to reference a different address
    • Used for pass-by-reference parameters

5

References

int x,y; int *p = &x; int &q = y; q++; // increments y p++; // increments p, returns value of x (p)++; // increments x q = x; // assigns value of x to y p=&y; // makes p point to y; 6

new/delete

  • use new A to allocate one A
  • use new A[num] to allocate an array of num A’s
  • use delete to free one A
  • use delete[] to free an array of A
  • invokes constructors and destructors
    • for all elements of an array
    • delete[] must be given pointer to first element

Maryland

7

Data Abstraction

  • Avoid name clashes
  • Hide implementation
  • Override “standard” functionality

void IA_init(IntArray *ia); void IA_cleanup(IntArray * ia); void IA_setSize(IntArray * ia, int value); int IA_getSize(IntArray * ia); void IA_setElem(IntArray * ia, int index, int value); int IA_getElem(IntArray * ia, int index);

class IntArray{ public: IntArray(); ~IntArray(); void setSize(int value); int getSize(); void setElem(int index, int value); int getElem(int index); …} (^8)

Int Array example

  • Without OO:

void IA_init(IntArray *ia); void IA_cleanup(IntArray * ia); void IA_setSize(IntArray * ia, int value); int IA_getSize(IntArray * ia); void IA_ setElem(IntArray * ia, int index, int value); int IA_getElem(IntArray * ia, int index);

  • With OO: class IntArray{ public: IntArray(); ~IntArray(); void setSize(int value); int getSize(); void setElem(int index, int value); int getElem(int index); private: …}

9

Access control

  • A member can be public/protected/private
  • An access specification controls access to all following members (until the next access specification)
  • For classes, initial/default access is private
    • For structs, initial/default access is public
    • no other difference between classes and structs

10

Access levels

  • public - anyone is allowed access
  • private - only methods in the class allowed access
  • protected - like private, except that subclasses can see inherited members

11

Protected access

  • Class A { private: int x; protected: int y; }
  • Class B : public A { static int foo(A a, B b) { int i = a.x; // illegal int j = a.y; // illegal int k = b.x; // illegal int n = b.y; // LEGAL …} 12

Friends

  • A class X can declare a class Y or a function f as a friend - Gives Y or f access to all of X’s private and protected data
  • Friendship is not transitive
    • If X declares Y as a friend, and Y declares Z as a friend, Z can’t see X’s private data

Maryland

19

operator =

IntArray& operator=(const IntArray &a) { if (this == &a) return this; if (size != a.size) { delete [] rep; rep = new int[a.size]; size = a.size;} memcpy(rep, a.rep, sizeof(int)size); return *this; }

}

20

One arg constructors

  • A one argument constructor is also used for type conversion - A(int sz) allows an int to be used anywhere an A is expected - only one level of conversion will be required - if a B is required and an int is supplied, the system won’t convert an int to an A, which is then converted to a B - Can mark constructor as explicit to avoid this feature

21

Subtyping

  • if class D has class B as a public base type
    • a pointer to a D can be provided anywhere a pointer to a B is expected
    • a reference to a D can be provided anywhere a reference to a B is expected
  • class D should fulfill B’s public contract
    • Someone who expects a pointer to a B
    • and is given a pointer to a D
    • shouldn’t be surprised 22

Virtual functions

  • Without virtual functions, B’s functionality will be invoked on objects pointed to by a B pointer - determined from type of pointer
  • with virtual functions
    • dispatching based on run-time type of object pointed to - and compile-time type of arguments - must match argument types exactly to override

23

Non-virtual functions

  • non-virtual functions have confusing semantics - function you get depends on type of pointer used to reference the object
  • but virtual functions may be more expensive to invoke
  • should probably make functions non-virtual only if never overridden - final in Java 24

Watch out!

  • An array of D’s can be given to someone
    • who expects an array of B’s
  • B’s public contract may involve assigning another B to it
  • What is the right thing to do
    • when a D is assigned a B?
    • when a B is assigned a D?

Maryland

25

Operator= and subtyping

  • struct B { B& virtual operator=(const B & b) {…} };
  • struct D : public B { D & virtual operator=(const D & d) {…}};
  • B b; D d; B* pbb = &b; B* pbd = &d;
    • b = d;
    • d = b;
    • *pbb = *pbd;
    • *pbd = *pbb;

// B::operator=(const B&) // Illegal (why?) // B::operator=(const B&) // B::operator=(const B&) (^26)

Covariance of return types

  • When you override a function, your return type can be a subtype of the method you are overriding - struct B { virtual B* getChild(); } - struct D : public B { virtual D * getChild(); }

27

Covariance

  • Covariance of return types is OK
    • Somebody who expects a B, is given a D
    • invokes getChild() on it
    • Expects a B, is given a D
    • No surprise…
  • Not OK for argument types
  • Co-variance = (in the same way)(vary)
    • as opposed to contravariance
      • allowed in some OO languages for arguments, but not that useful 28

Argument types can’t be

covariant

  • Consider if D::f overroad B::f in
    • struct B {virtual void f(B* p);}
    • struct D : public B {virtual void f(D* p);}
  • Somebody who expects a B, is given a D
    • invokes f(new B()) on it
    • D::f is surprised!
      • expected a D, got a B

29

Function hiding

  • Consider class B { public: int f(int i); }; class D : public B { public: int f(char *); };
  • f(int) not defined on a D

30

Function hiding rules

  • Defining a function f in a derived class D
  • hides any function named f with different arguments in a base class B
  • Function can still be invoked
    • by using a pointer/reference of type B

Maryland

37

Heterogeneous collections

  • Will you ever need a collection that contains objects that all is-a/has-a/are-a A - If so, use is-a
  • Will you need a collection of engines and cars?
  • Will you need a collection of animals?

38

Casts in C++

  • static_cast
  • dynamic_cast
    • cast from base class ptr to derived class ptr
    • returns null if not instance of derived class
  • const_cast
  • reinterpret_cast
    • interprete bits

39

Casting between classes

  • In C++ with multiple inheritance, casting between a ptr to a base type and a ptr to a derived type - may require adding/subtracting offset - may require run-time lookups - if you have virtual base classes
  • Reusing the bit pattern likely to be badly wrong

40

static_cast

  • For pointers, assumes correct, doesn’t look at object - B *b = static_cast<B *>(d); // always OK - D *d = static_cast<D *>(b); //?
  • Also used for casting between integers, doubles, and out of void *

41

dynamic_cast

  • Looks at object to determine:
    • if legal (returns null otherwise)
    • adjustment needed
  • Generally used for safely casting from base type to derived type
  • Requires that code be compiled with RTTI
    • Run time type information

42

const_cast

  • Can only remove/add const/volatile declaractions

Maryland

43

reinterprete_cast

  • interpret bits
  • VERY dangerous, no checks
  • No adjustments applied

44

Abstract classes

  • An abstract class cannot be directly instantiated
  • Although subclasses can
  • In C++, any class with an abstract function is abstract - define a method to be abstract by setting it = 0

45

Constructor chaining

  • For a constructor, you can give the arguments to the constructors for: - the base classes - the instance variables
  • If nothing provided, void constructor used
  • E.g. class B : public A { C c1, c2; D d1; public: B() : A(42), c1(“hello”), c2(“hi”), d1() { …. } (^46)

What does B() print?

  • struct A { A() { g(); }; virtual void f() { cout << “A”; }; virtual void g() { f() }; }
  • class B : public A { B() { g(); }; virtual void f() { cout << “B”; }; }

47

What happened?

  • Constructor B() chains to constructor for A() - while doing constructor for A(), object is an A
  • Then, perform void constructor for B
    • now, object is a B

48

Namespaces

  • What if I’ve defined a List class
  • And you’ve written a different List class
  • Can my code and your code be used in the same program? - No - Can’t have two different classes named the same - Namespaces to the rescue
  • Similar to packages in Java

Maryland

55

namespace aliases

  • What if two developers both write code using the namespace Parser? - back to our old problem of name clashes
  • Partial solution using namespace aliases;
  • namespace Parser = Pughs_Parser;
  • Makes long names bearable
    • still have to come up with unique long names
    • Java style: edu_umd_cs_pugh_Parser? 56

Exceptions

  • throw exp ; -- throws an exception exp
  • try { … } catch (ExceptionType e) { … }
    • if, during executing of try block, an exception is thrown that could be passed to a function taking an ExceptionType as an argument, the catch clause is invoked with e bound to value thrown

57

Exception example

  • struct IndexOutOfBounds{};
  • char String::getChar(int i) { if (i < 0 || i >= length) throw IndexOutOfBounds(); };
  • try { c = s.getChar(42); } catch (IndexOutOfBounds err) { cout << “Index out of bounds”; }

58

Exception hierarchy

  • You can create a hierarchy of exceptions
    • Exception
      • IOException
      • BoundsException
  • Using derived classes
    • catch a reference to the base class
      • if a derived class is thrown, you catch it
    • catch value of the base class
      • if derived class is thrown, copy constructor for the base class is invoked, using the obj thrown as arg

59

More exceptions

  • If you aren’t going to do anything with the exception you caught - omit variable name - just name parameters
  • You can throw other values
    • ints, doubles
    • don’t do this…

60

Exception declarations

  • You can declare the set of exceptions a function might throw - not checked at compile time
  • Checked at run-time
    • if you declare the exceptions you throw
    • and you throw something not on that this
    • function unexpected() is called
      • which by default calls terminate()
        • which by default calls abort()

Maryland

61

Declaring exceptions

  • Declare you might throw X or Y int f(int i) throw (X,Y) { … };
  • Declare you don’t throw any exceptions int g(int i) throw () { … };
  • Declare that you don’t know what exceptions you throw: int h(int i) { … };

62

Using destructors

for final actions

  • Sometimes, you want to ensure you take some action when leaving a scope - no matter how you leave the scope - exception, return, fall off the bottom
  • Destructors get called no matter how you leave the scope - use them

63

File closer

  • class FileCloser { const FILE *f; public: FileCloser(FILE *f) { this.f = f; }; virtual ~FileCloser() { f.close(); } }

64

Monitor lock

  • class MonitorLock { Monitor & m; public: MonitorLock(Monitor & mon) : m(mon) { m.lock(); } virtual ~MonitorLock() { m.unlock(); } }
