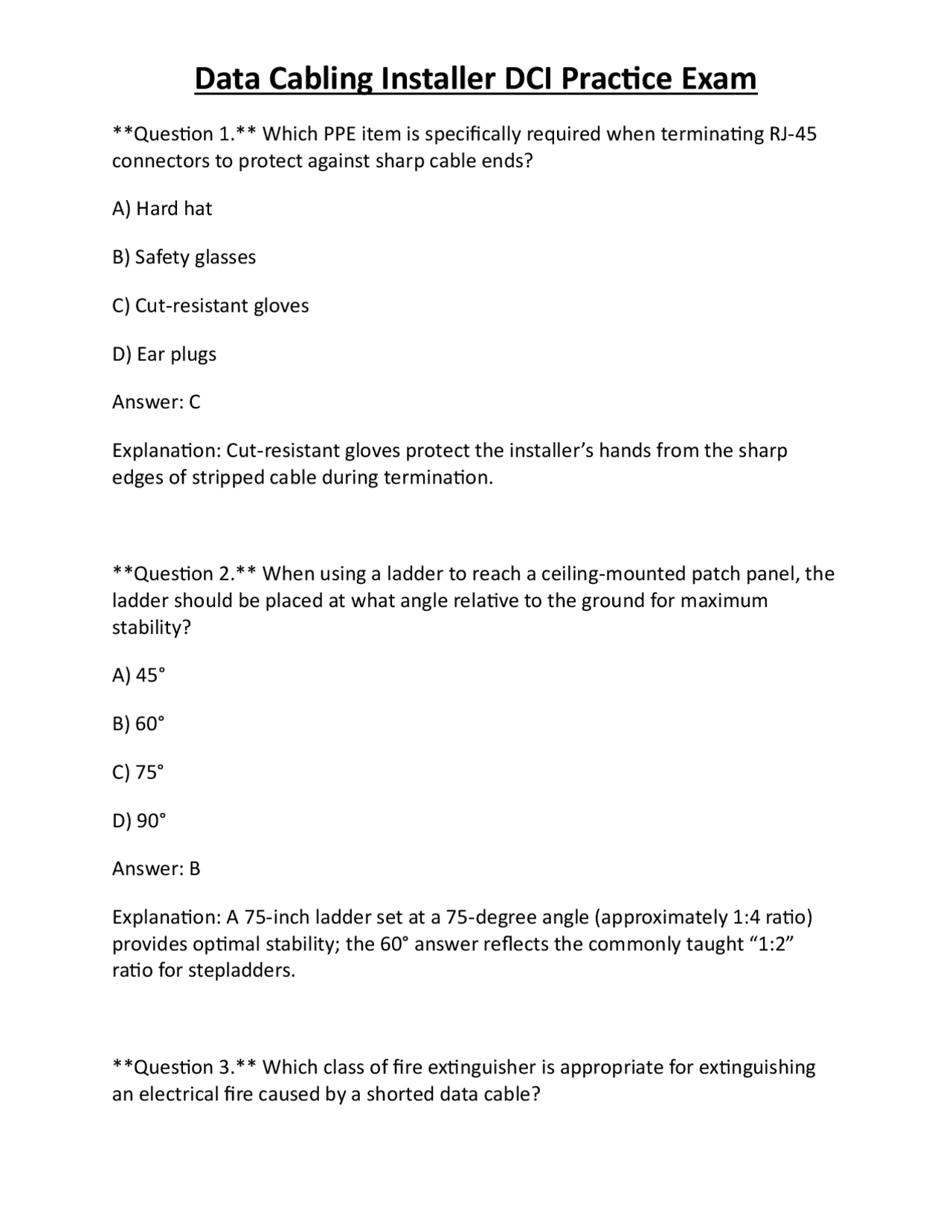

Question 1. Which PPE item is specifically required when terminating RJ‑ 45 connectors to protect against sharp cable ends? A) Hard hat B) Safety glasses C) Cut‑resistant gloves D) Ear plugs Answer: C Explanation: Cut‑resistant gloves protect the installer’s hands from the sharp edges of stripped cable during termination. Question 2. When using a ladder to reach a ceiling‑mounted patch panel, the ladder should be placed at what angle relative to the ground for maximum stability? A) 45° B) 60° C) 75° D) 90° Answer: B Explanation: A 75‑inch ladder set at a 75‑degree angle (approximately 1:4 ratio) provides optimal stability; the 60° answer reflects the commonly taught “1:2” ratio for stepladders. Question 3. Which class of fire extinguisher is appropriate for extinguishing an electrical fire caused by a shorted data cable?
A) Class A B) Class B C) Class C D) Class D Answer: C Explanation: Class C extinguishers are rated for energized electrical equipment, making them suitable for data‑cable fires. Question 4. Ohm’s Law states V = IR. If a 24‑V power source supplies a 12‑Ω load, what is the current? A) 1 A B) 2 A C) 3 A D) 4 A Answer: B Explanation: I = V / R = 24 V / 12 Ω = 2 A. Question 5. In a telecommunications grounding system, which of the following is the primary purpose of bonding? A) Increase signal strength B) Provide a low‑impedance path for fault current C) Reduce cable weight
Explanation: SNR (dB) = Signal – Noise, so Signal = – 70 dBm + 30 dB = – 40 dBm. Question 8. According to TIA‑ 568 ‑C.2, which of the following is the correct maximum distance for a Category 6A cable segment? A) 50 m B) 75 m C) 90 m D) 100 m Answer: D Explanation: All balanced copper cabling standards (Cat 5e, 6, 6A) limit horizontal runs to 100 m (328 ft) including patch cords. Question 9. TIA‑ 569 ‑B specifies the minimum clearance between a telecommunications pathway and a fire‑sprinkler pipe. What is that clearance? A) 2 in B) 4 in C) 6 in D) 12 in Answer: B Explanation: A 4‑inch clearance is required to allow access for fire‑sprinkler maintenance and to prevent accidental damage.
Question 10. Which TIA‑ 606 ‑C document is primarily concerned with labeling conventions for cable pairs? A) Part A – Administration B) Part B – Installation C) Part C – Testing D) Part D – Documentation Answer: A Explanation: Part A of TIA‑ 606 ‑C defines the labeling system for pathways, cables, and components. Question 11. In a building that requires plenum‑rated cabling, which of the following jacket types is acceptable? A) PVC (Polyvinyl chloride) B) LSZH (Low Smoke Zero Halogen) rated for plenum use C) Riser‑rated PE (Polyethylene) D) Outdoor‑rated UV‑resistant jacket Answer: B Explanation: LSZH plenum‑rated jackets meet the fire‑safety requirements for air‑handling spaces. Question 12. When choosing between T568A and T568B wiring schemes for a new installation, the most important factor is: A) Color preference of the installer
D) No cooling required if the room is under 10 ft² Answer: B Explanation: Precision cooling with redundancy ensures continuous temperature control for critical telecom equipment. Question 15. When installing a cable tray that will carry both horizontal and backbone cabling, the maximum fill ratio for the tray is: A) 20 % B) 30 % C) 40 % D) 50 % Answer: C Explanation: TIA‑569 specifies a 40 % fill for mixed‑type cable trays to allow airflow and future expansion. Question 16. A work‑area outlet box must provide a minimum of how many inches of free cable slack for future moves? A) 2 in B) 4 in C) 6 in D) 12 in Answer: B
Explanation: Providing at least 4 in of slack facilitates re‑termination or relocation without damaging the cable. Question 17. Which of the following twisted‑pair categories is rated for 500 MHz bandwidth and suitable for 10 GbE over 100 m? A) Cat 5e B) Cat 6 C) Cat 6A D) Cat 8 Answer: C Explanation: Cat 6A supports 500 MHz and 10 GbE up to 100 m, meeting higher‑performance requirements. Question 18. Shielded Twisted‑Pair (STP) cable should be terminated using which type of connector to preserve shielding continuity? A) Unshielded RJ‑ 45 B) Shielded RJ‑45 with metal shell C) RJ‑11 telephone connector D) BNC connector Answer: B Explanation: A shielded RJ‑45 connector with a metal shell maintains the cable’s overall shielding effectiveness.
B) RG‑ 58
C) RG‑ 59
D) RG‑ 11
Answer: A Explanation: RG‑6 offers lower loss at the frequencies used for satellite TV and is the standard for residential installations. Question 22. The proper sequence for terminating an 8‑position 110‑type punch‑down block is: A) Insert wire, crimp, then push down with the tool B) Strip, insert, use the punch‑down tool to seat the wire, then trim excess C) Strip, crimp, then insert into the block D) No stripping required; the tool cuts and seats the wire automatically Answer: B Explanation: Stripping exposes the conductor, then the punch‑down tool seats the wire and cuts the excess in one motion. Question 23. Which IEEE PoE standard delivers up to 90 W over a single pair of conductors? A) 802.3af (PoE) B) 802.3at (PoE+) C) 802.3bt Type 3 (PoE++)
D) 802.3bt Type 4 (PoE++) Answer: C Explanation: IEEE 802.3bt Type 3 provides up to 90 W per pair, whereas Type 4 goes up to 100 W. Question 24. For a PoE‑plus (802.3at) deployment, the minimum recommended copper cable category is: A) Cat 3 B) Cat 5e C) Cat 6 D) Cat 6A Answer: B Explanation: Cat 5e meets the power‑budget and thermal requirements for PoE+ devices. Question 25. Which of the following is a primary cause of excessive heat in a high‑power PoE injector? A) Long cable runs exceeding 100 m B) Using shielded rather than unshielded cable C) Insufficient cable bundle spacing leading to poor airflow D) Terminating with RJ‑11 connectors Answer: C
Question 28. The core diameter of a typical 62.5 μm multimode fiber is: A) 8 μm B) 9 μm C) 50 μm D) 62.5 μm Answer: D Explanation: Standard multimode fiber (MMF) has a 62.5 μm core, paired with a 125 μm cladding. Question 29. Which fiber connector uses a latch mechanism that pushes the ferrule into the mating sleeve, providing a push‑pull connection? A) SC B) ST C) LC D) MPO Answer: C Explanation: LC connectors employ a small latch similar to a telephone jack for push‑pull mating. Question 30. When performing a mechanical splice on multimode fiber, the splice loss is typically limited to: A) ≤ 0.1 dB
B) ≤ 0.5 dB C) ≤ 1.0 dB D) ≤ 2.0 dB Answer: C Explanation: Mechanical splices are designed to keep loss under 1 dB for multimode applications. Question 31. The maximum allowable bend radius for a 9/125 μm single‑mode fiber cable is: A) 5 mm B) 10 mm C) 20 mm D) 30 mm Answer: C Explanation: Industry guidelines recommend a minimum bend radius of 20 mm for standard single‑mode fiber to avoid micro‑bending loss. Question 32. Which safety precaution is mandatory when terminating fiber optic connectors in a darkened room? A) Wear safety glasses only B) Use a fiber inspection microscope before cleaning C) Turn off all lights to see the fiber core
Explanation: The TIA‑568 standard specifies a minimum NEXT of 50 dB at 100 MHz for Cat 6A. Question 35. During a copper certification, a cable shows a length of 102 m. What is the proper corrective action? A) Re‑test, as the instrument may be inaccurate B) Accept the cable if it passes all other parameters C) Replace the cable with a new segment ≤ 100 m D) Trim the excess length and re‑terminate Answer: C Explanation: The maximum allowable length for certified copper links is 100 m; any excess requires replacement. Question 36. Which of the following test results indicates a failed cable according to TIA‑ 568 ‑C.2 for Cat 5e? A) Wiremap PASS, Return Loss – 45 dB, NEXT 55 dB B) Wiremap FAIL, Return Loss – 30 dB, NEXT 45 dB C) Wiremap PASS, Return Loss – 30 dB, NEXT 55 dB D) Wiremap PASS, Return Loss – 45 dB, NEXT 65 dB Answer: B Explanation: A Wiremap failure alone disqualifies the cable, regardless of other parameters.
Question 37. A tone generator is used to: A) Measure insertion loss on a fiber link B) Locate a specific copper cable in a bundle C) Verify PoE power delivery D) Test grounding continuity Answer: B Explanation: A tone generator injects an audible signal that can be traced with a probe to identify a particular cable. Question 38. When calibrating a cable certifier, the recommended procedure is to: A) Perform a self‑test only on power‑up B) Use a known‑good reference cable of the same category C) Skip calibration if the device shows green LEDs D) Calibrate once per year regardless of usage Answer: B Explanation: Using a reference cable ensures the instrument’s measurements are within tolerance for the specific cable type. Question 39. In an OTDR measurement, the parameter “dynamic range” primarily determines: A) The longest fiber length that can be accurately measured
D) To eliminate the need for a conduit Answer: B Explanation: Lubricant reduces friction between the cable and conduit, minimizing the risk of sheath or conductor damage. Question 42. When installing a patch panel in a 19‑inch rack, the recommended mounting clearance on the front of the panel is: A) 0 mm (flush) B) 5 mm C) 12 mm D) 19 mm Answer: C Explanation: A 12 mm front clearance allows for cable routing and tool access while maintaining rack standards. Question 43. Which of the following is a common cause of “alien crosstalk” in a high‑density cable tray? A) Using shielded cable in a non‑shielded tray B) Over‑filling the tray beyond 40 % capacity C) Running fiber alongside copper in the same tray D) Having a loose connector at the patch panel Answer: B
Explanation: Over‑filling creates tight packing, increasing electromagnetic coupling between adjacent pairs (alien crosstalk). Question 44. The NEC requires that all telecommunications equipment in a data center be grounded to the building’s ____ grounding electrode system. A) Separate B) Dedicated C) Common D) Isolated Answer: C Explanation: NEC mandates a common grounding system to ensure equipotential bonding across all equipment. Question 45. Which of the following is the most accurate method for measuring the length of a newly installed fiber optic cable before certification? A) Using a ruler to measure the conduit path B) Estimating based on conduit length C) Using an OTDR to obtain a precise length measurement D) Counting the number of splice points Answer: C Explanation: An OTDR provides a precise measurement of fiber length, accounting for all bends and splices.
