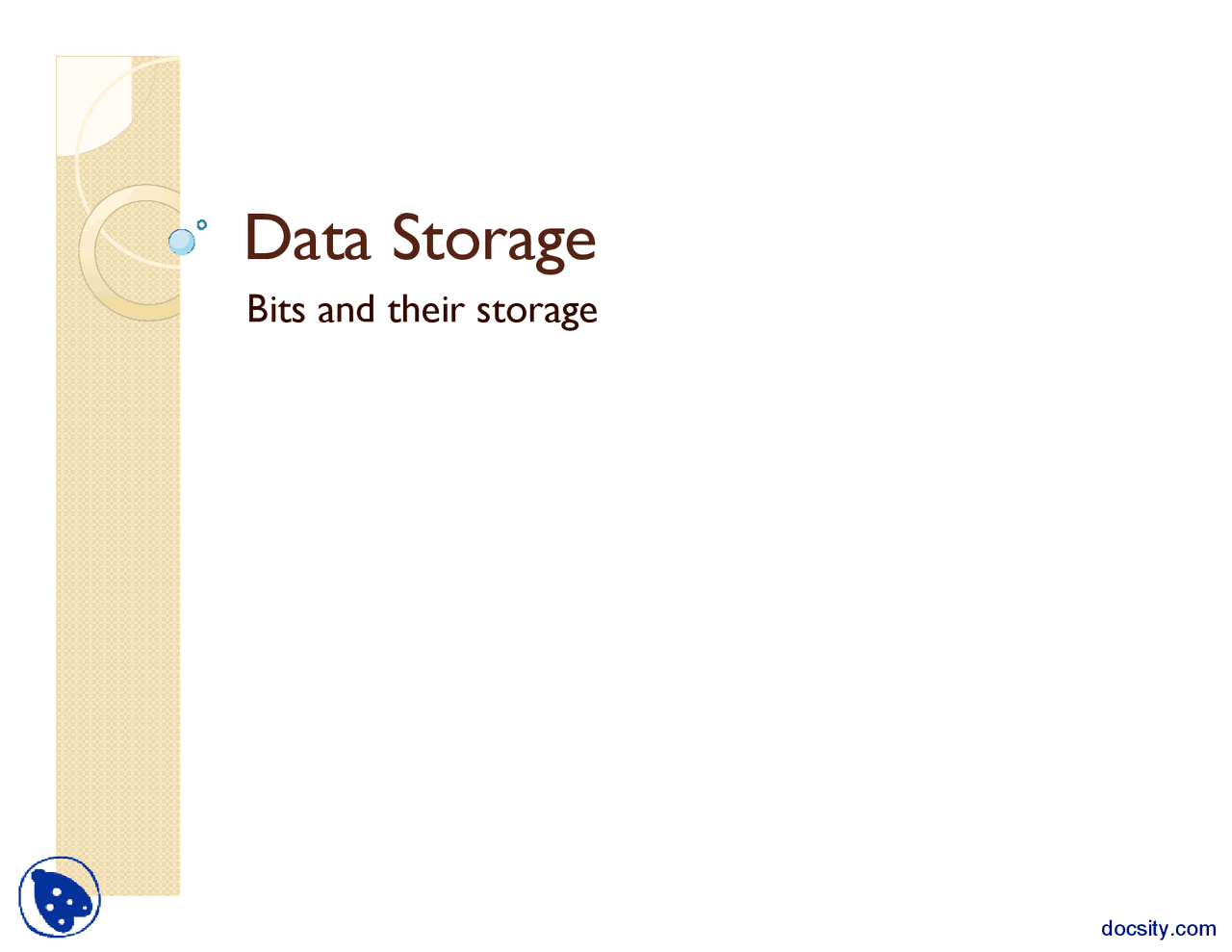

Data StorageBits and their storage
docsity.com
Bits and Bit Patterns
Bit:
Binary Digit (0 or 1)
Bit Patterns are used to represent information.
Numbers
Text characters
Images
Sound
And others
docsity.com
The Boolean operations AND, OR, and XOR
(exclusive or)
docsity.com
Gates
Gate:
A device that computes a Boolean
operation
Often implemented as (small) electroniccircuits
Provide the building blocks from whichcomputers are constructed
VLSI (Very Large Scale Integration)
docsity.com
Flip-flops
Flip-flop:
A circuit built from gates that can
store one bit.
One input line is used to set its stored value to 1
One input line is used to set its stored value to 0
While both input lines are 0, the most recentlystored value is preserved
docsity.com
A simple flip-flop circuit
docsity.com
Setting the output of a flip-flop to 1(continued)
docsity.com
Setting the output of a flip-flop to 1(continued)
docsity.com
Hexadecimal Notation
Hexadecimal notation:
A shorthand
notation for long bit patterns
Divides a pattern into groups of four bits each
Represents each group by a single symbol
Example: 10100011 becomes A
docsity.com
The hexadecimal coding system
docsity.com
