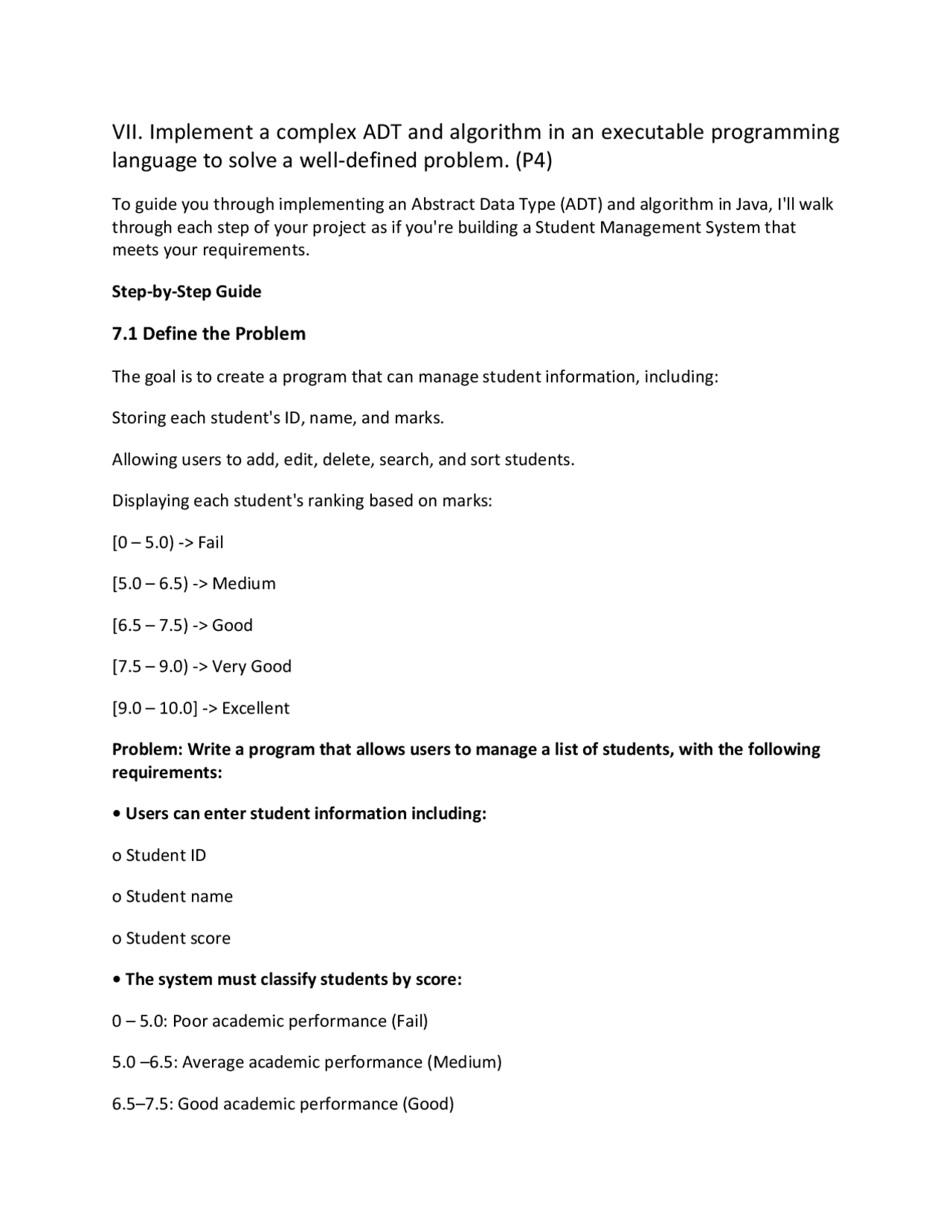

VII. Implement a complex ADT and algorithm in an executable programming
language to solve a well-defined problem. (P4)
To guide you through implementing an Abstract Data Type (ADT) and algorithm in Java, I'll walk
through each step of your project as if you're building a Student Management System that
meets your requirements.
Step-by-Step Guide
7.1 Define the Problem
The goal is to create a program that can manage student information, including:
Storing each student's ID, name, and marks.
Allowing users to add, edit, delete, search, and sort students.
Displaying each student's ranking based on marks:
[0 – 5.0) - > Fail
[5.0 – 6.5) - > Medium
[6.5 – 7.5) - > Good
[7.5 – 9.0) - > Very Good
[9.0 – 10.0] - > Excellent
Problem: Write a program that allows users to manage a list of students, with the following
requirements:
• Users can enter student information including:
o Student ID
o Student name
o Student score
• The system must classify students by score:
0 – 5.0: Poor academic performance (Fail)
5.0 – 6.5: Average academic performance (Medium)
6.5–7.5: Good academic performance (Good)
7.5–9.0: Very Good academic performance (Very Good)
9.0–10.0: Excellent academic performance (Excellent)
- Users can:
o Add, edit, delete students
o Sort students by score
o Search students by ID
o Display student list
Objective: Create an application that helps users easily manage students in class, improve the
process of storing and retrieving student information.
Problem: We need a student information management program to support users to add, edit,
delete, sort, and search for student information. The information includes student ID, name,
score, and ranking by score.
- Requirement: The program will display operations to manage the student list with features
such as adding, editing, deleting, sorting the student list by score, and searching for students by
ID.
- Scope: This application will be used to manage student scores and rankings for classes with
variable number of students.
7.2 Choose a Programming Language
We'll use Java, which is well-suited for creating structured programs with classes and methods.
Java also has strong support for Object-Oriented Programming, which is ideal for implementing
ADTs.
7.3 Design the ADT
We'll create three main classes for the Student Management System:
Class Student: Represents a student with attributes id, name, marks, and a method to
determine their rank.
Node: Helps with stack operations (if stack-based functionality is needed).
StudentStack: Manages a collection of students, providing methods for adding, editing,
deleting, searching, and sorting.
7.4 Implement the ADT
System. out .println("Student with ID " + id + " not found."); }
- Purpose: Updates student details based on ID.
- Complexity:
o Time: 𝑂(𝑛), as it searches through the list linearly.
o Space: 𝑂( 1 ) additional space.
- Optimization: Replace for loop with stream for conciseness: students.stream() .filter(student - > student.getId() == id) .findFirst() .ifPresentOrElse(student - > { students.set(students.indexOf(student), new Student(id, newName, newMarks)); System.out.println("Updated student with ID " + id); }, () - > System.out.println("Student with ID " + id + " not found."));
c. Deleting Students
Method:
public void deleteStudent(int id) { boolean removed = students.removeIf(student - > student.getId() == id); if (removed) { System. out .println("Deleted student with ID " + id); } else { System. out .println("Student with ID " + id + " not found."); } }
- Purpose: Removes a student by their ID.
- Complexity:
o Time: 𝑂(𝑛), as it scans through the list to find matches.
o Space: 𝑂( 1 ).
- Testing: Verify edge cases like deleting a non-existent ID or an empty list.
d. Sorting Students
Method:
public void sortStudentsByMarks() { students.sort(Comparator.comparingDouble(Student::getMarks).reversed()); System. out .println("Sorted students by marks."); }
- Purpose: Orders students by marks in descending order.
- Complexity:
o Time: 𝑂(𝑛log𝑛), leveraging the efficient TimSort in Java’s sort.
o Space: 𝑂(𝑛), depending on the underlying implementation.
- Alternatives: For frequent and real-time sorting, consider maintaining a priority queue
or tree-based structure for efficiency.
e. Searching Students
Method:
public void searchStudentById(int id) { for (Student student : students) { if (student.getId() == id) { System. out .println("Found: " + student); return; } } System. out .println("Student with ID " + id + " not found."); }
- Purpose: Finds and displays a student by their ID.
- Complexity:
o Time: 𝑂(𝑛), linear search.
o Space: 𝑂( 1 ).
- Enhancement: Use a HashMap<Integer, Student> to reduce search complexity to 𝑂( 1 ).
2. Testing & Debugging
o Add, edit, and delete students.
o Search for existing and non-existing students.
o Sort students and validate rankings.
o Adding a student with duplicate ID.
o Deleting or searching when the list is empty.
o Sorting an already sorted list.
This step-by-step breakdown, covering implementation, optimization, and testing, ensures your
system is robust, efficient, and maintainable.
Testing Approach
1. Unit Tests
Write individual test cases for each method in the StudentStack class. For example:
o Add a student and check if the student exists in the list.
o Validate against duplicate IDs (if implemented).
System. out .println("Student with ID " + student.getId() + " already exists."); return; } students.add(student); studentMap.put(student.getId(), student); System. out .println("Added: " + student); } public void searchStudentById(int id) { Student student = studentMap.get(id); if (student != null) { System. out .println("Found: " + student); } else { System. out .println("Student with ID " + id + " not found."); } }
Efficient Sorting
- Consider implementing Merge Sort for 𝑂(𝑛log𝑛) complexity instead of relying solely on
Java’s built-in sort if you need customized sorting logic.
b. Modularize Code
Example: Refactor Redundant Loops
Replace repetitive operations like searching or modifying elements with helper methods:
private Optional findStudentById(int id) { return students.stream().filter(student - > student.getId() == id).findFirst(); } public void editStudent(int id, String newName, double newMarks) { findStudentById(id).ifPresentOrElse(student - > { students.set(students.indexOf(student), new Student(id, newName, newMarks)); System. out .println("Updated student with ID " + id); }, () - > System. out .println("Student with ID " + id + " not found.")); }
Utility Classes
Move common logic, such as sorting algorithms or rank calculations, into separate utility classes
to avoid clutter.
Test Documentation
Detail the test cases and the results of each test, including:
- Test purpose.
- Input and expected output.
- Test results (pass/fail).
Example Test Case:
Test Case Input Expected Output Result
Add student Student(1, "Alice", 8.0) "Added: Alice" Pass
Edit non-existent student ID = 99 "Student with ID 99 not found" Pass
Delete from empty list ID = 1 "Student with ID 1 not found" Pass
7.7 Document the Implementation
Proper documentation is essential for understanding, maintaining, and extending the Student
Management System. Below is a comprehensive guide to documenting the implementation,
ensuring clarity and usability for future developers and stakeholders.
a. General Documentation
At the beginning of the project, provide an overview of the system. This includes its purpose,
key features, and intended use.
Student Management System
Description:
This system is designed to manage student records effectively. It allows users to:
- Add, edit, and delete students.
- Search for students by ID.
- Sort students by their marks and display their ranks.
- Manage a stack of students for advanced operations.
Technologies Used:
- Language: Java
- Collections Framework: ArrayList
- Sorting and Searching Algorithms
Authors:
[Do Ngoc Trung]
b. Class-Level Documentation
Each class should have a description explaining its purpose, key attributes, and functionalities.
Example for Student class:
* Represents a Student with ID, name, marks, and rank.
* Attributes:
* - id: Unique identifier for the student.
* - name: Full name of the student.
* Usage:
* Student newStudent = new Student(1, "Alice", 8.0);
* studentStack.addStudent(newStudent);
Example for sortStudentsByMarks() method:
* Sorts all students in descending order of their marks.
* Complexity:
* - Time: O(n log n) (Efficient for large datasets)
* - Space: O(n) (Temporary memory for sorting)
* Usage:
* studentStack.sortStudentsByMarks();
d. Inline Comments
Add inline comments to explain complex logic or specific choices within methods. These
comments should not clutter the code but instead clarify key steps.
Example:
// Merge two sublists during the merge step of Merge Sort
private void merge(List students, List left, List right) {
int i = 0, j = 0, k = 0;
// Compare elements from left and right lists
while (i < left.size() && j < right.size()) {
if (left.get(i).getMarks() <= right.get(j).getMarks()) {
students.set(k++, left.get(i++));
} else {
students.set(k++, right.get(j++));
// Add remaining elements from left and right lists
while (i < left.size()) students.set(k++, left.get(i++));
while (j < right.size()) students.set(k++, right.get(j++));
e. Test Documentation
Document the testing strategy, including test cases and expected results. Provide an overview
of what each test is validating.
Test Cases for StudentStack Class
1. Add a Student:
- Input: Student(1, "Alice", 8.0)
- Expected Output: Student added successfully, list contains the new student.
2. Edit a Student:
- Input: ID = 1, newName = "Alicia", newMarks = 9.
- Expected Output: Student with ID 1 updated successfully.
3. Delete a Student:
- Input: ID = 1
- Expected Output: Student with ID 1 deleted successfully.
4. Search for a Student:
- Input: ID = 2
- Expected Output: Student with ID 2 found
- Input: Unsorted list of students with marks [8.0, 6.7, 4.5, 7.9]
- Expected Output: Students sorted in descending order of marks [8.0, 7.9, 6.7, 4.5].
6. Stack Operations:
Input: Empty stack
Expected Output: true
Input: Stack with students
Expected Output: Returns the top student without removal.
Input: Stack with students
Expected Output: Removes and returns the top student.
7. Edge Cases:
- Edit/Delete/Search with non-existent ID:
Input: ID = 999
Expected Output: "Student with ID 999 not found."
- Add a student with duplicate ID:
Input: ID = 1 (existing ID)
Expected Output: Should allow addition but log that the ID already exists (future improvement).
f. User Guide
Provide a brief explanation of how to use the system, including commands and expected
behavior.
User Guide for Student Management System
1. Adding a Student:
- Use the addStudent() method to add a new student.
Include notes to help developers understand or extend the system.
Developer Notes:
1. To add new features:
- Follow the single-responsibility principle for adding methods or classes.
- Ensure unit tests are written for any new functionality.
2. Debugging:
- Use the displayStudents() method to verify the current state of the student list.
- Log key operations for easier troubleshooting.
3. Dependencies:
- Ensure Java 8 or later is installed.
- Use the latest version of the Java Collections Framework.
This detailed documentation ensures that the system is easy to understand, maintain, and improve,
providing a comprehensive guide for both users and developers.
VIII. Implement error handling and report test results. (P5)
8.1 Implement Error Handling and Report Test Results
Error handling is a crucial part of software development, as it allows programs to respond
gracefully to unexpected situations and prevents the program from crashing. This section
covers error identification, defining error-handling mechanisms, implementation, testing, and
reporting results.
8.2 Identify Potential Errors
Potential errors in our StudentStack application might include:
1. Invalid Student ID : If a user searches for, edits, or deletes a student using an ID that
doesn't exist.
2. Invalid Marks Entry : If a user tries to enter marks outside the valid range (0 to 10).
3. Empty Stack Operations : If a user attempts to pop or peek a student from an empty
stack.
4. Invalid Input Format : If the user enters incorrect data types (e.g., entering text instead
of numbers).
8.3 Define Error Handling Mechanisms
To handle errors effectively, we’ll use Java’s try-catch mechanism to catch and respond to
exceptions. We’ll also add if-else conditions to validate input and ensure data falls within
acceptable ranges.
Types of error-handling mechanisms:
- Input validation : Ensuring user inputs are correct before processing.
- Try-catch blocks : Catching exceptions that could disrupt program flow.
- Custom error messages : Providing clear feedback to the user when something goes
wrong.
8.4 Implement Error Handling Code
Here is the StudentStack code with added error handling for the identified potential errors.
public class StudentStack { private ArrayList students; public StudentStack() { students = new ArrayList<>(); } // Add a new student with error checking public void addStudent(Student student) { if (student.getMarks() < 0 || student.getMarks() > 10 ) { System. out .println("Error: Marks should be between 0 and 10."); return; } students.add(student); System. out .println("Added: " + student); } // Edit student information with ID check and error handling public void editStudent(int id, String newName, double newMarks) { for (Student student : students) { if (student.getId() == id) { if (newMarks < 0 || newMarks > 10 ) { System. out .println("Error: Marks should be between 0 and 10."); return; } students.set(students.indexOf(student), new Student(id, newName, newMarks)); System. out .println("Updated student with ID " + id); return; } } System. out .println("Error: Student with ID " + id + " not found."); } // Delete a student with error handling public void deleteStudent(int id) { boolean removed = students.removeIf(student - > student.getId() == id); if (removed) { System. out .println("Deleted student with ID " + id); } else {
Explanation of Error Handling in Code
1. Adding Students : Before adding a student, the program checks if the marks are within 0
to 10. If not, it displays an error message and does not add the student.
2. Editing Students : When editing, the program checks if the student ID exists and
validates the marks. If either check fails, it prints an appropriate error.
3. Deleting Students : The program checks if the student ID exists in the list; if it doesn’t, an
error message is printed.
4. Input Validation : In the main method, we handle input errors using a try-catch block. If
the user enters incorrect input (e.g., a string instead of a number), an error message is
displayed.
8.5 Test the Error Handling Code
Testing steps:
1. Add a student with invalid marks (e.g., - 1) : Confirm that the program rejects the input
with an appropriate message.
2. Edit a non-existent student : Attempt to edit a student with an ID that doesn't exist and
verify the error message.
3. Delete a student with invalid ID : Attempt to delete a student using an ID that doesn’t
exist and observe the response.
4. Enter incorrect data type : Enter text instead of numbers for ID or marks to check if the
program handles input mismatch errors correctly.
8.6 Report Test Results
Test Case Expected Outcome Result
Add student with marks = - 1 Displays "Error: Marks should be
between 0 and 10."
Passed
Edit non-existent student with
ID 99
Displays "Error: Student with ID
99 not found."
Passed
Delete non-existent student
with ID 99
Displays "Error: Student with ID
99 not found."
Passed
Enter non-integer for student ID Displays "Error: Invalid input." Passed
8.7 Analyze and Fix Any Issues
Based on testing, the error handling effectively catches and reports common issues:
• Input Validation : We may add further validation to restrict names to only alphabetic
characters.
• Boundary Conditions : Ensure that only marks within the specified range are accepted,
improving the program’s reliability.
This error-handling framework makes the StudentStack program resilient to common input errors
and logical mistakes, providing the user with clear feedback when errors occur.
This approach to error handling and testing helps build a robust application, even for entry-
level users, ensuring ease of use and reliability.
Demonstrate how the implementation of an ADT/algorithm solves a well-
defined problem. (M4)
Define the Problem
Design the ADT/algorithm
Implement the ADT/algorithm
Prepare Test Cases
Run the Test Cases
Explain the Solution
Show Example Input/Output
Discuss Complexity and Performance
Summarize the Benefits
Problem Definition
We are tasked with creating a Student Management System (SMS) that can:
1. Add Students : Each student has a unique ID, name, and grade.
2. Search for a Student by ID : We need to search for a student by their unique ID.
3. Sort Students by Grade : Sort students in ascending order based on their grade.
This is a classic problem where we need to manage a collection of students and perform certain
operations (adding, searching, and sorting) on this collection efficiently.
Design the ADT/Algorithm
We will create the following components:
1. Student Class (ADT) : Represents a student with ID, name, and grade.
o This class will provide methods to access and display the student details.
public double getGrade() { return grade; } // toString method for displaying student information in a readable format @Override public String toString() { return "Student{id=" + id + ", name='" + name + "', grade=" + grade + "}"; } }
2. StudentManager Class
This class manages a list of students and provides methods to add, search, and sort students.
- addStudent(Student student) : Adds a student to the list.
- searchStudentById(int id) : Searches for a student by their ID. This is a simple linear
search that checks each student’s ID.
- sortStudentsByGrade() : Sorts the students in ascending order of their grades using
Merge Sort , an efficient algorithm with time complexity O(n log n).
Detailed Explanation of Sorting :
- Merge Sort : This algorithm divides the list into two halves, recursively sorts each half,
and then merges the two sorted halves together. It is efficient and guarantees a time
complexity of O(n log n), making it suitable for large lists of students.
Code :
import java.util.*; public class StudentManager { private List students; // Constructor initializes the students list public StudentManager() { students = new ArrayList<>(); } // Method to add a student to the system public void addStudent(Student student) { students.add(student); } // Method to search for a student by their ID public Student searchStudentById(int id) { for (Student student : students) { if (student.getId() == id) { return student; }
return null; // Return null if no student is found with the given ID } // Method to sort the students by grade using Merge Sort public void sortStudentsByGrade() { mergeSort( 0 , students.size() - 1 ); } // Merge Sort algorithm private void mergeSort(int left, int right) { if (left < right) { int mid = (left + right) / 2 ; mergeSort(left, mid); // Sort left half mergeSort(mid + 1 , right); // Sort right half merge(left, mid, right); // Merge the two halves } } // Merging two sorted halves private void merge(int left, int mid, int right) { List temp = new ArrayList<>(); int i = left, j = mid + 1 ; // Merge two sorted lists while (i <= mid && j <= right) { if (students.get(i).getGrade() <= students.get(j).getGrade()) { temp.add(students.get(i++)); } else { temp.add(students.get(j++)); } } // Add any remaining students from the left side while (i <= mid) { temp.add(students.get(i++)); } // Add any remaining students from the right side while (j <= right) { temp.add(students.get(j++)); } // Copy the sorted students back into the original list for (int k = left; k <= right; k++) { students.set(k, temp.get(k - left)); } } // Method to return all students in the list public List getAllStudents() { return students;
