Database Joins, Views & Transactional Control:
Comprehensive Notes
1. Database Joins: Concept & Need
What is a Database Join?
A database join is an operation that combines rows from two or more tables based on a related column
(typically a key) between them. This allows retrieval of data scattered across multiple tables in a single, unified
result set.
Why are Joins Needed?
Data normalization spreads data across tables to remove redundancy; joins reconstruct full views for
business needs.
Helps analyze related data in one result (e.g., merging employee and department details).
Enables queries across entities connected by logical relationships.
Example Diagram
[Employees Table] [Departments Table]
+----+--------+ +-----+-----------+
| ID | Name | | D_ID| DeptName |
+----+--------+ +-----+-----------+
| 1 | Alice | | 10 | Accounts |
| 2 | Bob | | 20 | HR |
+----+--------+ +-----+-----------+
Join on Employees.D_ID = Departments.D_ID
2. Types of Database Joins
2.1 Inner Join
Definition: Returns rows when there is a match in both tables.
Syntax Example:
pf3
pf4
pf5

Partial preview of the text

Download dataBase Joins with examples and more Cheat Sheet Database Programming in PDF only on Docsity!

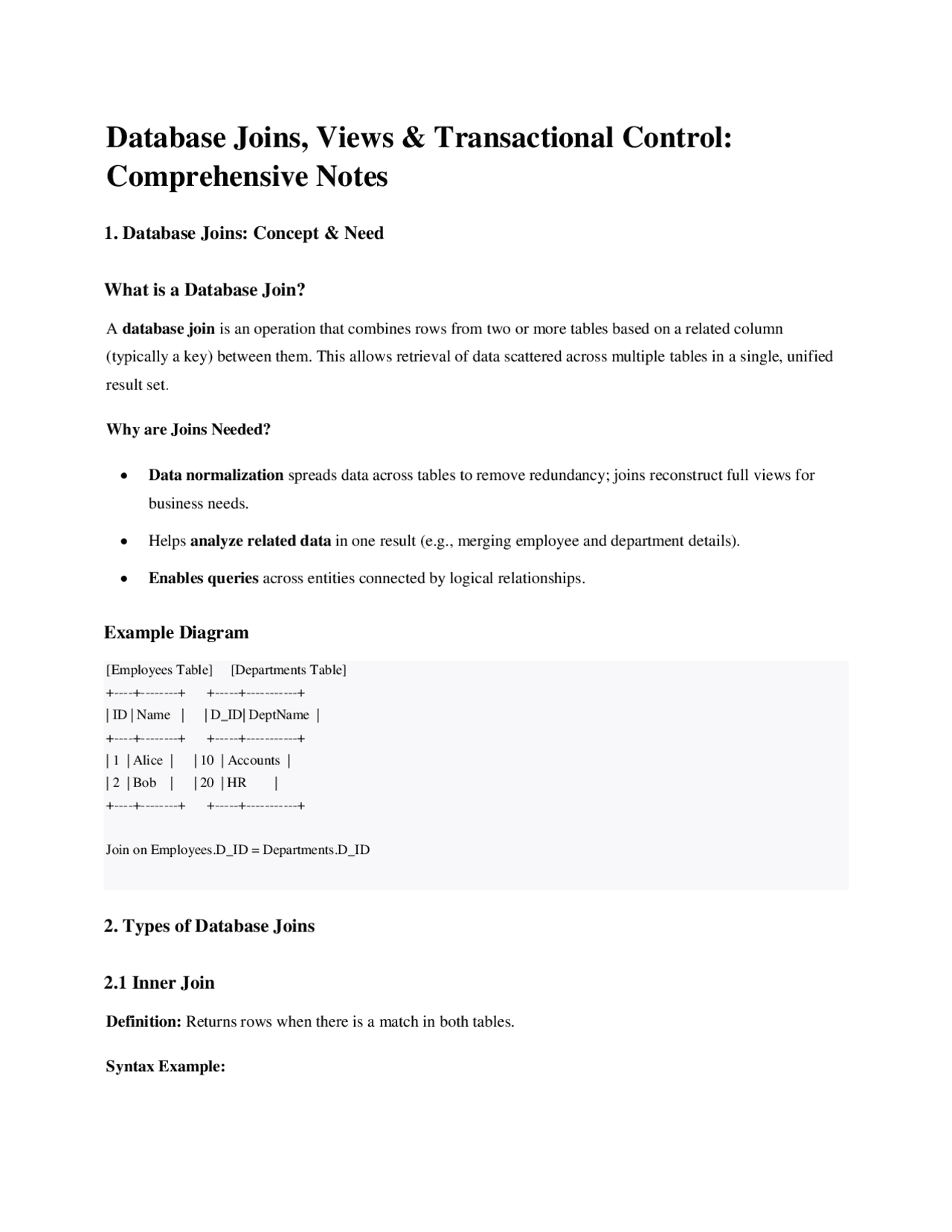

Database Joins, Views & Transactional Control:

Comprehensive Notes

1. Database Joins: Concept & Need

What is a Database Join?

A database join is an operation that combines rows from two or more tables based on a related column

(typically a key) between them. This allows retrieval of data scattered across multiple tables in a single, unified

result set.

Why are Joins Needed?

 Data normalization spreads data across tables to remove redundancy; joins reconstruct full views for

business needs.

 Helps analyze related data in one result (e.g., merging employee and department details).

 Enables queries across entities connected by logical relationships.

Example Diagram

[Employees Table] [Departments Table] +----+--------+ +-----+-----------+ | ID | Name | | D_ID| DeptName | +----+--------+ +-----+-----------+ | 1 | Alice | | 10 | Accounts | | 2 | Bob | | 20 | HR | +----+--------+ +-----+-----------+ Join on Employees.D_ID = Departments.D_ID

2. Types of Database Joins

2.1 Inner Join

Definition: Returns rows when there is a match in both tables.

Syntax Example:

SELECT E.Name, D.DeptName FROM Employees E INNER JOIN Departments D ON E.D_ID = D.D_ID;

Result:

Only employees with a matching department appear in the output

2.2 Left Join (Left Outer Join)

Definition: Returns all rows from the left table, and matching rows from the right table. If no match, right table

columns are NULL.

Syntax Example:

SELECT E.Name, D.DeptName FROM Employees E LEFT JOIN Departments D ON E.D_ID = D.D_ID;

Result:

All employees listed; if an employee lacks a department, DeptName will be NULL.

2.3 Right Join (Right Outer Join)

Definition: Returns all rows from the right table, and matching rows from the left table. If no match, left table

columns will be NULL.

Syntax Example:

SELECT E.Name, D.DeptName FROM Employees E RIGHT JOIN Departments D ON E.D_ID = D.D_ID;

Result:

All departments are listed; if a department lacks an employee, employee columns will be NULL.

2.4 Self Join

Definition: A table is joined with itself to compare rows within the same table.

Syntax Example:

Suppose an Employees table with a Manager_ID field:

SELECT * FROM HR_Employees;

4. Transactional Control Transactions in Databases

A transaction is a single logical unit of work that may contain multiple operations. Transactions ensure the

integrity of the database even in the presence of errors or failures

ACID Properties:

 Atomicity: All operations succeed or none do.

 Consistency: Data moves from one valid state to another.

 Isolation: Transactions do not interfere with each other.

 Durability: Changes are permanent once transaction completes.

Transaction Control Statements Command Description BEGIN Start a transaction COMMIT Save all changes made in the transaction ROLLBACK Undo all changes since transaction began SAVEPOINT Set a point within a transaction to roll back to

Example Scenario:

Transfer ₹100 from Account A to B:

1. BEGIN TRANSACTION

2. Deduct from A

3. Add to B

4. If both succeed, COMMIT; else, ROLLBACK any partial update

Sample SQL:

BEGIN;

UPDATE accounts SET balance = balance - 100 WHERE id = 1;

UPDATE accounts SET balance = balance + 100 WHERE id = 2; COMMIT; Summary Table: Joins and Views Concept Key Point Example SQL/Diagram Inner Join Only matching rows from both tables ...INNER JOIN...ON... Left Join All rows left table, match or NULL from right (^) ...LEFT JOIN...ON... Right Join All rows right table, match or NULL from left (^) ...RIGHT JOIN...ON... Self Join Join table with itself (^) FROM T1 INNER JOIN T1 T ... View Virtual table built from query (^) CREATE VIEW view_name AS SELECT ... Transaction Logical unit of work; ACID properties BEGIN; ... COMMIT;

Note: Mastery of joins, views, and transactions is essential for robust, efficient, and maintainable relational

database design.
