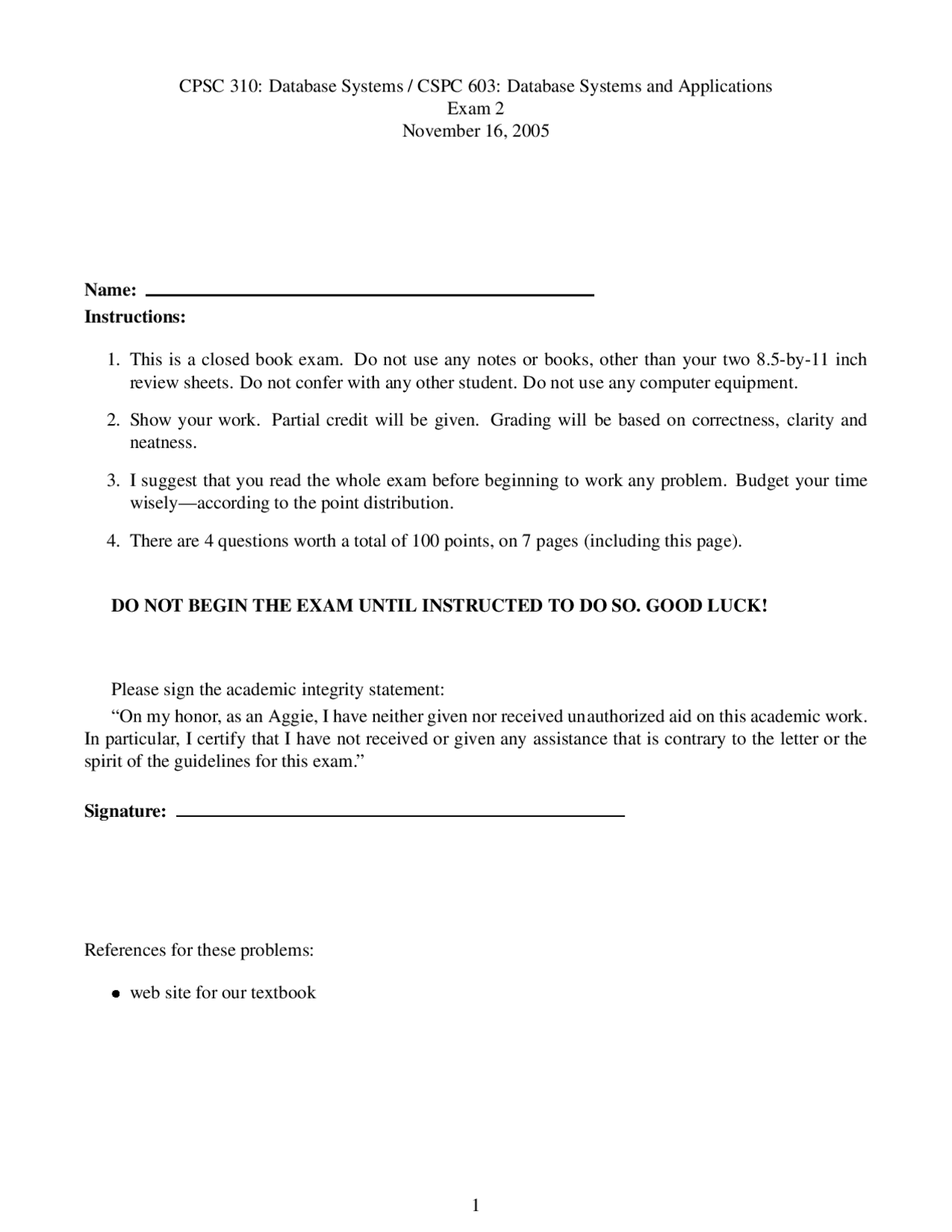

CPSC 310: Database Systems / CSPC 603: Database Systems and Applications Exam 2 November 16, 2005
Name:
Instructions:
- This is a closed book exam. Do not use any notes or books, other than your two 8.5-by-11 inch review sheets. Do not confer with any other student. Do not use any computer equipment.
- Show your work. Partial credit will be given. Grading will be based on correctness, clarity and neatness.
- I suggest that you read the whole exam before beginning to work any problem. Budget your time wisely—according to the point distribution.
- There are 4 questions worth a total of 100 points, on 7 pages (including this page).
DO NOT BEGIN THE EXAM UNTIL INSTRUCTED TO DO SO. GOOD LUCK!
Please sign the academic integrity statement: “On my honor, as an Aggie, I have neither given nor received unauthorized aid on this academic work. In particular, I certify that I have not received or given any assistance that is contrary to the letter or the spirit of the guidelines for this exam.”
Signature:
References for these problems:
web site for our textbook
- (30 pts total) True/False.
(a) (3 pts) On average, repeated random disk I/O’s are faster than repeated sequential disk I/O’s because random I/O’s tend to access different cylinders and therefore cause less contention.
(b) (3 pts) For any data file, it is possible to construct two separate sparse indexes on different keys.
(c) (3 pts) There is a benefit to constructing a two-level index that has a dense first level and a dense second level.
(d) (3 pts) RAID Level 5 (having each data disk serve as the spare disk for some blocks) allows the system to tolerate up to 5 disk crashes at the same time.
(e) (3 pts) Since there is no downside to having indexes, we may as well build an index on every attribute of every relation to speed up as many queries as possible.
(f) (3 pts) A drawback of hashing indexes is that they are slower than B-trees for queries of the form “attribute equals constant”.
(g) (3 pts) In order to perform bag union of relations R and S with M memory buffers, the size of the
smaller relation must be at most M 2.
(h) (3 pts) Say a randomly chosen block is being fetched from disk. The overall access delay per byte decreases as the block size increases.
(i) (3 pts) Consider relation R (A; B ; C ; D ) and a query that asks for all tuples of R with attribute A
between 30 and 100. Suppose relation R is stored in a file using 100 blocks, and there is a B-tree index
of height 2 over R with key A that has 30 leaf nodes. It would take fewer disk I/O’s to use the index to
execute the query than to perform a sequential scan on the file.
(j) (3 pts) Since natural join is associative and commutative, the same number of disk I/O’s are executed no matter what order a series of joins are done in.
(c) (6 pts) Which storage organization is better for queries in which all Company records need to be scanned in order of company id? Justify your answer.
Now consider indexing these relations. Suppose we want a primary index on Company.Number. Each index entry associates a 10 byte pointer with a key. The blocks available for use by the index hold 4096 bytes each, with 96 bytes reserved for header information.
(d) (7 pts) For the sequential organization described above, how many index blocks are needed for a sparse primary index? Justify your answer.
- (20 pts total) Query Execution.
Suppose we have two unary relations, R and S with these tuples:
R : 7, 2, 9, 8, 3, 9, 1, 3, 6
S : 8, 4, 2, 1, 3, 2, 7, 3
Show the result of joining R and S using each of the following algorithms. List the results in the order
that they would be output by the join algorithm.
(a) (10 pts) Naive (one tuple at a time) nested loops join. Use R for the outer loop and S for the inner loop.
(b) (10 pts) Hash join. Assume there are two hash buckets, numbered 0 and 1, and that the hash function sends even values to bucket 0 and odd values to bucket 1. In the second phase, assume that bucket 0 is processed before bucket 1 and that the contents of a bucket are read in the same order as they were written.
(c) (9 pts) Consider the following logical query plan, which finds the names of all customers who ordered a book that was shipped after Jan 1, 2005.
Label each relational operator in the tree with the expected result size in terms of the number of tuples. Assume Containment of Value Sets and Preservation of Value Sets. Use the heuristics discussed in lecture, which are from the textbook.
Use these statistics:
T (Order) = 30 ; 000.
V (Order,OrderID) = 1 ; 000.
V (Order,CustID) = 3 ; 000.
V (Order,BookID) = 1 ; 000.
V (Order,ShipDate) = 2 ; 500.
T (Cust) = 3 ; 000.
V (Cust,CustID) = 3 ; 000.
V (Cust,Name) = 2 ; 750.
T (Book) = 7 ; 000.
