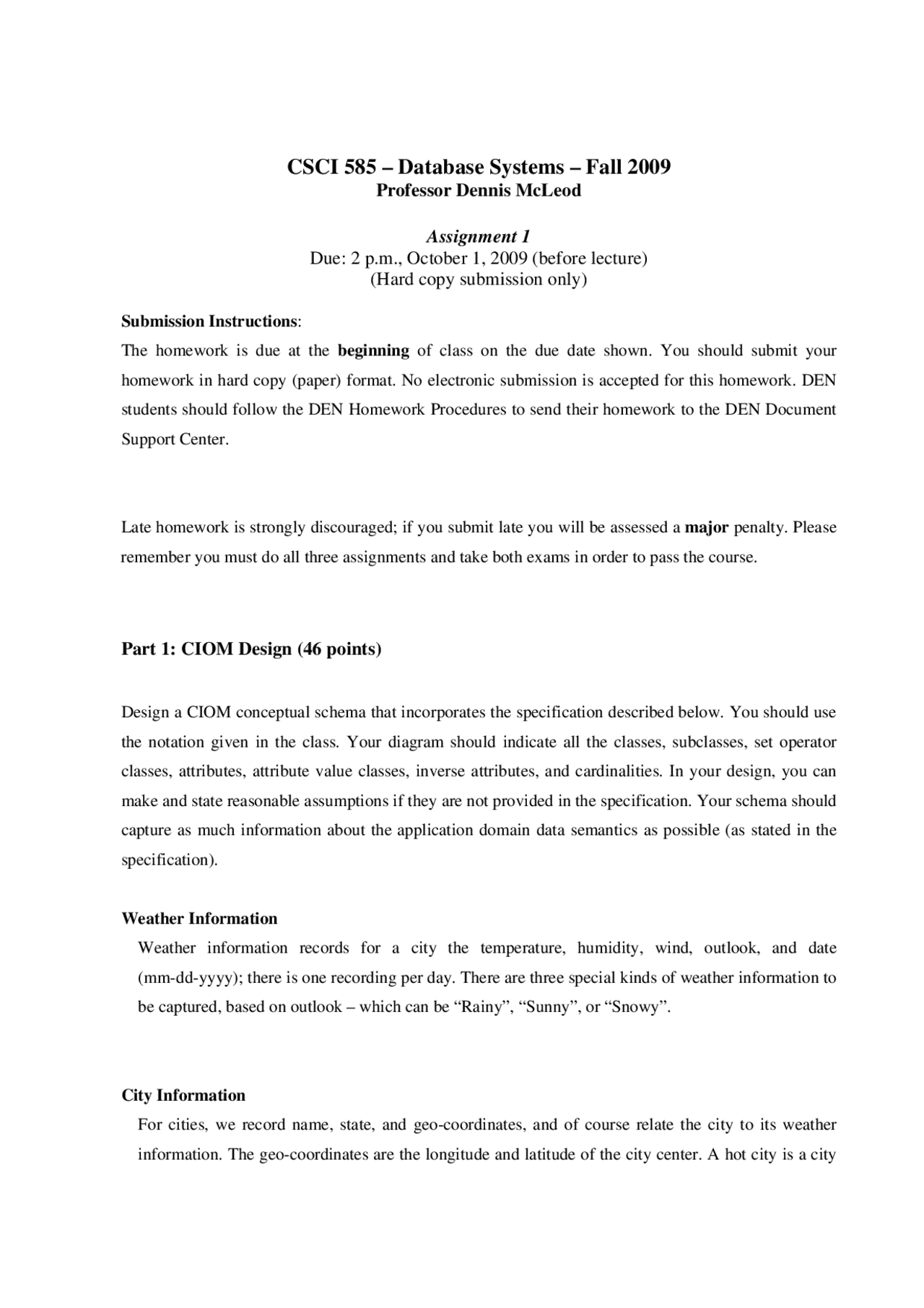

CSCI 585 – Database Systems – Fall 2009
Professor Dennis McLeod
Assignment 1
Due: 2 p.m., October 1, 2009 (before lecture)
(Hard copy submission only)
Submission Instructions:
The homework is due at the beginning of class on the due date shown. You should submit your
homework in hard copy (paper) format. No electronic submission is accepted for this homework. DEN
students should follow the DEN Homework Procedures to send their homework to the DEN Document
Support Center.
Late homework is strongly discouraged; if you submit late you will be assessed a major penalty. Please
remember you must do all three assignments and take both exams in order to pass the course.
Part 1: CIOM Design (46 points)
Design a CIOM conceptual schema that incorporates the specification described below. You should use
the notation given in the class. Your diagram should indicate all the classes, subclasses, set operator
classes, attributes, attribute value classes, inverse attributes, and cardinalities. In your design, you can
make and state reasonable assumptions if they are not provided in the specification. Your schema should
capture as much information about the application domain data semantics as possible (as stated in the
specification).
Weather Information
Weather information records for a city the temperature, humidity, wind, outlook, and date
(mm-dd-yyyy); there is one recording per day. There are three special kinds of weather information to
be captured, based on outlook – which can be “Rainy”, “Sunny”, or “Snowy”.
City Information
For cities, we record name, state, and geo-coordinates, and of course relate the city to its weather
information. The geo-coordinates are the longitude and latitude of the city center. A hot city is a city
pf3

Partial preview of the text

Download Database Systems Assignment 1 for CSCI 585 - Fall 2009 - Prof. Dennis Mcleod and more Assignments Deductive Database Systems in PDF only on Docsity!

CSCI 585 – Database Systems – Fall 2009

Professor Dennis McLeod

Assignment 1

Due: 2 p.m., October 1, 2009 (before lecture)

(Hard copy submission only)

Submission Instructions : The homework is due at the beginning of class on the due date shown. You should submit your homework in hard copy (paper) format. No electronic submission is accepted for this homework. DEN students should follow the DEN Homework Procedures to send their homework to the DEN Document Support Center.

Late homework is strongly discouraged; if you submit late you will be assessed a major penalty. Please remember you must do all three assignments and take both exams in order to pass the course.

Part 1: CIOM Design (46 points)

Design a CIOM conceptual schema that incorporates the specification described below. You should use the notation given in the class. Your diagram should indicate all the classes, subclasses, set operator classes, attributes, attribute value classes, inverse attributes, and cardinalities. In your design, you can make and state reasonable assumptions if they are not provided in the specification. Your schema should capture as much information about the application domain data semantics as possible (as stated in the specification).

Weather Information Weather information records for a city the temperature, humidity, wind, outlook, and date (mm-dd-yyyy); there is one recording per day. There are three special kinds of weather information to be captured, based on outlook – which can be “Rainy”, “Sunny”, or “Snowy”.

City Information For cities, we record name, state, and geo-coordinates, and of course relate the city to its weather information. The geo-coordinates are the longitude and latitude of the city center. A hot city is a city

where the temperature on 09-14-2009 is over 80 (F). A humid city is a city where humidity on 09-14-2009 is over 60 (%). A hot and humid city is both a hot city and humid city. For each hot and humid city, we record the employees (see below) who monitor the city (for possible problems). We also have special kinds of cities: attractive cities and unattractive cities. For attractive cities we have a text explanation of why it is considered attractive.

Person Information For each person, we record a unique SSN (Social Security Number), name, city (of residence), and (main) phone number. An employee is a special kind of person, for which we record a unique employee ID, starting Date, gender, and age. An employee has managers who are also employees. Engineers and Staff are special kinds of employees. For engineers, we record expert level. For staff, we record a section.

Part 2: Comparing CIOM and EER (30 points)

Compare and contrast “CIOM” with the “EER model” in 200 words or less.

Part 3: Short Problems (24 points)

  1. Given the many-to-many relationship shown below as an attribute/inverse pair in CIOM:

Suppose that the date a doctor diagnosed a patient is to be added to the conceptual schema. What changes would you make to the above to accommodate this additional information?

  1. Consider the following CIOM conceptual schema fragments. Based on the given information, state the attributes of the members of classes C5 and C6. Briefly explain your answer.
