Licensing exam for crane operators (Class III). Assesses crane safety, rigging, load charts, DC safety codes, communication, and equipment operation. Required for safe crane operation in construction and industrial projects.
Typology: Exams
1 / 179
This page cannot be seen from the preview
Don't miss anything!

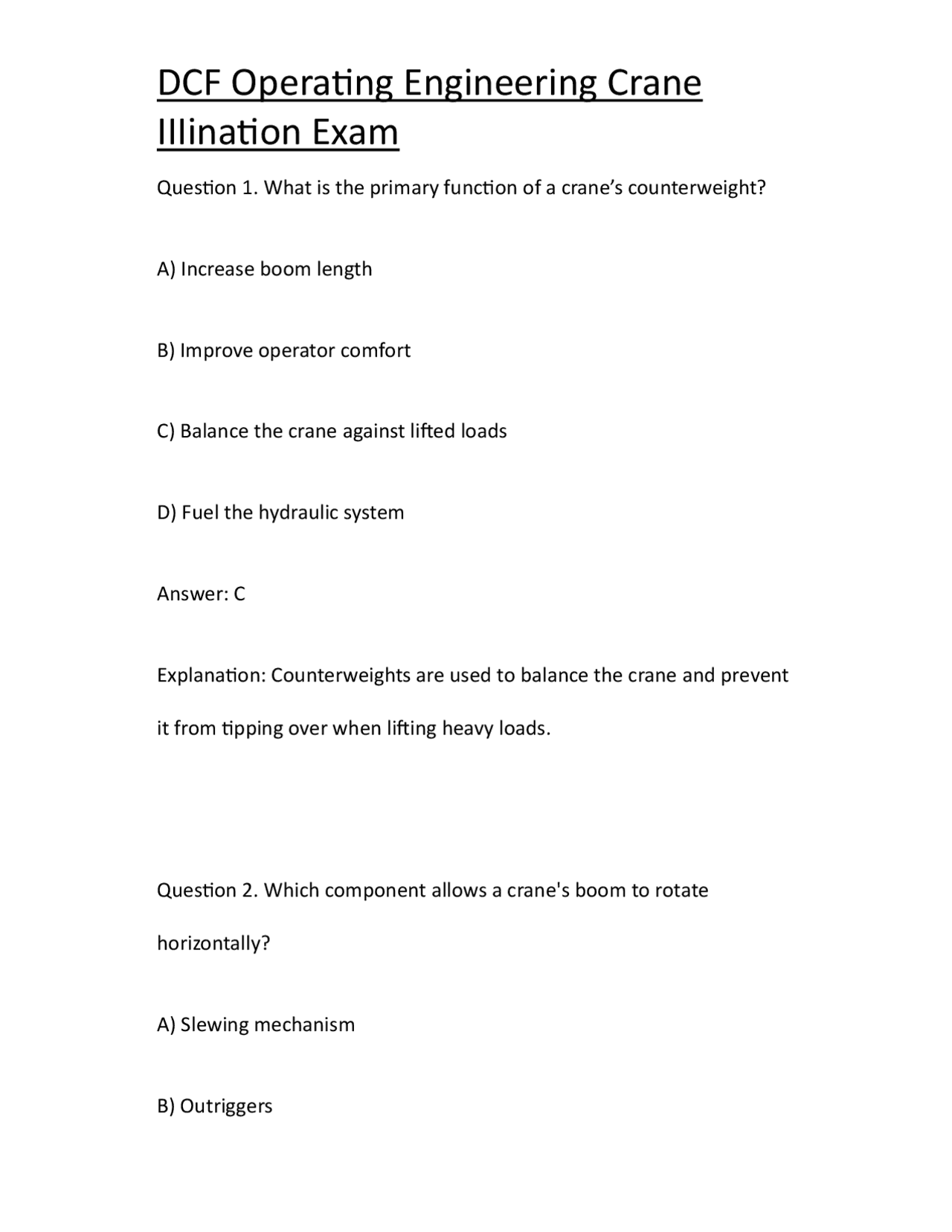

Question 1. What is the primary function of a crane’s counterweight? A) Increase boom length B) Improve operator comfort C) Balance the crane against lifted loads D) Fuel the hydraulic system Answer: C Explanation: Counterweights are used to balance the crane and prevent it from tipping over when lifting heavy loads. Question 2. Which component allows a crane's boom to rotate horizontally? A) Slewing mechanism B) Outriggers
C) Hoist drum D) Trolley Answer: A Explanation: The slewing mechanism enables the crane’s superstructure and boom to rotate horizontally. Question 3. What is a jib on a crane? A) The main lifting cable B) An extension attached to the boom C) The operator’s cabin D) The counterweight Answer: B
Question 5. What does the term “outriggers” refer to? A) The main lifting hook B) Stabilizing supports that extend from the crane base C) The hydraulic fluid lines D) The wheels Answer: B Explanation: Outriggers are supports that extend to stabilize a crane during operation. Question 6. What is the function of a sheave in crane operations? A) To anchor the crane B) To guide and change the direction of wire rope
C) To house the engine D) To display load indicators Answer: B Explanation: Sheaves are pulleys that wire rope runs over, changing its direction. Question 7. What type of hook is most suitable for general lifting purposes on a crane? A) Ramshorn hook B) Eye hook C) Swivel hook D) Clevis hook Answer: C
A) The speed at which the load is lifted B) The product of the load weight and its distance from the crane’s center of rotation C) The time taken to complete a lift D) The force of the wind Answer: B Explanation: Load moment is calculated as load weight × radius; it is critical for stability. Question 10. How does increasing the boom angle affect a crane’s lifting capacity? A) Increases it B) Decreases it
C) No effect D) Doubles it Answer: A Explanation: A higher boom angle (closer to vertical) generally increases lifting capacity. Question 11. What is the primary function of the hoist drum? A) Support the crane’s weight B) Wind and unwind the lifting cable C) Provide power to the boom D) Rotate the superstructure Answer: B
Question 13. What is the effect of decreasing the sling angle below 90 degrees? A) Decreases tension B) Increases tension in the sling legs C) No effect D) Weakens the load Answer: B Explanation: Lower sling angles increase tension, reducing safe working loads. Question 14. How is the Safe Working Load (SWL) of rigging hardware determined? A) Manufacturer’s specifications and safety factors
B) Operator’s judgment C) Weather conditions D) The color of the hardware Answer: A Explanation: SWL is set by the manufacturer based on material strength and safety factors. Question 15. What does a “spreader bar” do in lifting operations? A) Increases boom length B) Distributes load over multiple lifting points C) Adds weight to the load D) Supports the rigger
Question 17. What is the main advantage of radio communication during crane operations? A) Reduces paperwork B) Allows communication when the operator cannot see the signal person C) Increases lifting speed D) Prevents equipment wear Answer: B Explanation: Radios are essential for clear instructions when visibility is limited. Question 18. Why is situational awareness important for crane operators?
A) Helps them operate faster B) Ensures awareness of hazards and people nearby C) Reduces fuel usage D) Increases wire rope life Answer: B Explanation: Situational awareness prevents accidents and injuries on site. Question 19. What is the minimum clearance from overhead power lines required for cranes operating up to 350 kV according to OSHA? A) 5 feet B) 10 feet C) 20 feet
Explanation: Site surveys identify hazards and ensure safe crane placement. Question 21. What can strong winds cause during crane operations? A) Improved lifting capacity B) Load swing and instability C) Less wear on equipment D) Increased visibility Answer: B Explanation: Wind can cause loads to swing, risking stability and safety. Question 22. What is the first step in a daily crane inspection?
A) Check hydraulic fluid levels B) Start the engine C) Test the hoist D) Inspect the hook for cracks Answer: A Explanation: Checking fluid levels is typically the first inspection item. Question 23. Why must load charts be referenced before lifting? A) To find operator instructions B) To ensure the lift does not exceed crane capacity C) To check battery voltage D) To calculate fuel usage
Question 25. What is a pre-lift meeting? A) A meeting to order supplies B) A discussion to review the lift plan and assign roles C) A lunch break D) A maintenance routine Answer: B Explanation: Pre-lift meetings ensure everyone understands the plan and safety procedures. Question 26. When interpreting a load chart, what does the “radius” refer to? A) The weight of the load B) The length of the boom
C) The horizontal distance from the center of rotation to the load D) The height of the lift Answer: C Explanation: Radius is the horizontal distance from crane center to the load’s center of gravity. Question 27. What is a “gross load” in crane terminology? A) The weight of the boom B) The total weight being lifted, including rigging and load C) The weight of the load minus rigging D) The base weight of the crane Answer: B
